Hayward Dual-Suction Main Drain Assembly 1-1/2-Inch White — WG1048AVPAK2, Adjustable Plaster Collar

Hayward WG1048AVPAK2 is a complete dual-suction main drain assembly for vinyl or fiberglass pools, with a 1-1/2-inch side outlet and adjustable plaster collar for secure, code-compliant installation.

This main drain set from Hayward is built to be a ready-to-install solution for new pools or renovation projects where a dual-suction outlet is required. The kit meets ASME/ANSI testing standards and comes with everything a technician needs: two sumps, two covers, a mounting ring, gaskets, screws and a 1-1/2-inch FIP bottom plug. Finished in white, the 7-7/8-inch diameter face provides broad coverage and a clean, low-profile look for residential vinyl and fiberglass pools.

How does this drain assembly fit different pool finishes?

The WG1048AVPAK2 includes an adjustable plaster collar that lets you set the faceplate depth for either vinyl or fiberglass liners, ensuring a flush finish and reliable sealing. The design accommodates standard liner thicknesses without trimming or special adapters.

• Adjustable plaster collar for depth alignment
• Compatible with vinyl and fiberglass pool walls
• 7-7/8" diameter face for wide coverage
• White finish blends with common pool interiors

Does this meet current safety and plumbing standards?

Yes—the main drain set is ASME/ANSI tested and approved, designed as a VGB-style anti-entrapment dual suction outlet to meet common safety requirements. It includes the necessary components to complete a compliant installation when paired with appropriate piping and local code adherence.

• ASME/ANSI tested and approved construction
• Dual-suction configuration to reduce entrapment risk
• 1-1/2" FIP bottom plug for standard plumbing connections
• Complete kit eliminates the need for separate parts

What components are included and what do installers need to prepare?

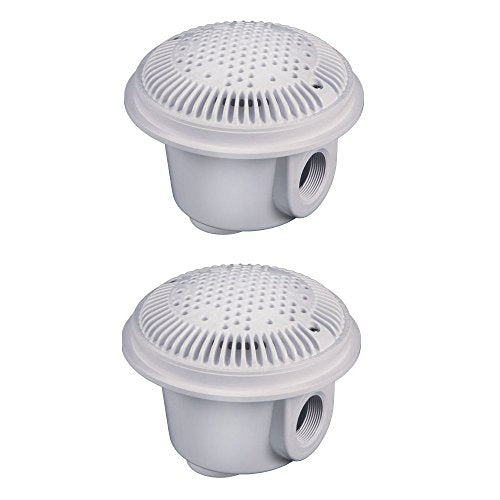

The package contains two sumps, two covers, a mounting ring, gaskets and screws—everything required to assemble both halves of the dual main drain. Installers should prepare compatible 1-1/2-inch pipe fittings, appropriate sealant or thread tape, and follow local code for suction outlet spacing and bonding.

• Included: 2 sumps, 2 covers, ring, gaskets, screws
• Plumbing: 1-1/2" FIP bottom plug connection required
• Tools: sealant, thread tape, standard hand tools for fastening
• Site prep: check spacing and bonding per local regulations

How will this affect pool appearance and maintenance?

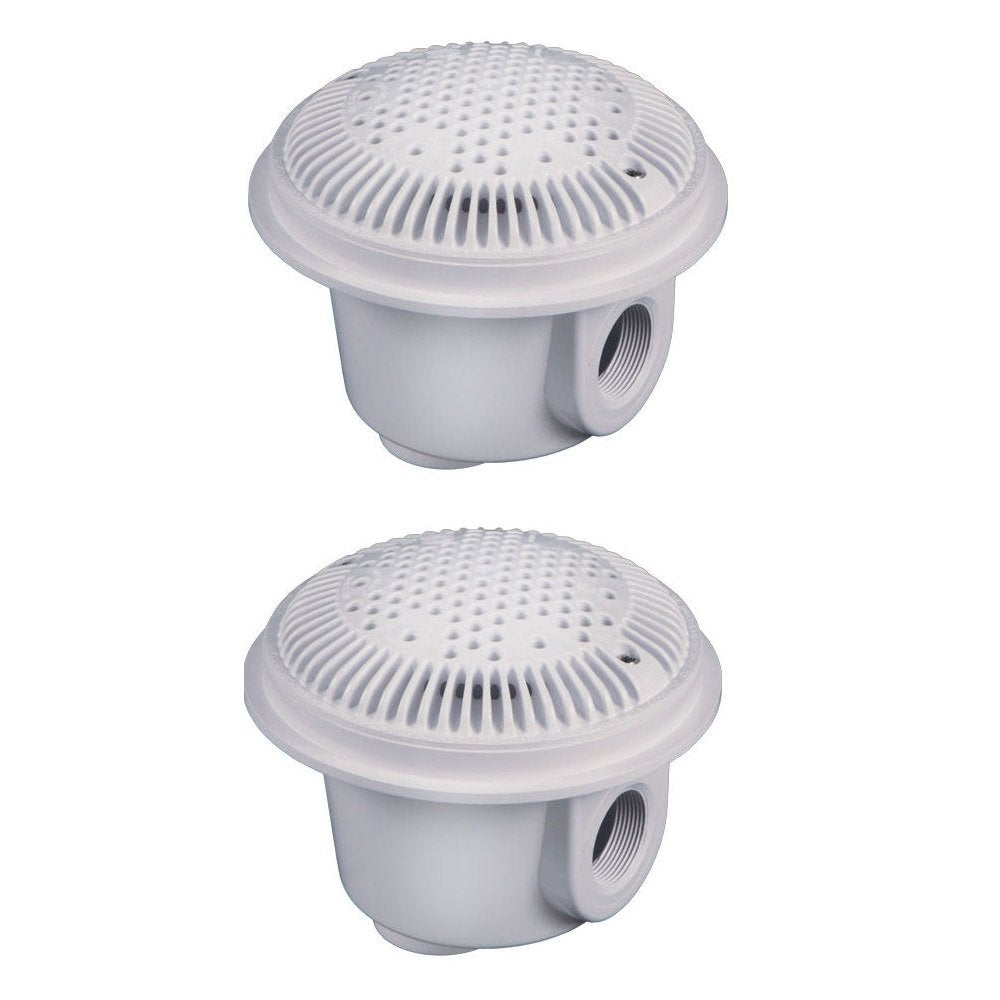

The low-profile, white faceplate provides a discreet look that works with most vinyl and fiberglass interiors while covering the sump effectively to reduce debris accumulation. The removable covers make inspection and service straightforward without disturbing the liner when routine checks or cleaning are needed.

• White finish integrates with common pool colors
• Removable covers allow easy inspection and cleaning
• Wide face minimizes visible openings in the pool surface
• Durable materials resist pool-chemical exposure

Who is this for: Pool builders, remodel contractors and experienced DIYers installing or upgrading a residential vinyl or fiberglass pool main drain who need a code-conscious, complete dual-suction outlet kit. This Hayward set simplifies procurement by packaging the required parts together and provides adjustable installation features suited to common liner and shell conditions.
