Hayward Aqua-Rite display PCB replacement, Black — OEM-compatible front-panel board restores readout and controls

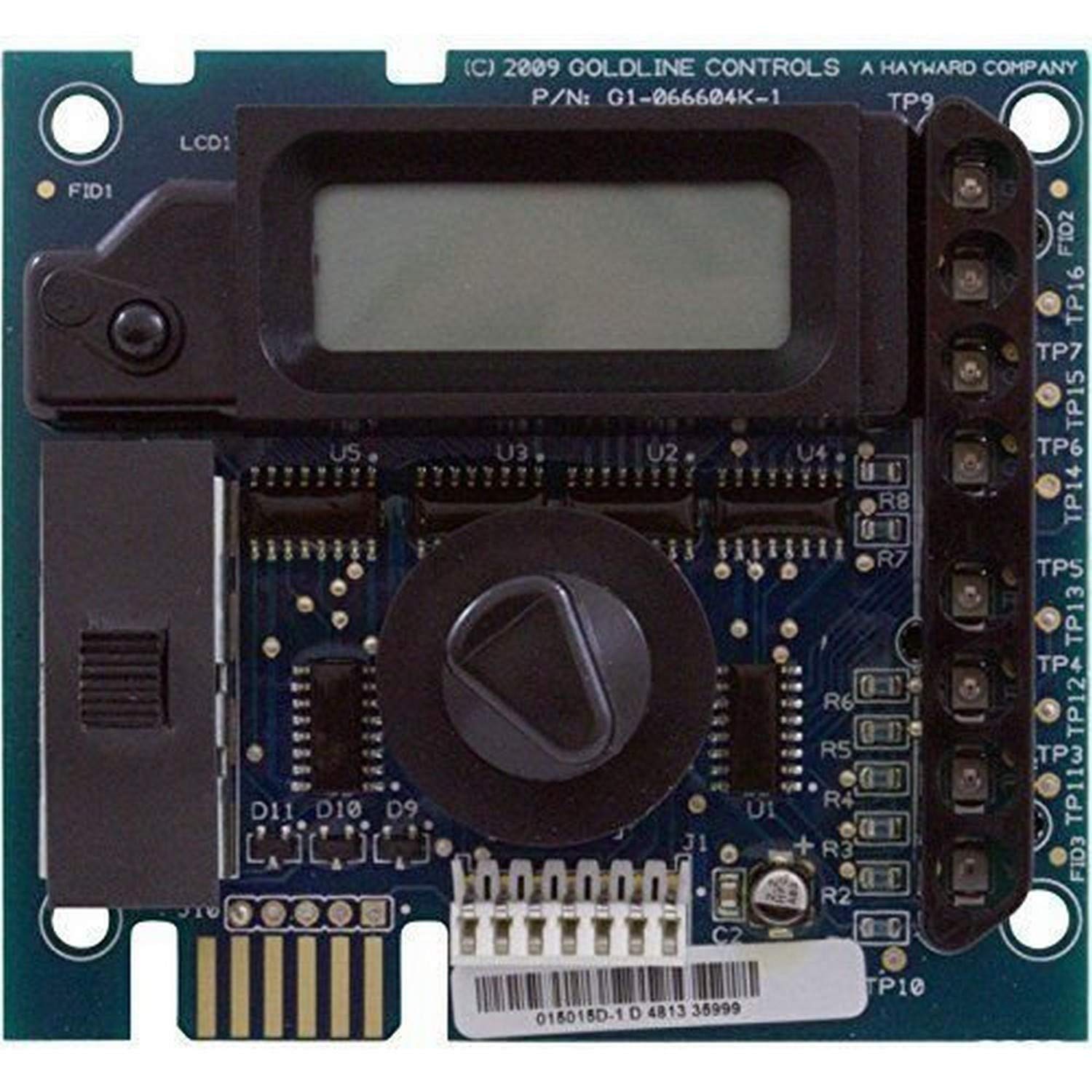

The Hayward GLX-PCB-DSP is the black replacement display PCB for Hayward Goldline Aqua-Rite and Aqua Trol salt chlorine generator control systems, restoring front-panel readout and controls.

If your Goldline Aqua-Rite (AQR) or compatible Aqua Trol (AQ-TROL-RJ, AQ-TROL-RJ-TL, AQ-TROL-HP, AQ-TROL-HP-TL) salt chlorine generator has a damaged, unresponsive, or blank display, the GLX-PCB-DSP provides a direct-fit replacement for the front-panel electronics. This PCB assembly restores the visual interface used to view system status, adjust settings, and read error codes without replacing the entire control module. It ships as a compact 8-ounce board engineered to match the factory form factor and connector layout for straightforward installation.

How will this display PCB fix my non-working Aqua-Rite or Aqua Trol front panel?

The GLX-PCB-DSP replaces the display electronics that handle screen output and button inputs, so if your unit powers on but the display is blank, flickering, or unresponsive, a new PCB typically resolves those symptoms. It reconnects to existing wiring harnesses and uses the original enclosure and mounting points, preserving your system’s setup and settings when installed correctly.

• Direct OEM-compatible replacement for damaged display circuitry
• Restores readable status indicators and error messages
• Compatible with Aqua-Rite AQR and listed Aqua Trol models
• Lightweight 8-ounce board designed for simple swap-in replacement

Is this PCB compatible with my specific Hayward model?

Yes — the GLX-PCB-DSP was designed to work with Hayward Goldline Aqua-Rite model AQR and multiple Aqua Trol variants including AQ-TROL-RJ, AQ-TROL-RJ-TL, AQ-TROL-HP, and AQ-TROL-HP-TL. Confirm your generator’s model printed on the control box label before ordering to ensure compatibility and avoid returns.

• Fits Hayward Goldline Aqua-Rite AQR units
• Also fits Aqua Trol AQ-TROL-RJ and AQ-TROL-RJ-TL models
• Compatible with AQ-TROL-HP and AQ-TROL-HP-TL models
• Check the control box model label to verify fitment

What should I expect during installation and setup?

Installation generally involves opening the control housing, disconnecting the old PCB harnesses, removing mounting screws, and installing the new GLX-PCB-DSP in the same orientation. Because this is a component-level replacement, follow basic safety steps: power off and disconnect mains, photograph wiring for reference, and gently seat connectors to avoid bending pins.

• Power down and unplug the unit before beginning work
• Document connector positions or photograph wiring for reassembly
• Mount the board using existing screw holes and reattach harnesses
• Power on and verify display functions and system status

What maintenance or troubleshooting tips help after replacement?

After installing the replacement display PCB, verify that the screen shows normal status messages and that buttons respond. If issues persist, reseat connectors, inspect for damaged traces or connectors, and confirm the power supply voltage to the control board. For persistent faults, consult Hayward technical documentation or a qualified pool technician.

• Confirm display illuminates and menus are navigable after power-up
• Reseat harnesses and check for bent pins if display remains faulty
• Verify correct line voltage and fuse integrity feeding the control box
• Contact Hayward support or a certified technician for complex faults

Who is this replacement PCB for? The Hayward GLX-PCB-DSP is aimed at pool owners, service technicians, and installers who maintain Goldline Aqua-Rite or Aqua Trol salt chlorine generators and need a cost-effective way to restore a non-functioning front panel. It’s ideal for anyone comfortable with basic electrical disassembly who wants an OEM-compatible part to return their control interface to full operation without replacing the full power module.
