Hayward A-Frame and Pod Tune-Up Kit for Navigator & Pool Vac XL AXV621417WHP — restores gait and suction

Hayward AXV621417WHP is a replacement A‑Frame and pod tune‑up kit made to restore the movement and sealing performance of Hayward Navigator and Pool Vac XL suction‑side pool cleaners.

If your Hayward Navigator or Pool Vac XL has slowed, stalled, or stopped gripping pool surfaces properly, this tune‑up set provides the parts typically replaced during routine maintenance. The kit assembles quickly and focuses on the mechanical components that wear from friction, UV exposure, and debris contact. It’s an economical way to extend the life of your cleaner without replacing the entire unit.

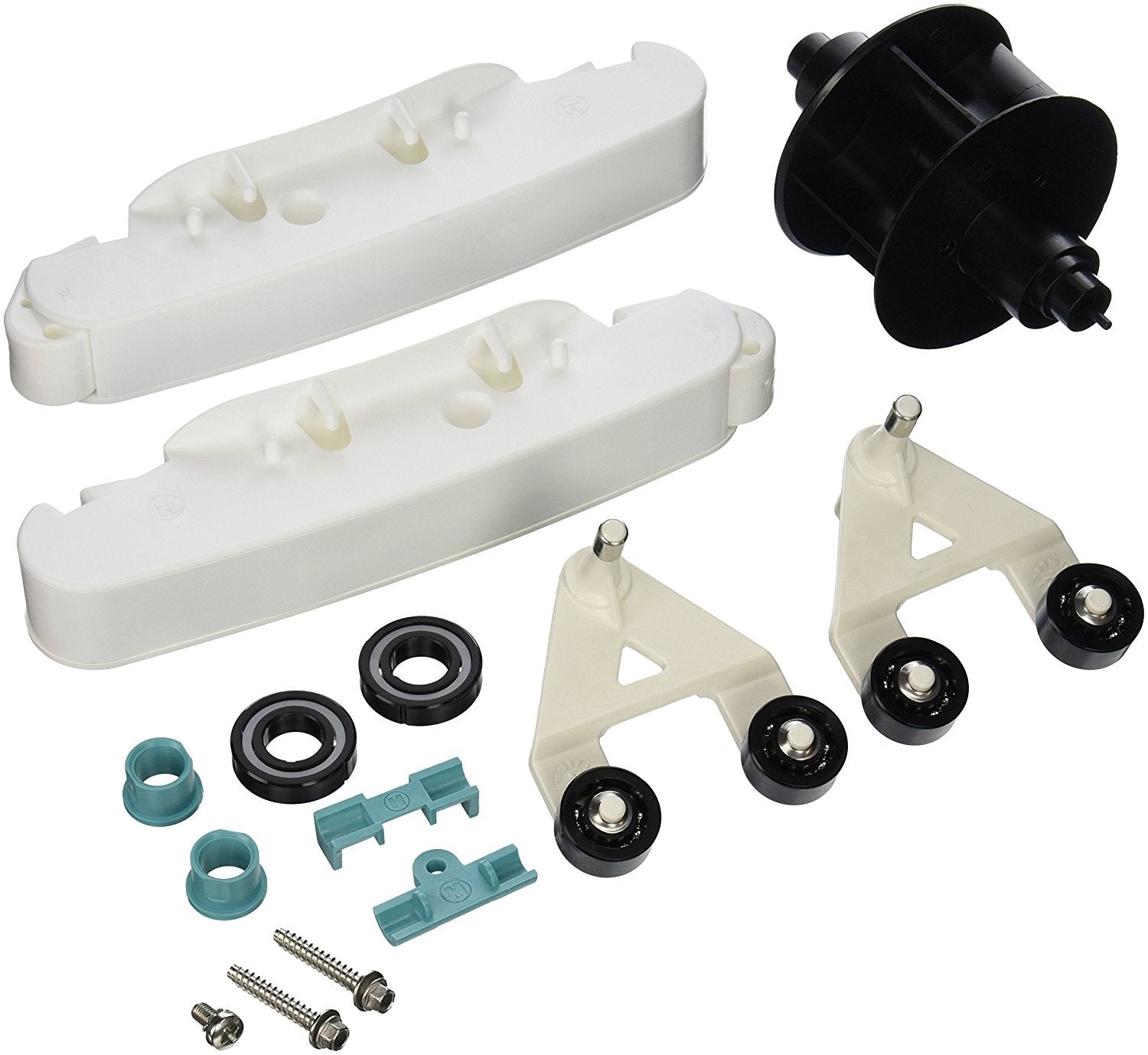

What parts are included and why do they matter?

The kit centers on the A‑frame and pod components that control how the cleaner walks and seals against the pool surface. Replacing these parts restores the cleaner’s gait and improves suction efficiency, which helps the unit traverse walls and floors more reliably.

• A‑frame — primary motion linkage that dictates stroke and balance.
• Pod(s) — wear points that contact surfaces and create sealing action.
• Replacement hardware — clips or pins needed for secure installation.

How do I install the tune‑up kit on my Navigator cleaner?

Installation is straightforward for anyone comfortable with basic mechanical swaps — no special tools or glue are required in most cases. Remove the old frame and pod, align the new A‑frame with the cleaner body, and secure the pod using the included fasteners; test operation in a shallow area before full use.

• Disconnect cleaner and inspect existing wear before starting.
• Follow connector alignment marks for correct A‑frame orientation.
• Test the cleaner on a partial pool cycle to confirm motion and seal.

Will this kit fit my specific Hayward suction‑side model?

This tune‑up kit is designed for Hayward Navigator and the Pool Vac XL (Navigator Pro) suction‑side cleaners; it matches the original dimensions and connection points those models use. Verify your cleaner model number against the kit part AXV621417WHP to ensure compatibility before ordering.

• Fits Hayward Navigator and Pool Vac XL/Navigator Pro suction cleaners.
• Check model stamp or owner manual for AXV621417WHP compatibility.
• If unsure, consult Hayward support or your dealer with serial/model info.

How often should I replace the A‑frame and pods?

Replacement frequency depends on pool conditions and usage but a visual inspection every season is a good rule of thumb. Replace these parts when you see visible wear, cracking, or if the cleaner slips, stalls, or leaves debris behind despite normal suction.

• Inspect annually if the cleaner runs regularly in sunny or harsh conditions.
• Replace sooner if you notice cracking, chunking, or loss of seal against surfaces.
• Keep spare kits on hand for quick field repairs during heavy cleaning seasons.

Who is this for: Pool owners and maintenance pros using Hayward Navigator or Pool Vac XL suction‑side cleaners who want an affordable, do‑it‑yourself way to restore movement and surface seal. If your cleaner is running slowly, failing to climb walls, or showing wear on the moving parts, this AXV621417WHP tune‑up kit provides the primary replacement components needed to bring performance back without buying a complete unit.
