Gpartsden 22" Snow Blower Scraper Bar Replacement for MTD/Cub Cadet — 22in, 1/8" Thick, 4-Hole Mount

Gpartsden's 22" scraper bar (790-00117-0637) is a direct-fit aftermarket shave plate designed to replace worn scraper bars on 22" two-stage MTD and Cub Cadet snow blowers.

When the rubber or metal scraper bar on your snow thrower wears down, snow and ice won't be removed cleanly and the machine can dig or leave streaks. This replacement scraper bar is made to the same dimensions as the original OEM part numbers (784-5576, 784-5576-0637, 790-00117-0637) so you can restore edge-to-pavement contact and preserve the auger housing. It ships brand new and unused, but it is an aftermarket part—double-check the measurements and mounting hole pattern against your unit before ordering.

Will this scraper bar fit my snow blower model?

This bar fits most 22" two-stage MTD and Cub Cadet snow blowers made from 1995 onward that use the listed part numbers. Match the length, width, thickness and hole spacing to your worn part to confirm compatibility.

• Compatible with: Cub Cadet, MTD 1030E, 522 WE/522E/522WE, 724 WE/724E/724WE, 926E 22" two-stage units
• Replaces OEM numbers: 784-5576, 784-5576-0637, 790-00117-0637
• Designed for models from 1995 and newer

What are the exact dimensions and mounting details?

Use the provided measurements to verify fit before installing. The scraper bar is built to standard specs so it mounts where your old shave plate did.

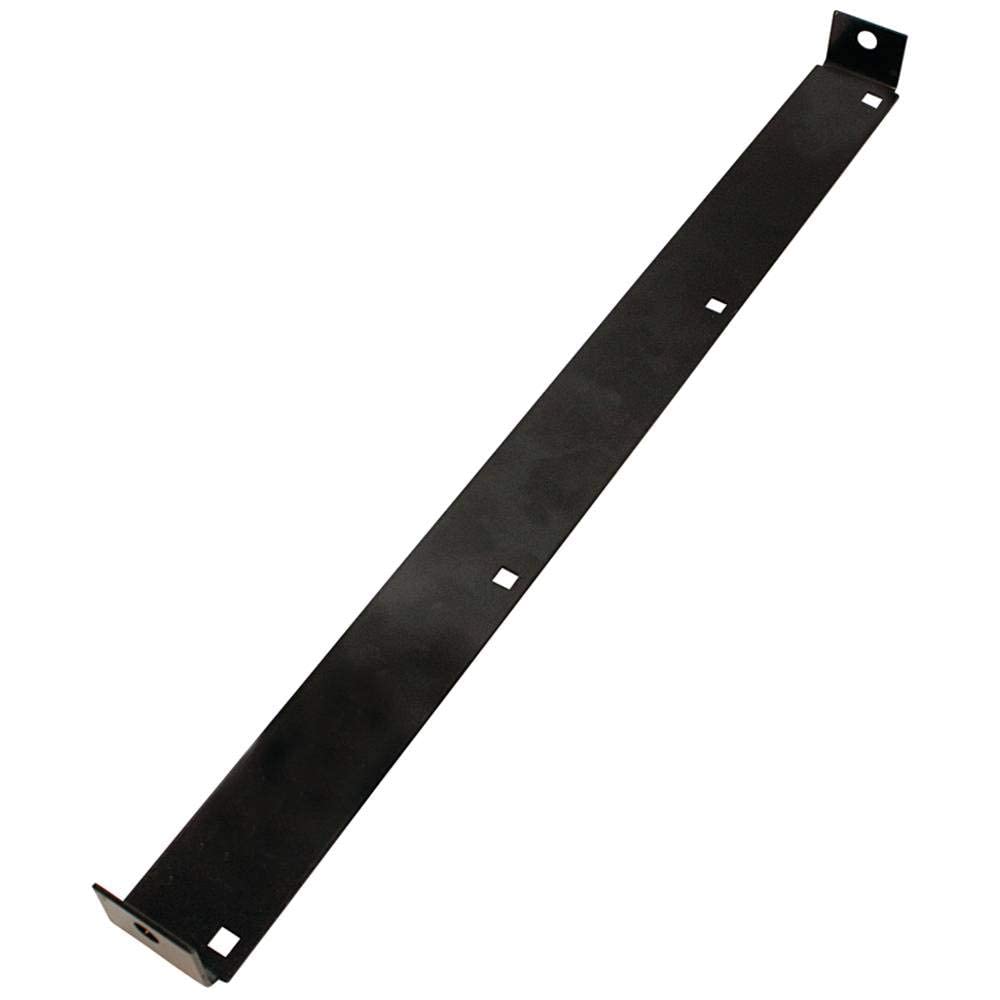

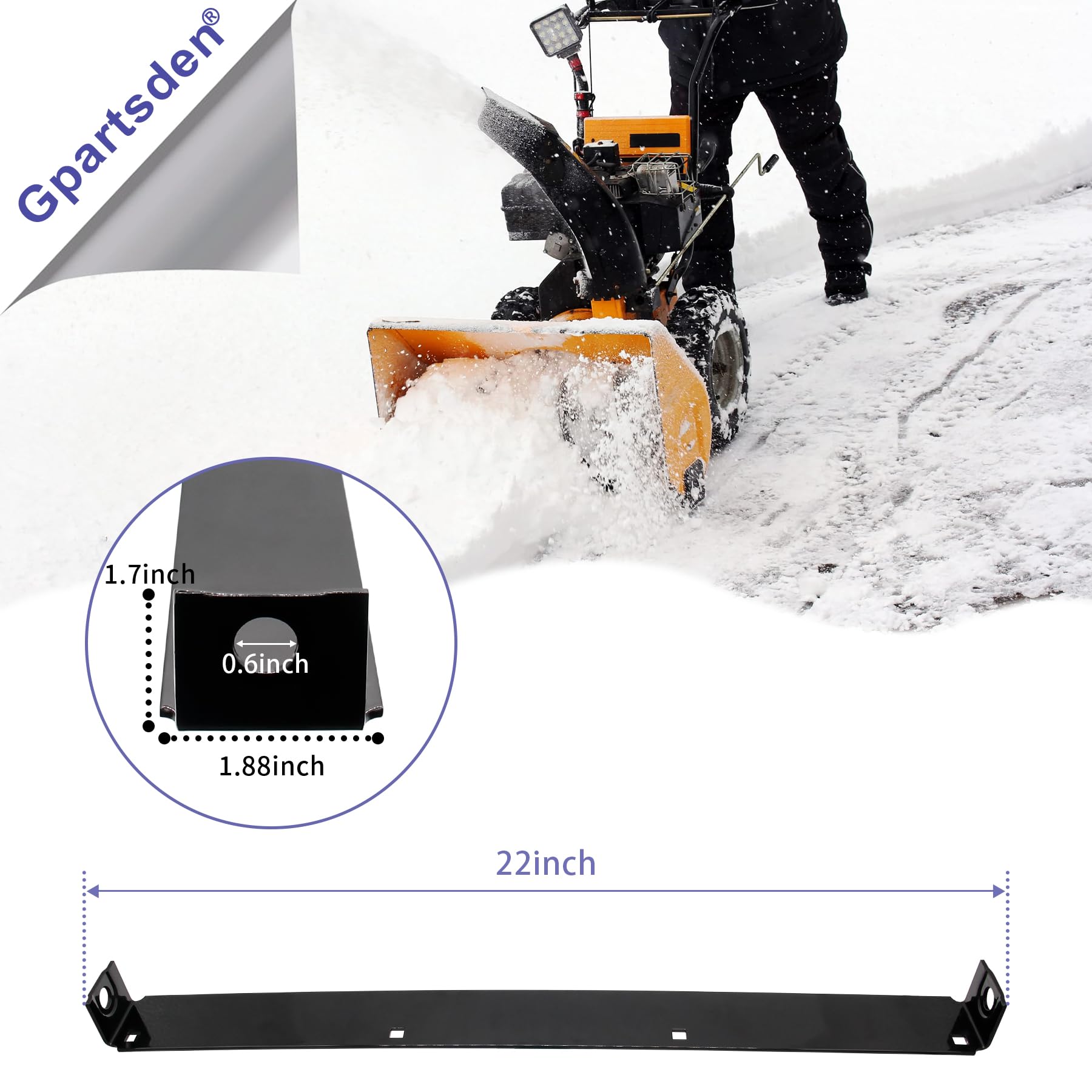

• Total length: 22 inches
• Width: 2 1/4 inches; thickness: 1/8 inch
• Inner diameter (ID) for center fit: 0.474 inches and 4 mounting holes with 0.35" ID
• Four-hole mounting pattern matches common two-stage designs

How durable is this replacement and how do I install it?

This aftermarket scraper bar is made for routine snow-clearing wear but will still wear over seasons depending on surface conditions. Installation is straightforward if you have basic tools: remove the old bar, align the new bar’s mounting holes, and tighten fasteners to secure it.

• Material thickness (1/8") balances flexibility and wear resistance
• Replace when the edge is rounded, uneven, or scraping poorly
• Installation tip: clean the mounting surface and use the original bolts or equivalent grade fasteners

Can I expect OEM-level performance from an aftermarket part?

Aftermarket parts like this Gpartsden scraper bar are manufactured to match OEM dimensions, restoring function for most owners at a lower cost. While not branded OEM, it performs the same role—reestablishing a straight, firm edge so your blower clears closer to pavement.

• Brand new, unused aftermarket replacement—confirm fit first
• Cost-effective alternative to OEM while maintaining correct geometry
• Works best when installed and tightened to manufacturer torque specs

Who this is for: This replacement scraper bar is for homeowners and property-maintenance crews who own a 22" two-stage MTD or Cub Cadet snow blower (1995 or newer) and need an economical, dimensionally accurate shave plate to restore scraping performance. Choose this part if your current scraper is visibly worn, uneven, or no longer makes clean contact with pavement and you can verify the mounting holes and measurements match your machine.
