Generic MPPT Solar Charge Controller 1200W 15A Boost for 48V/60V/72V LiFePO4 — LCD, Metal/ABS Case

A compact 1200W MPPT boost solar charge controller that converts 12–60V array input into regulated 48–72V charging at up to 15A for LiFePO4 and other batteries.

This high-efficiency MPPT controller is built to extract maximum solar harvest from smaller or variable-voltage arrays and boost that energy reliably into higher-voltage battery systems used in off-grid, RV, e-bike, and mobile power setups. The unit combines real-time LCD monitoring, robust safety protections, and a metal/ABS housing designed for heat dissipation and long-term outdoor use.

How does this MPPT boost controller improve charging from small or low-voltage panels?

The controller continuously tracks the solar array's maximum power point and uses boost conversion to raise low input voltages into the higher battery bank range. That allows you to use panels or sources that would otherwise be undersized for a 48–72V system, improving runtime and charging consistency in low-light conditions.

• 1200W maximum PV input power for steady energy flow
• Boosts 12–60V input up to a selectable 48V, 60V, or 72V battery output
• 15A maximum charging current to balance safe charging speed with battery longevity
• MPPT algorithm tracks rapid changes in irradiance for higher yield than PWM

Which battery types and voltages are compatible with this controller?

This controller supports multiple chemistry profiles so you can pair it with common battery banks used in mobile and off-grid systems. LiFePO4 is included alongside generic Lithium, Lead-Acid, AGM, and Gel settings, letting you select the appropriate charge parameters from the integrated menu.

• Preset profiles for LiFePO4, lithium, lead-acid, AGM, and gel batteries
• Configurable charge voltages for 48V, 60V, or 72V systems
• Overcharge and over-discharge protections tailored to selected chemistry

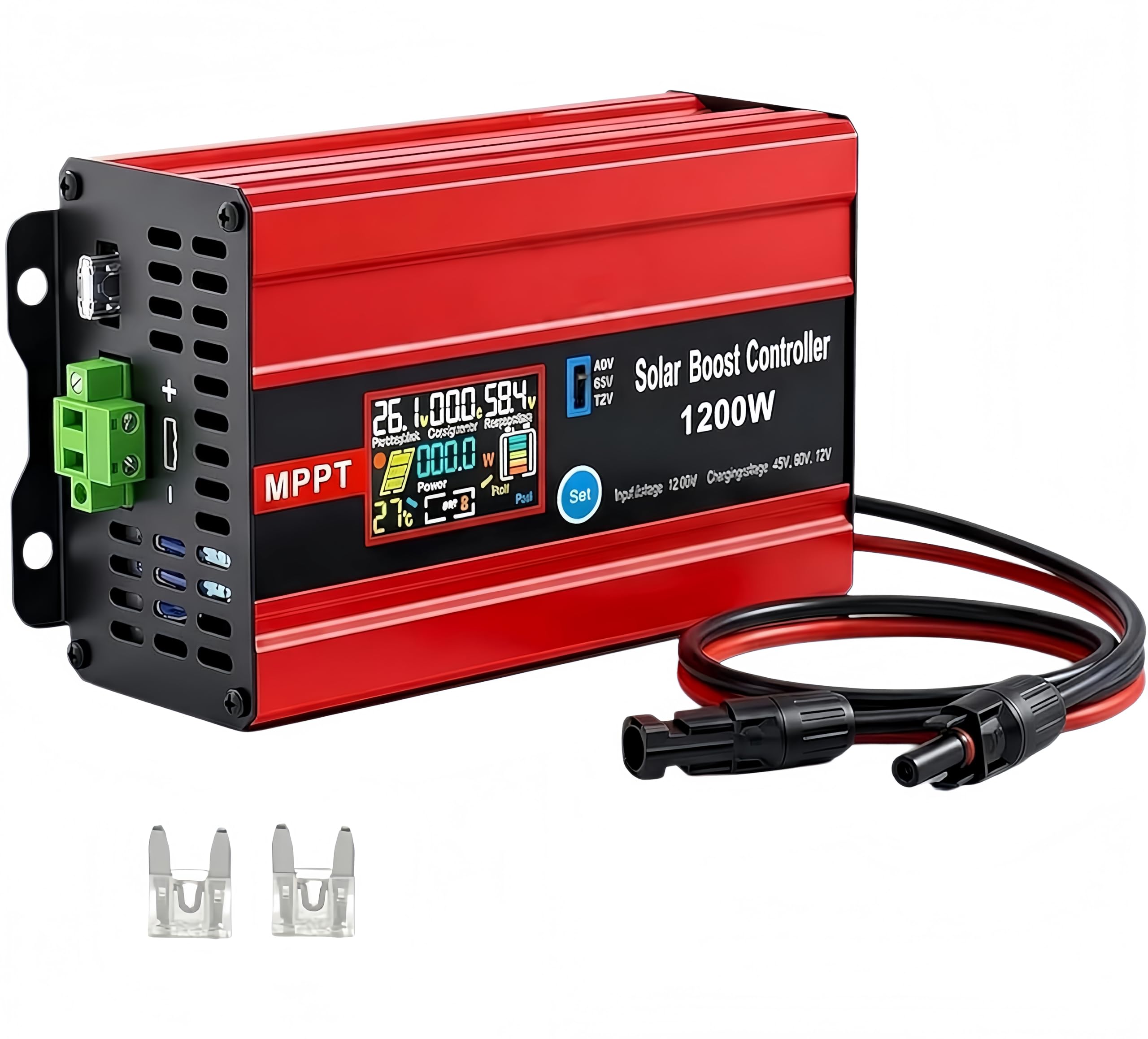

• LCD readout shows real-time voltage and current to verify settings

What monitoring, protections, and build features ensure safe long-term use?

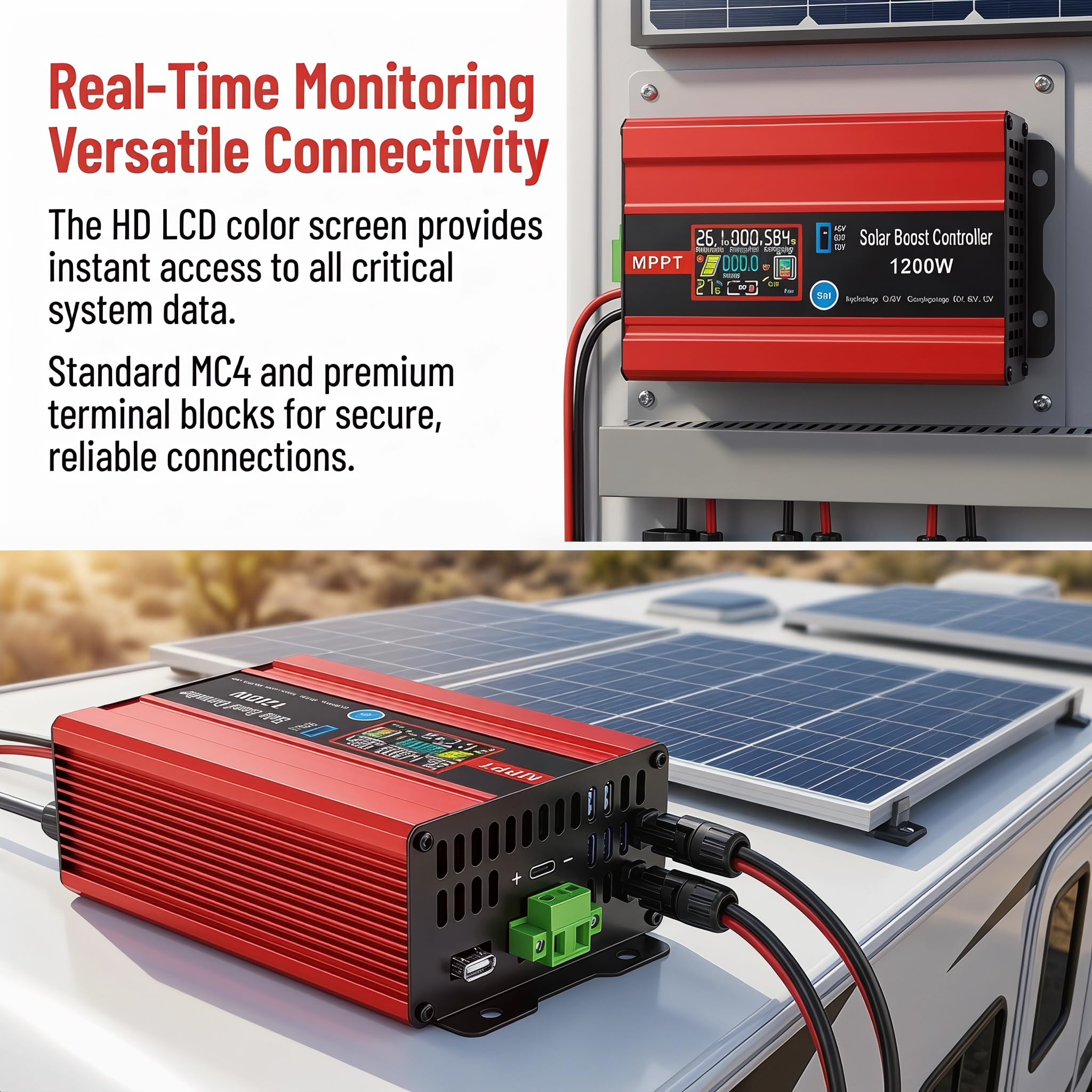

The controller combines a clear LCD display with a rugged Metal and ABS enclosure and multiple electrical protections to keep your system stable in daily use. Safety features guard against common wiring mistakes and grid transients, while the housing helps dissipate heat during sustained charging.

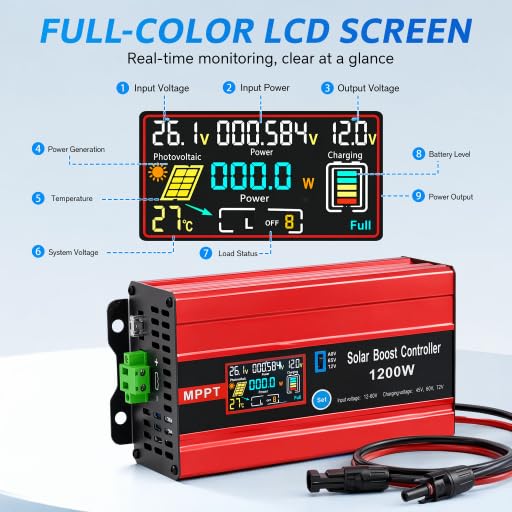

• Real-time LCD shows PV voltage, battery voltage, and charging current
• Protections: overcharge, over-discharge, over-current, short-circuit, reverse polarity
• Metal + ABS shell for impact resistance and improved thermal dissipation
• Compact footprint (approx. 6.7 x 2.36 x 3.7 in) and lightweight (~1.8 lbs) for mobile installs

How easy is installation and what are typical applications?

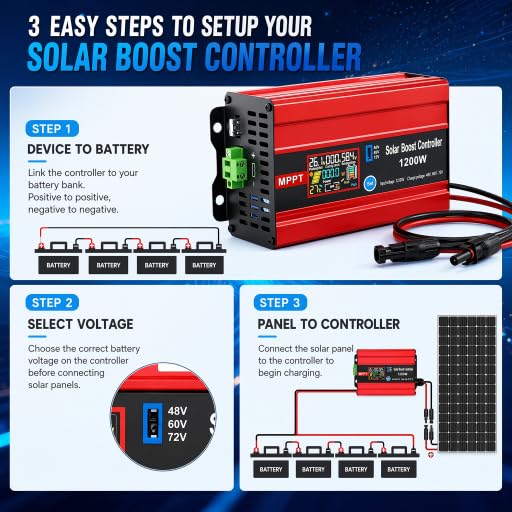

Wiring and setup are straightforward for anyone familiar with solar basics: connect the PV, battery, and optional load outputs, choose the battery profile, and monitor via the LCD. The controller suits small off-grid arrays, RV or camper power upgrades, e-bike charging stations, and other mobile power needs where boosting low-voltage panels into a higher-voltage bank is required.

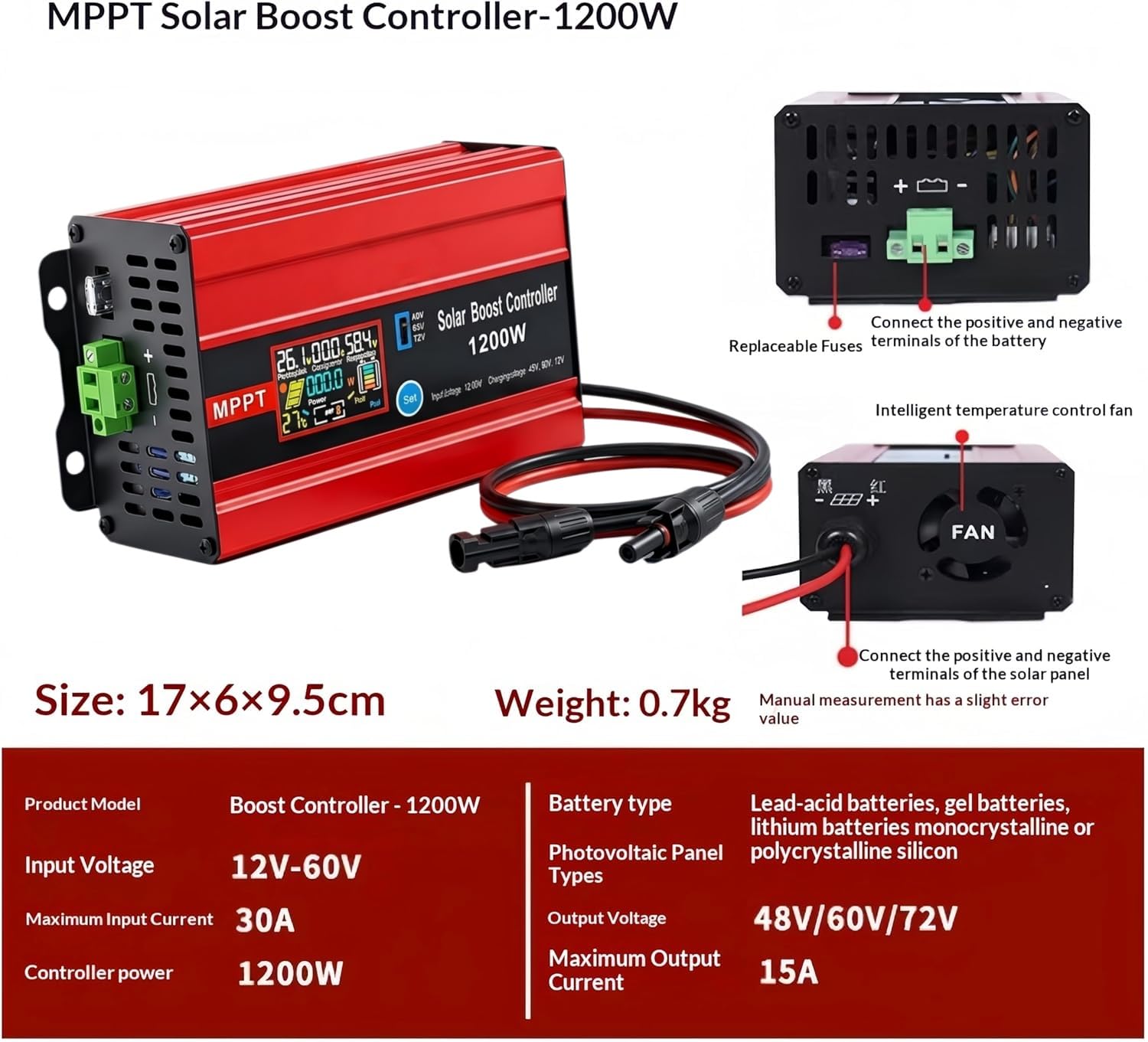

• Simple three-point wiring: PV input, battery output, and load terminals
• Ideal for RVs, campers, boats, tiny homes, and portable power racks
• Good choice for retrofitting existing 48–72V battery banks with low-voltage panels
• Includes five-year warranty for peace of mind in mobile deployments

Who is this for: Installers, DIY off-grid enthusiasts, RV owners, and small-scale integrators who need a compact, efficient MPPT boost controller to convert low-voltage PV arrays into stable charging for 48V–72V battery banks. If you want higher charging yield from modest panels, chemistry flexibility, clear system feedback on an LCD, and protections suitable for mobile use, this 1200W/15A MPPT boost controller is designed to fit those needs.
