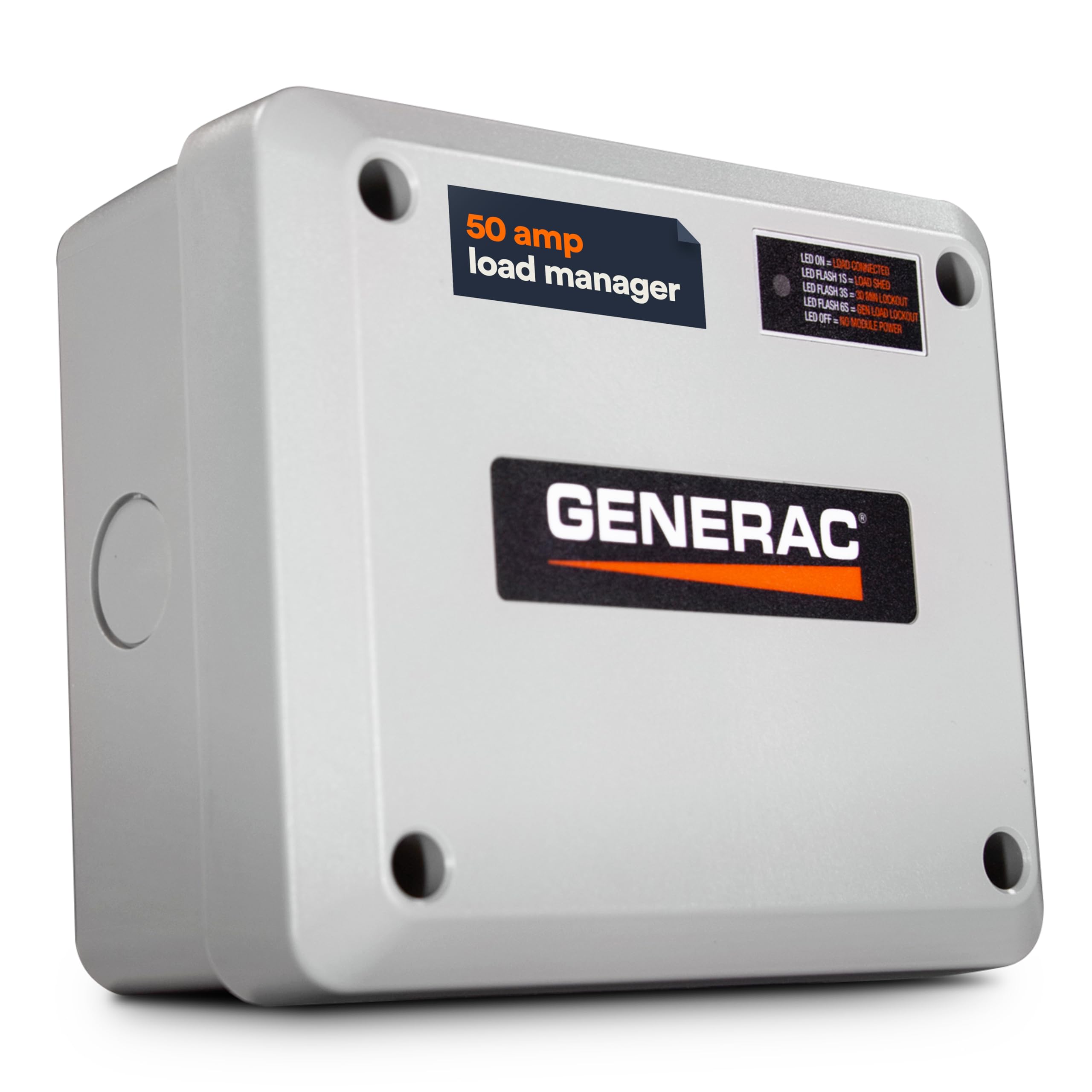

Generac 7,000 50A Load Manager — 50 Amp 240V Auto Frequency-Sensing Load Shed Module, Gray

Generac 7,000 50 Amp Load Manager is an autonomous frequency-sensing module that prevents standby generator overload by shedding and restoring large 240V loads in a controlled priority sequence.

This compact gray module lets your single-phase 240V home standby generator or PWRcell energy storage system run reliably by managing heavy appliances such as dryers, electric water heaters, or pool equipment. It operates independently — no extra low-voltage control wiring or external controller required — and can be combined with up to seven other 50A modules to protect multiple circuits without overtaxing your generator.

How does the load manager detect and respond when the generator is strained?

The module constantly monitors grid frequency (Hz). If the generator begins to slow under heavy demand and frequency drops, the unit immediately sheds its assigned load to free capacity, then reconnects following a priority-based timed sequence after stability returns.

• Continuously senses frequency to spot generator strain in real time
• Instantly opens the circuit for its assigned appliance to relieve load
• Restores loads in priority order with timed delays (5–6 minutes plus steps)

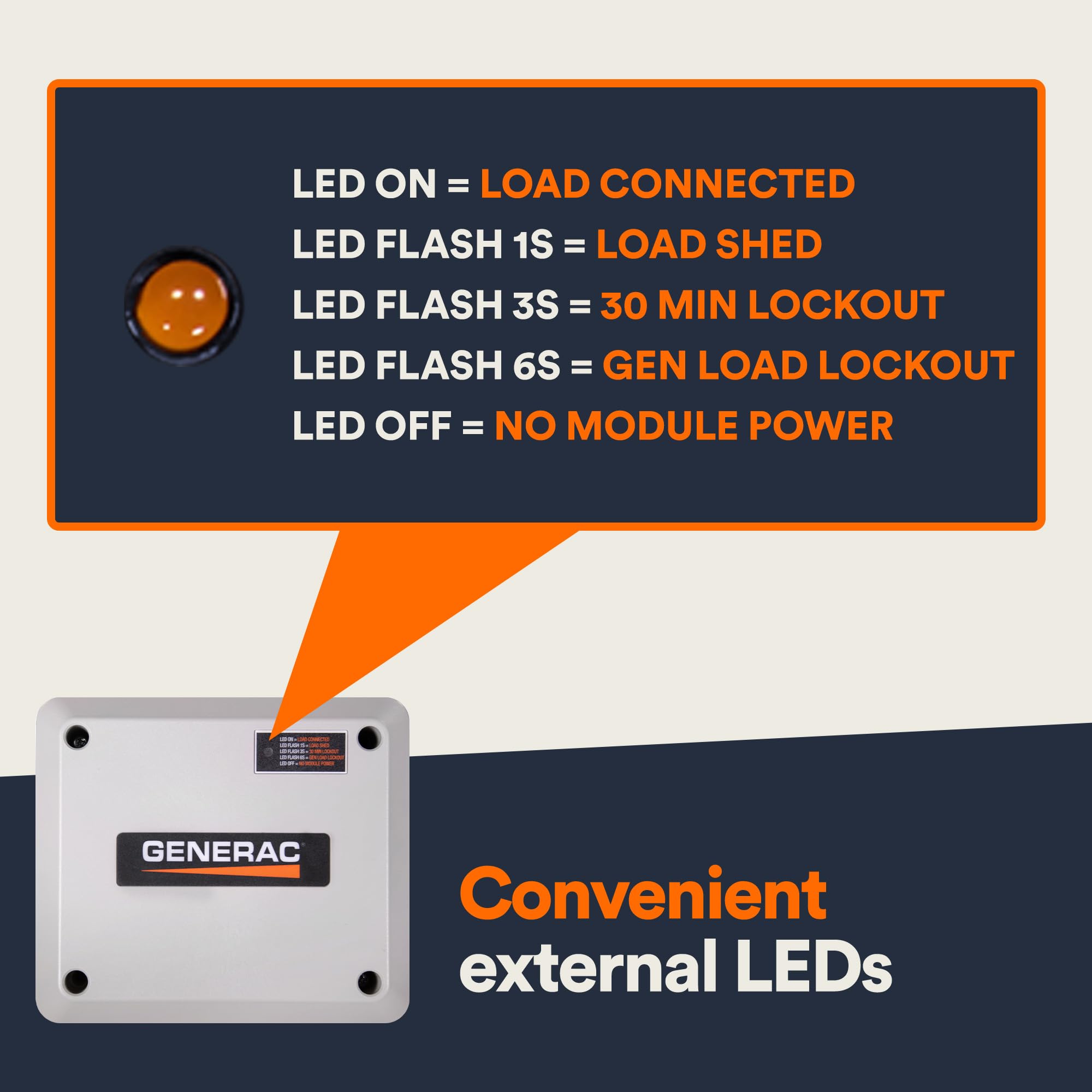

• Five external LED codes indicate status without opening the enclosure

What installation and wiring considerations should I plan for?

Install the module upstream of the appliance circuit breaker using 8 AWG copper conductors rated for a 50A circuit. The NEMA 3R enclosure is suitable for outdoor mounting near panels or appliances, but because the device uses a 240V connection, a licensed electrician is strongly recommended for safe, code-compliant installation.

• Requires 8 AWG copper conductors for a 50A circuit

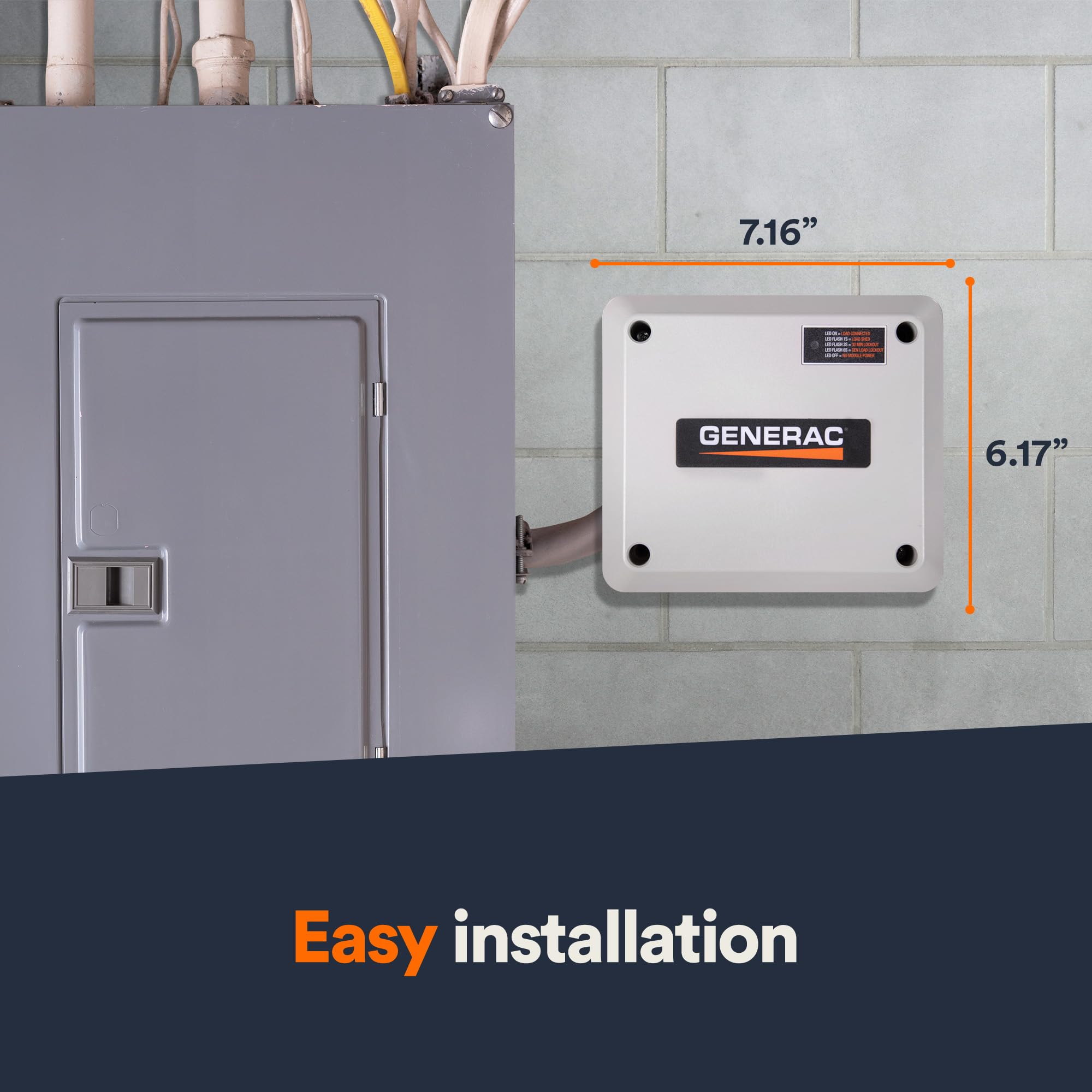

• Mount near the panel or at the equipment; enclosure is NEMA 3R rated
• Install upstream of the local appliance breaker for correct protection
• Professional installation advised for compliance and safety

How do I configure priorities and lockout settings for multiple loads?

Each module includes an internal priority dial with eight unique settings (1–8). Assign a different number to every module so that lower numbers reconnect first; set a module to lockout-only to prevent a nonessential appliance from running on generator power until utility service returns.

• Eight distinct priority positions — no duplicate numbers on the same system
• Lower priority numbers reconnect sooner after a shed event

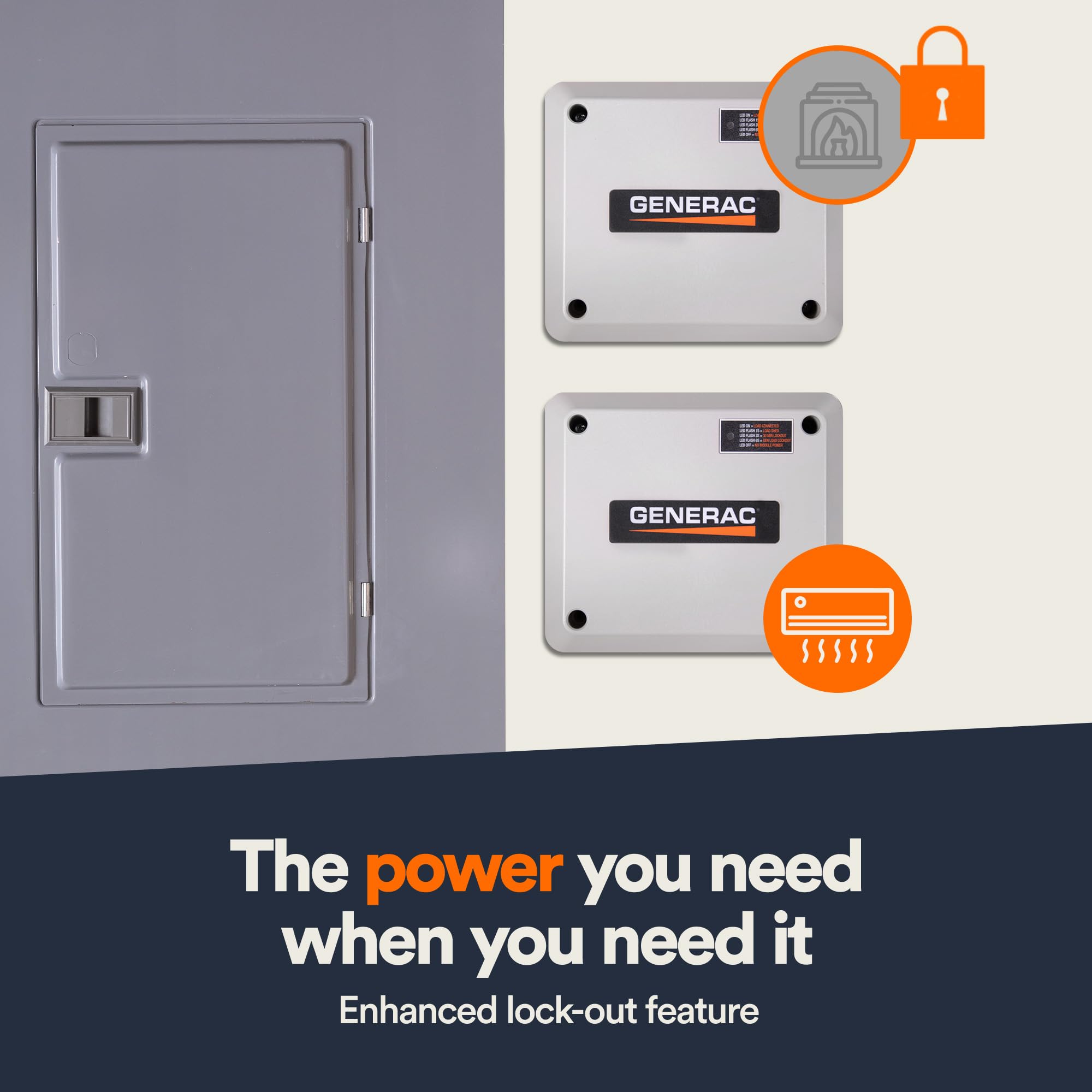

• Lockout-only mode keeps specified loads off during generator events
• Supports up to eight 50A modules on one generator for flexible scaling

Will this work with non-Generac generators or larger loads?

The 7000 is designed for universal compatibility with any single-phase 240V home standby generator and most PWRcell systems, making it useful even if your generator is a different brand. For heavier circuits, Generac offers a 100A companion module (model 7006) to manage larger loads on the same platform.

• Universal single-phase 240V compatibility — not limited to Generac units
• Manages up to 50 resistive amps or 40 inductive amps per module
• Expand system protection with up to eight 50A modules or use a 100A module for larger loads
• External LED states for quick diagnostics of module condition

Who is this product for? Homeowners with standby generators or PWRcell energy storage who need dependable, automatic control of high-draw appliances will benefit. It’s ideal for properties that want to protect generator health, avoid nuisance overload trips, and sequence multiple large loads without complex control wiring. Electricians and installers will appreciate the NEMA 3R rating and straightforward wiring requirements for rapid integration into residential backup power systems.
