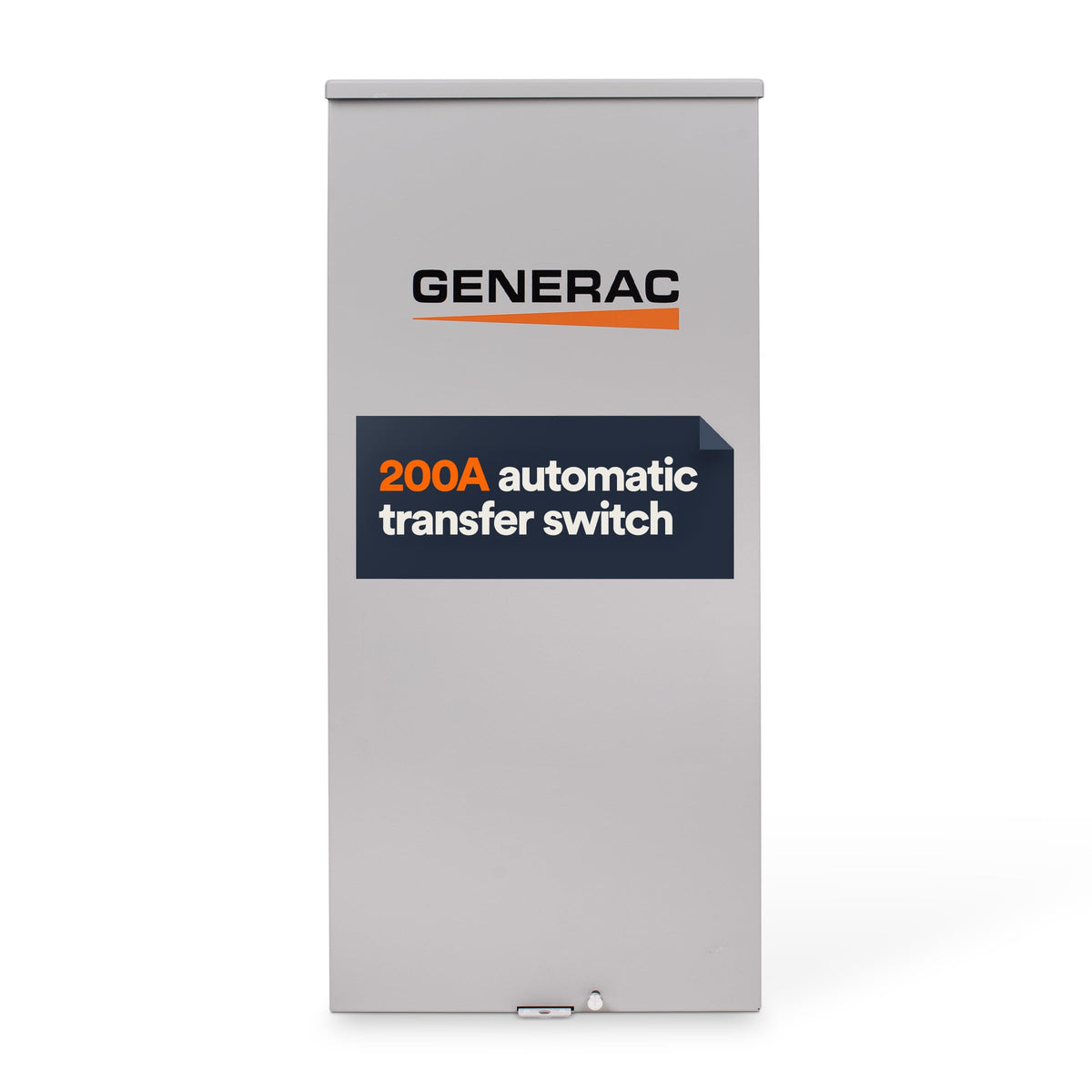

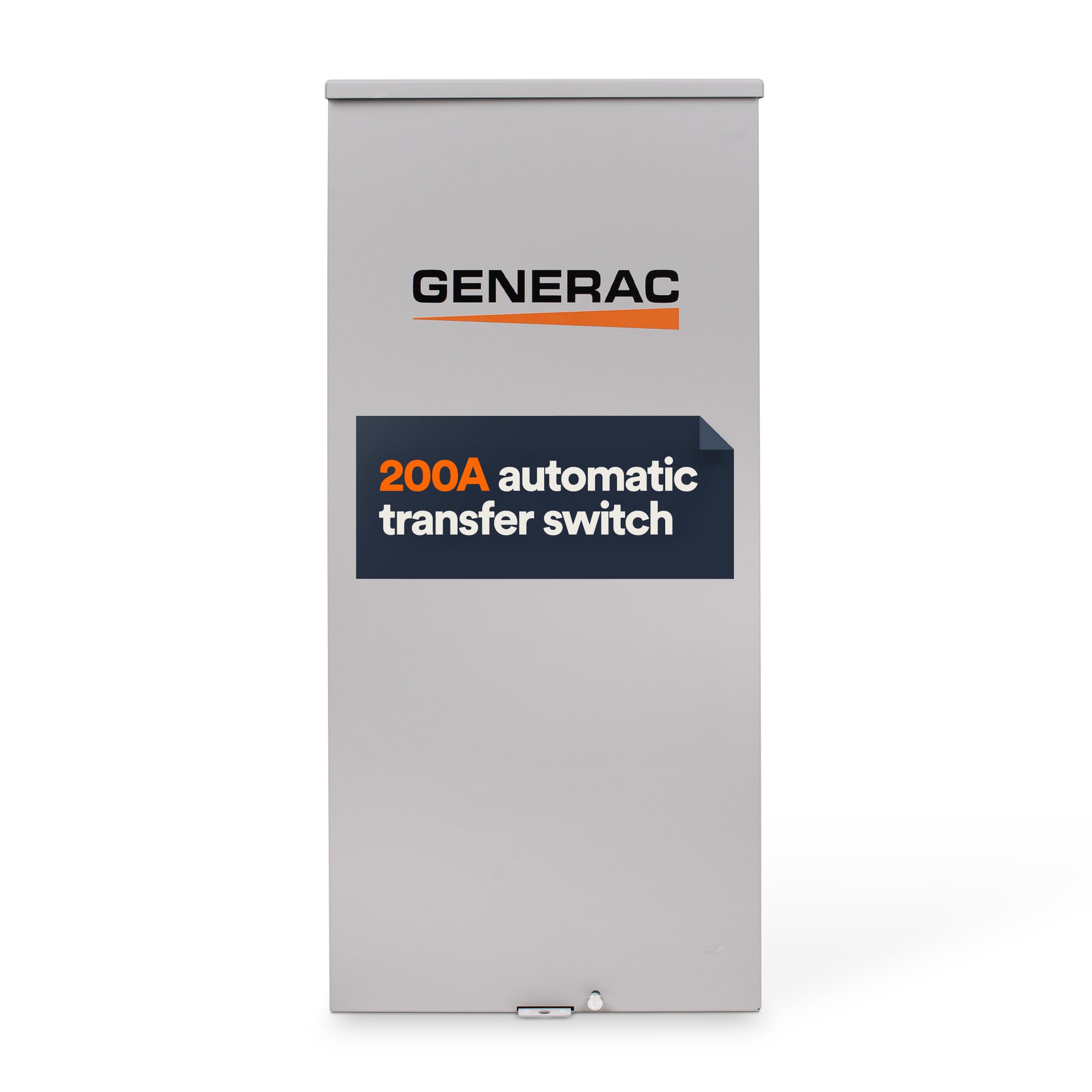

Generac 200 Amp Next Gen Automatic Generator Transfer Switch, SE Rated — Whole-Home Open-Transition Protection

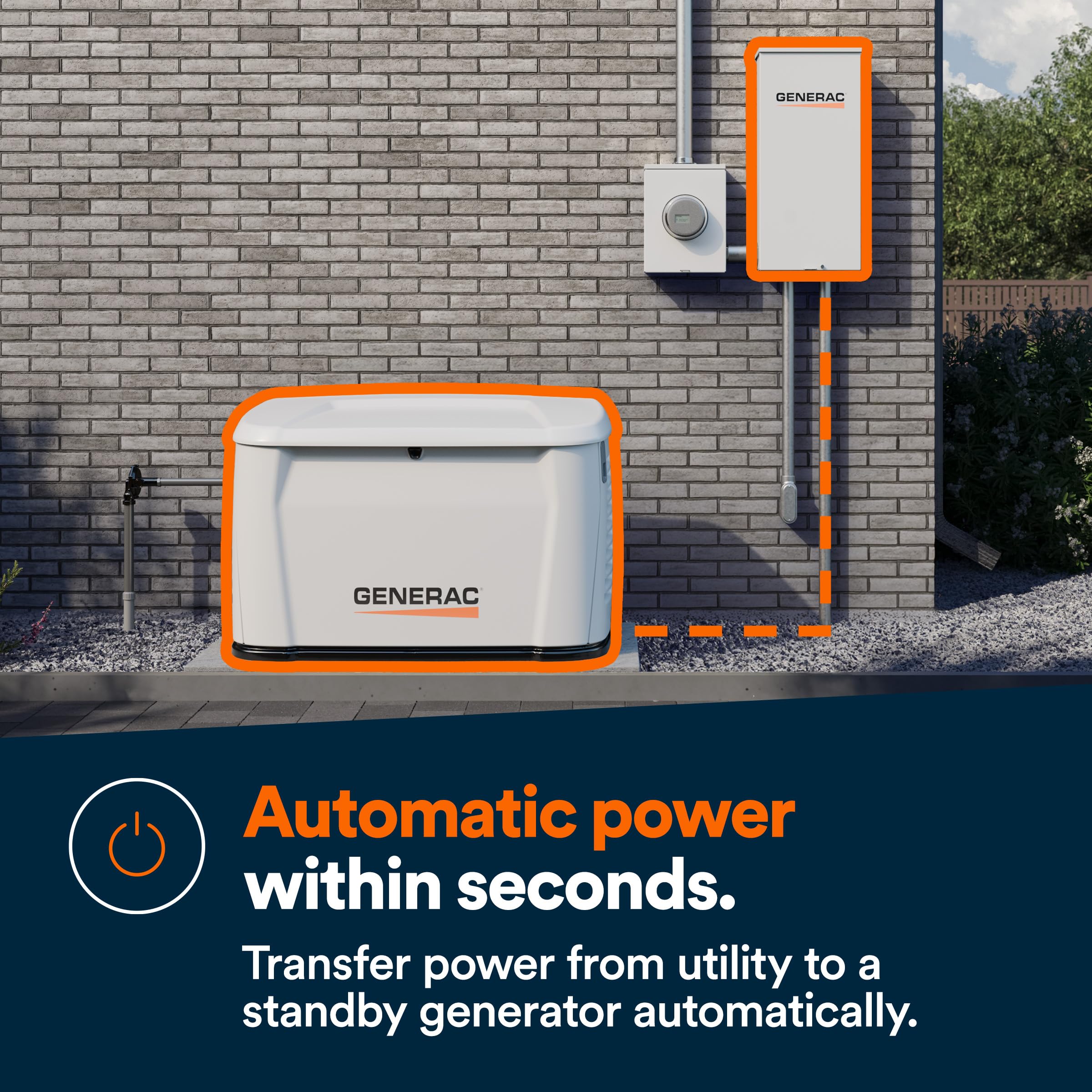

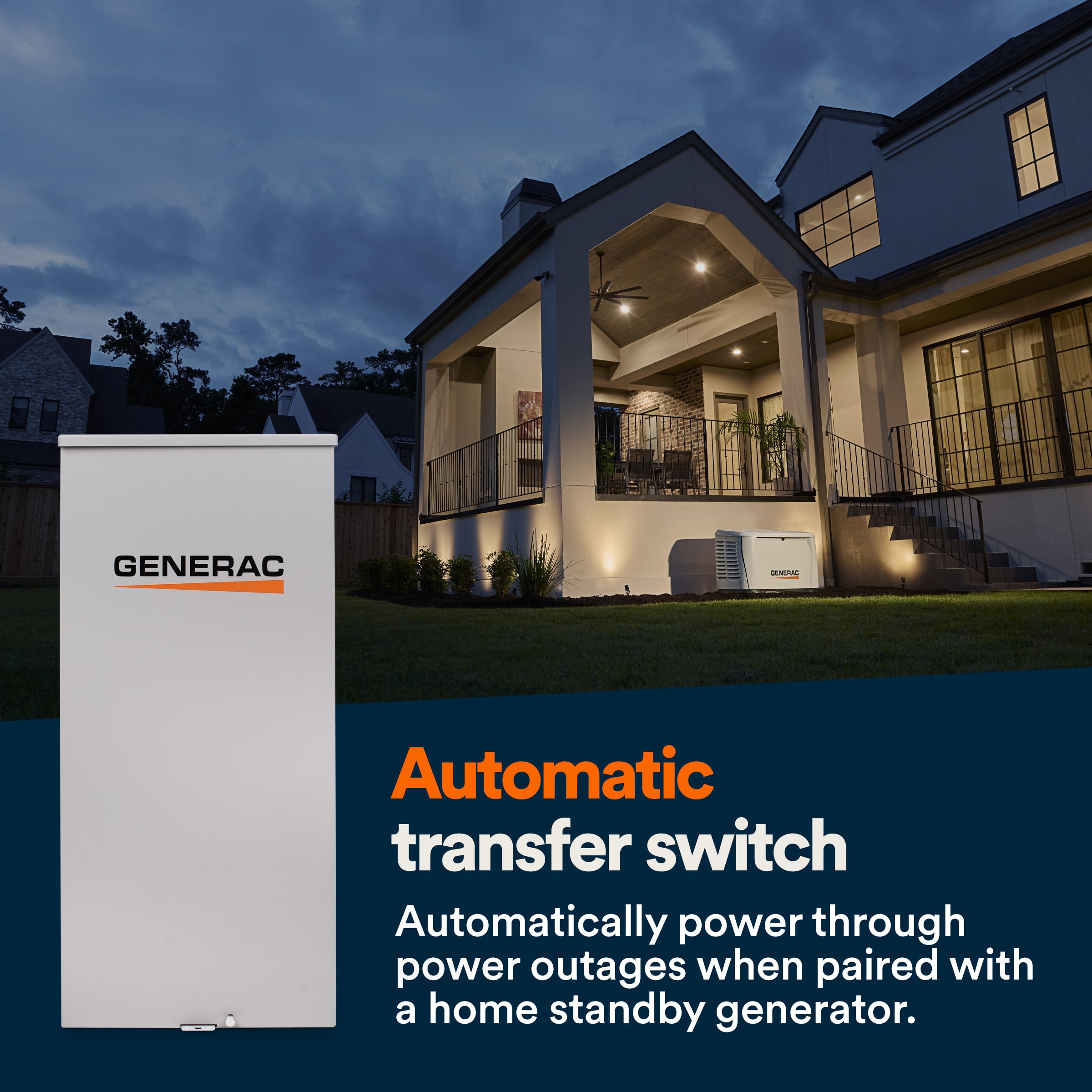

This heavy-duty transfer switch is engineered to protect whole-home circuits without manual intervention. Designed for single-phase Generac standby generators with Evolution or Power Zone 200 controllers, the switch continuously monitors utility voltage and completes a hard mechanical break before connecting generator power. That open-transition sequencing prevents dangerous backfeed to the grid while restoring power to all 120V and 240V loads simultaneously.

How does this switch handle a full 200A residential service?

The 9952 is rated for 200A at 120/240V and is built to manage the combined load of modern homes, including high-draw appliances. It transfers the entire service automatically upon utility failure so you don’t need to select circuits manually.

• Service-entrance rated for whole-home coverage up to 200A
• Simultaneous handling of 120V and 240V circuits (HVAC, dryers, pumps)

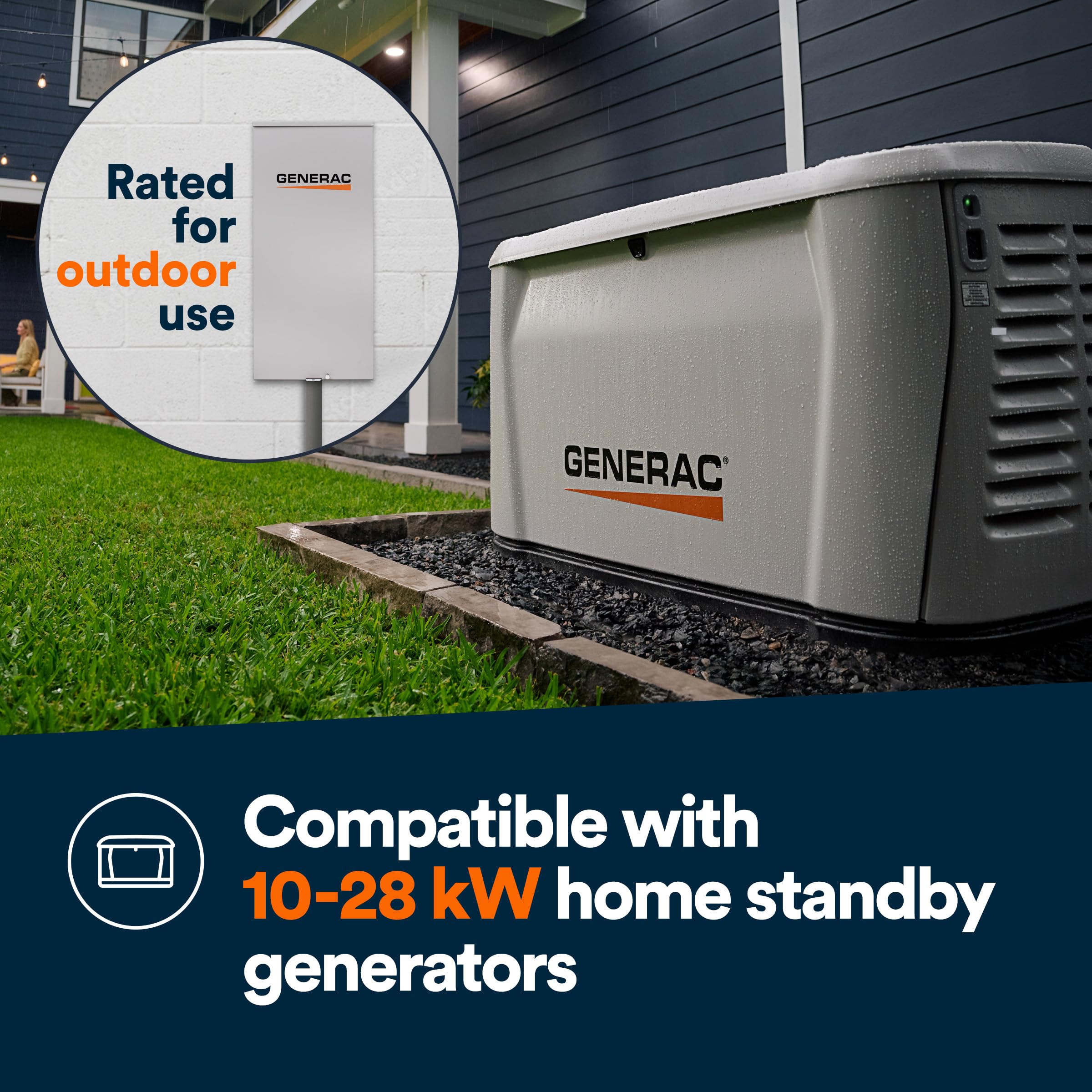

• Designed to work with single-phase Generac standby generators
• No per-circuit switching required for standard installations

What safety measures prevent backfeed to the utility grid?

The switch uses an open-transition mechanism that physically disconnects utility power before the generator is connected. This positive mechanical separation eliminates the possibility of energizing utility lines from the generator and protects utility crews during outages.

• Hard mechanical break between utility and generator connections
• Open-transition timing ensures sequential, non-overlapping transfer
• Different from manual interlock kits—fully automatic operation
• Complies with service entrance installation practices and safety norms

Will my existing breakers and safety devices work with this switch?

The 9952 is multi-listed for compatibility with common breaker types from major manufacturers, so most homes won’t require branch-circuit breaker replacement. It also integrates brownout monitoring and a hardened control module to manage transfer timing under unstable voltage conditions.

• Compatible with standard, GFCI, AFCI, and tandem breakers from Siemens, Eaton, and Square D
• Integrated brownout protection watches for harmful voltage sag conditions
• Hardened control electronics ensure reliable transfer sequencing
• Expandable with Generac Smart Management Modules for prioritized load shedding

What are the installation and warranty considerations?

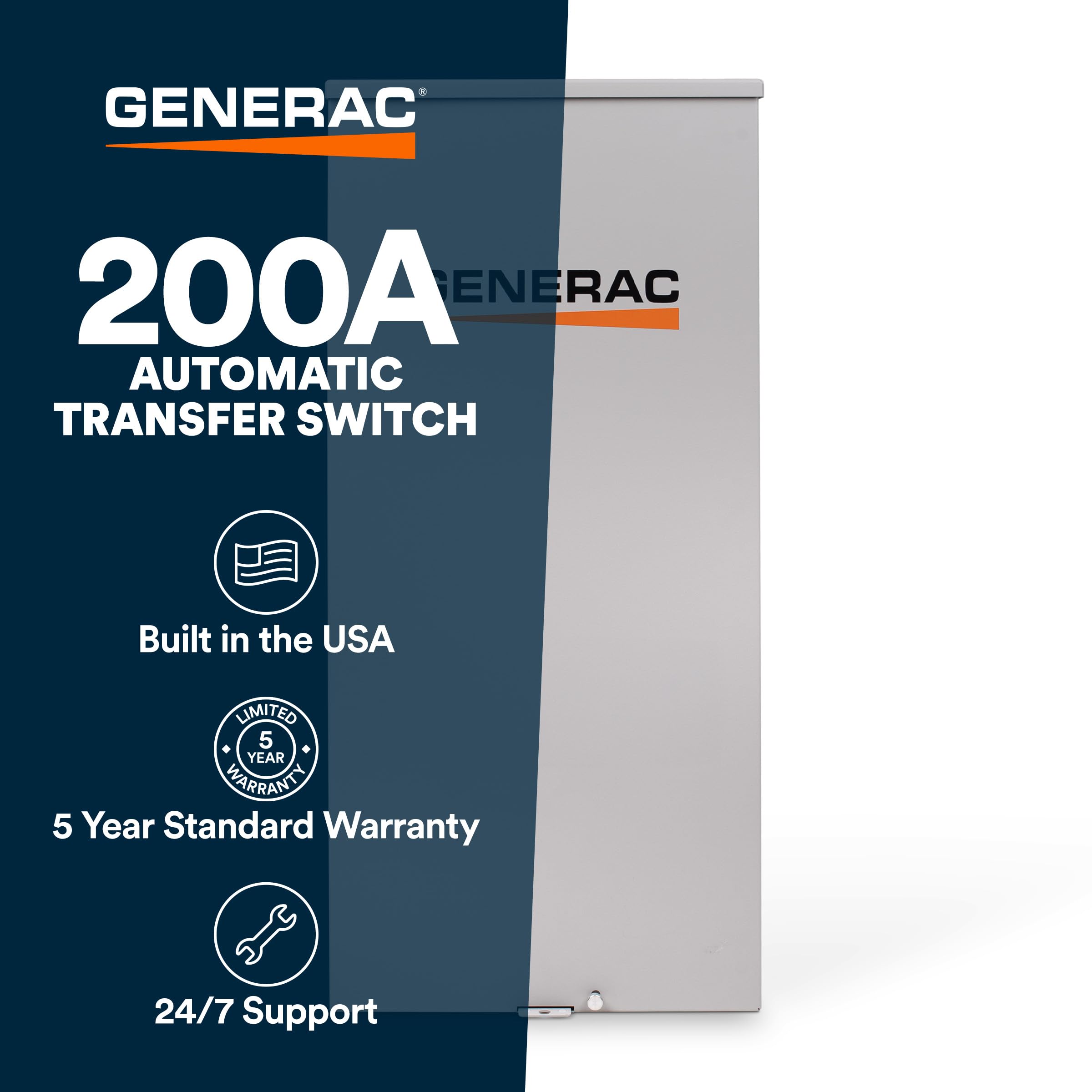

This transfer switch is built for indoor or outdoor mounting in a corrosion-resistant NEMA 3R aluminum enclosure with a fast-mount hanging system to streamline installer labor. Service entrance installations must be performed by a licensed electrician per NEC Article 702, and the unit ships without a power inlet box or connecting cord.

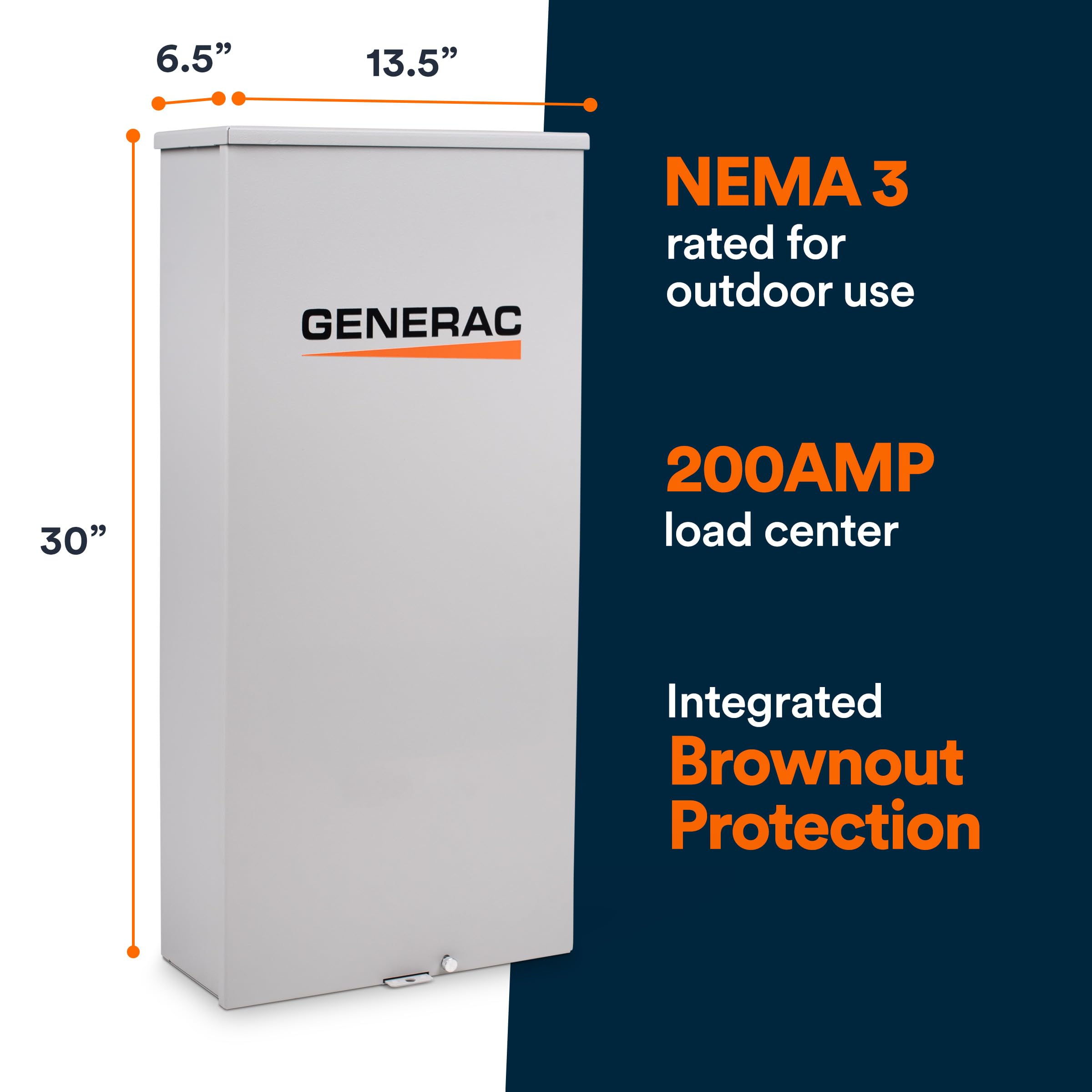

• Durable aluminum NEMA 3R enclosure: 13.5" wide × 6.5" deep × 30" tall
• Fast-mount enclosure system reduces installation time and labor
• Requires licensed electrician for service entrance installation
• 5-year limited warranty and 24/7 U.S.-based support from Waukesha, WI

Who is this for? The Generac 9952 200A Next Gen Automatic Transfer Switch is intended for homeowners with a 200A main service who want seamless, whole-home automatic standby power with built-in safety and breaker compatibility. It’s ideal for residences that require simultaneous 120V and 240V coverage—such as homes with central HVAC, electric dryers, well pumps, and large kitchen appliances—and for anyone pairing a single-phase Generac standby generator with Evolution or Power Zone 200 controllers. Professional installation by a licensed electrician is required to meet NEC Article 702 and preserve the warranty.
