GE Mechanical Pool Timer Switch 24-Hour Metal Box, 2HP 40A Weatherproof Lockable

GE's 24-hour mechanical time switch is a weatherproof, lockable metal-box timer that lets you schedule heavy-duty equipment on 30-minute intervals for reliable on/off control.

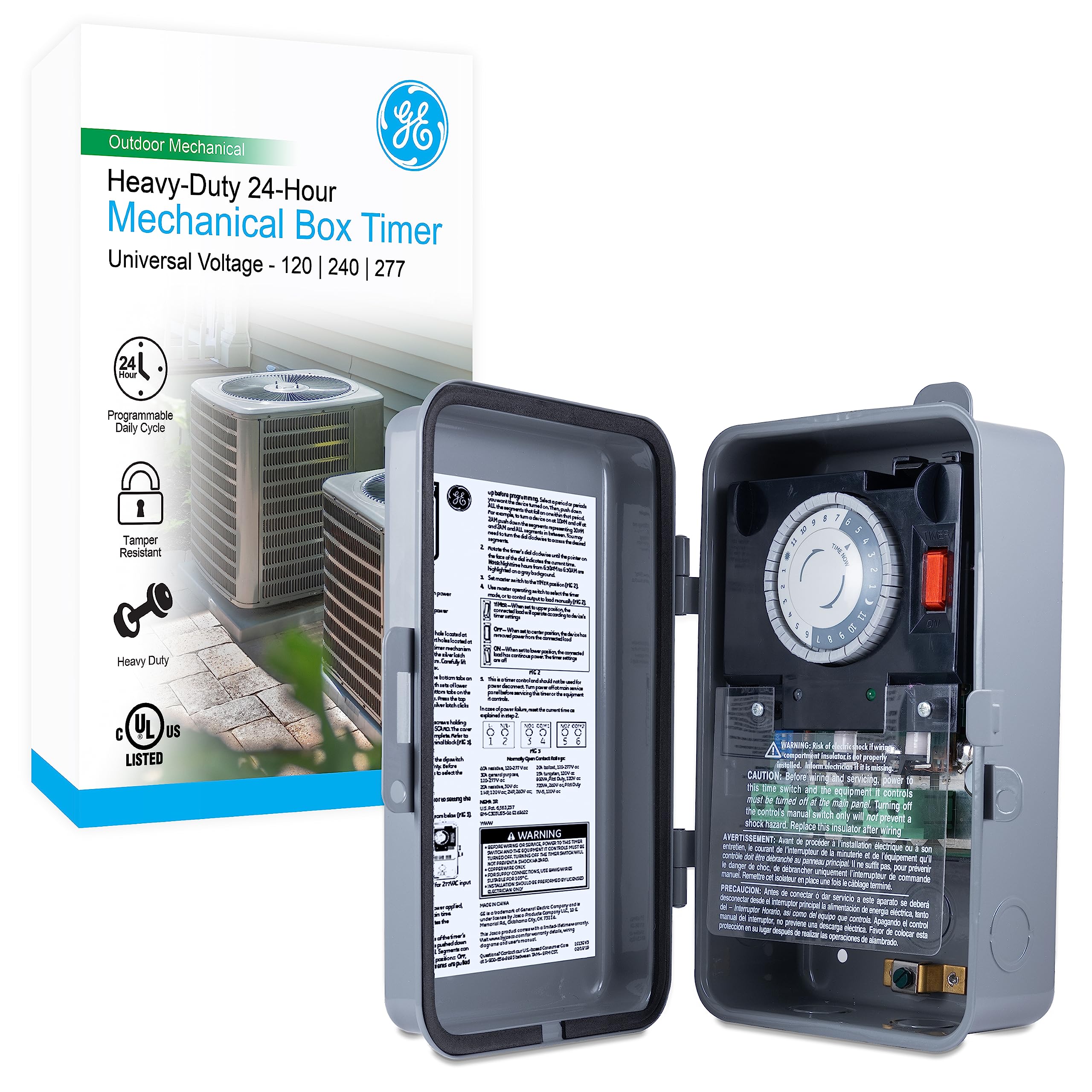

This mechanical timer by GE is designed to control high-load electrical equipment such as pool pumps, heaters, HVAC fans and more across a 24-hour cycle. Built into a NEMA-3R metal enclosure, the unit combines simple dial-based programming with a manual override, secure block terminals for heavy-gauge wiring and stamped knockouts for straightforward outdoor mounting. It’s a straightforward alternative to complex digital controllers when you need dependable, repeatable scheduling and robust protection from weather and tampering.

How do I program the GE mechanical timer for daily pool pump cycles?

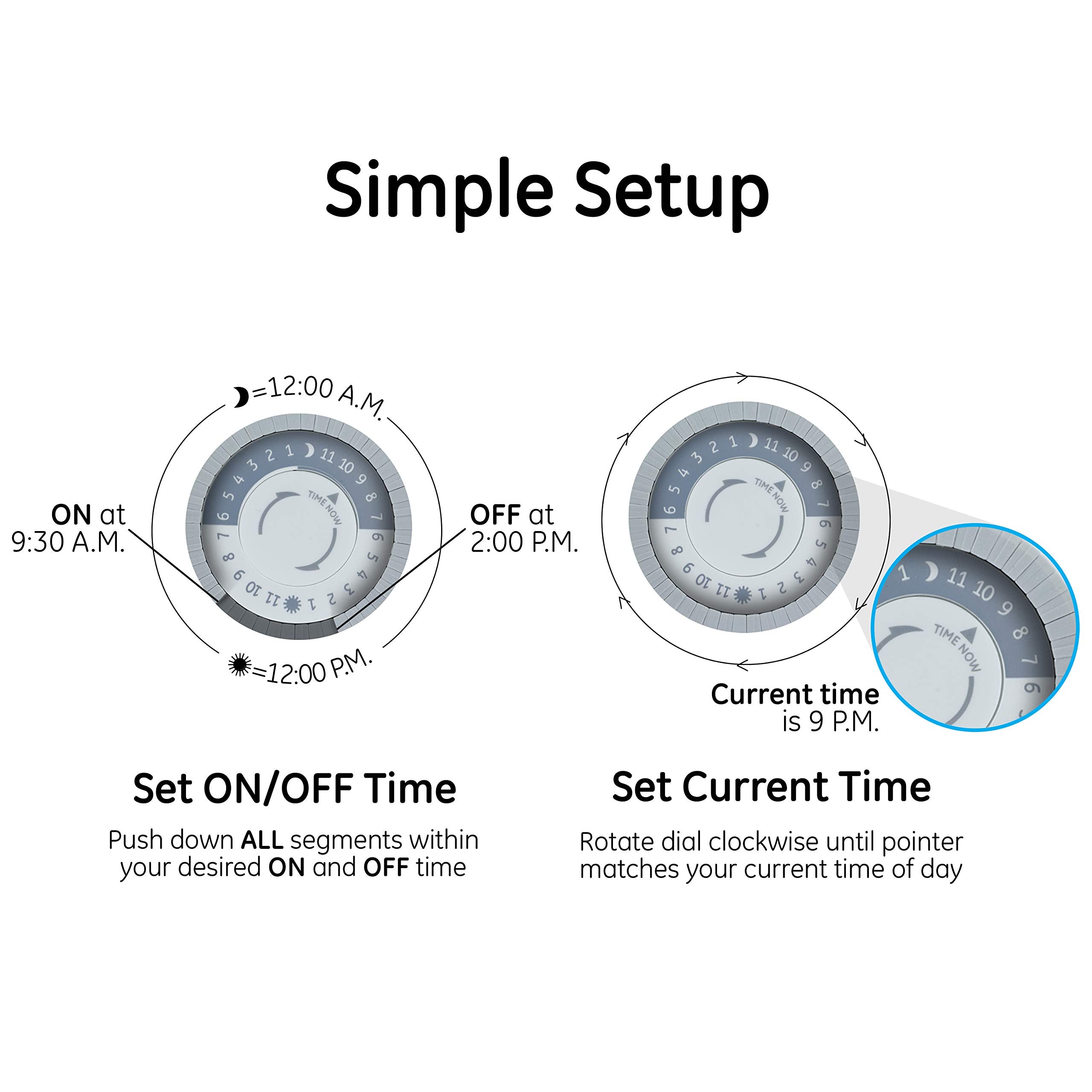

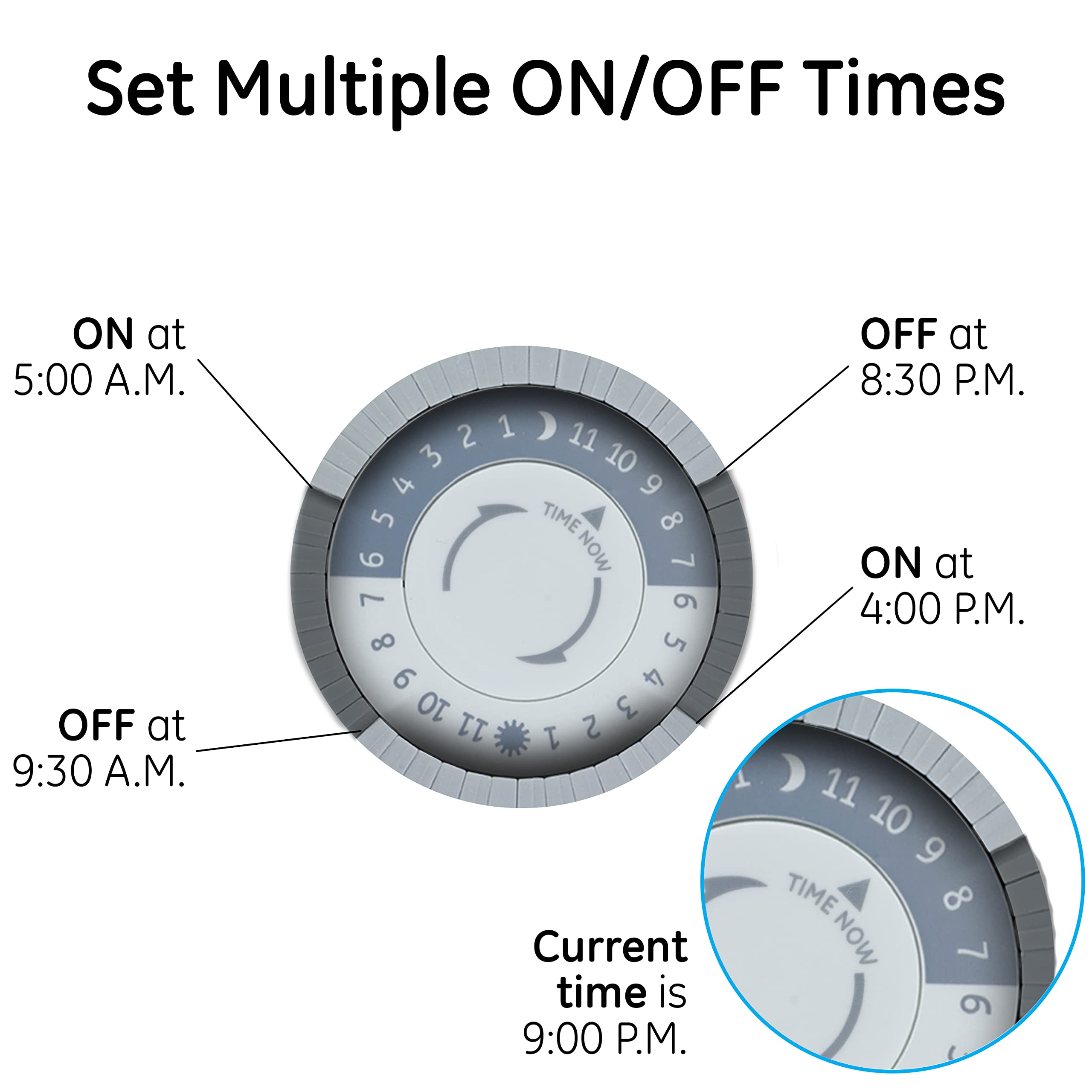

Programming is done with the dial and removable 30-minute push pins that set ON/OFF events throughout the 24-hour rotation. You place pins at the desired times, rotate the dial to match the current time, and the internal mechanism moves the pins to switch the load on or off as scheduled.

• 30-minute interval push pins for multiple daily events
• Dial aligns to current time for immediate scheduling
• Manual override lets you bypass the schedule when needed
• Single-pole single-throw switching for straightforward control

Will this timer handle my pool pump and other heavy appliances?

The GE timer supports loads up to 2 HP and is rated for systems between 120–277 VAC with a maximum of 40A, making it suitable for most residential pool pumps and many HVAC or pool heater configurations. A dipswitch allows for flexible wiring and single- or dual-load setups depending on your installation needs.

• 2 HP capacity and 40A maximum rating for high-draw equipment
• Compatible with LED, CFL, incandescent and halogen loads
• Supports 120–277 VAC systems for broad compatibility
• Block terminals secure larger-gauge wires for reliable connection

Is this unit safe and durable for outdoor installation?

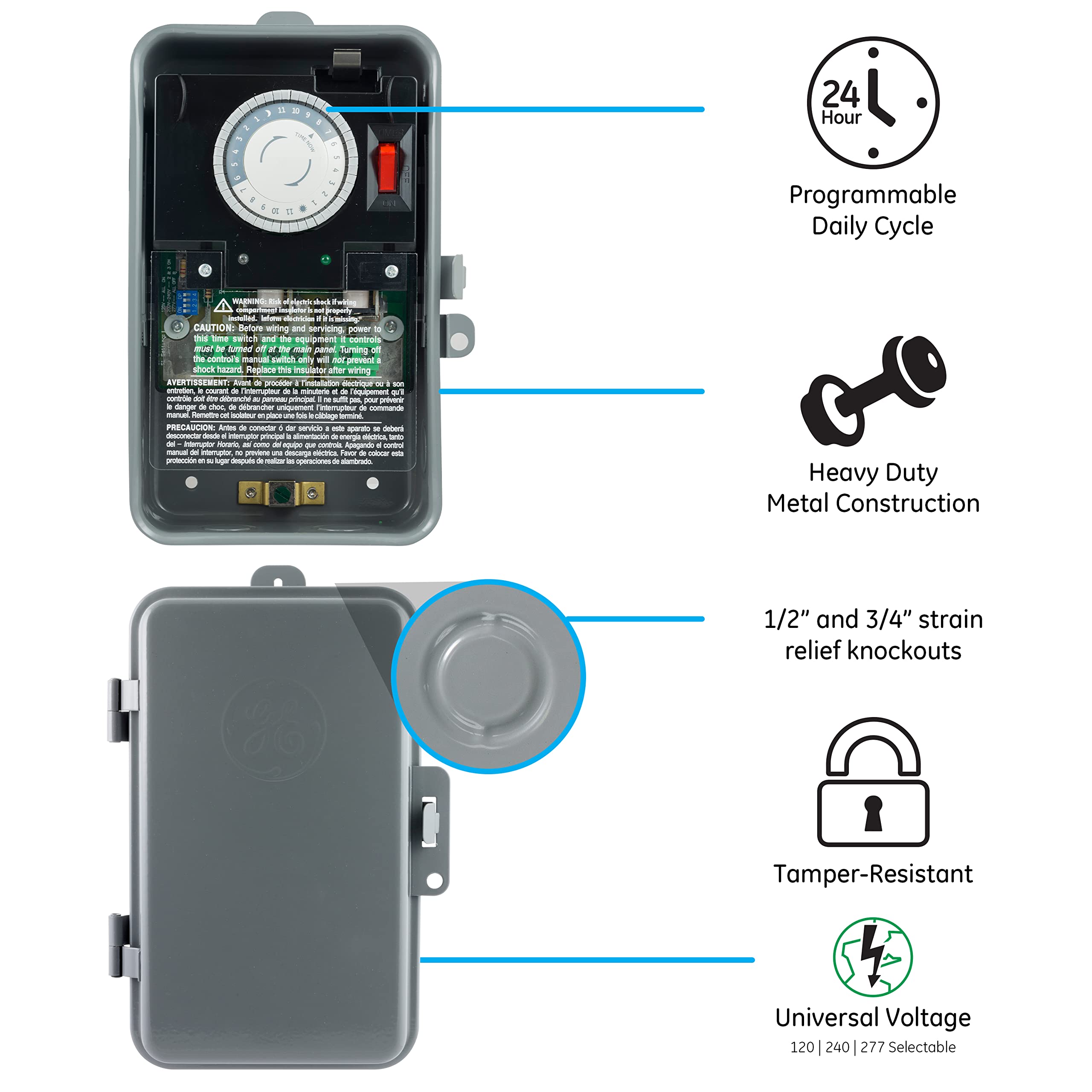

The timer is housed in a metal NEMA-3R enclosure that resists rain and is lockable to prevent unauthorized access. It includes stamped 1/2-inch and 3/4-inch knockouts and pre-drilled mounting holes so you can mount and feed wiring neatly for exposed exterior locations.

• Metal NEMA-3R box provides weather resistance and tamper protection
• Lockable door keeps settings and wiring secure
• Stamped knockouts for clean conduit and connector entry points
• Mounting holes for stable wall attachment outdoors

How simple is wiring and daily use for a homeowner or installer?

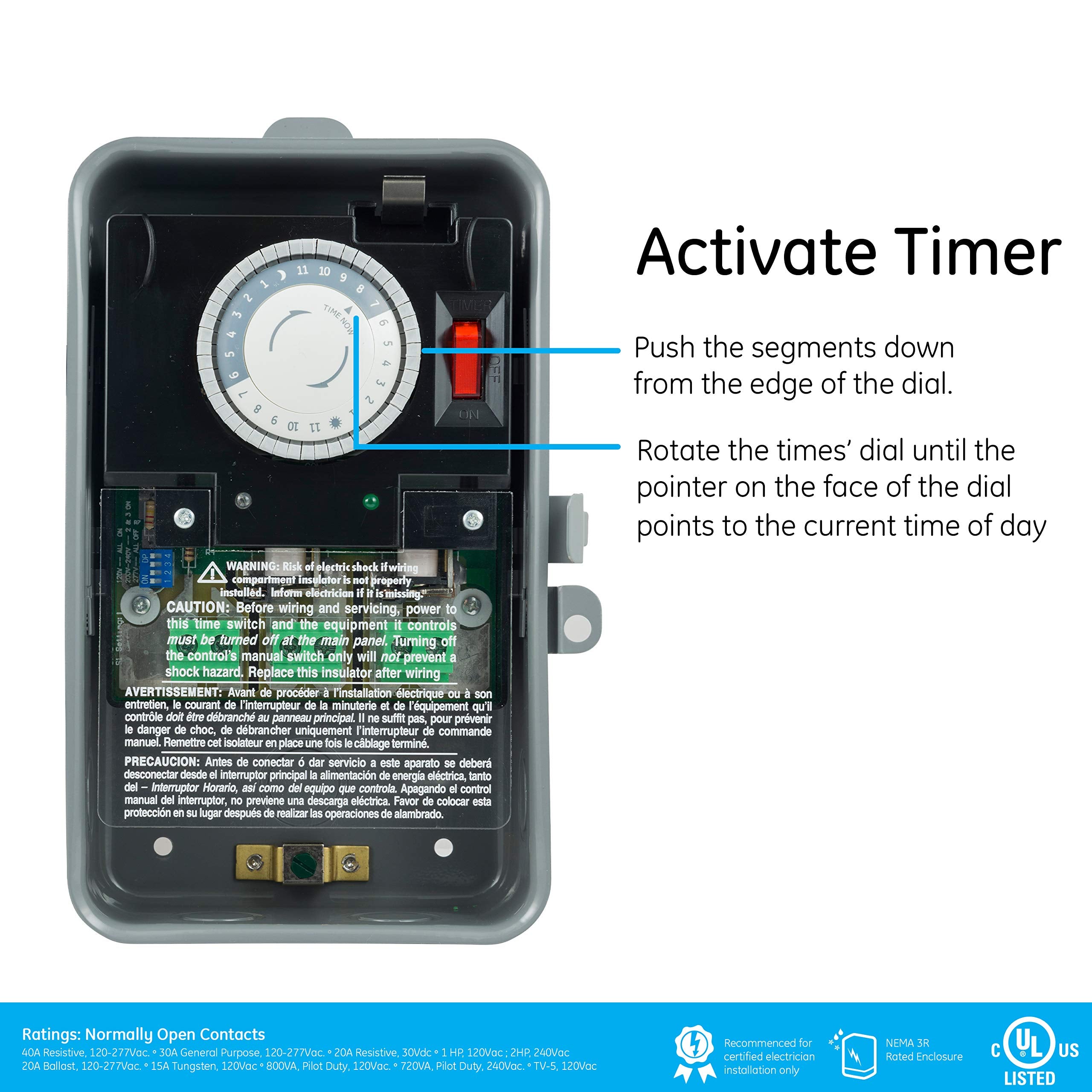

The unit uses convenient block terminals to hold wires firmly and simplify connections for large loads; the dipswitch and clear face dial reduce setup time compared with complicated controllers. Once wired and dialed to the current time, the mechanical action runs automatically and the manual override is available for temporary on/off control.

• Block terminals for fast, secure wiring of heavy conductors
• Dipswitch configuration accommodates common voltage and load options
• Dial-and-pin programming avoids menu-based digital setup
• Manual override switch gives immediate control without reprogramming

Who is this for? Installers, pool service professionals and homeowners who need a rugged, easy-to-use time switch for outdoor equipment will value this GE 24-hour mechanical timer. It’s best when you want simple, repeatable scheduling for pumps, fans, heaters or other large appliances without relying on Wi‑Fi, touchscreens or complex automation systems—especially for installations that require a lockable weatherproof enclosure and reliable heavy-load wiring.
