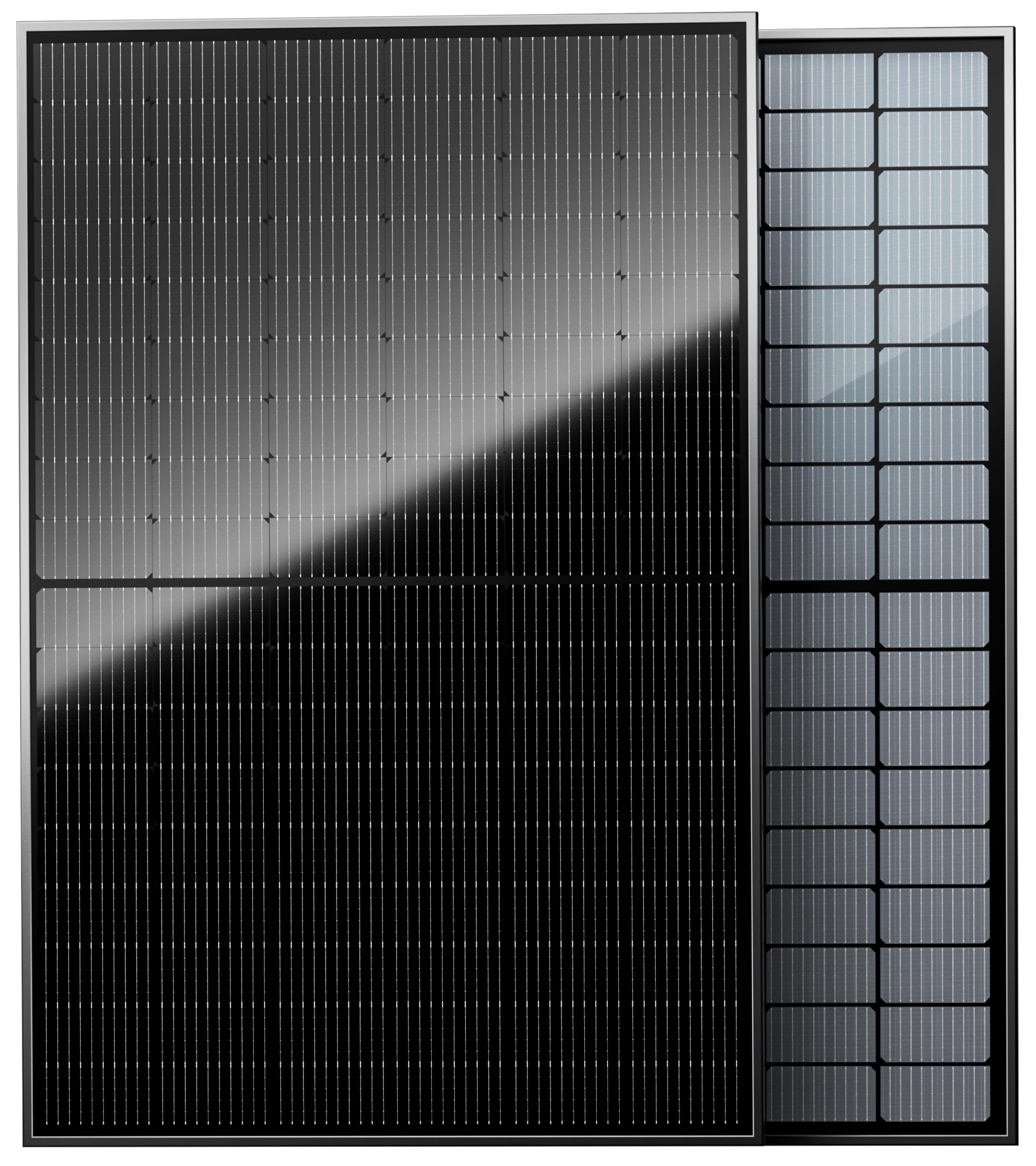

Epoch 430W Bifacial N‑Type Monocrystalline Solar Panel 12/24V — 16BB, IP68 Waterproof for RVs & Marine

The EPOCH 430W bifacial N‑Type solar panel is a high‑efficiency, weather‑resistant 12/24V module designed to deliver maximum energy capture for RVs, marine use, and off‑grid systems.

Built for mobile and stationary power needs, this 430W monocrystalline panel combines advanced N‑Type cells, a 16‑busbar layout, and bifacial construction to harvest light from both faces. Its rugged mechanical ratings and sealed electrical components make it suitable for rooftop, deck, and trailer installations where space and reliability matter. The module is engineered to be compatible with common mounting systems and standard MC‑4 style connections for an easier install.

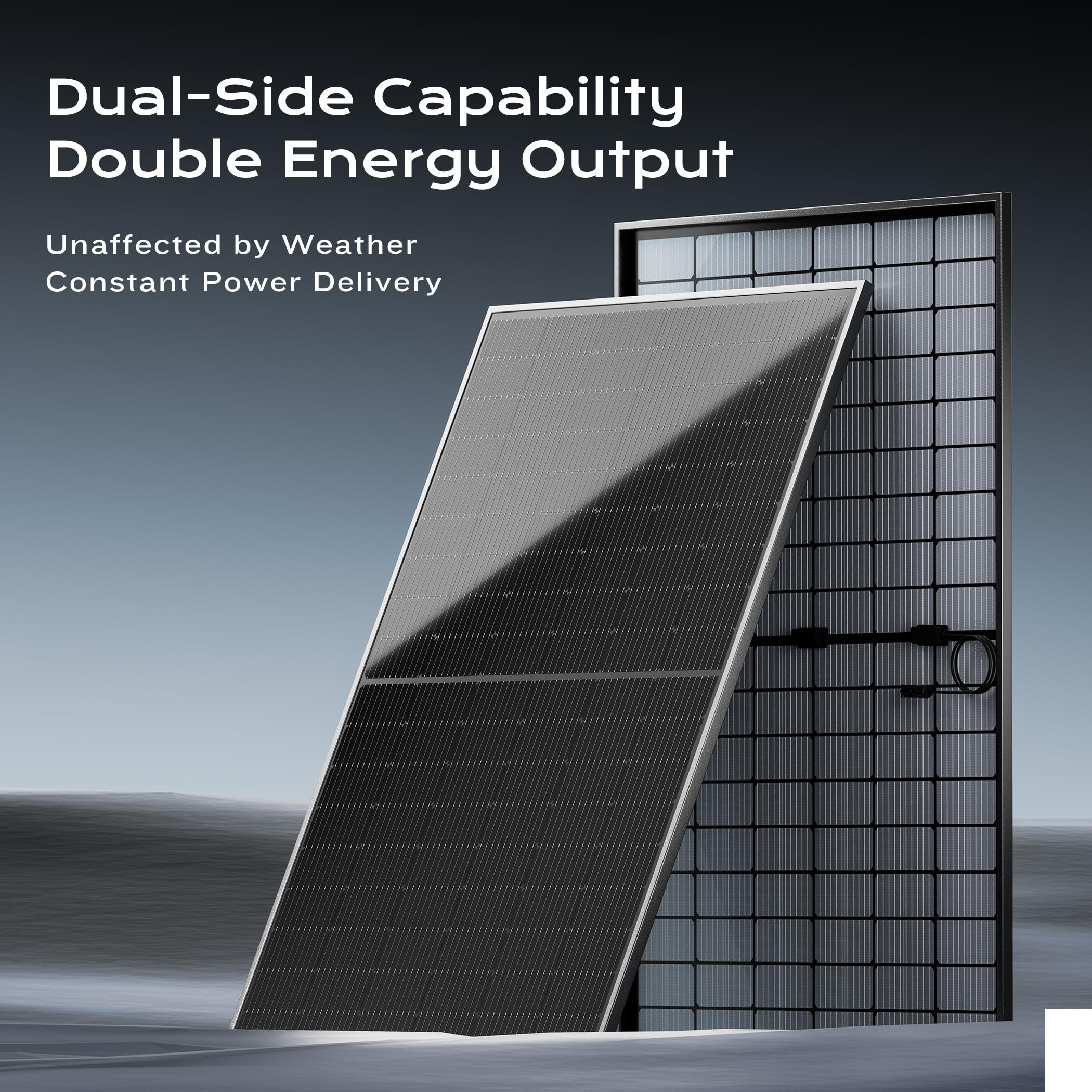

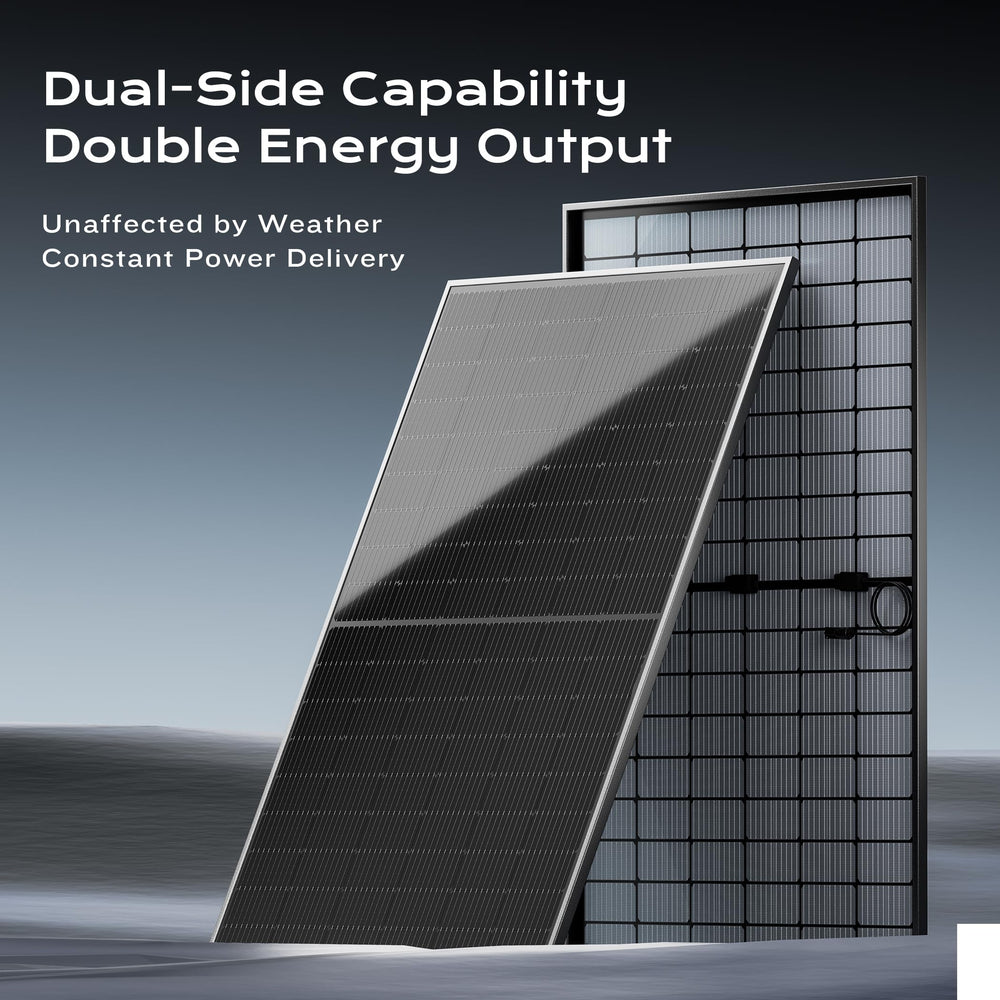

How does bifacial technology increase energy output?

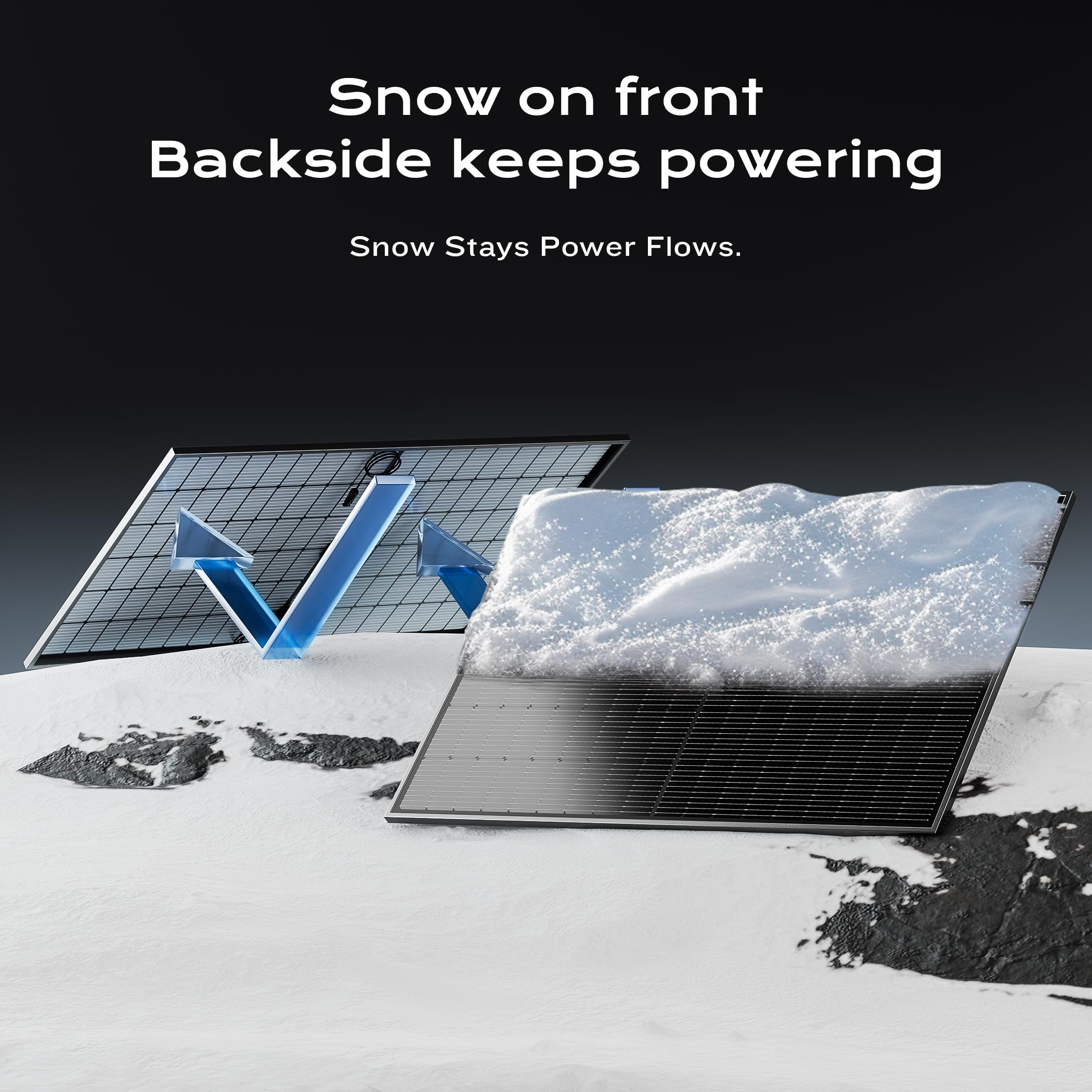

Bifacial panels collect sunlight on both the front and back surfaces, converting reflected and diffuse light that would otherwise be wasted. In bright or reflective environments — like a boat deck, white rooftop, or light gravel — the rear side can add measurable production over single‑faced panels. The design is particularly advantageous in tight spaces where tilting for extra exposure isn’t possible.

• 430W labeled power with extra rear-side energy capture
• N‑Type cells reduce light-induced degradation for steadier output
• High transparency glass improves rear-side light admission

Will this panel survive marine and outdoor conditions?

The EPOCH panel is built to withstand harsh weather and motion environments typical of boats, RVs, and remote cabins. It carries strong snow and wind load tolerances and a waterproof, fully sealed junction box to protect electrical connections from moisture. The supplied MC‑4 compatible connectors are rated to handle dust and low‑pressure water exposure.

• Hail and snow resistance up to 5400 Pa mechanical load
• Wind negative load tolerance rated to 2400 Pa

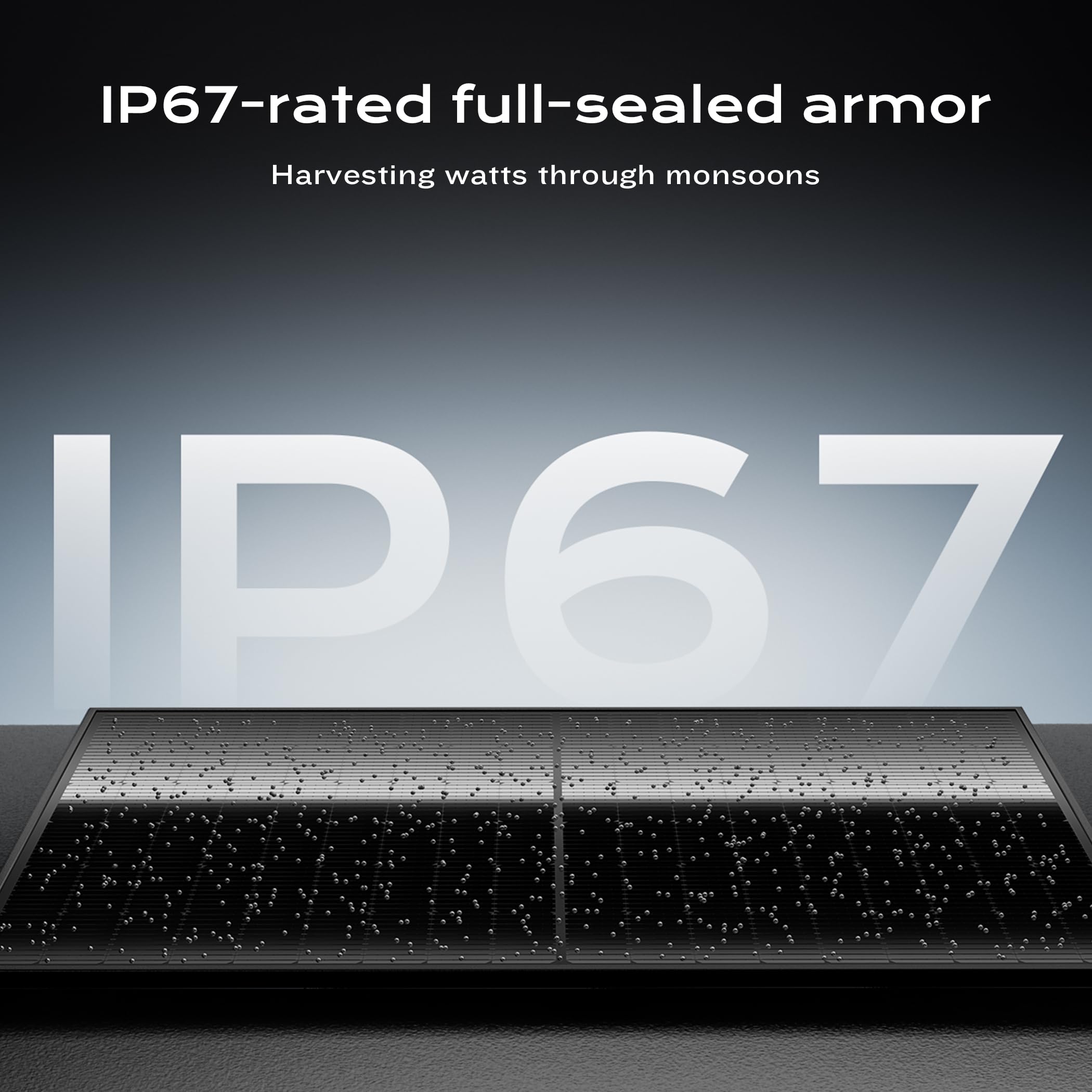

• IP68 junction box and IP67 connectors for water and dust protection

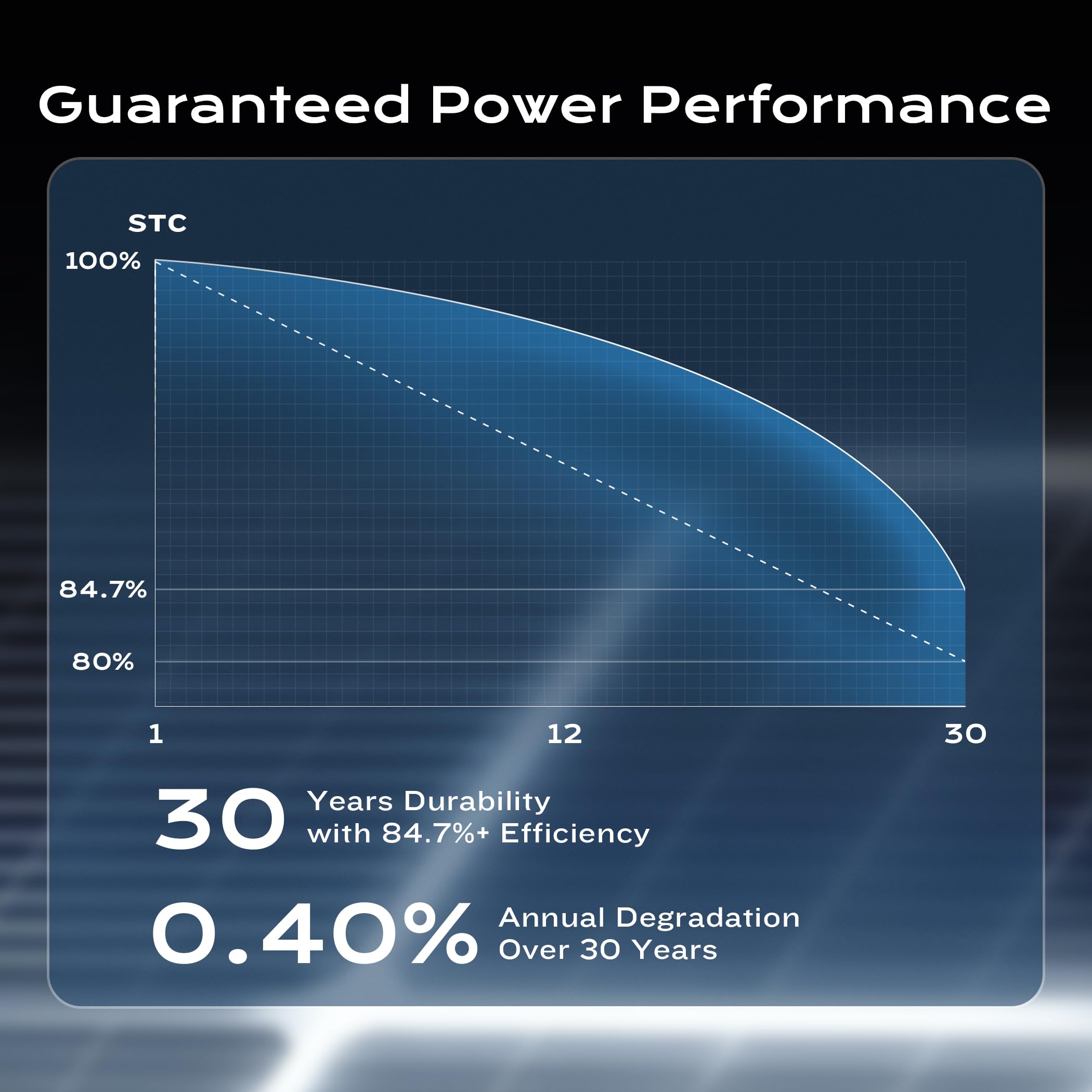

How efficient and stable is the panel over time?

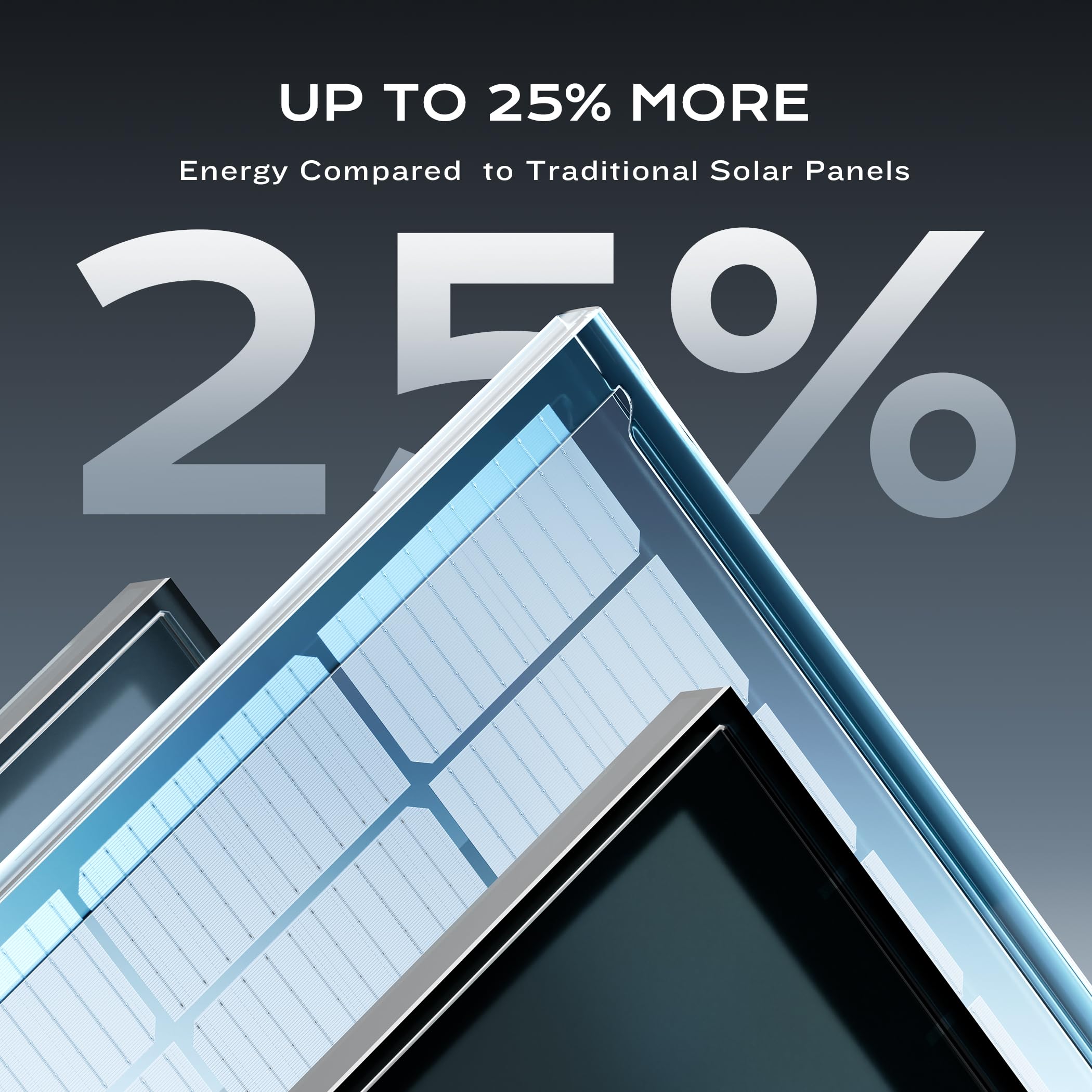

This module uses Class A N‑Type monocrystalline cells and a 16‑busbar (16BB) configuration to improve current collection and reduce resistive loss. With up to approximately 25% conversion efficiency and high glass transparency, the panel converts more sunlight into electricity per square foot compared with older designs. N‑Type chemistry also helps limit common degradation mechanisms, supporting longer useful life.

• High module efficiency around 25% for compact installations
• 16BB layout for improved durability and power stability
• PERC and half‑cut cell architecture to reduce hot‑spot risk

How easy is installation and what mounting options work?

Installation is simplified by pre‑drilled mounting holes and standard connectors included with the panel, so you can pair it with many common mounts and racking systems. It fits 12V or 24V systems via proper stringing or charge controller configuration and is compatible with Z brackets, corner brackets, pole mounts, tilt mounts, and most ground racks. That flexibility makes it suitable for DIY setups and professional installs alike.

• Pre‑drilled holes for fast attachment to brackets or rails
• Includes junction box and MC‑4 style connectors for plug‑and‑play wiring
• Direct compatibility with common RV, roof, and pole mounting hardware

Who is this for: The EPOCH 430W bifacial module is suited to owners of RVs, boats, cabins, and small off‑grid systems who need a compact, high‑output panel that handles outdoor stressors. It's a good choice for installers and DIYers who want a durable, efficient module that integrates with standard mounts and wiring, and for anyone seeking better energy yield when roof area is limited.
