ECOWITT Wi‑Fi Weather Station GW1210 kit — GW1200 gateway & WS90 7‑in‑1 outdoor sensor, 915 MHz, live cloud uploads

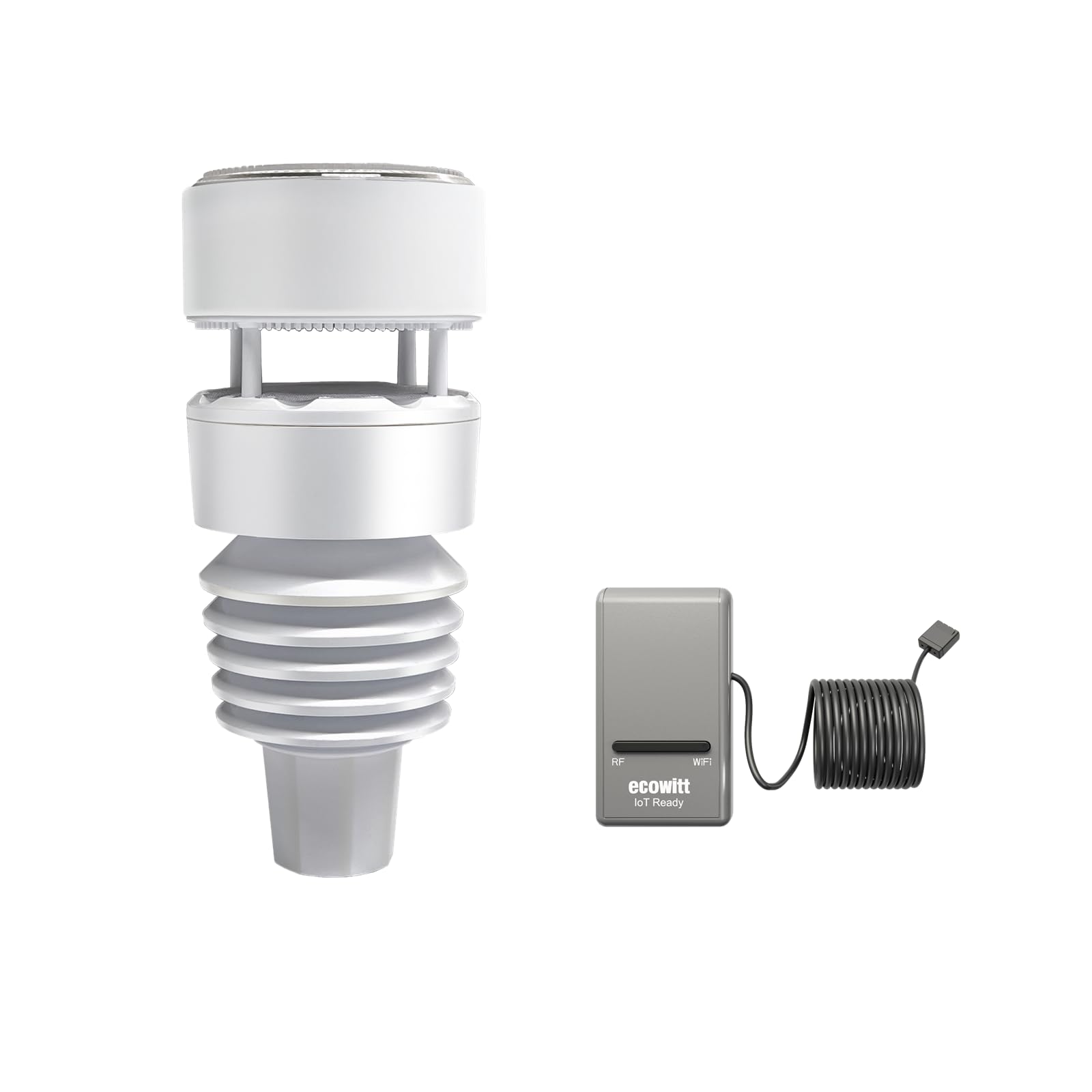

The ECOWITT GW1210 kit combines a GW1200 Wi‑Fi gateway with a WS90 7‑in‑1 outdoor sensor array to deliver continuous, internet‑accessible local weather data.

This compact system pairs a small, USB‑powered GW1200 gateway with a robust WS90 outdoor sensor to monitor temperature, humidity, wind, rain, light/UV and barometric pressure. After a quick Wi‑Fi setup the gateway uploads live readings to the ECOWITT cloud or compatible weather services, while the WS90 transmits environmental data wirelessly at 915 MHz for reliable outdoor coverage.

How does the GW1210 provide weather data to my phone or website?

Once the gateway is connected to your home Wi‑Fi and paired with the WS90, it uploads sensor readings automatically. You can view live and historical data through the Ecowitt app, the WS View Plus platform, or publish to third‑party weather networks.

• Wi‑Fi gateway uploads to ecowitt.net by default.
• Supports Weather Underground, WeatherCloud, Met Office WOW, and custom servers.
• Data accessible on Ecowitt app and WS View Plus web dashboards.

What environmental measurements does the WS90 outdoor sensor record?

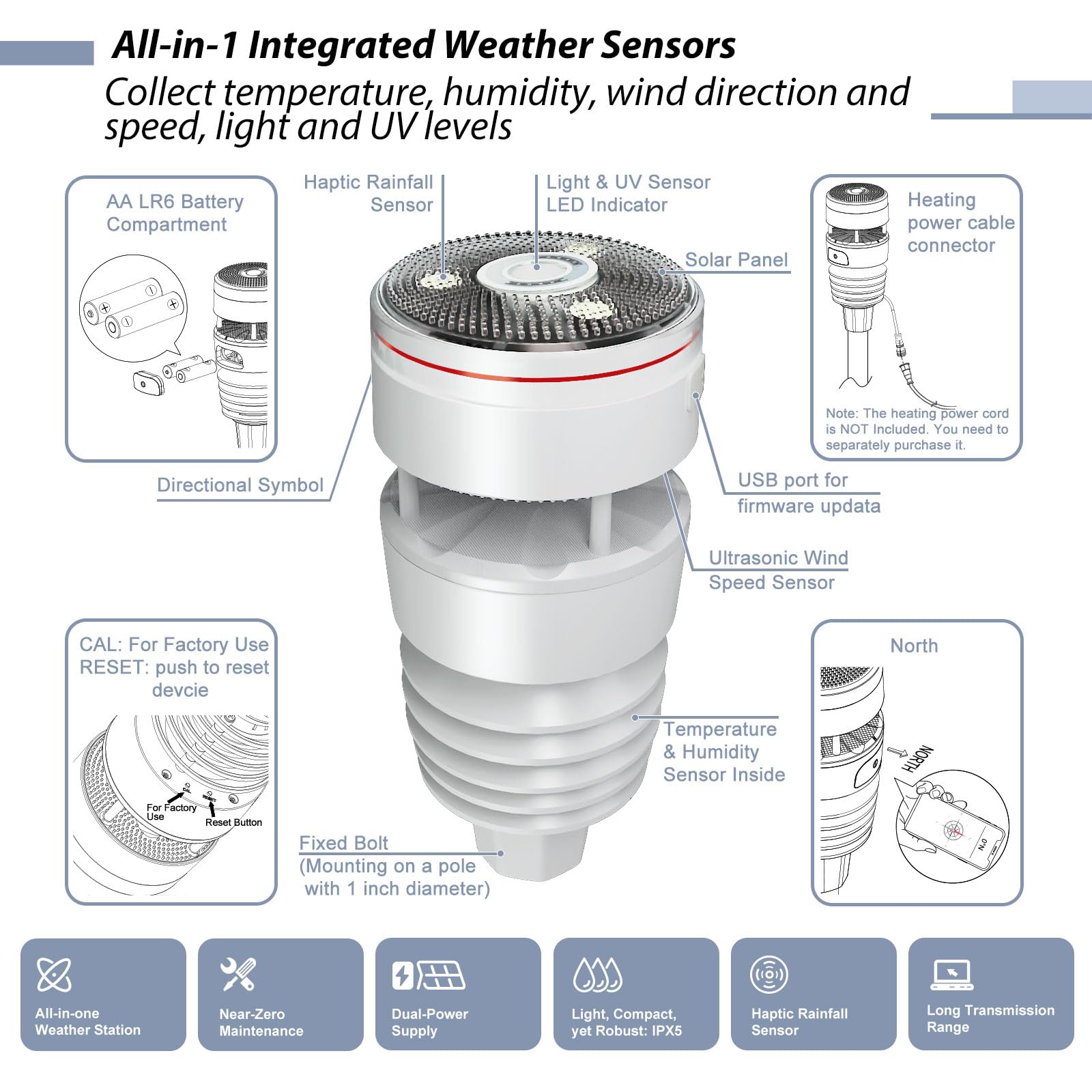

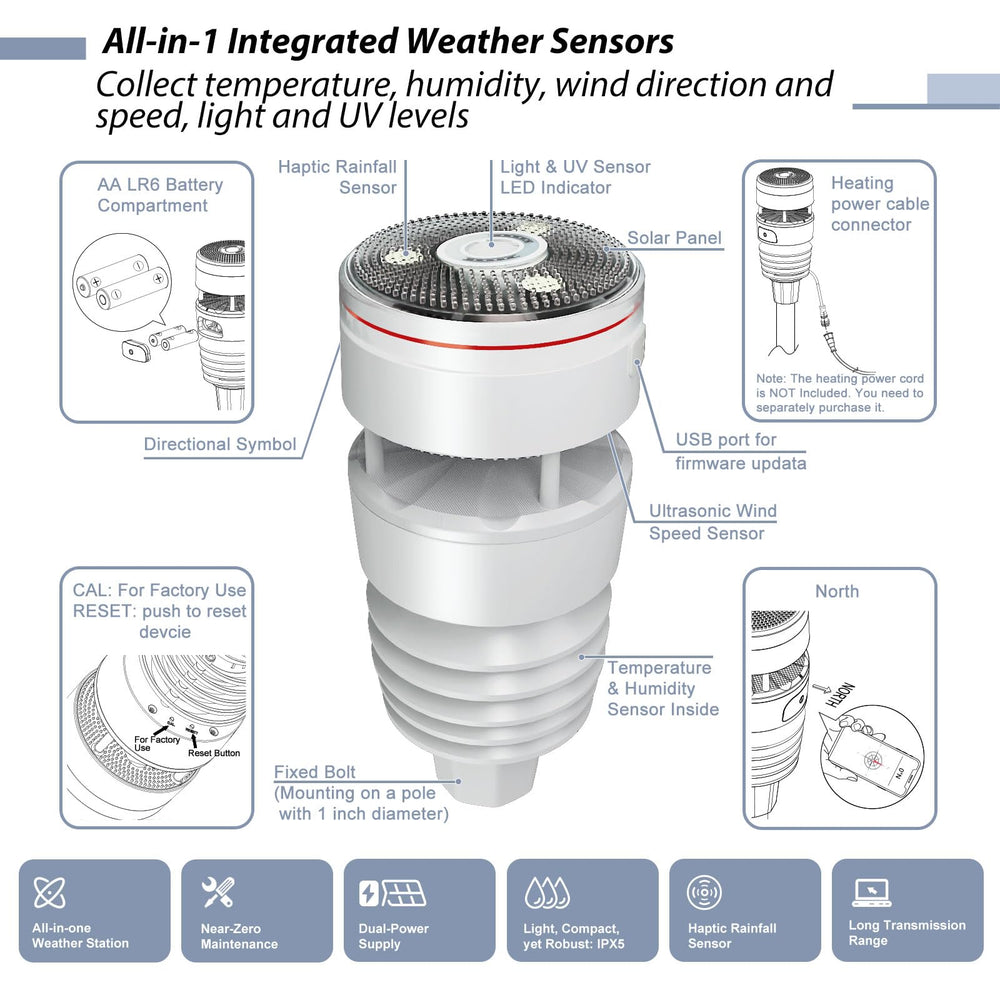

The WS90 is an integrated 7‑in‑1 sensor array designed for outdoor use. It captures temperature, humidity, wind speed and direction, rainfall, ambient light and UV intensity, plus barometric pressure via the gateway’s built‑in sensor.

• Accurate wind and rain readings using dedicated anemometer and tipping‑bucket modules.
• Light and UV sensors for solar exposure monitoring.
• Temperature and humidity sensors with shielding for reliable outdoor sampling.

How easy is installation and Wi‑Fi setup?

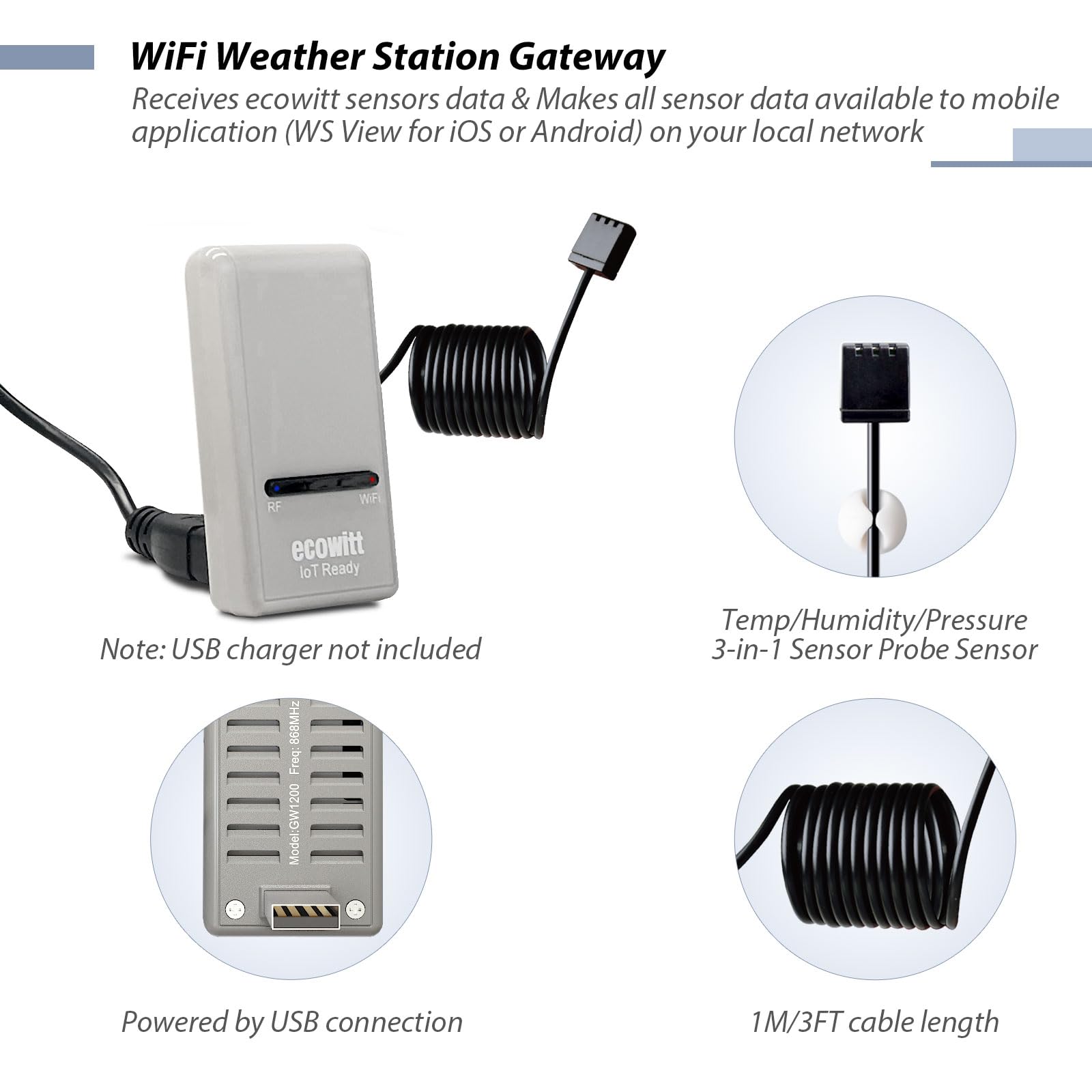

Installation is straightforward: mount the WS90 outdoors, plug the GW1200 into a USB power source, then follow the Ecowitt app or web guide to configure Wi‑Fi. A 1.5 m USB extension and cable clip are included so you can position the gateway for the best signal.

• Two configuration methods: Ecowitt app or website setup guide.
• USB‑powered gateway (USB 2.0 or later) for flexible placement.
• Cable clip and extension cable included for easier installation.

Can the GW1200 gateway control smart devices or expand later?

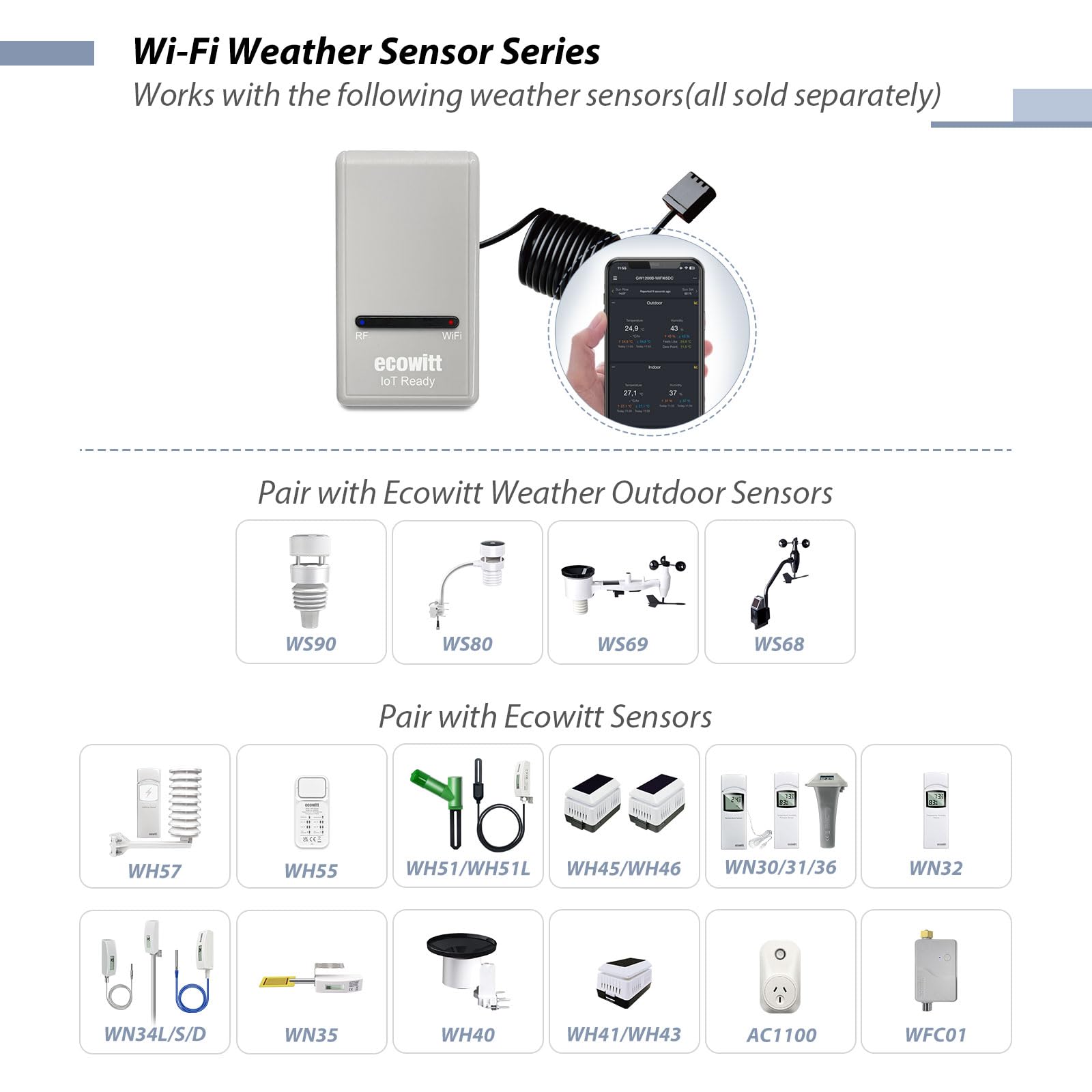

The GW1200 functions as both a weather gateway and an IoT hub for Ecowitt accessories. After pairing, it can manage Ecowitt smart controllers such as watering timers and switches directly from the app, making future expansion straightforward.

• Pairs with Ecowitt smart control devices (e.g., WFC01 watering timer, AC1100 switches).
• Centralized control and scheduling from the Ecowitt app after Wi‑Fi setup.
• Supports multiple Ecowitt sensors and subdevices for network growth.

Who this is for: homeowners, hobby meteorologists, gardeners and small farms who want reliable local weather readings and online access to data without complicated wiring. The GW1210 is suitable for users who value easy setup, IoT expandability and the ability to publish observations to public weather networks or keep them private on the Ecowitt platform.
