ECOBOSS 60A MPPT Solar Charge Controller 12–48V, 150V PV Input — LCD, Multi-Battery Support

The ECOBOSS 60A MPPT Solar Charge Controller is a high-efficiency, multi-voltage regulator that maximizes solar harvest for 12V–48V systems with up to 150V PV input and supports lithium and lead-acid batteries.

This MPPT regulator combines advanced tracking algorithms, an easy-to-read LCD, and multiple safety protections to keep off-grid, RV, marine, and cabin solar setups running efficiently. It auto-detects system voltage (12/24/36/48V), delivers up to 60A of charging current, and adapts charging parameters for different battery chemistries while logging power usage for practical monitoring.

How does the ECOBOSS 60A MPPT controller improve solar energy capture?

The controller uses multi-peak MPPT technology to continually find the best operating point for your solar array, even during partial shading or low-light conditions. High tracking and conversion efficiencies reduce energy loss so more panel output reaches the battery.

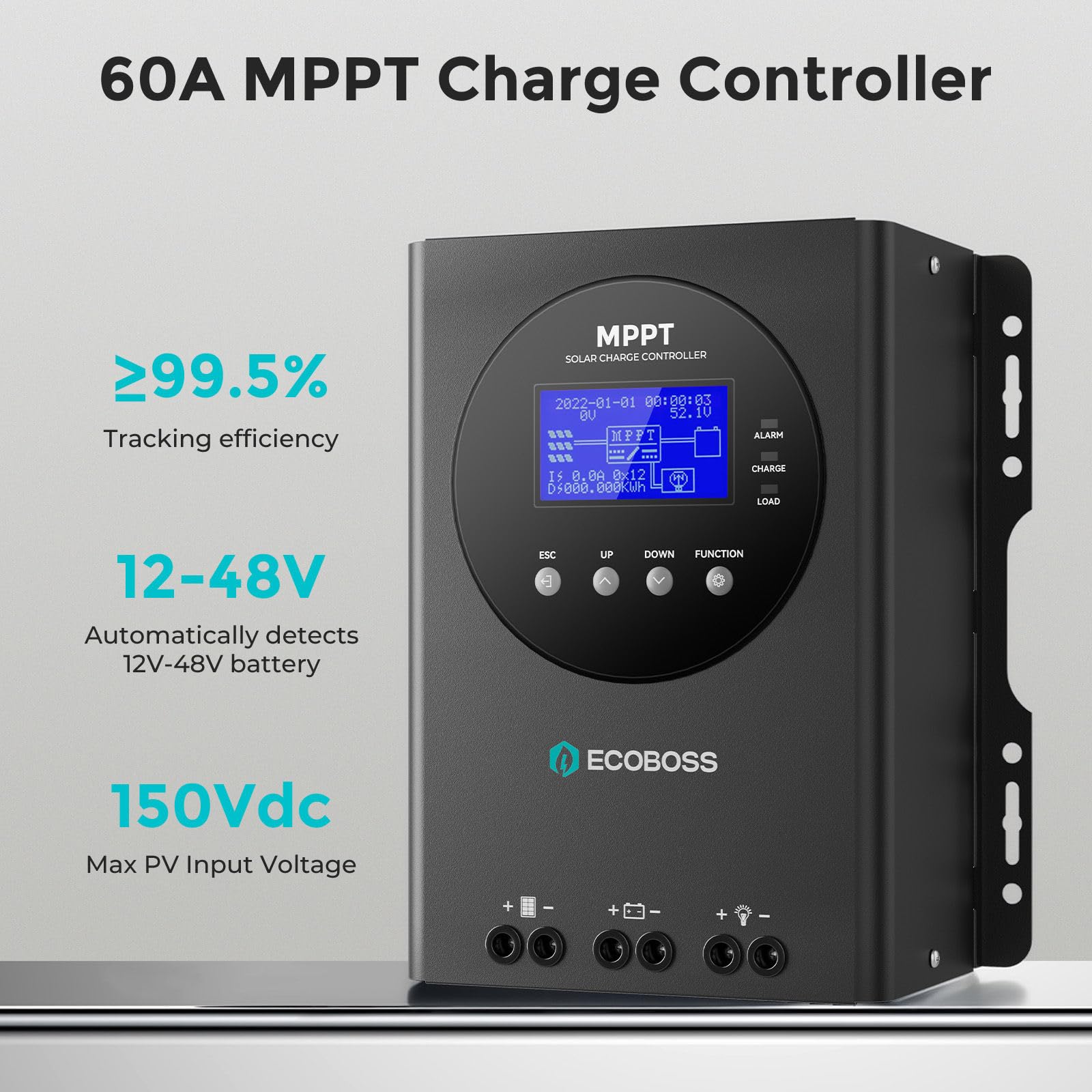

• ≥99.5% MPPT tracking efficiency for precise power point hunting
• 97.5% conversion efficiency minimizes energy wasted as heat
• Handles up to 150V PV open-circuit input for larger string arrays
• Automatic voltage detection for 12/24/36/48V systems

Is this controller compatible with my battery type and system size?

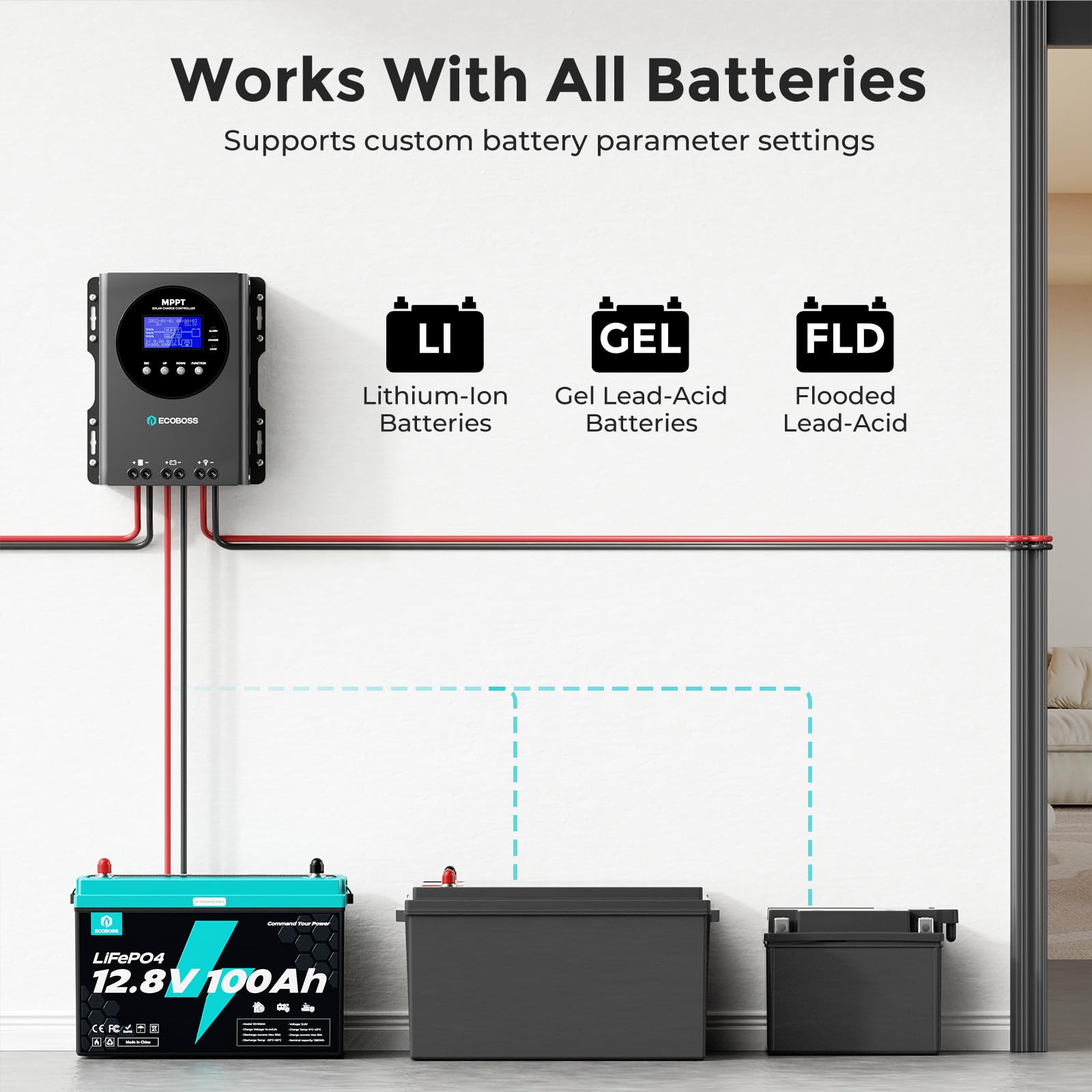

Yes — the ECOBOSS unit is designed to support common lead-acid chemistries (flooded, gel, sealed) and multiple lithium types (LiFePO4, Li-NCM), plus custom battery profiles. With a 60A rated charge current, it fits medium to large battery banks used in RVs, small cabins, boats, or off-grid homes.

• Selectable battery types and adjustable charging parameters
• 60A maximum charge current suited for battery banks up to several kilowatt-hours
• Temperature compensation to protect battery health across climates
• Dual automatic limiting for current and power to prevent overloads

What safety and thermal protections does it include?

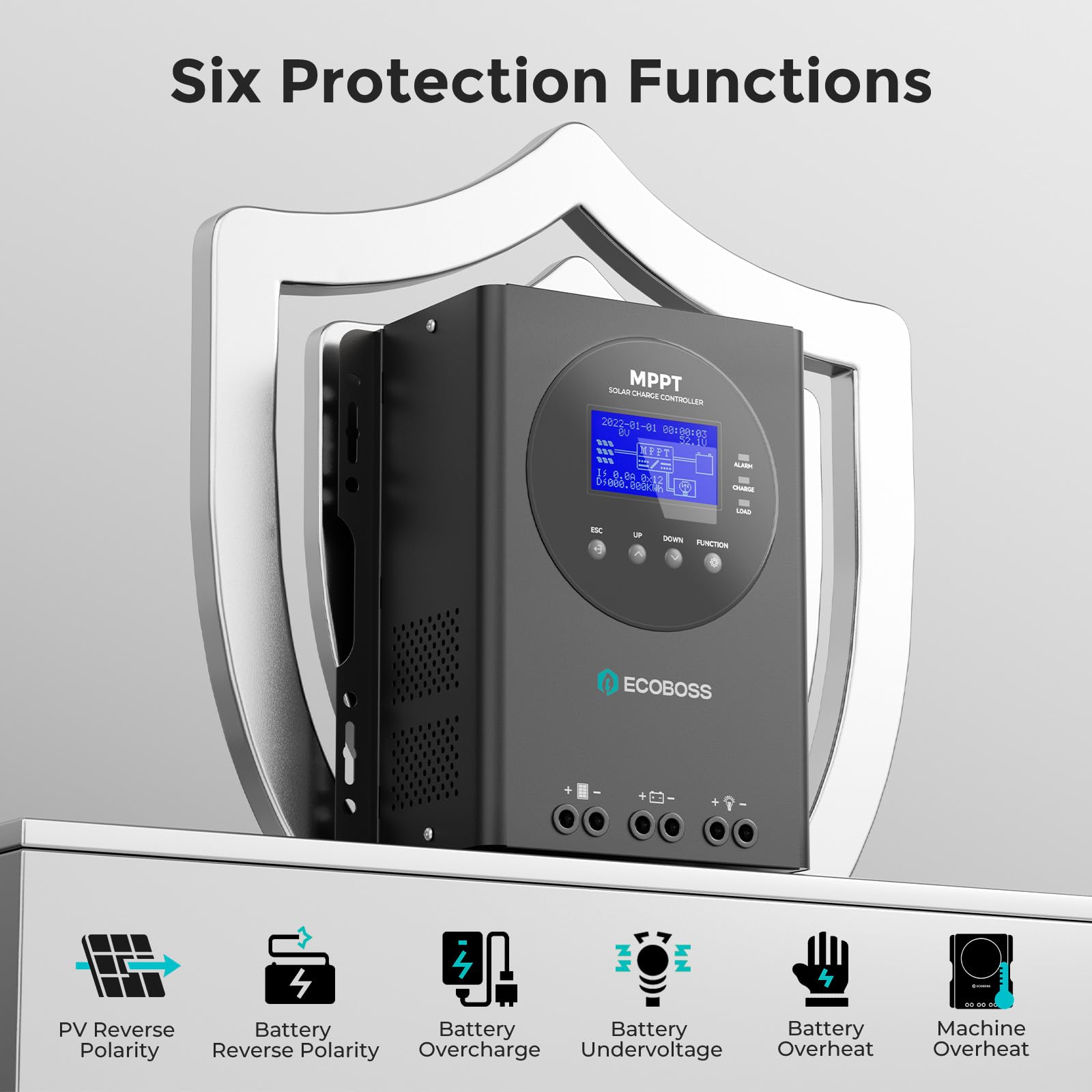

The controller incorporates multiple protections to extend component and battery life: reverse-polarity protection, overcharge and over-discharge safeguards, and over-temperature management. It also reduces output automatically during high ambient temperatures to avoid overheating.

• PV and battery reverse polarity protection for safe installation
• Overcharge, over-discharge, and over-temperature cutoffs
• Built-in -3 mV/°C/2V temperature compensation for charging accuracy
• Automatic power reduction and dual limiting to maintain stability

How easy is setup and system monitoring with the ECOBOSS controller?

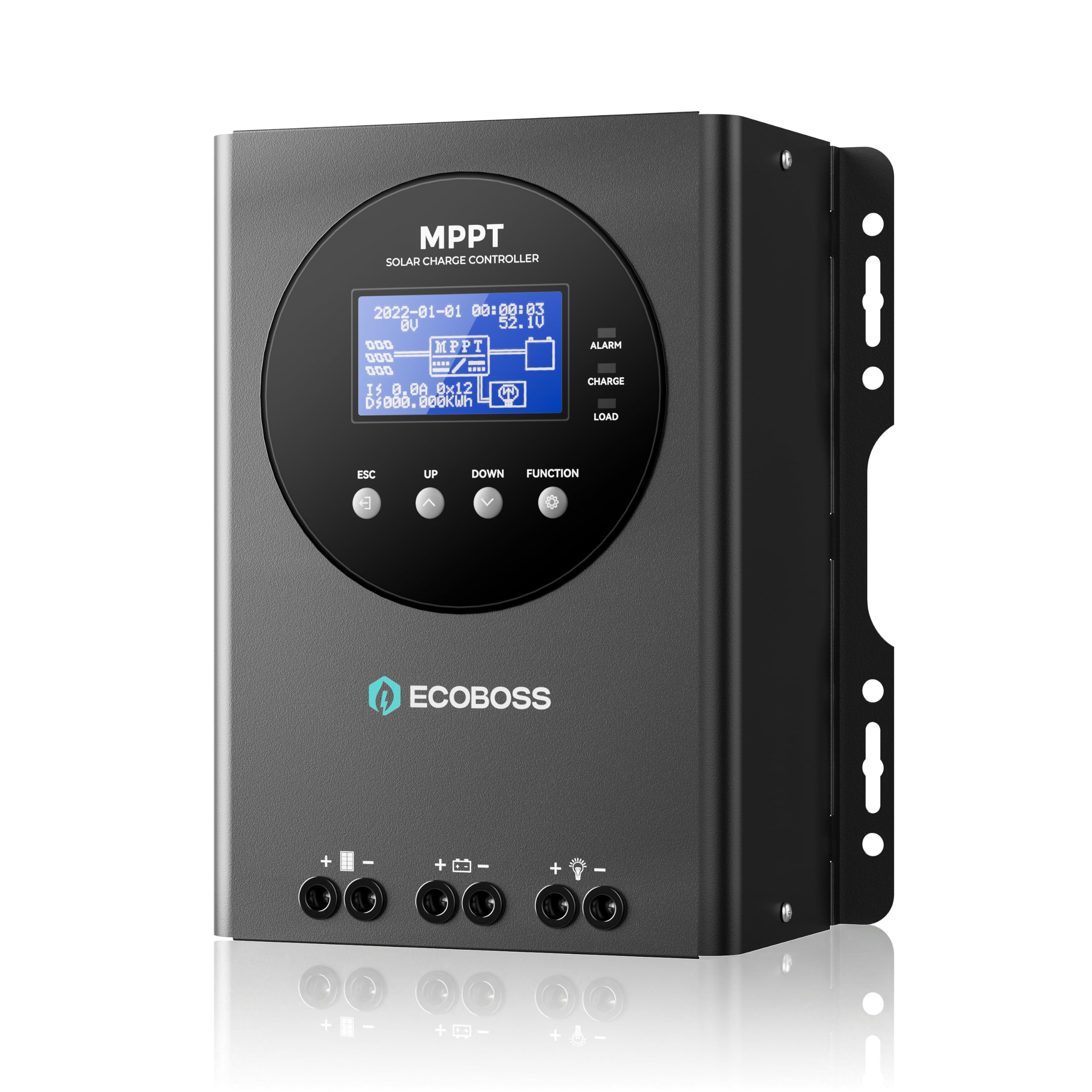

Setup and status checks are straightforward thanks to a backlit LCD and four-button interface that display real-time system parameters and logs. Menu navigation lets you adjust charge profiles, review historical power consumption, and verify system voltages without external tools.

• Backlit LCD shows voltage, current, battery state, and logs
• Four-button layout for on-device configuration and parameter adjustment
• Real-time power consumption monitoring and event logging
• Clear readouts simplify troubleshooting and tuning in the field

Who is this for: Installers, DIY solar enthusiasts, RV owners, boaters, and homeowners running off-grid or hybrid systems who need a reliable, efficient MPPT regulator that supports multiple battery chemistries and system voltages. It is particularly useful where partial shading, variable weather, or higher-voltage PV arrays demand accurate tracking and robust protection.
