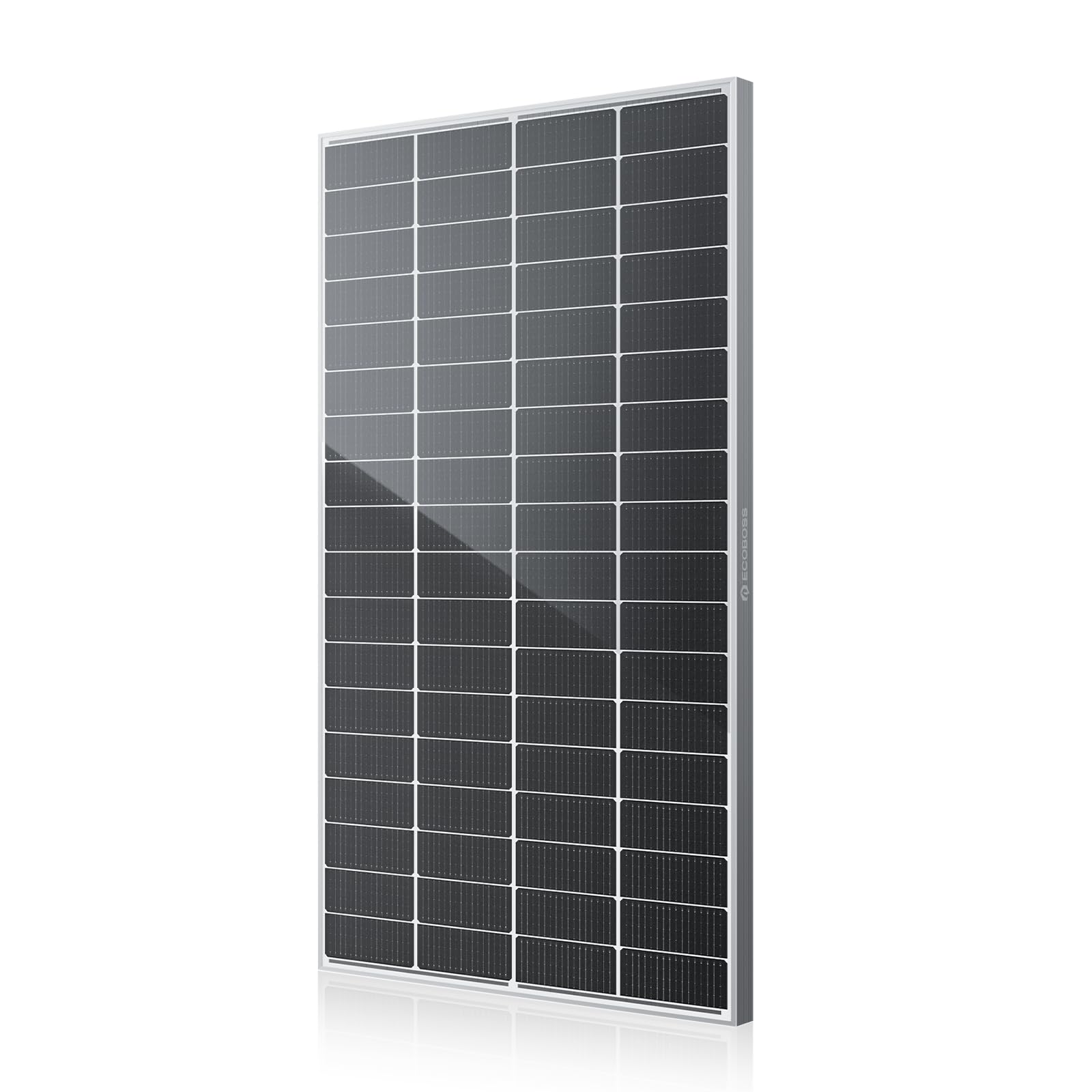

ECOBOSS 200W N-Type Monocrystalline Solar Panel 12V — High Efficiency, 16-Busbar, IP68 Weatherproof

The ECOBOSS 200W N-Type Monocrystalline solar panel is a compact, high-efficiency 12V panel designed to deliver more power per square foot with durable weatherproof construction.

Engineered around advanced N-type A+ cells and a 16-busbar layout, this 200 watt panel prioritizes conversion efficiency, stability, and long-term outdoor reliability. It’s optimized for small off-grid setups—RV roofs, boats, cabins, and camping systems—while remaining expandable into larger arrays for 24V or 48V systems. Built with tempered low-iron glass, a corrosion-resistant aluminum frame, and IP68 protection, the panel is made to withstand wind, snow loads, and moisture while offering simple plug-and-play installation with MC4 connectors.

How does this panel deliver higher efficiency than typical 12V 200W panels?

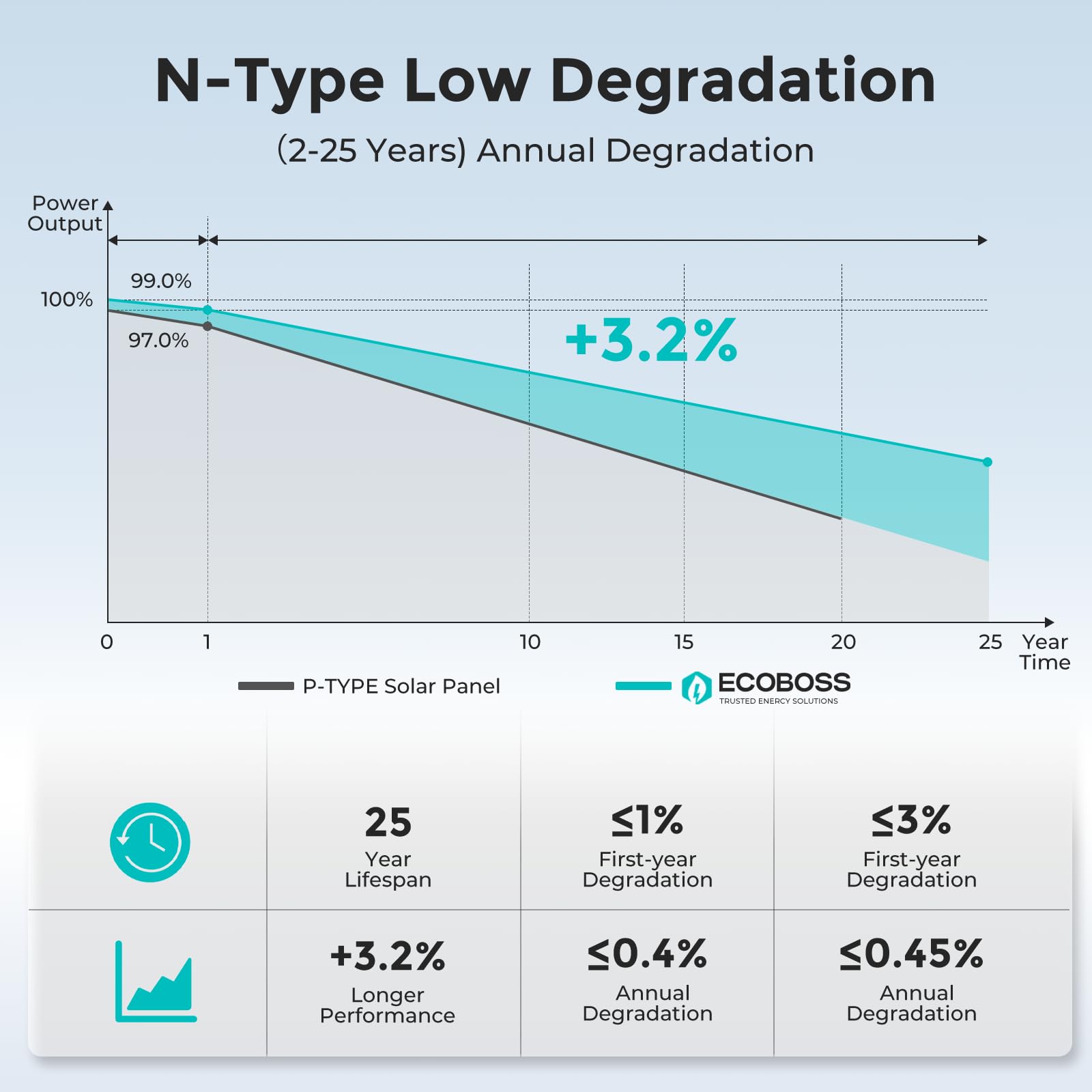

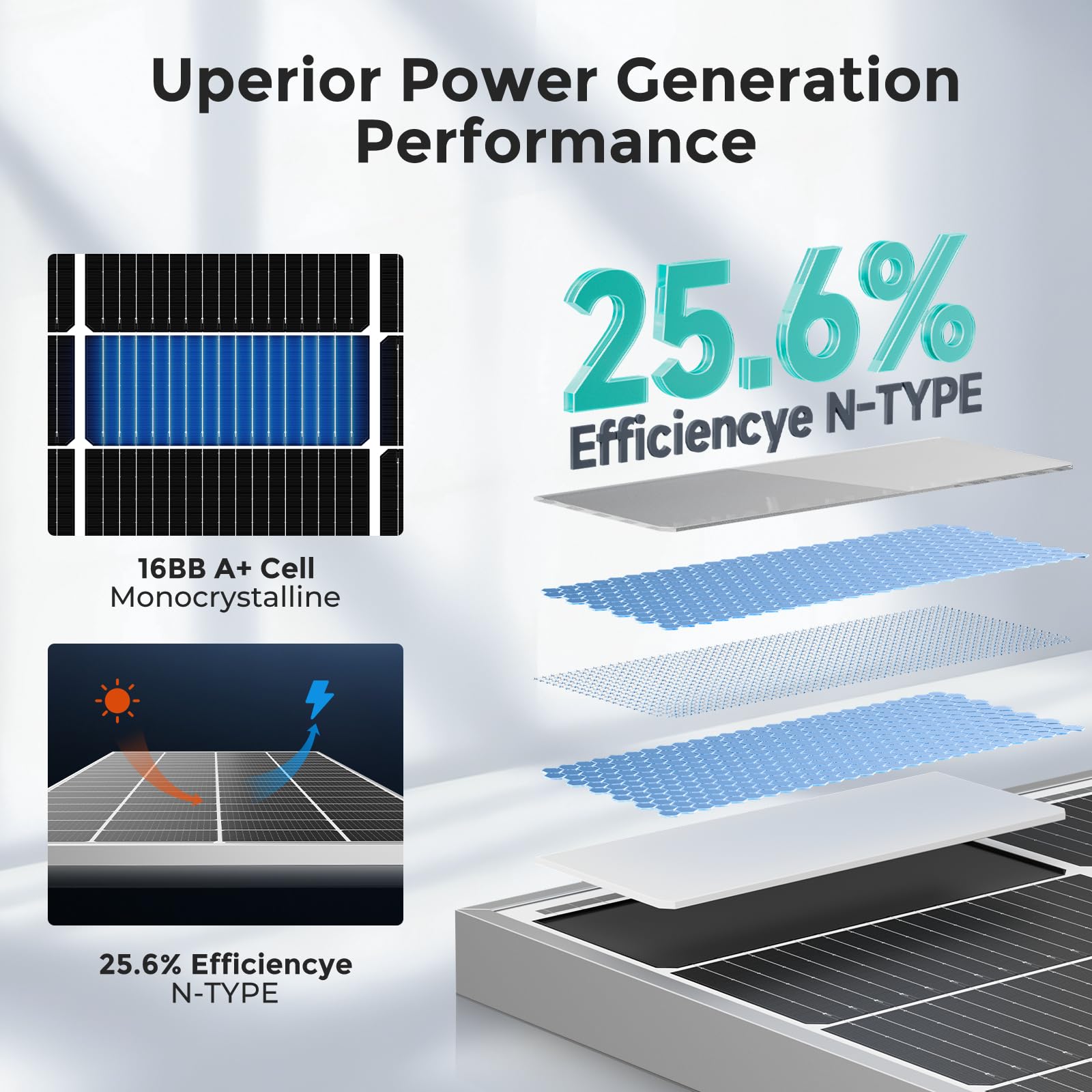

The ECOBOSS panel uses N-type A+ monocrystalline cells that naturally offer better electron flow and lower degradation than common P-type cells. Coupled with 16 busbars, the design reduces internal resistance and improves current collection, producing more usable power in the same footprint.

• Up to 25.6% conversion efficiency from N-type cells
• 182mm Grade A+ cell size for greater surface capture

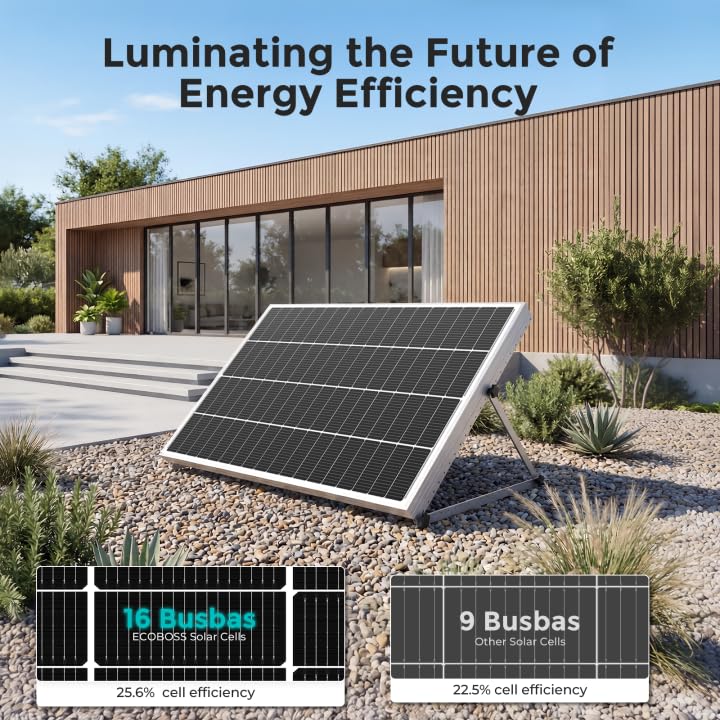

• 16BB layout lowers power loss and hot-spot risk
• Better thermal stability for sustained output in strong sunlight

Will it keep working efficiently in shade or low-light conditions?

This model includes integrated bypass diodes to limit power loss when parts of the panel are shaded, plus the inherent cell quality helps maintain output in diffuse light. It’s designed to reduce hot spots and continue producing power under uneven illumination.

• Bypass diodes mitigate shading-related drop in output
• Reduced micro-crack sensitivity from the 16BB cell layout
• Steady partial-day performance for real-world outdoor use
• Suitable for tree-lined campsites and variable cloud cover

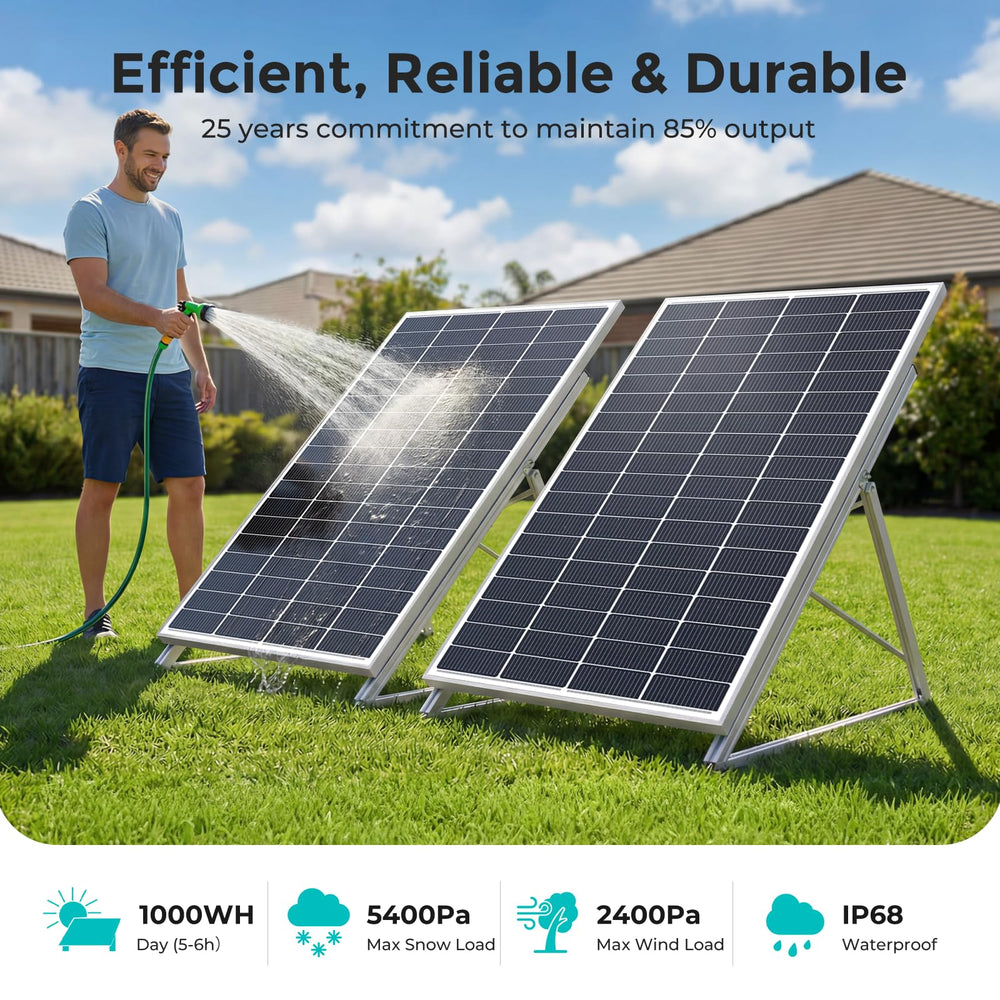

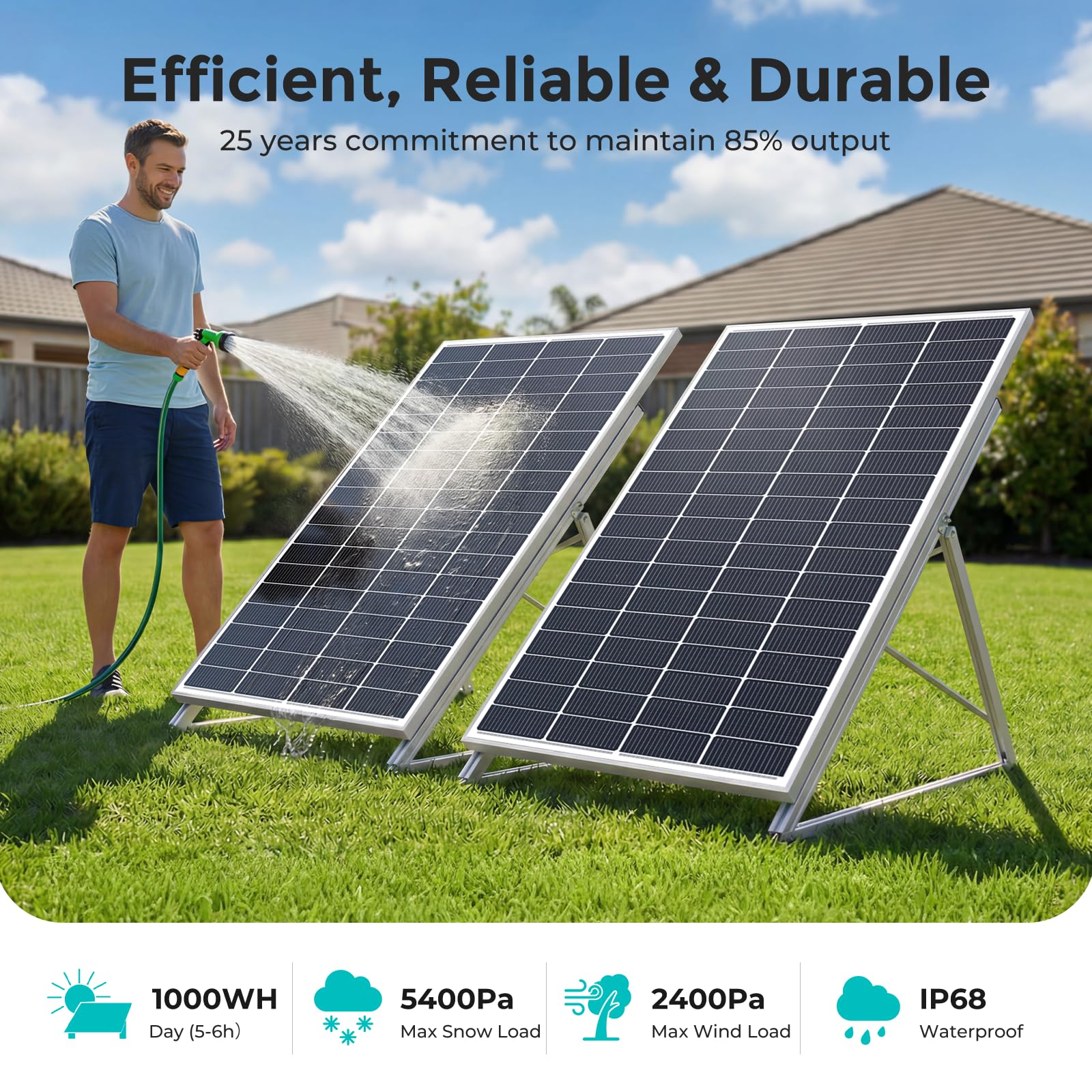

Is this panel durable enough for harsh outdoor use?

Yes. The ECOBOSS 200W is built to endure heavy weather loads and prolonged outdoor exposure. Structural and ingress protections meet high thresholds so the panel can resist wind, snow, and water intrusion while maintaining its mechanical integrity.

• IP68-rated protection against water and dust
• 2400 Pa wind resistance and 5400 Pa snow load capacity
• Corrosion-resistant aluminum frame for long-term mounting
• 3.2mm low-iron tempered glass resists impact and abrasion

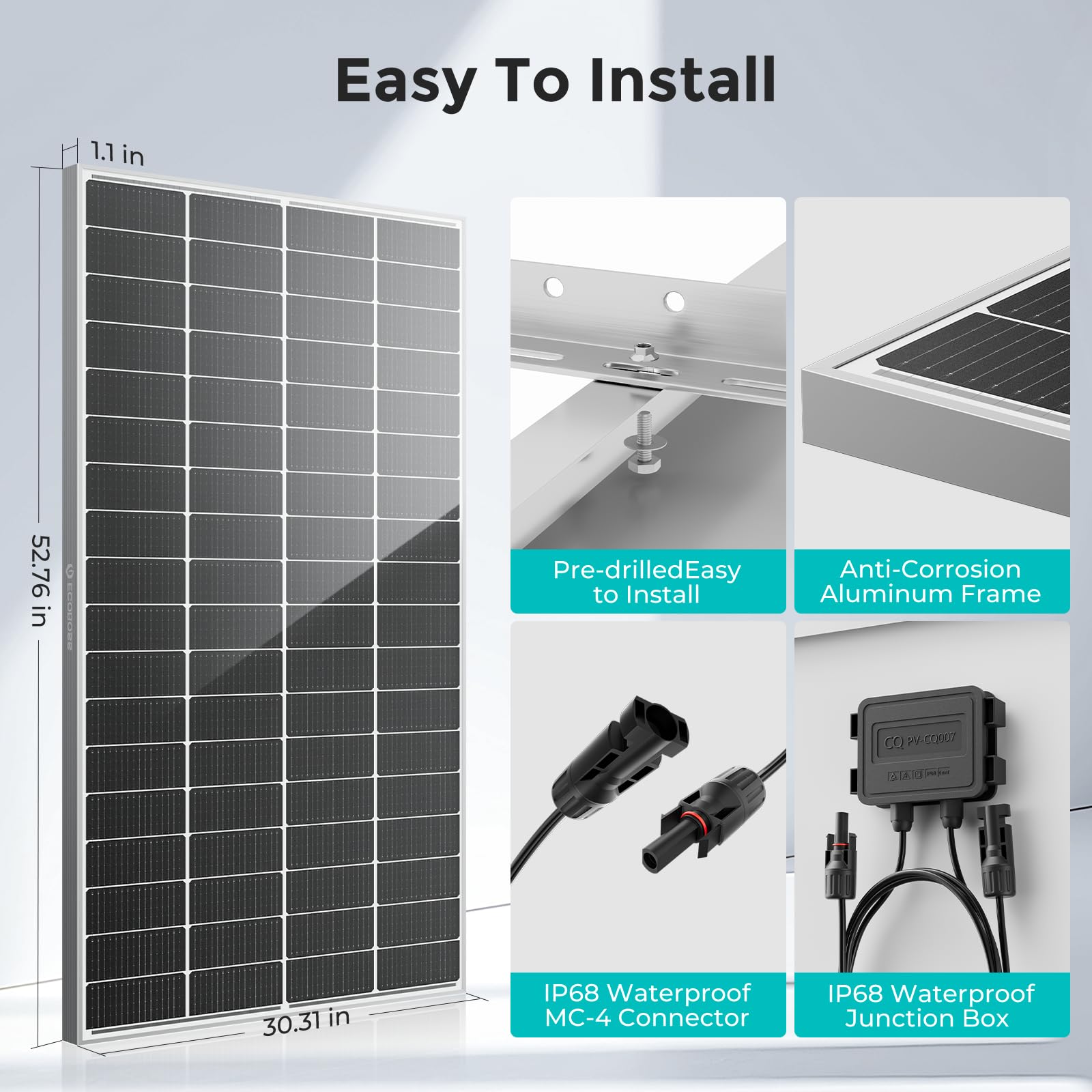

How easy is installation and system expansion?

Installation is straightforward: factory-drilled mounting holes and standard MC4 connectors enable fast, tool-light setup. Multiple panels can be linked in series or parallel to expand capacity and match 24V or 48V battery systems.

• Pre-drilled mounting holes for rapid rooftop or bracket mounting
• MC4 plug-and-play connectors for secure wiring
• Compatible with series/parallel configurations for higher voltages
• Factory tested and inspected for immediate use out of the box

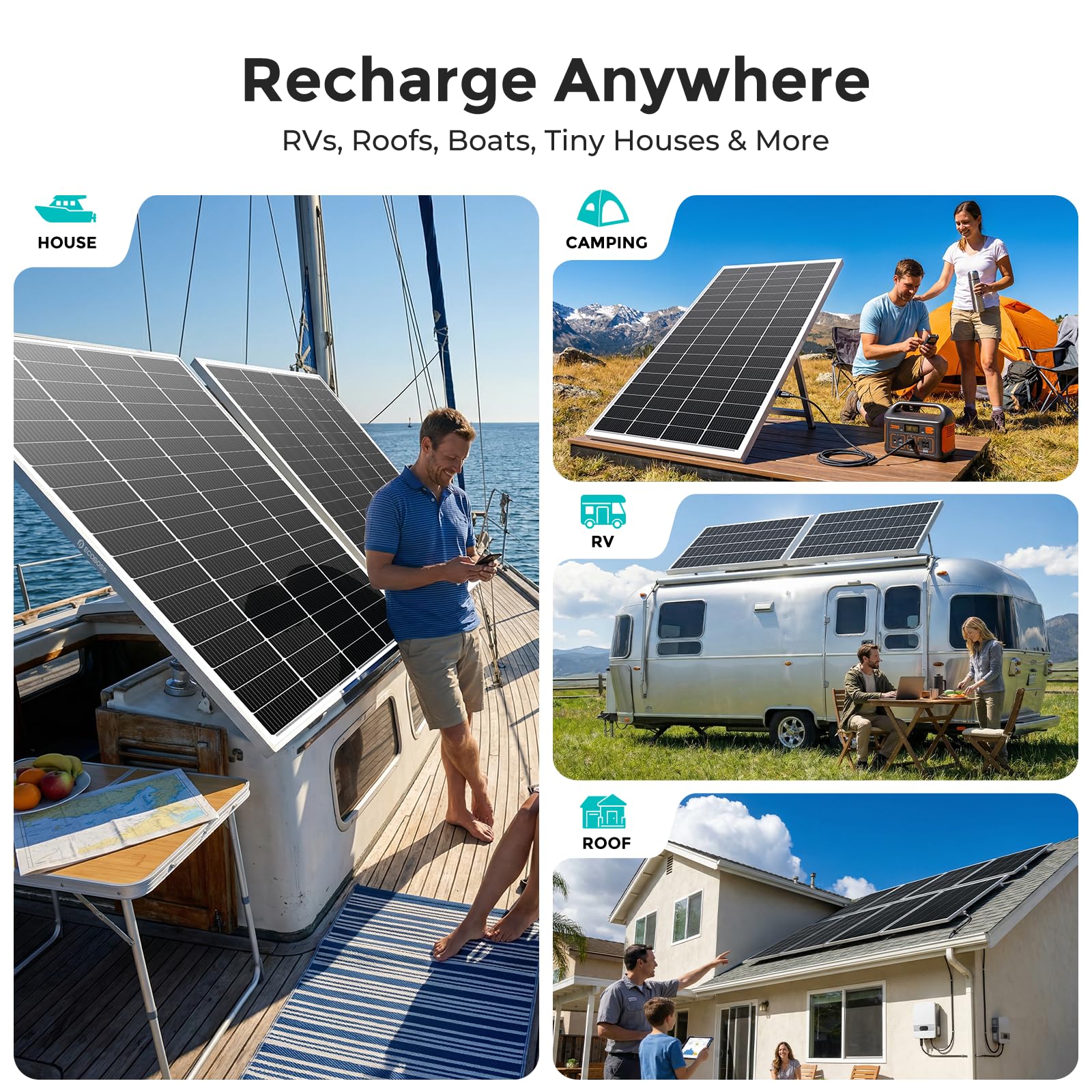

Who is this for? The ECOBOSS 200W N-Type panel is aimed at owners of RVs, boats, tiny homes, cabins, and off-grid hobbyists who need a compact, efficient, and durable 12V solar solution. It’s also a good choice for anyone building a modular array—system integrators and DIYers who want strong low-light performance and long-term weather resistance without increasing panel area. ECOBOSS backs it with a reinforced structure and technical support to help with sizing, installation, and system troubleshooting.
