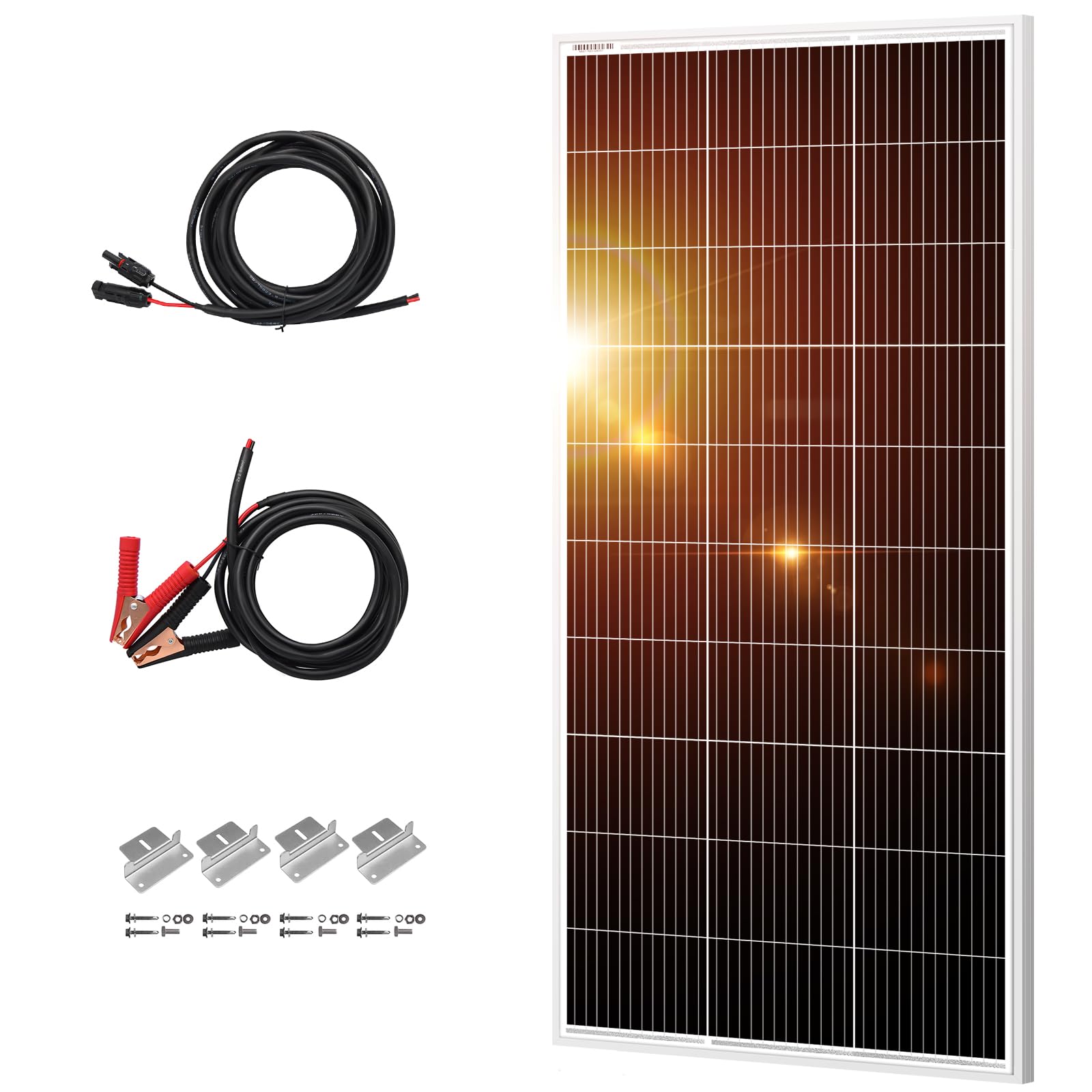

DOKIO 200W 18V Solar Panel Kit for 12V Systems — Monocrystalline, Z-Brackets & 5m Cable

The DOKIO 200W 18V solar panel kit is a ready-to-install module bundle for 12V battery systems that includes mounting brackets and a 5 m MC4 cable—controller sold separately.

This compact kit supplies a dependable DC source for RVs, boats, tiny homes and off-grid battery banks. The 200W monocrystalline panel is built with a half-cell layout and bypass diodes to reduce power loss from partial shading and heat, while the included Z-brackets and 5-meter cable make initial installation fast. The package is optimized for users who want a strong single-panel solution that can be expanded later with additional panels and a compatible charge controller.

How much power will this 200W panel actually deliver to a 12V battery?

Output depends on sunlight, panel orientation and system losses. Under standard test conditions the panel delivers 200W at 18V nominal; in real-world conditions expect lower average wattage but steady charging when positioned correctly.

• Rated 200W output under ideal sun; nominal voltage ~18V for 12V battery charging.
• Half-cell design and bypass diodes reduce loss from shading and hotspot heating.
• Real-world production varies with season, angle, and site shading.

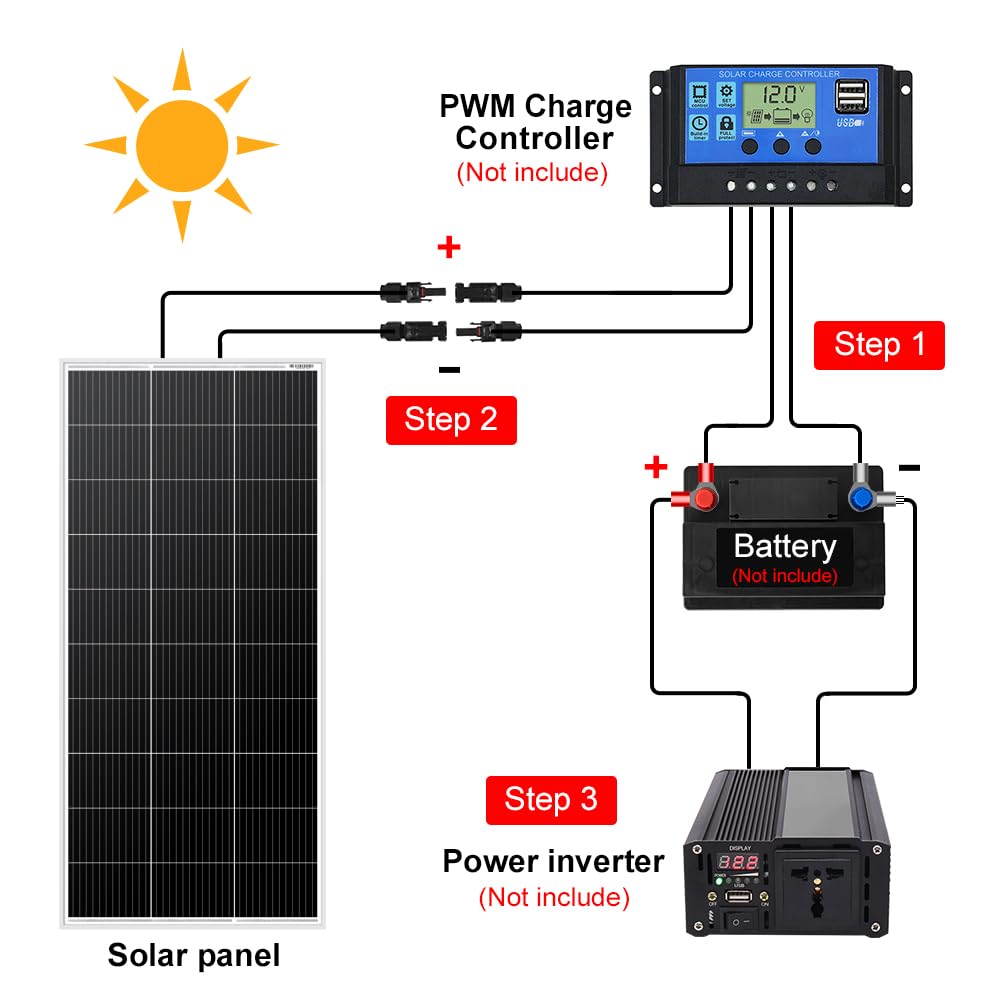

• Use a PWM or MPPT controller (not included) to safely manage 12V charging.

What comes in the box and what additional parts do I need?

The kit includes a single 200W panel, Z-brackets for surface mounting, alligator clips and a 5 m MC4 cable so you can reach most battery locations. You will need to add a charge controller — PWM or MPPT depending on efficiency needs — plus appropriate battery terminals and fusing to complete the system.

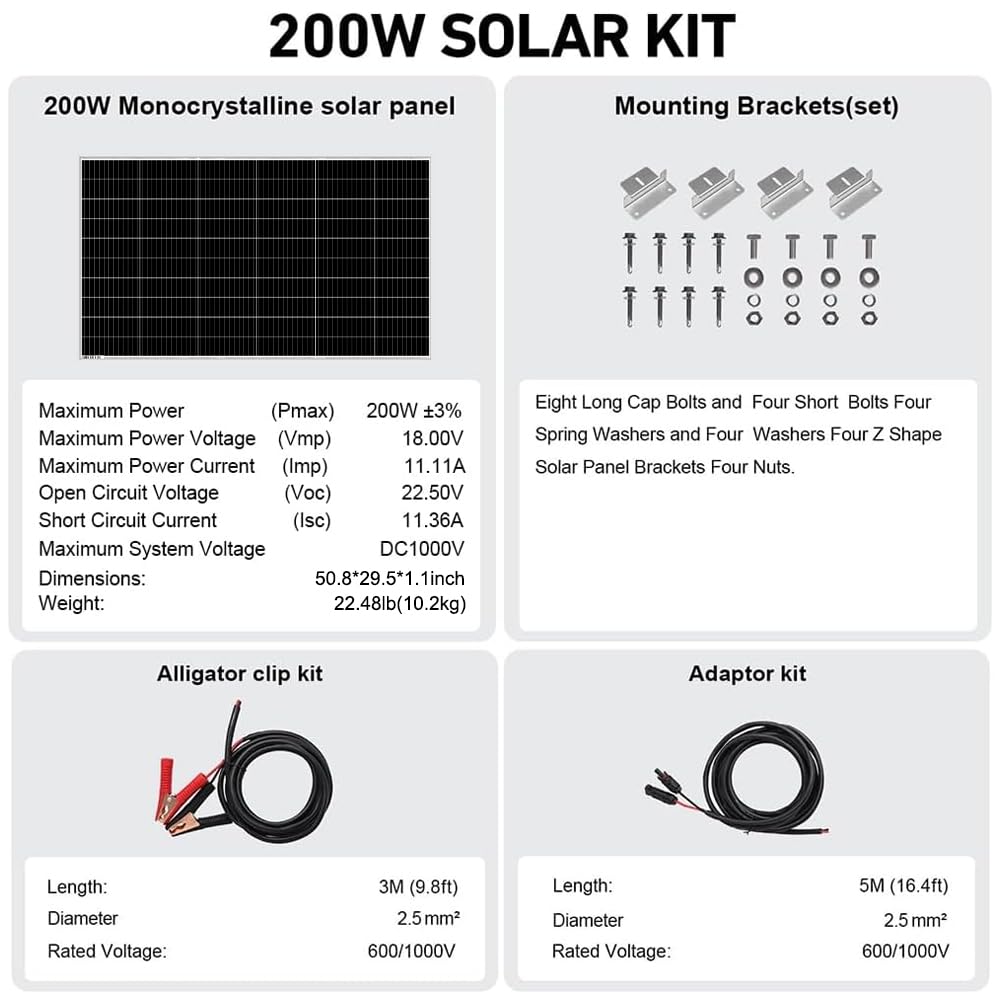

• Included: 200W solar panel, Z-brackets, alligator clips, 5 m MC4 cable.
• Required but not included: PWM or MPPT charge controller, fuses or breakers, battery connection hardware.
• Optional: extra panels for higher capacity and longer MC4 extension cables for remote mounts.

How easy is installation on an RV, boat, or rooftop?

Installation is designed to be approachable for DIYers and professional installers alike. The panel arrives with pre-drilled holes that match standard mounting hardware, and the included Z-brackets speed up attachment on flat or gently curved surfaces.

• Pre-drilled holes and Z-brackets enable quick mounting on RV roofs, cabins or small boats.
• Universal MC4 connectors and 5 m cable simplify wiring to a controller or battery location.
• Foam corner protection and reinforced cartons reduce transit damage for smoother installs.
• Expandable: additional panels can be wired in series/parallel with proper controller sizing.

How durable is the panel for long-term outdoor use?

The DOKIO panel is built for extended outdoor exposure and engineered with components that limit yearly degradation. Robust cells, bypass diodes and a durable frame provide stable performance over many seasons when mounted and maintained correctly.

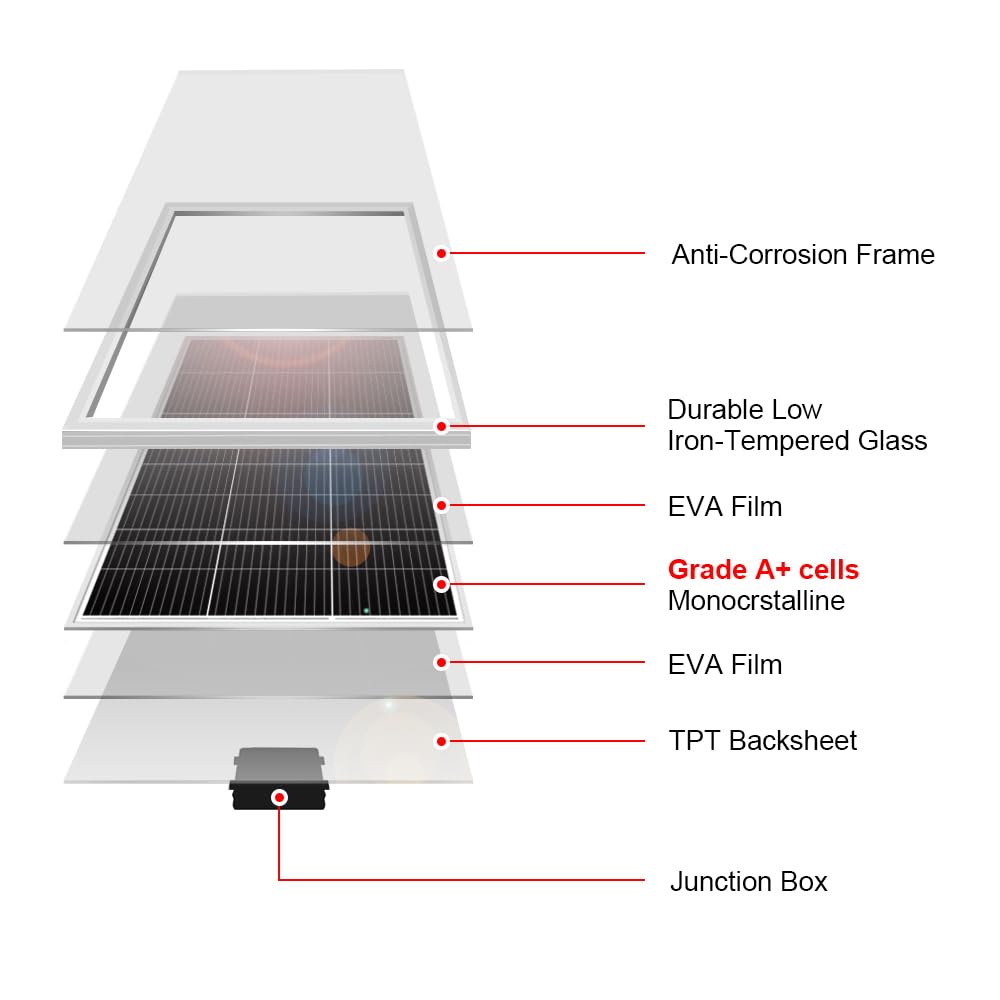

• Half-cell construction reduces thermal stress and improves shade tolerance.
• Bypass diodes protect against hot spots and sustain output during partial shading.
• Designed for years of service with low annual performance decline and corrosion-resistant framing.
• Shipped with protective foam corners and reinforced cartons to prevent transport damage.

Who is this for: This DOKIO 200W 18V solar panel kit suits RV owners, boaters, cabin dwellers and off-grid enthusiasts who need a single reliable panel to charge 12V battery banks. It’s ideal for users wanting a straightforward, expandable solution that’s easy to mount and connects quickly to a PWM or MPPT charge controller for safer battery charging.
