COMeap MC-4 to DC Solar Adapter Cable 16.4ft (5m) — 12AWG Dual-Jacket, DC8020/DC5525 Tips

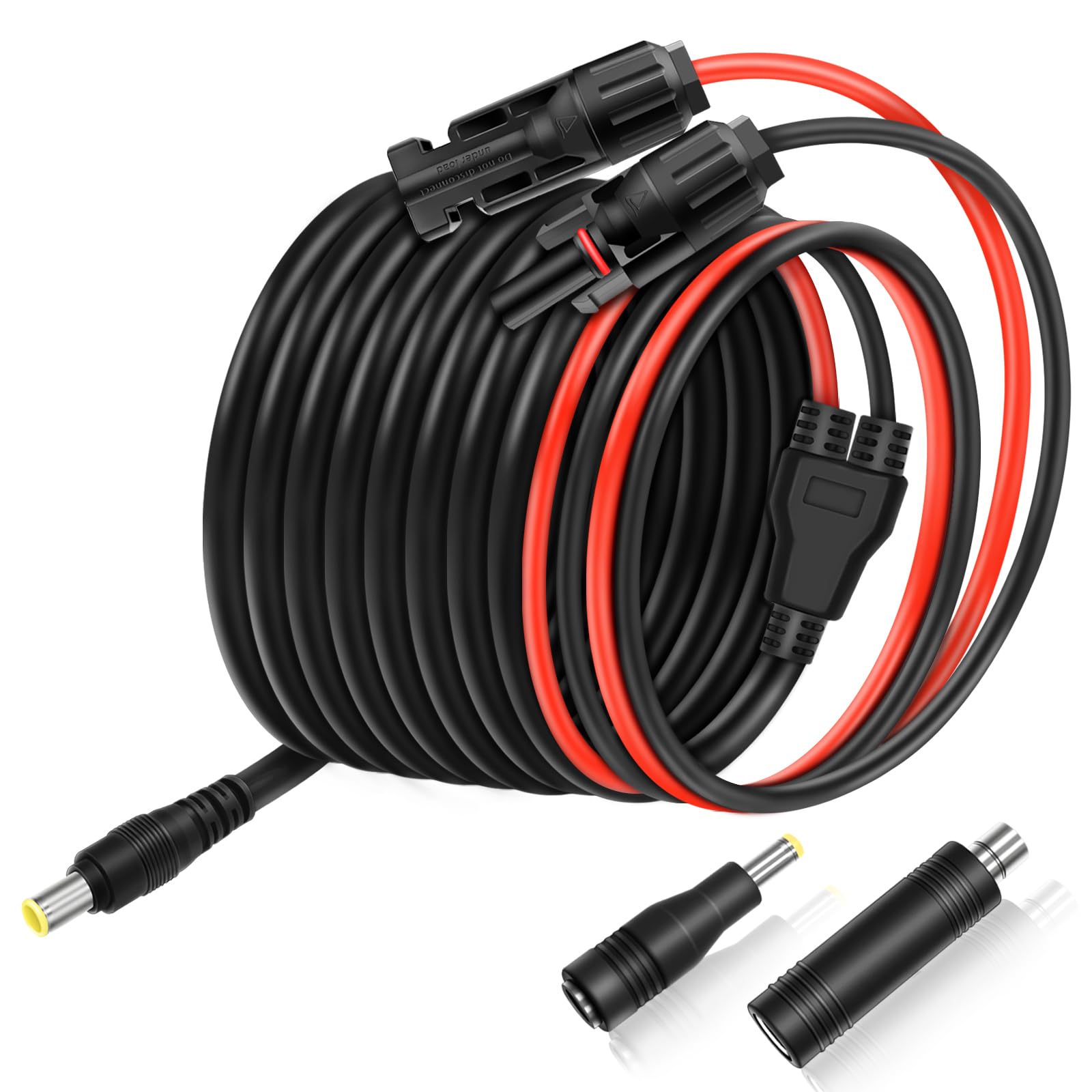

The COMeap 16.4FT (5m) MC-4 to DC solar adapter converts standard MC-4 solar panel outputs into DC7909, DC8020 or DC5525 plugs so you can charge Jackery, Bluetti, Goal Zero and many other portable power stations safely and without tools.

This heavy‑duty solar extension cable bridges photovoltaic panels and portable power stations. Built with thick 12AWG/14AWG conductors and a dual PVC jacket, the cable tolerates warmer environments while minimizing voltage drop across its 5‑meter run. It ships with two DC tip converters so you can match the common DC ports found on power stations such as Jackery Explorer series, Bluetti models, Goal Zero Yeti and similar units.

Which power stations and panels will this adapter work with?

The adapter is designed for broad compatibility with many popular brands and models. It supports Jackery Explorer series (160 to 3000Pro variants), Bluetti EB series, Goal Zero Yeti, Anker, ALLWEI, Grecell, BALDR and more, plus most panels that use MC‑4 outputs.

• Includes DC8020 and DC5525 converters to fit different DC input ports.
• Works with power stations having DC7909/8020/5525 type inputs when the correct tip is selected.
• Accepts MC‑4 solar panel outputs — common on portable and fixed solar panels.

How do the connectors and wiring protect charging performance?

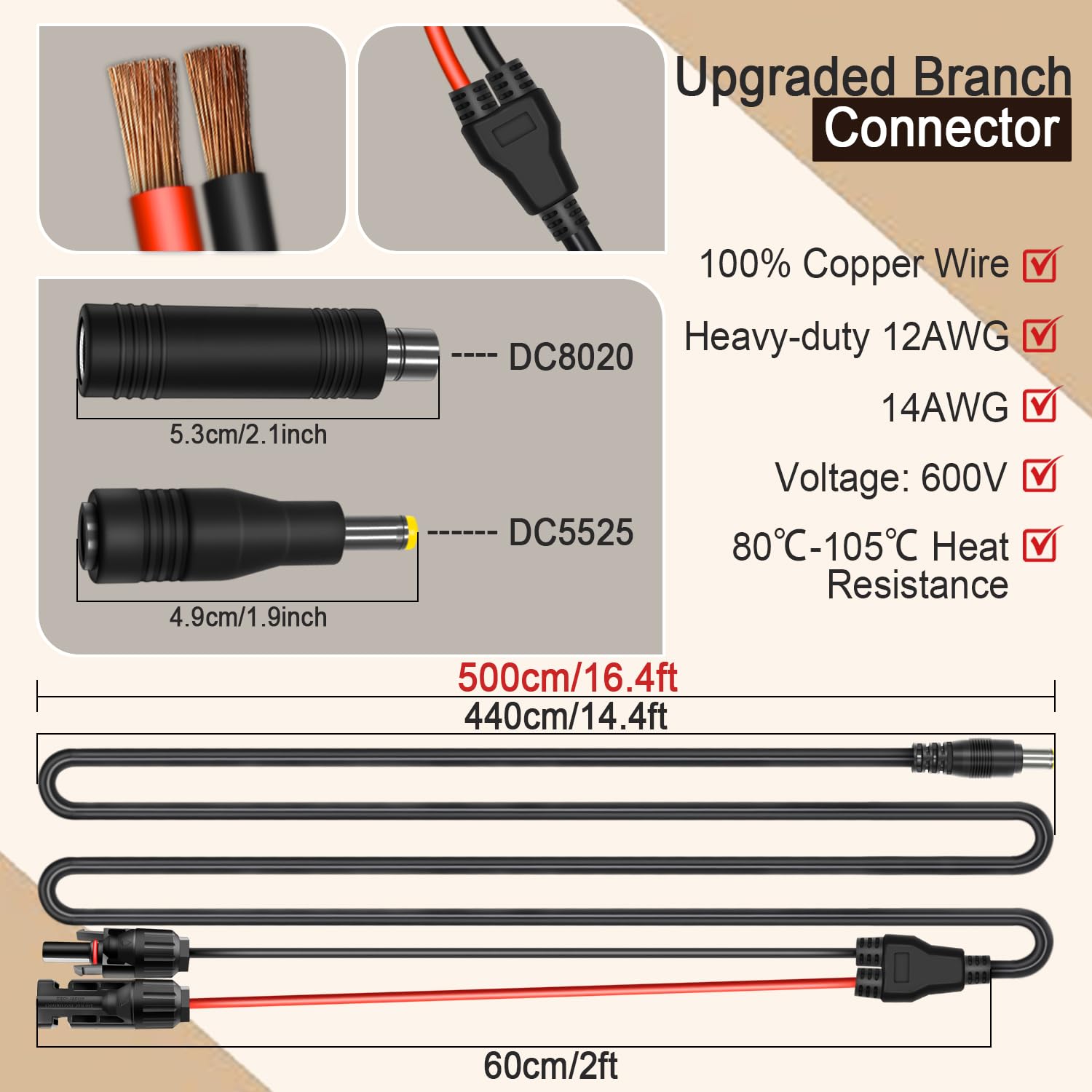

COMeap uses 12AWG plus 14AWG conductors to keep resistance low and deliver steady current from panels to your station. The double PVC jacket increases heat resistance (80–105°C) and physical durability for outdoor use.

• 12AWG/14AWG reduces voltage loss for longer runs and higher current.
• Rated for up to 15A on the MC‑4 input side and 8–10A on the DC output plug.
• Double insulation improves abrasion and temperature resistance for field use.

Which DC tip should I choose and how do I connect it?

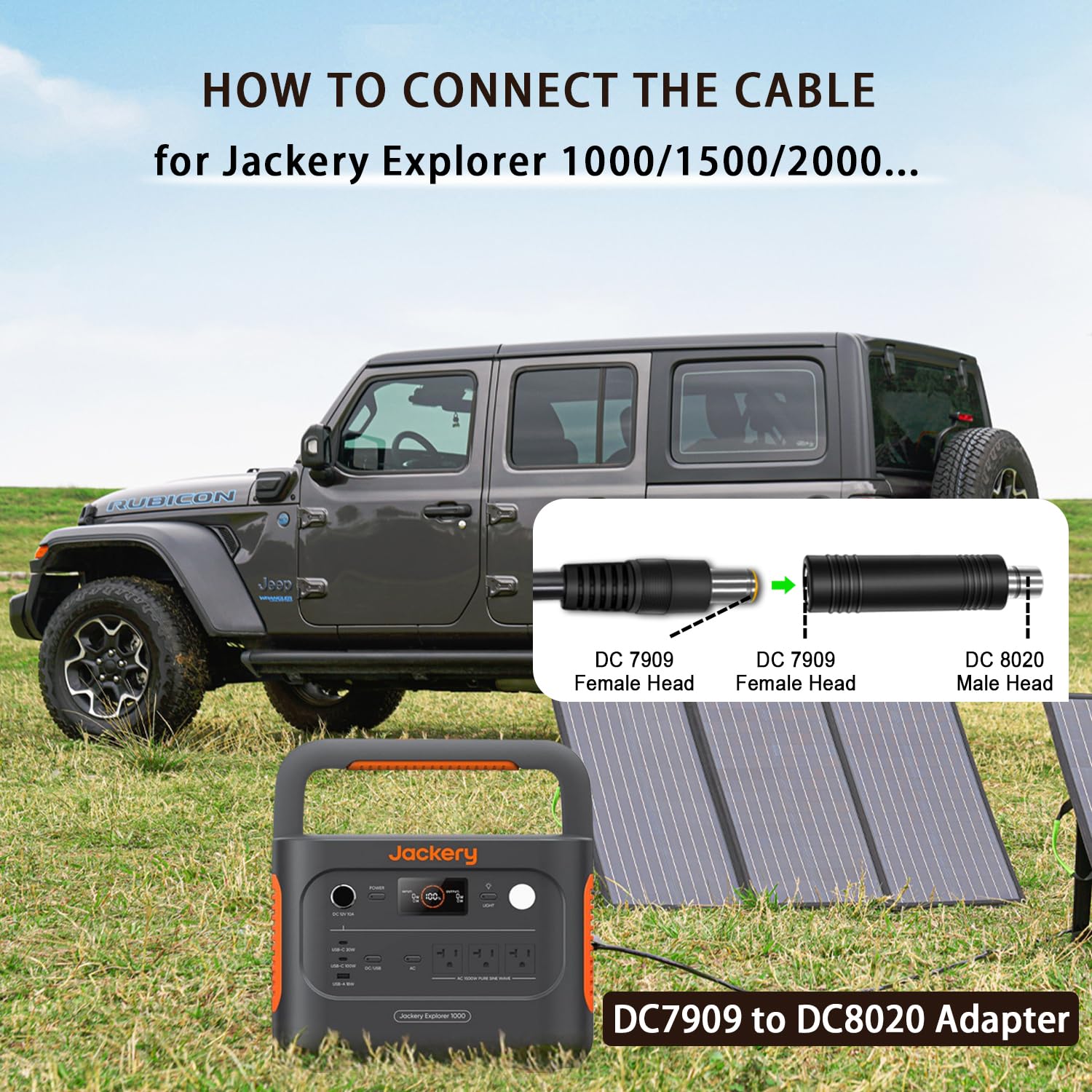

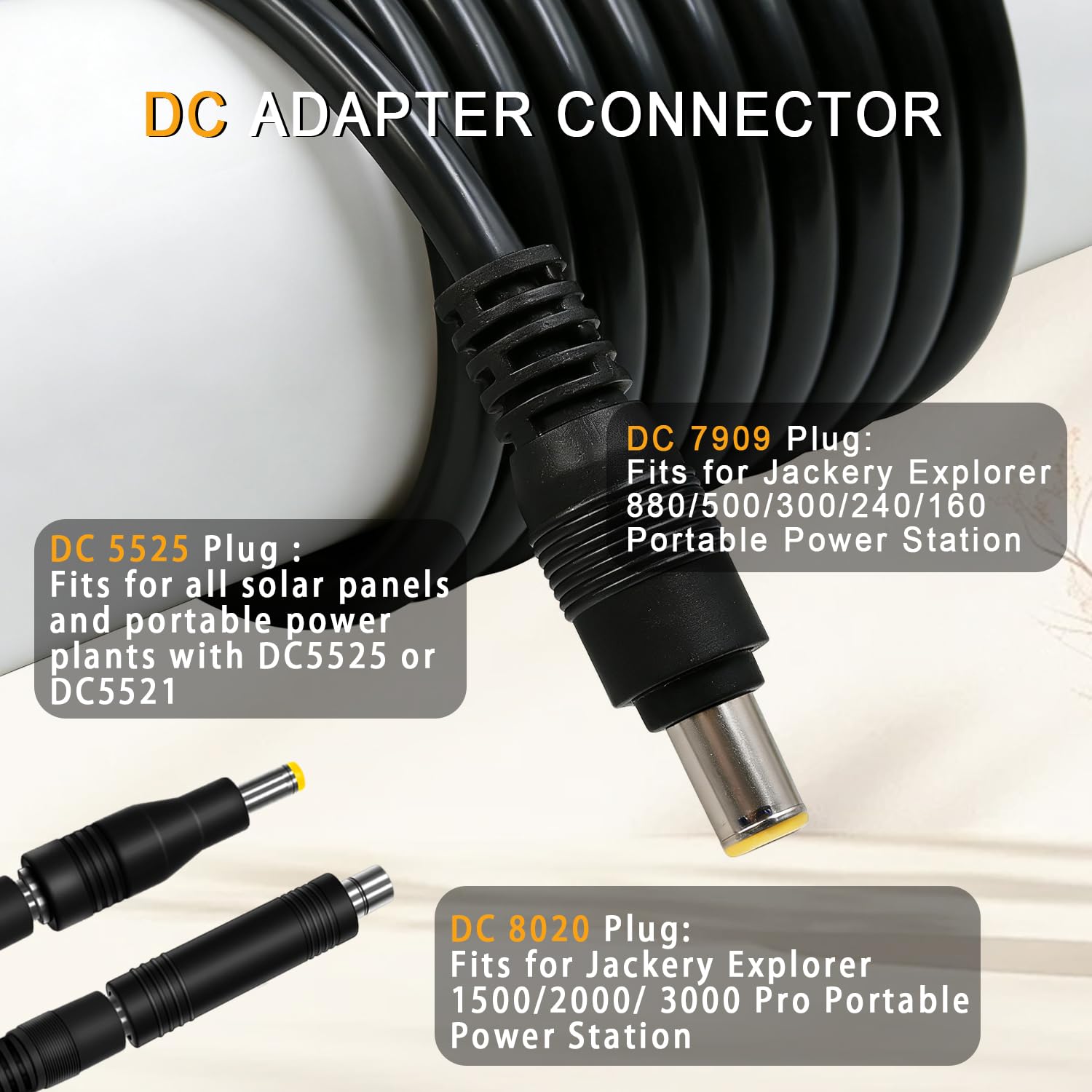

Match the converter to the DC input port on your power station: use the DC8020 tip for Jackery Explorer 1500/2000 and many Plus/v2 models; use DC5525 for devices with a 5.5×2.5mm barrel input. The cable is plug‑and‑play — no tools or stripping required — but always verify polarity and connector size before applying power.

• DC7909 to DC8020: recommended for specific Jackery models (1500/2000/Plus lines).
• DC7909 to DC5525: for power stations with a 5.5×2.5mm barrel input.
• Check the device port shape and size; match the supplied converter to prevent damage.

Are there any polarity or safety notes I should know?

Solar connector gender does not always indicate polarity; COMeap clarifies that the female solar plug used here is the positive lead. Inspect the red (+) and black (−) wires and the markings on connectors before connecting to ensure correct polarity and avoid reverse wiring.

• Female MC‑4 is positive in this cable assembly; red = +, black = −.
• Look for the "+/-" marks — they indicate connector orientation, not polarity alone.
• If unsure, use a multimeter to confirm polarity before plugging into your power station.

Who is this for: Outdoor enthusiasts and homeowners who want a reliable, no‑fuss way to feed solar panels into portable power stations will appreciate this COMeap adapter. It suits RVers, campers, vanlifers, emergency preparedness kits, and anyone who needs a longer, durable solar lead that fits multiple DC input types without soldering or special tools.
