CMYYANGLIN Solar Panel Mounting Bracket Kit 7PCS — ABS drill-free corner & side mounts with IP68 cable gland

The CMYYANGLIN 7PCS ABS Solar Panel Mounting Bracket Kit is a drill-free corner-and-side mounting solution that secures framed solar panels to flat surfaces while protecting cables with an IP68 gland.

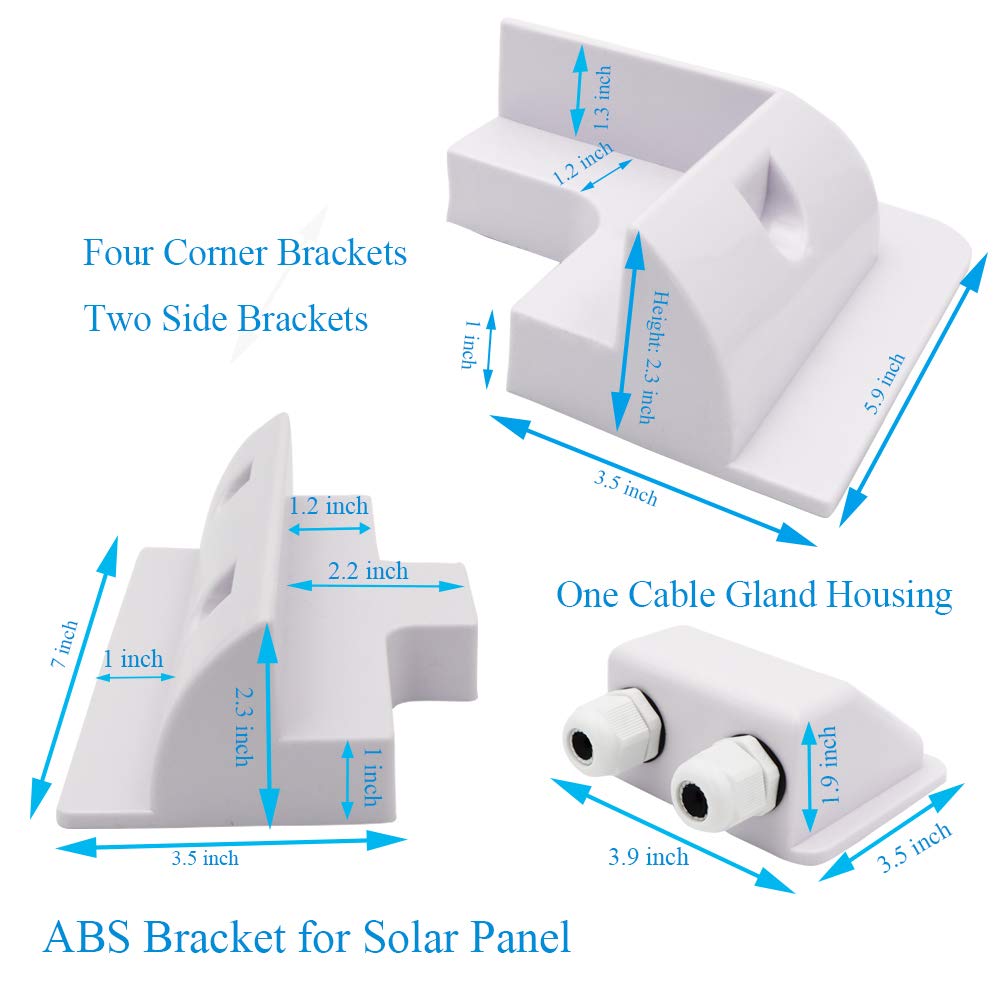

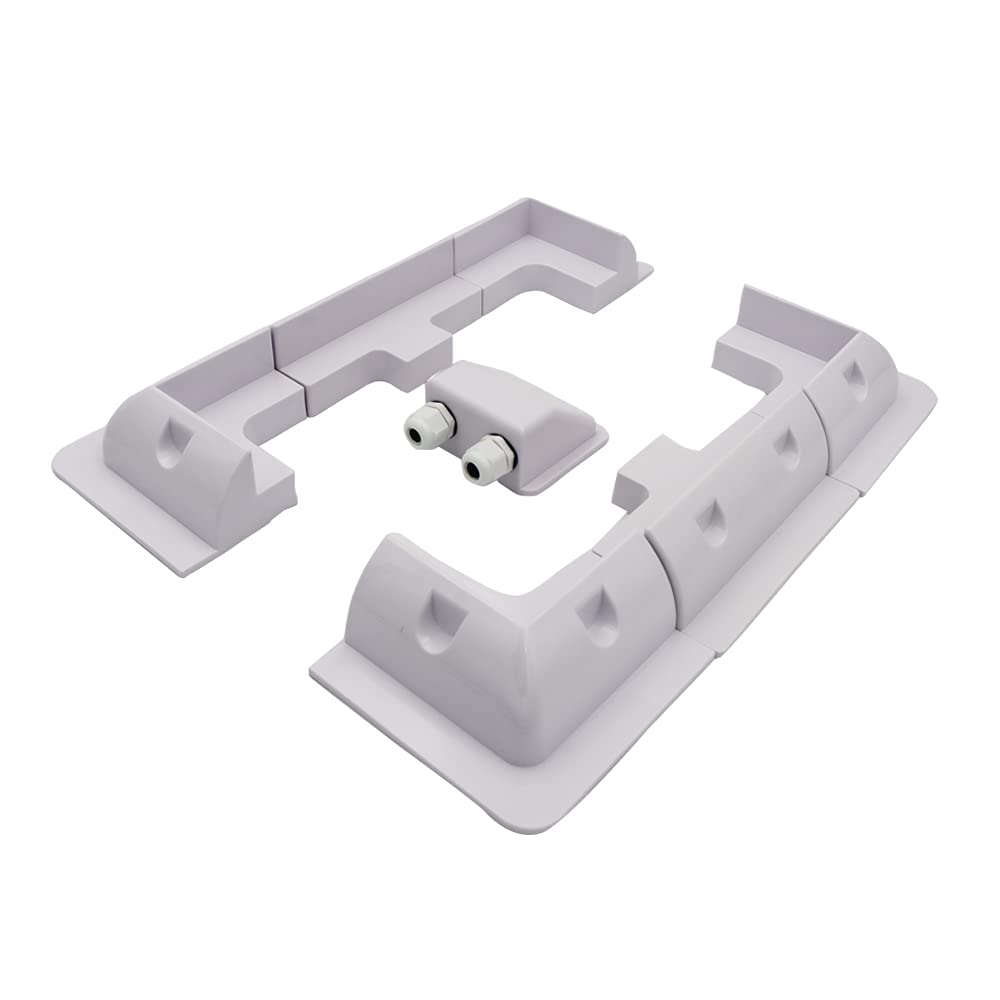

This compact kit includes four corner brackets, two side brackets and a preassembled cable entry gland so you can mount aluminum-framed solar panels quickly on RVs, caravans, boats, sheds and decks without puncturing the roof. Manufactured from weather-resistant ABS plastic, the components lift panels a short distance off the mounting surface to improve airflow and reduce heat build-up. The kit also comes with self-tapping screws and spare rubber seals to complete a tidy, watertight installation.

How does this kit secure a solar panel without drilling?

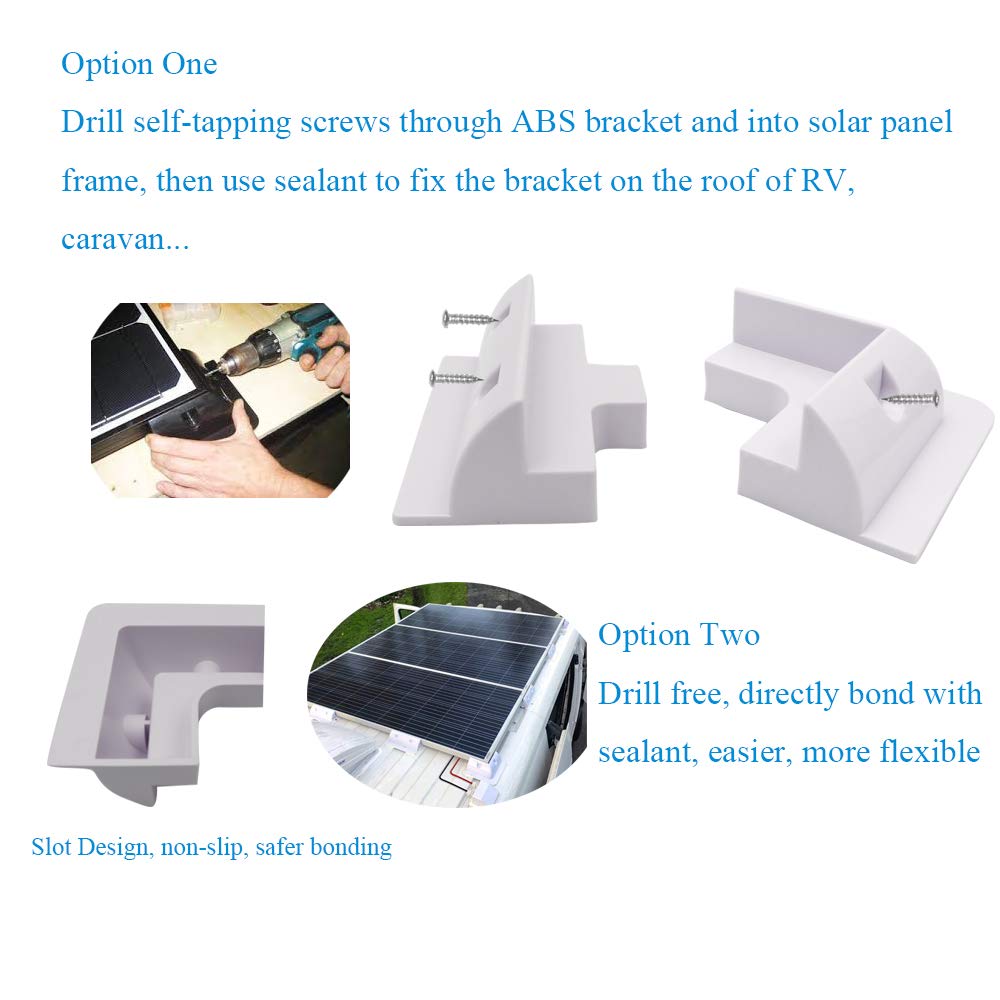

The CMYYANGLIN brackets are designed to be bonded with a suitable silicone sealant to form a strong, permanent attachment to flat substrates. Corner and side brackets clamp the panel frame, while the included self-tapping screws provide mechanical bite into the bracket bodies if additional fastening is desired during adhesive cure.

• Use exterior silicone or adhesive rated for roofing and marine use (not included).
• Four corner brackets cradle panel corners; two side brackets support edges.
• Self-tapping screws (12 supplied) give temporary or extra mechanical hold.
• Ideal for surfaces where drilling is undesirable or prohibited.

Will these brackets protect my panel and wiring?

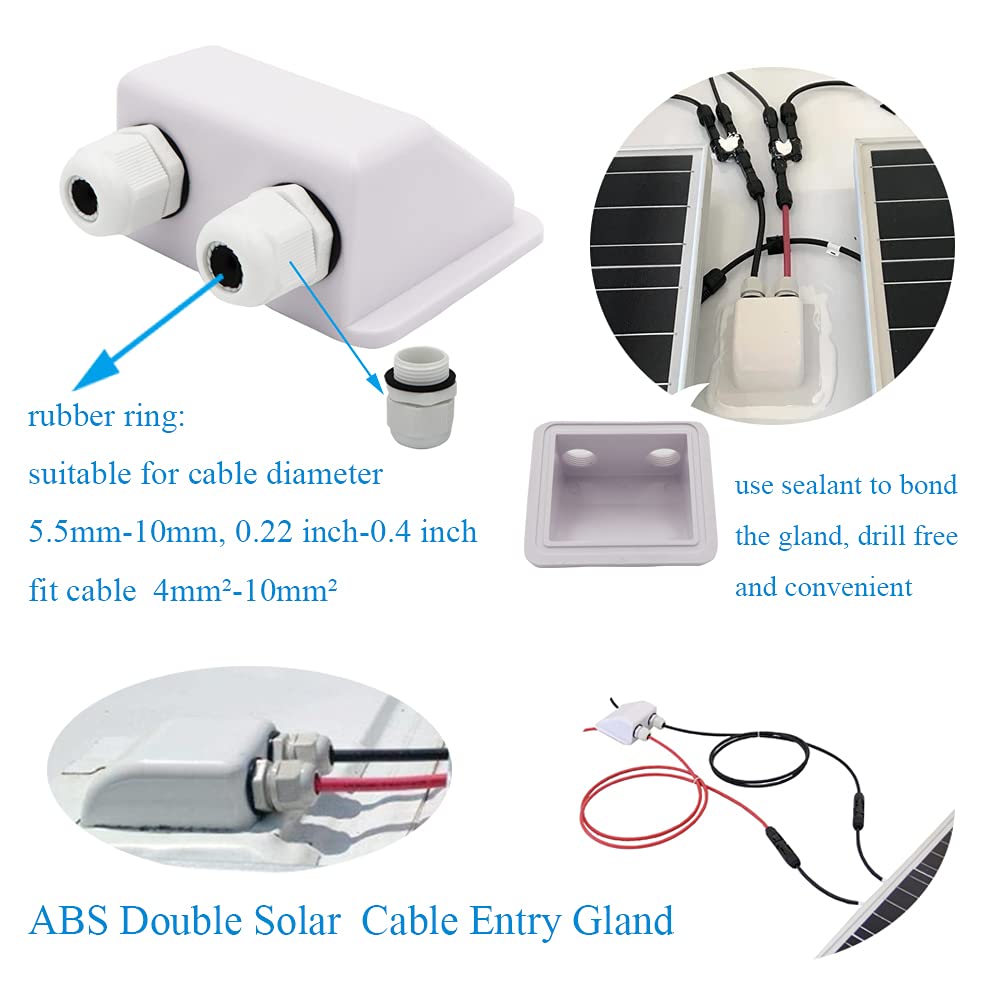

The ABS construction resists corrosion and ultraviolet exposure so the mounting points stay intact through seasons. A preassembled IP68 cable gland with rubber seals routes the cable through the mounting area and reduces stress and water ingress at the wire entry point.

• Non-corrosive ABS body shields panel edges from abrasion and impact.
• IP68 cable entry gland includes two rubber rings for a secure seal.
• Spare rubber seals are included for replacement during maintenance.
• Bracket design raises the panel slightly to prevent edge contact and chafing.

What panel sizes and installations are compatible with this set?

These brackets are compatible with framed solar panels that have aluminum frames and a side length of roughly 30 cm or larger, typically used for 100 W panels and above. They are intended for flat, smooth mounting surfaces such as RV roofs, boat decks, metal sheds and composite panels.

• Designed for aluminum-framed panels 30 cm+ on a side; works well for 100 W+ modules.

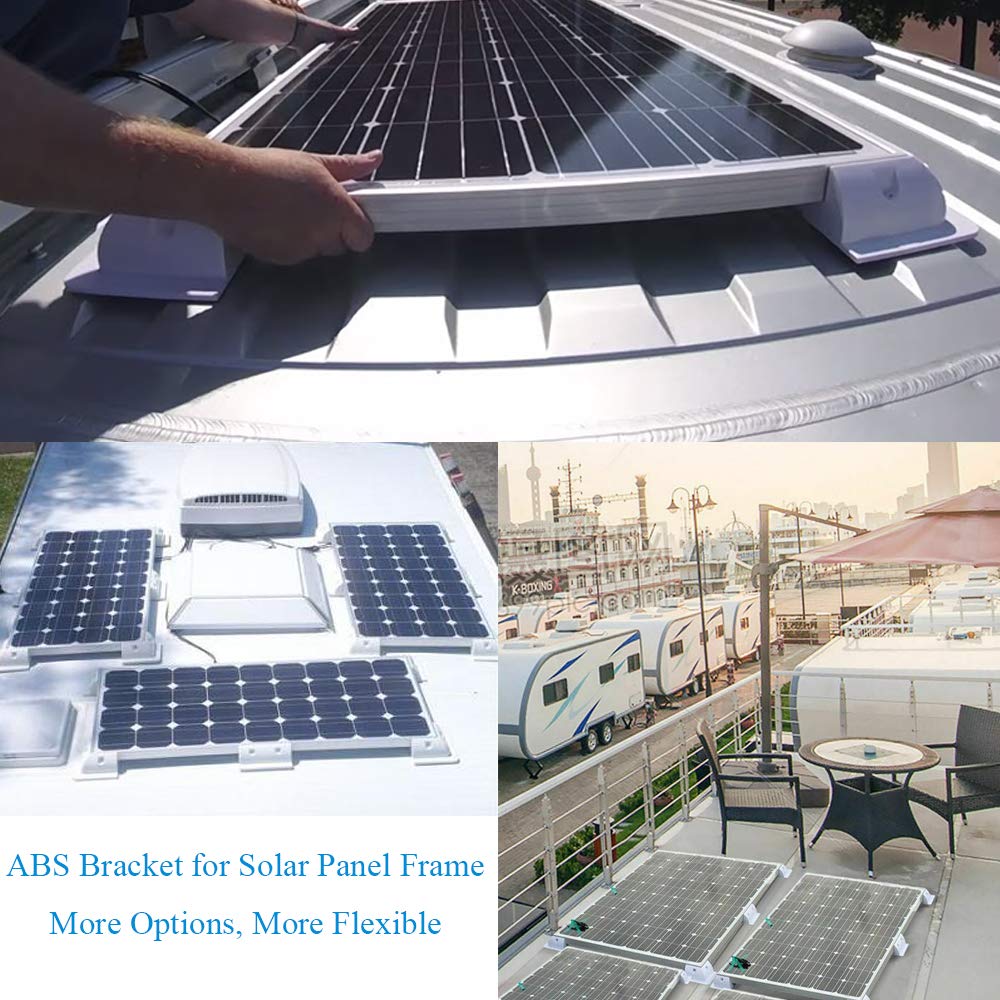

• Suited to RVs, caravans, motor vehicles, boats, sheds and flat rooftop areas.
• Not intended for thin-film (frameless) panels or heavily curved surfaces.
• Requires a compatible weatherproof adhesive for drill-free installations.

How durable and weather-resistant are these brackets?

Made from high-quality ABS plastic, the brackets withstand UV exposure, moisture and temperature swings better than many low-cost plastics. That durability helps maintain panel alignment, airflow and the integrity of the cable sealing over time.

• ABS material resists cracking, corrosion and most marine environments.
• UV-stable formulation reduces sun-driven degradation.
• Preassembled gland rated IP68 for waterproof cable passage.
• Includes extra seals and 12 self-tapping screws for secure mounting longevity.

Who is this for: Installers and DIY owners who need a clean, drill-free way to mount framed solar panels to flat surfaces on vehicles, boats and outbuildings. It suits homeowners and campers who want a low-profile mounting solution with cable protection and those who prefer adhesive-mounted systems to preserve roof integrity. Choose this kit when you need simple hardware, spare seals, and a dedicated waterproof cable entry for small- to mid-size solar modules.
