CIPU 10" Sand Filter Pump System for Above-Ground Pools — 0.25HP 115V Pump, 4-Way Valve, Compact

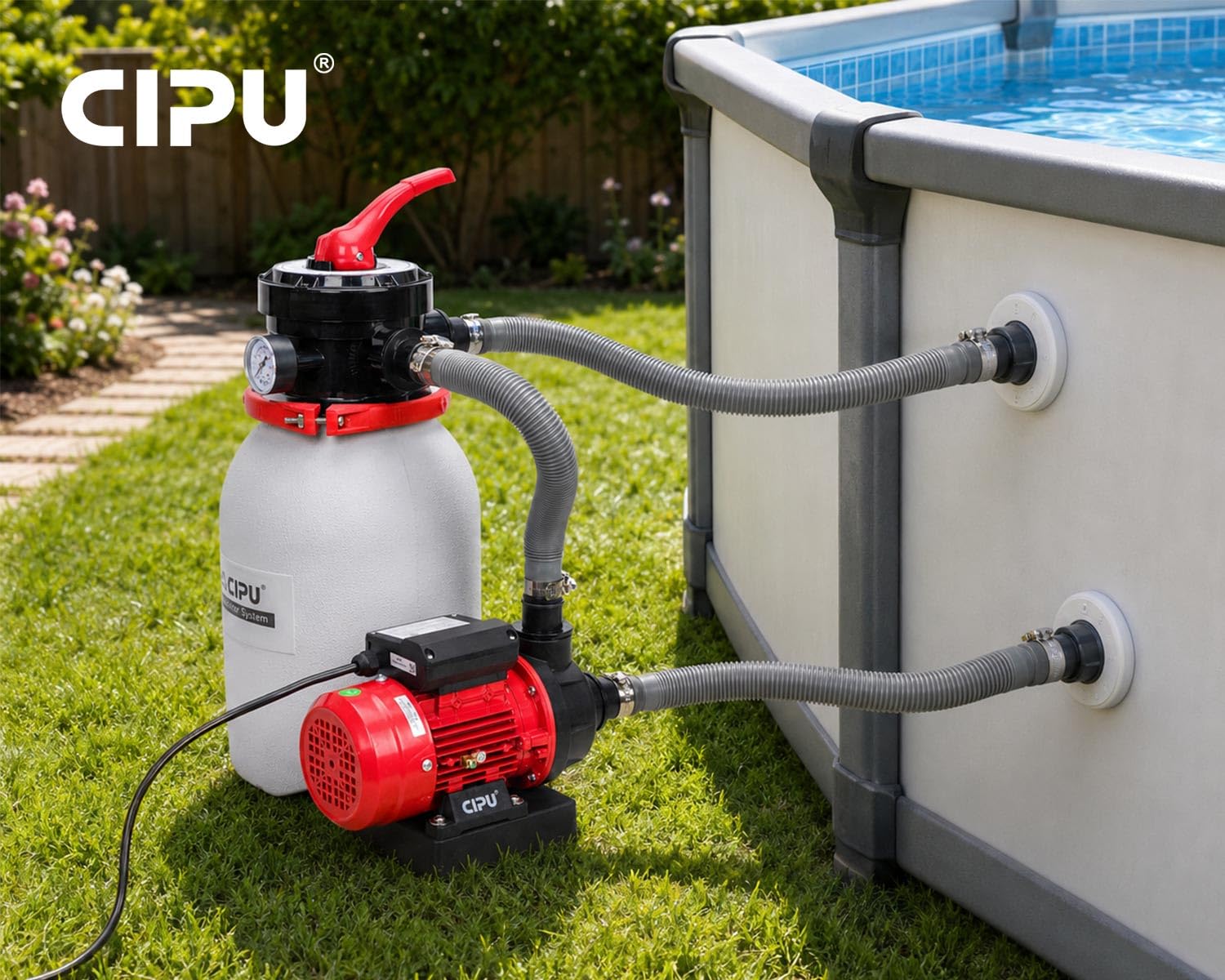

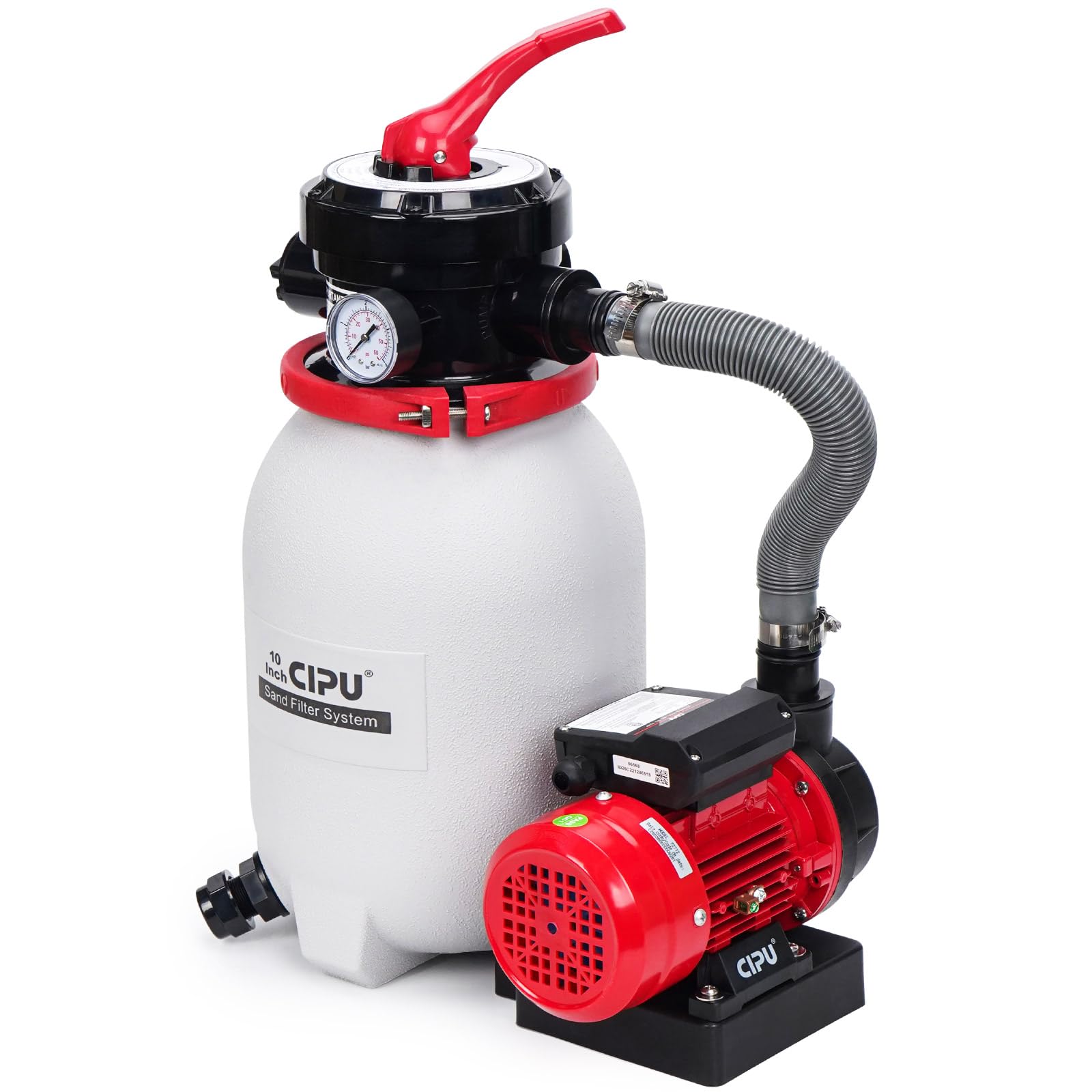

The CIPU 10-inch sand filter pump system is a compact, all-in-one filtration unit that combines a 10" filter tank, a 0.25HP 115V pump and a 4-way selector valve to keep small above-ground pools clear and circulating.

This balanced sand filter and pump package is built for seasonal and frame-style backyard pools where a modest flow rate and easy maintenance matter. The system is intended to move water through a sand media bed to trap debris, with a multiport valve that simplifies filtration, backwash, rinse and winterizing steps. It’s sized for smaller pool footprints and designed for straightforward installation by homeowners who confirm hose size and layout compatibility before purchase.

How does the CIPU system fit into a small above-ground pool setup?

The unit is engineered specifically for compact pools and frames, offering adequate circulation without oversizing the pump. Its 10-inch filter tank and 0.25HP motor suit modest volumes and shorter plumbing runs, keeping energy use and noise lower than larger systems. Before buying, measure your pool and hoses to ensure a proper match.

• 10-inch tank diameter tailored for small-to-medium above-ground pools.
• 0.25HP, 115V pump delivers gentle, continuous turnover appropriate to small pools.
• Compact footprint fits limited installation spaces around the pool.
• Works with standard above-ground hose sizes—confirm compatibility first.

What maintenance steps are needed to keep the system working well?

Routine care focuses on monitoring pressure and operating the multiport valve correctly. Backwash when the pressure gauge reads significantly higher than the clean baseline; rinse after backwashing to settle the sand bed. Regularly check O-rings, hose clamps and threaded fittings to prevent leaks and maintain suction.

• Backwash the sand bed when pressure rises above the clean starting pressure.
• Always turn off power before changing the 4-way valve position.
• Inspect and lubricate O-rings and clamps periodically to maintain seals.
• Drain the filter via the plug before winter storage or freezing conditions.

How does the 4-way valve simplify pool care tasks?

The integrated multiport valve centralizes the most common functions—filter, backwash, rinse and winter—so you don’t need separate fittings or extra plumbing each time you switch modes. This reduces handling errors and speeds routine maintenance. Remember that valve changes must be made only with the pump off to avoid damage.

• FILTER: normal filtration mode for daily operation.
• BACKWASH: reverses flow to clean trapped debris from the sand bed.
• RINSE: resets sand after backwashing and clears waste line.
• WINTER: isolates the system for seasonal storage procedures.

What should I check before ordering and installing this system?

Confirm that your pool’s diameter, water volume, and hose/plumbing dimensions match the system’s capabilities. Also verify available physical space for the pump and filter assembly and plan for electrical access to a 115V outlet. Note that filter media like sand or filter balls are not included with the unit and must be purchased separately.

• Measure pool size and estimate turnover needs for correct performance.
• Verify hose inner diameter and connector compatibility with your plumbing.
• Ensure a grounded 115V outlet is within reach of the pump power cord.
• Purchase appropriate filter sand or media before initial start-up.

Who is this for: The CIPU 10-inch sand filter pump fits homeowners with seasonal, frame or small above-ground pools who want a single compact unit for everyday circulation and easy backwash maintenance. It suits users who prefer a straightforward, lower-powered pump setup and are comfortable confirming plumbing and space compatibility before installation.
