Charbrofire cast-iron grill grates & stainless heat plates replacement kit for Char-Broil 4–5 burner — matte enamel, heavy-duty se

If your Char-Broil grill has lost even heat or its cooking surfaces are chipped and worn, this replacement kit from Charbrofire supplies durable cast-iron grates, stainless heat plates, tube burners and adjustable carryover tubes designed to match many Char-Broil Performance models. The parts are built to hold heat, resist chipping compared with porcelain-coated options, and fit a long list of Char-Broil part numbers so you can replace only what you need.

Which Char-Broil models and part numbers do these replacements fit?

These Charbrofire components are made to be compatible with many Char-Broil Performance 4- and 5-burner grills. Check the original part numbers and dimensions on your grill before ordering to ensure a correct fit.

• Compatible grill grate models: G470-0002-W1, G470-0003-W1 and listed Char-Broil numbers 463347518, 463347519, 463373019, 463373319.
• Heat tents / shields: fits models like G470-5200-W1, G470-0004-W1/A and G321-4C00-W1.
• Additional cross-compatibility: many listed 4-burner and 5-burner replacement part numbers in the product details.

How do the materials and dimensions affect cooking performance?

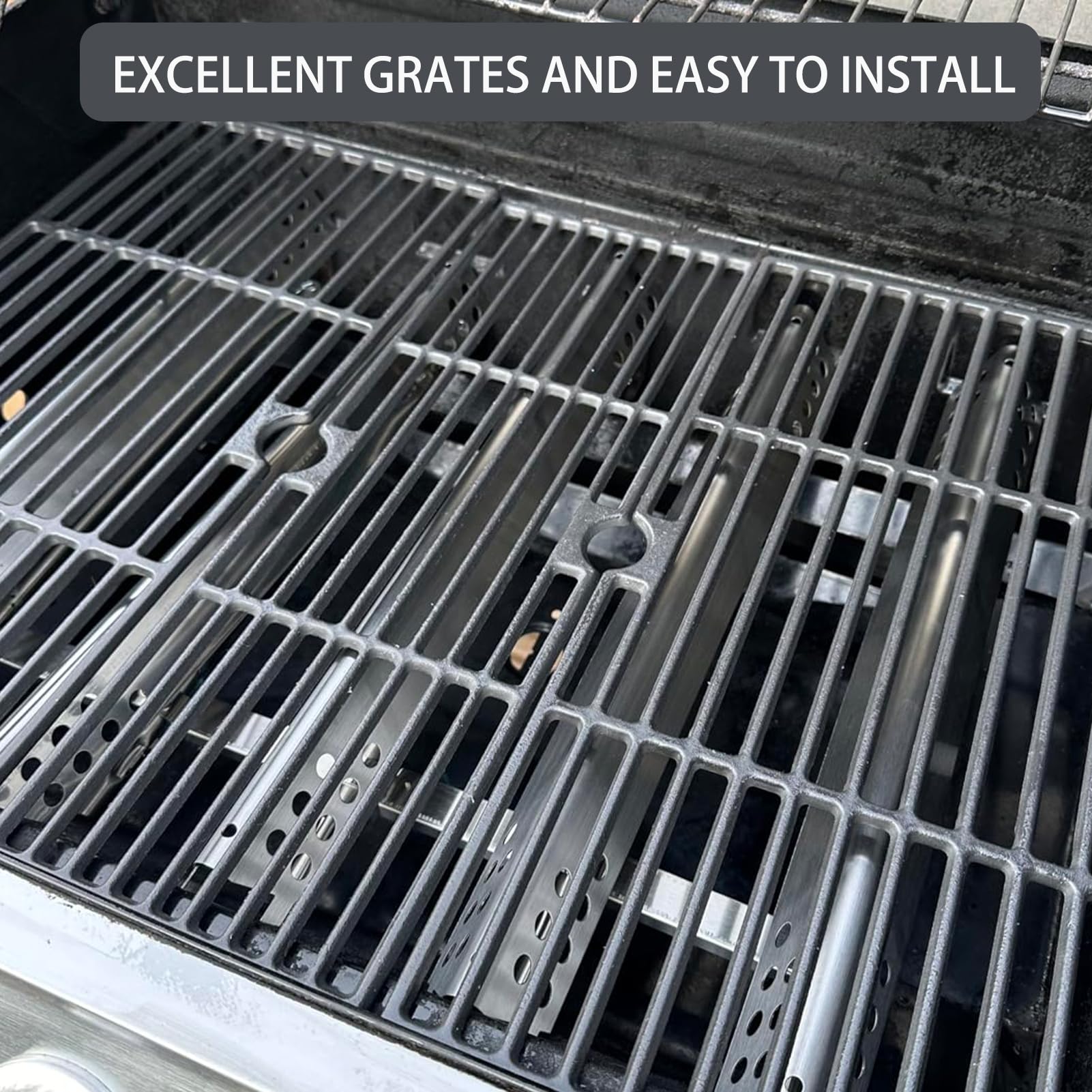

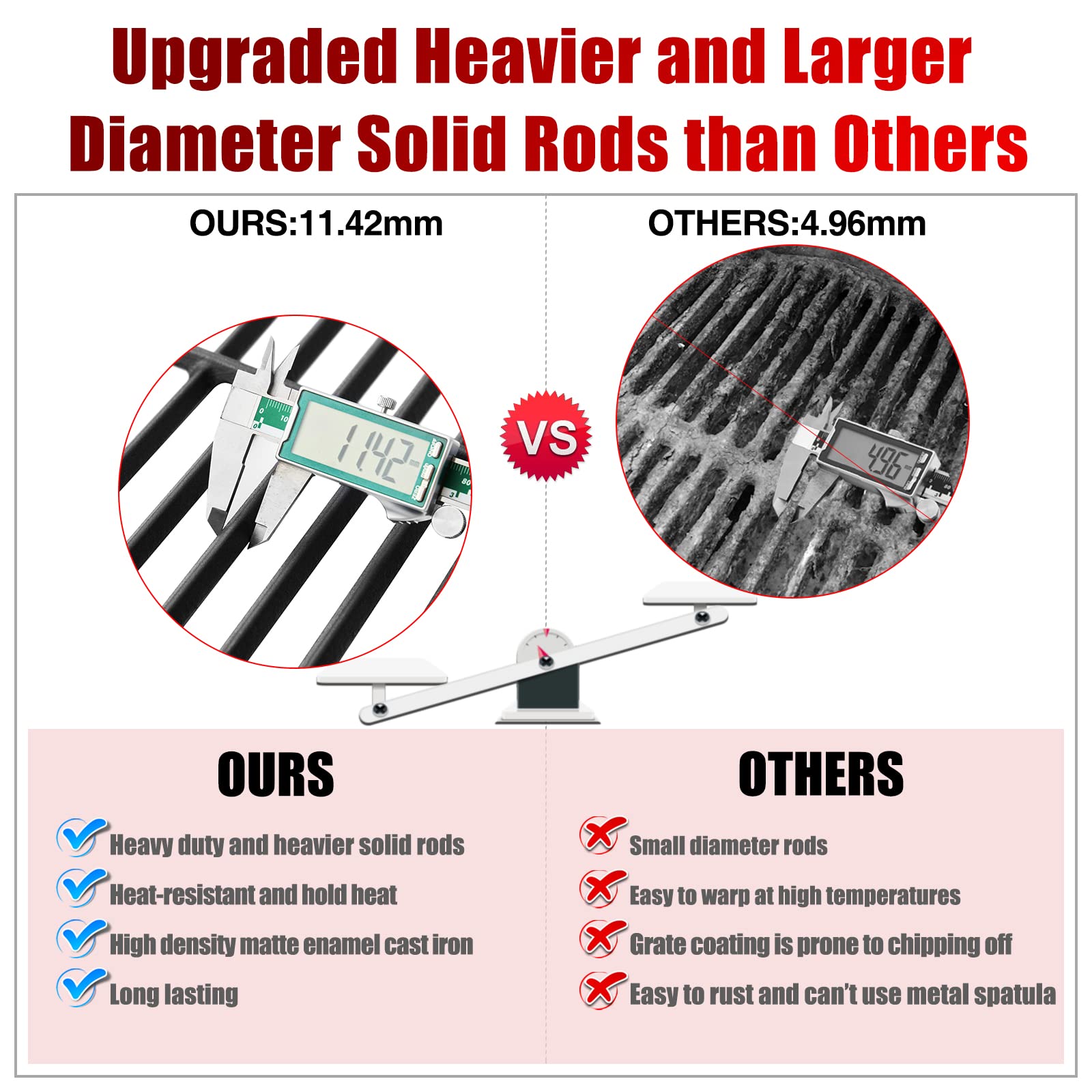

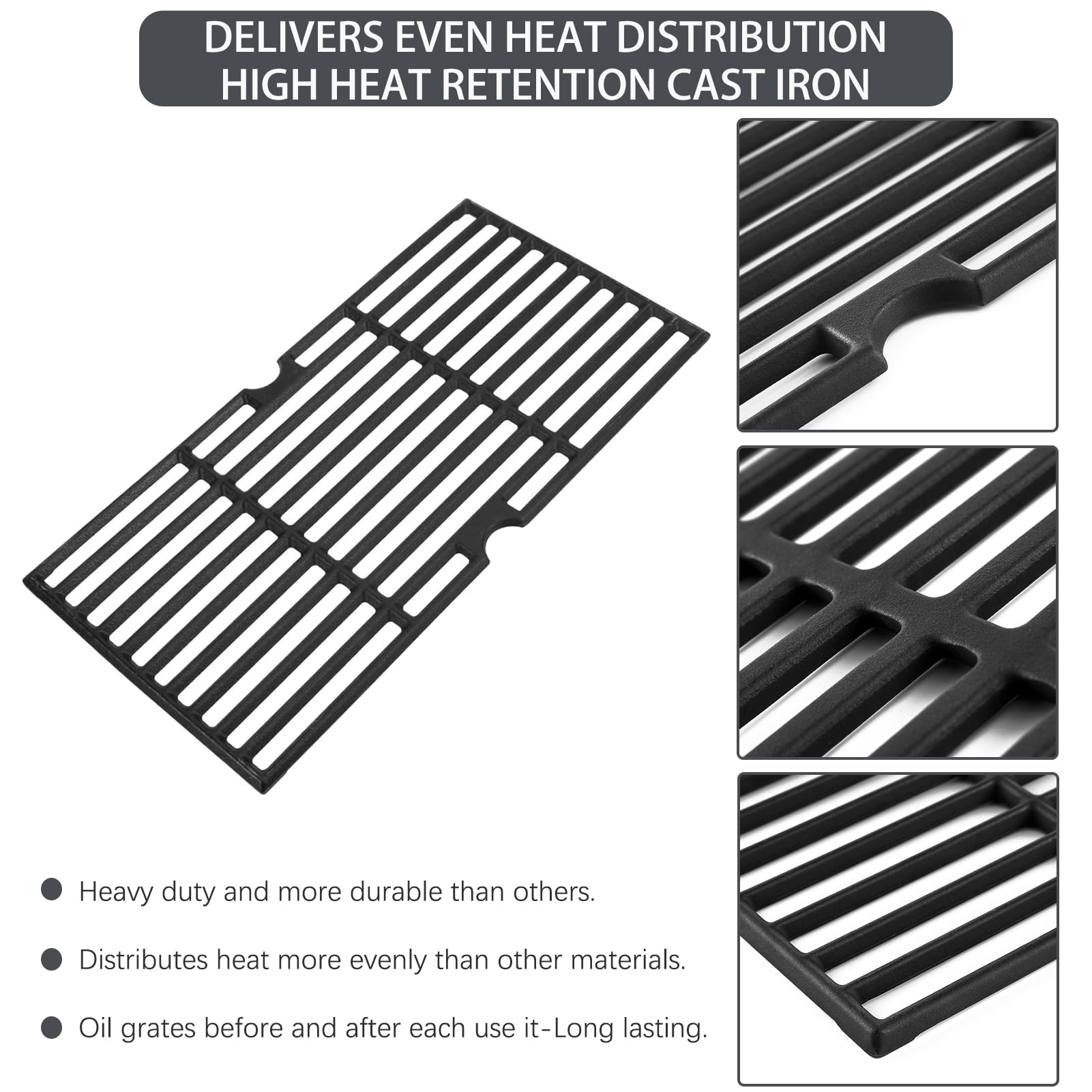

The grates are cast iron with a matte enamel finish that stores and distributes heat more effectively than thin or chipped porcelain coatings. The heavier rods and larger diameters increase longevity and searing capability while stainless heat plates protect burners and promote even flame spread.

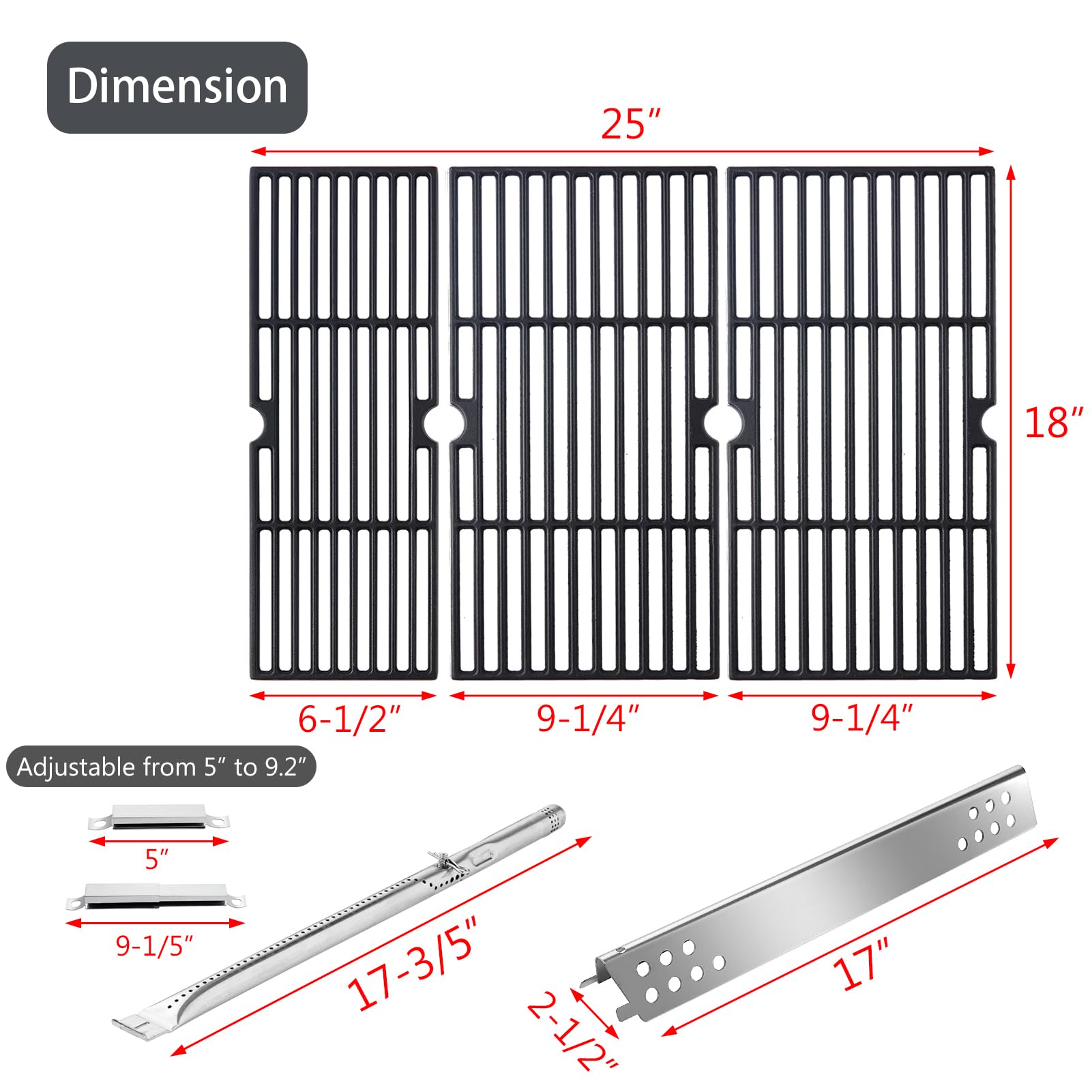

• Grate sizes: narrow grate 18 x 6.5", two large grates 18 x 9.3", full configuration 18 x 25" total.

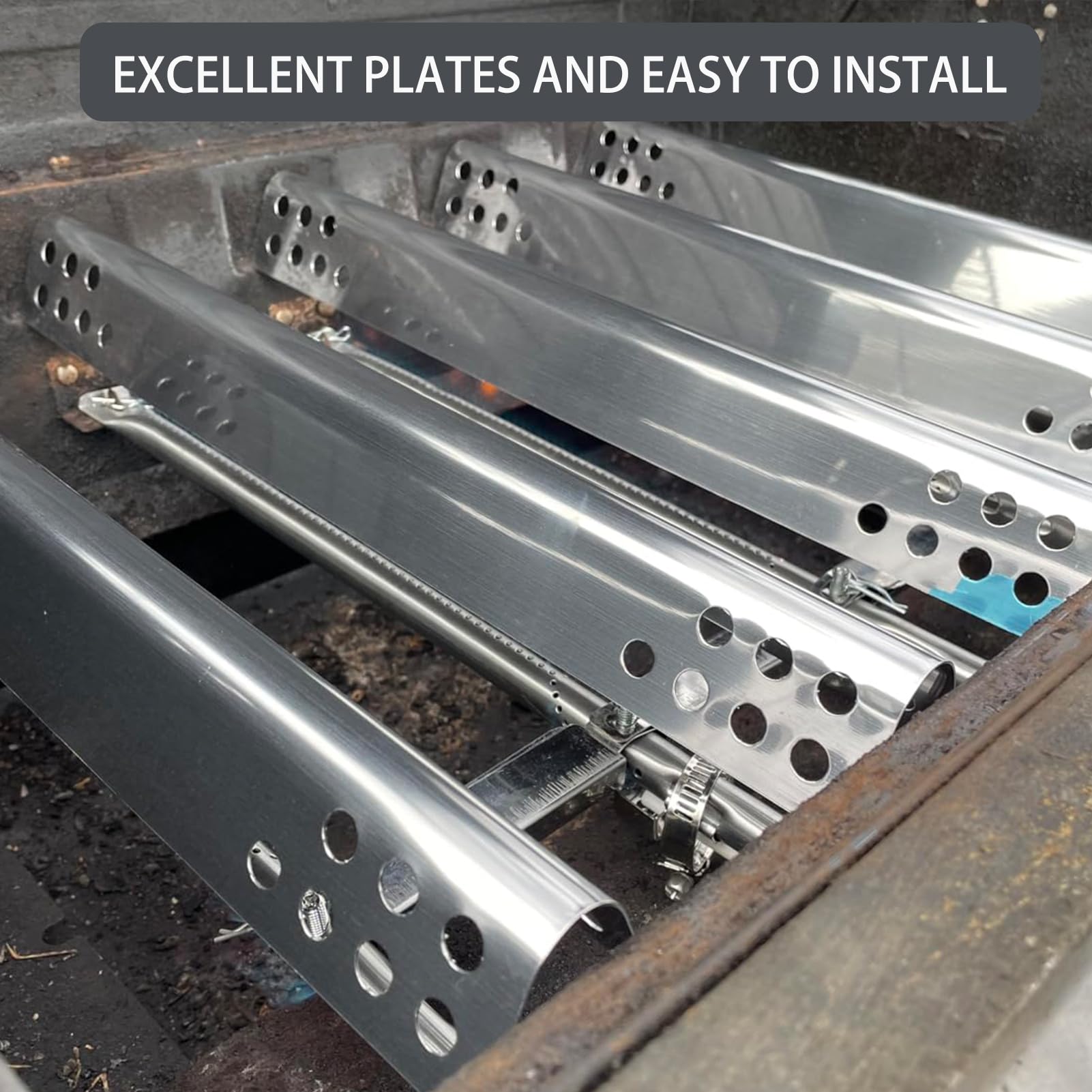

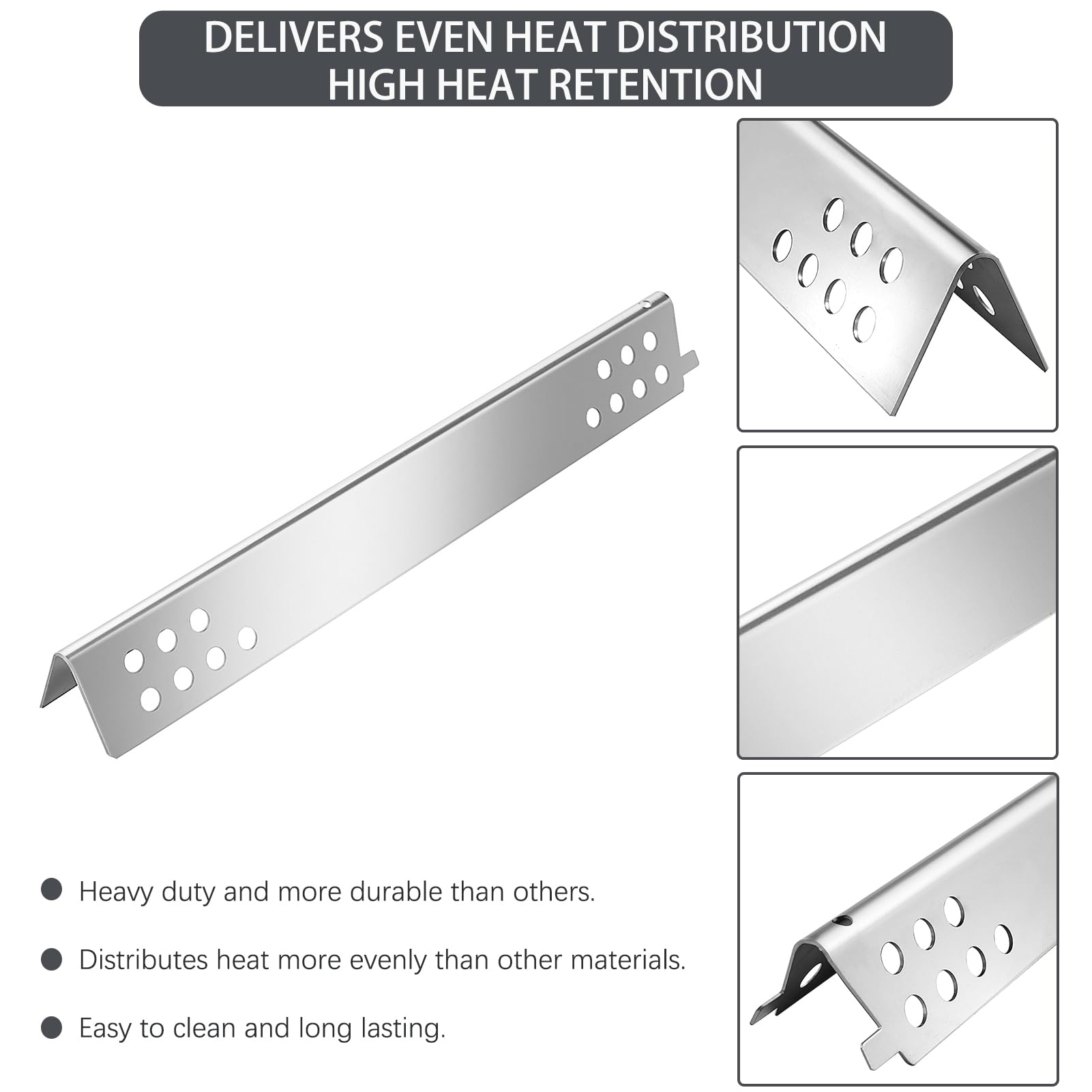

• Heat plates: stainless steel, 16 15/16 x 2 1/2" each for consistent coverage.

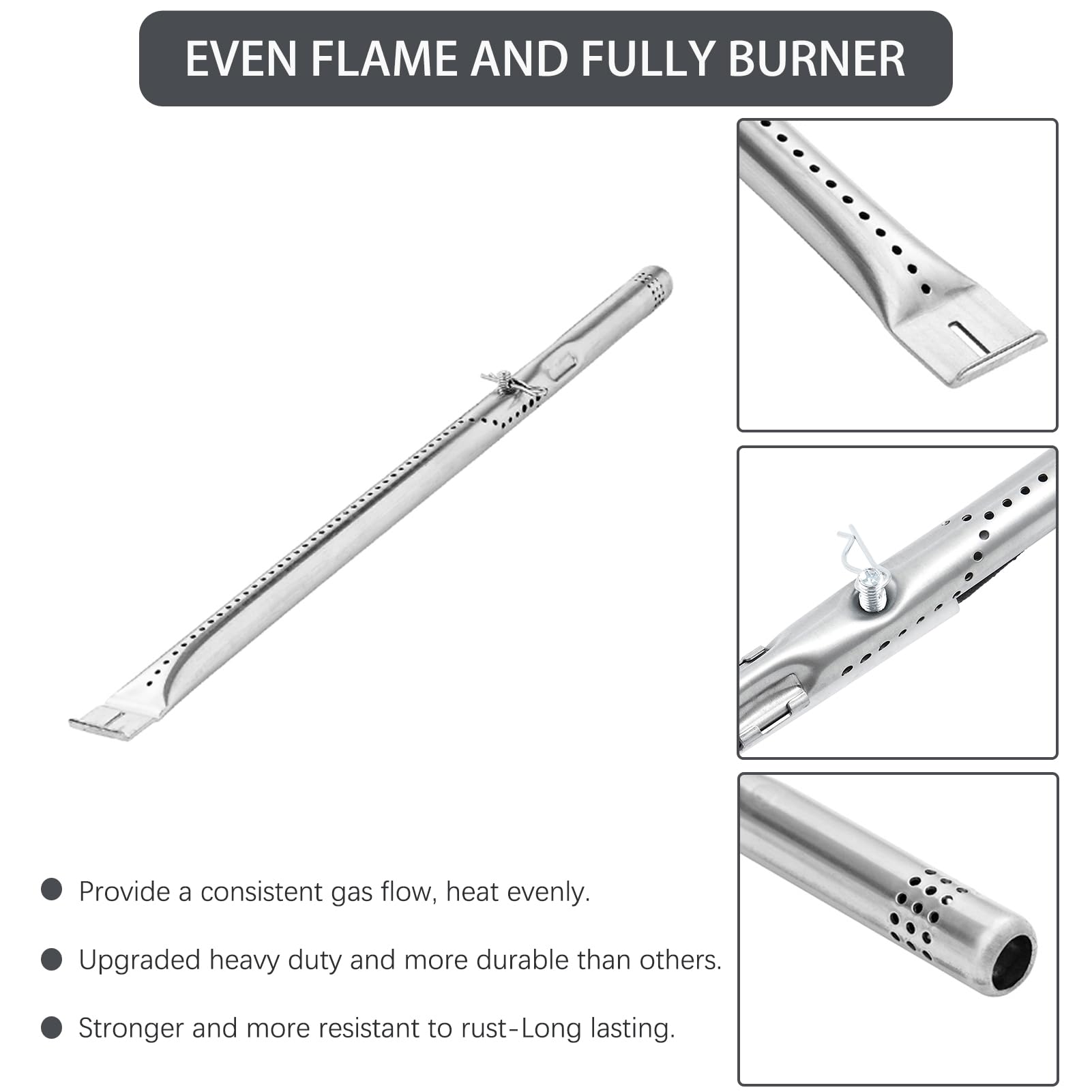

• Tube burners and carryover tubes: stainless tube burners 17 3/4 x 3/5" and extendable carryover tubes adjustable 5"–9.4".

What maintenance and care will extend the life of these parts?

Cast iron performs best with routine oiling and gentle cleaning; this prevents rust and preserves the matte finish. Use non-metallic tools to avoid scraping the enamel, and periodically check burner alignment and carryover tube length for optimal flame distribution.

• Season grates with a thin coat of oil before and after each use to protect the finish.
• Clean with a stiff brush or scraper designed for cast iron; avoid aggressive abrasives on the enamel.
• Inspect heat plates and burners for grease buildup and replace or reposition carryover tubes as needed.

Can I replace only individual pieces or do I need the full kit?

Yes — the kit lists individual parts and dimensions so you can match and replace single items like a narrow grate, a large grate, a heat plate or tube burner. Ordering only what’s needed saves cost and simplifies installation for experienced grill owners.

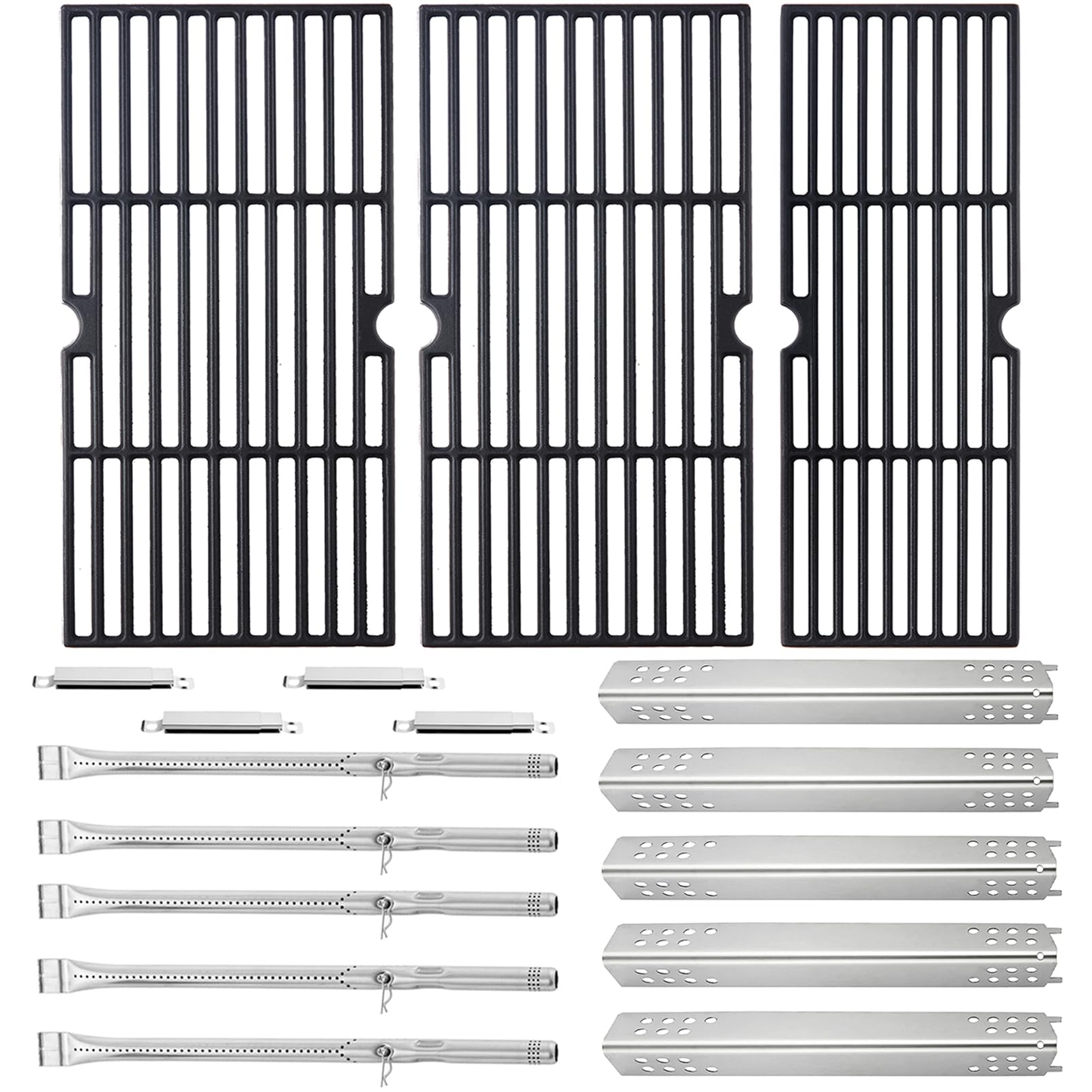

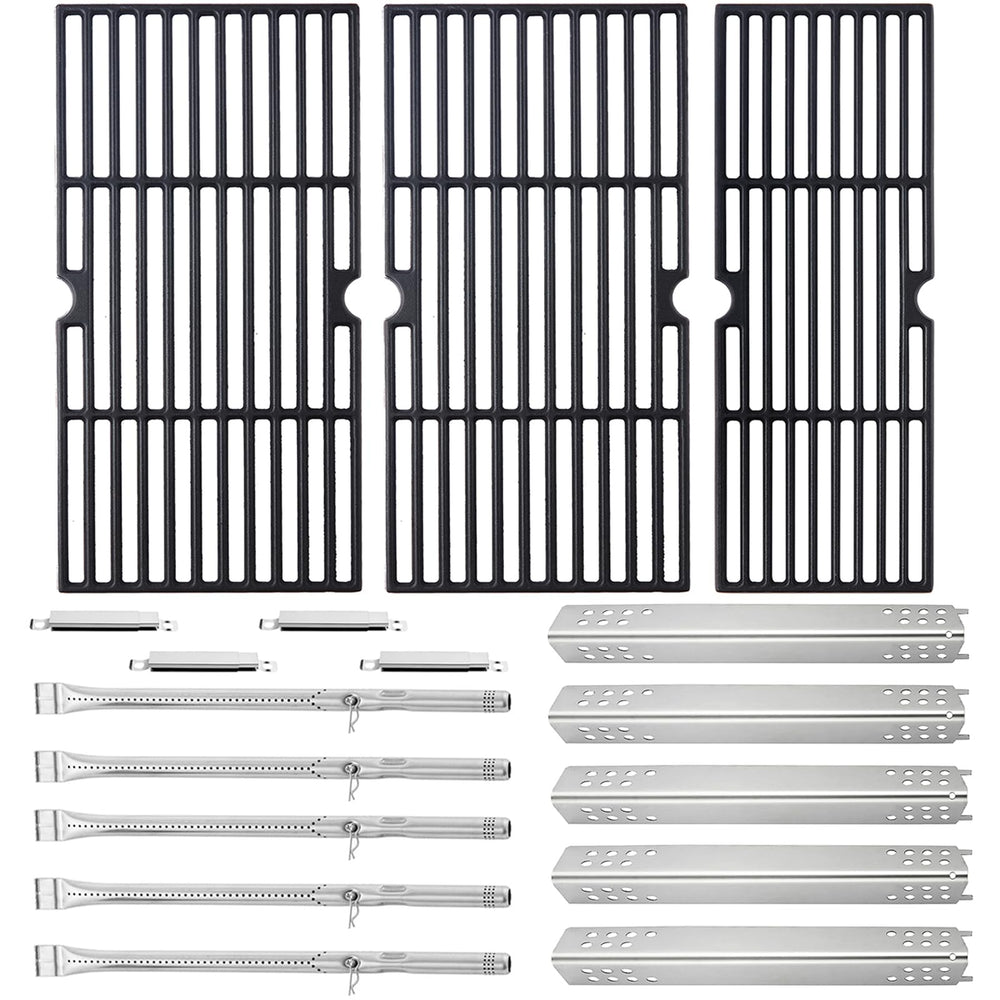

• Available in grouped packs: 3-pack grates (combination narrow + large) and 4-pack heat plates for common layouts.
• Measure your existing parts against the listed dimensions before ordering to ensure compatibility.
• Includes extendable carryover tubes if your model uses them—adjust length to fit.

Who is this for: This Charbrofire replacement collection is aimed at home cooks and grill owners who want to restore their Char-Broil Performance 4- or 5-burner grill to strong searing, uniform heat, and longer service life without replacing the entire appliance. It's for people comfortable checking part numbers and dimensions and who prefer cast iron durability over fragile porcelain finishes.
