Champion Generator Y-Adapter L14-30P to 5-20R — 3‑Foot 30A, 10‑Gauge Weather-Resistant

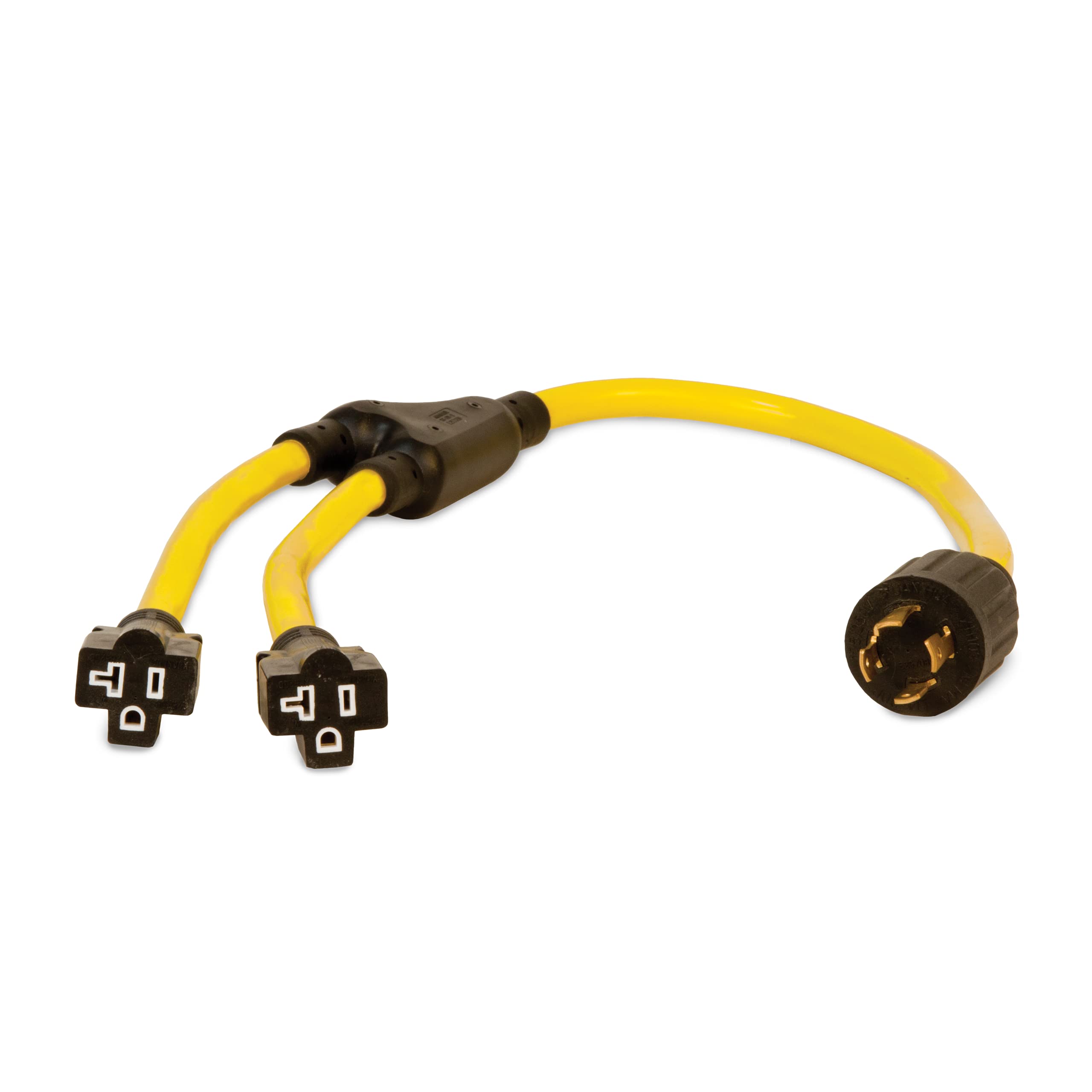

The Champion 3-foot 30-amp Y-adapter converts a single L14-30P locking generator outlet into two standard 5-20R household receptacles for flexible 125/250V power distribution.

When you need to run everyday devices from a portable generator or share a generator’s 30A output between two circuits, this Champion 48035 Y-adapter provides a simple, dependable solution. Built with heavy-duty 10-gauge conductors and weather-resistant insulation, it’s designed for outdoor job sites, emergency backup, RVing, and other situations where converting a locking plug to common household outlets makes sense. The adapter keeps installation fast and tool-free while preserving generator safety through proper grounding and wiring configuration.

How does this adapter change my generator’s outlets for household devices?

The Y-adapter takes the generator’s L14-30P locking plug and routes its hot, neutral, and ground connections to two separate 5-20R standard outlets. That allows you to plug two 120V devices into the generator simultaneously while maintaining proper grounding and polarity. It does not increase total amperage available—both outlets share the same 30A supply.

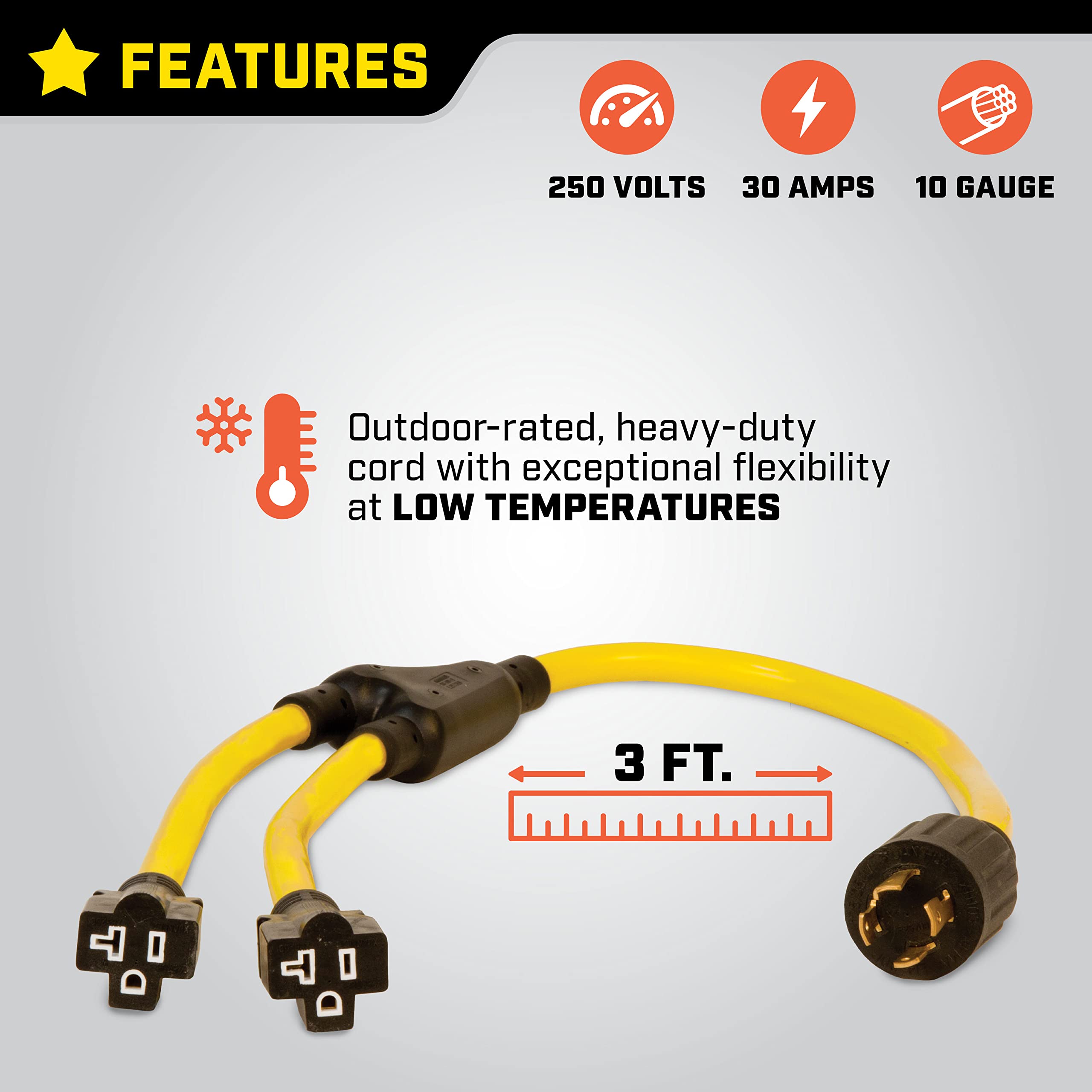

• Converts L14-30P locking plug into two 5-20R household outlets
• Maintains correct hot/neutral/ground wiring for safety
• Shared 30A supply—do not exceed combined device draw

Is this cable durable enough for outdoor and extreme temperature use?

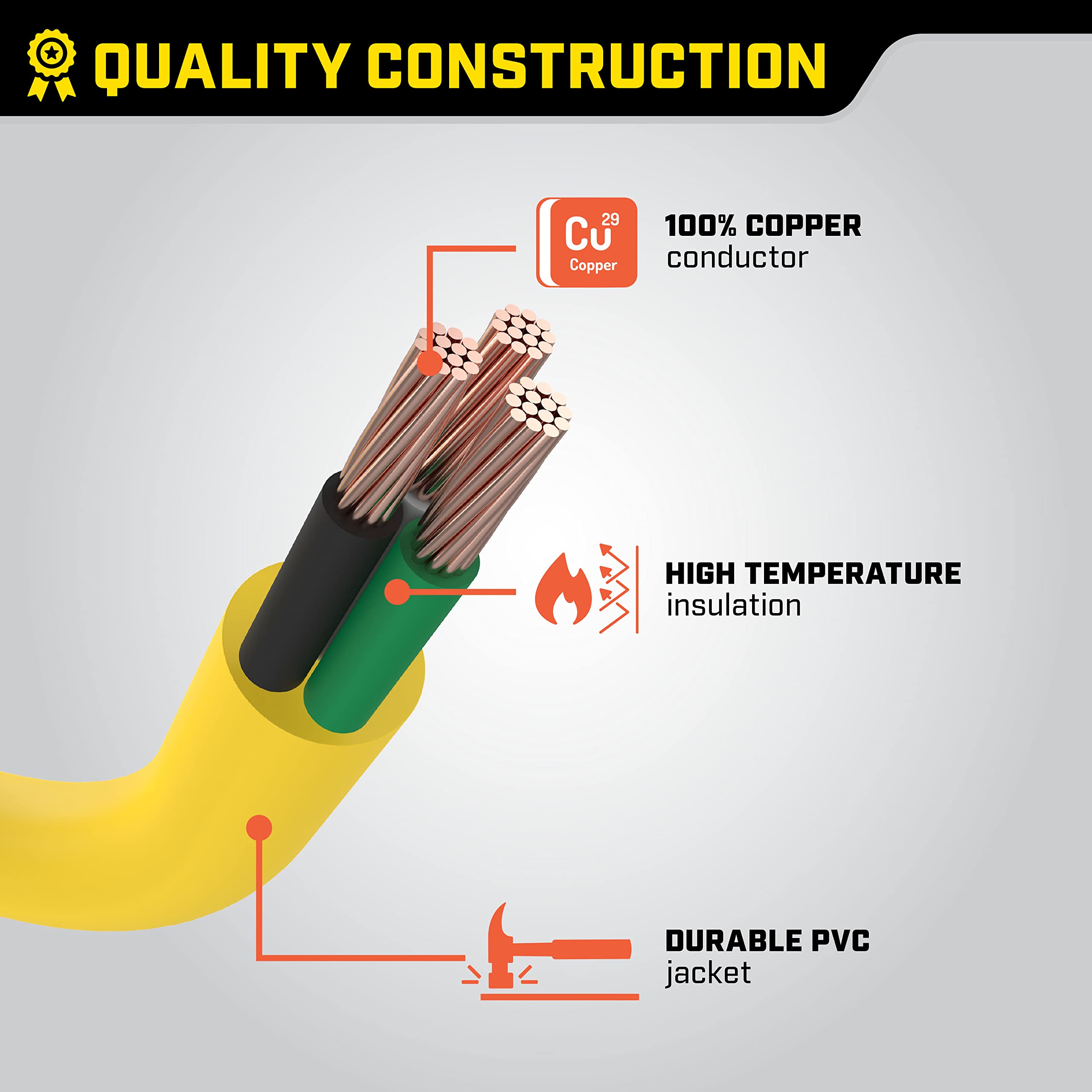

Yes — the cable uses 10-gauge, service-grade conductors wrapped in abrasion- and weather-resistant insulation. The material stays flexible in hot and cold conditions so it won’t stiffen or crack when temperatures swing. That makes it suitable for construction sites, outdoor events, and seasonal emergency setups.

• 10-gauge wire for high-capacity current handling
• Abrasion- and weather-resistant outer jacket
• Designed to remain flexible in extreme temperatures

What safety and rating information should I know before using it?

The adapter is rated for 125/250 volts and a 30-amp L14-30P input, providing two 20-amp 5-20R outputs. It is meant for temporary or portable use and should be installed according to generator load limits—do not overload the shared supply. Follow generator manufacturer instructions and local electrical codes when connecting high-draw appliances.

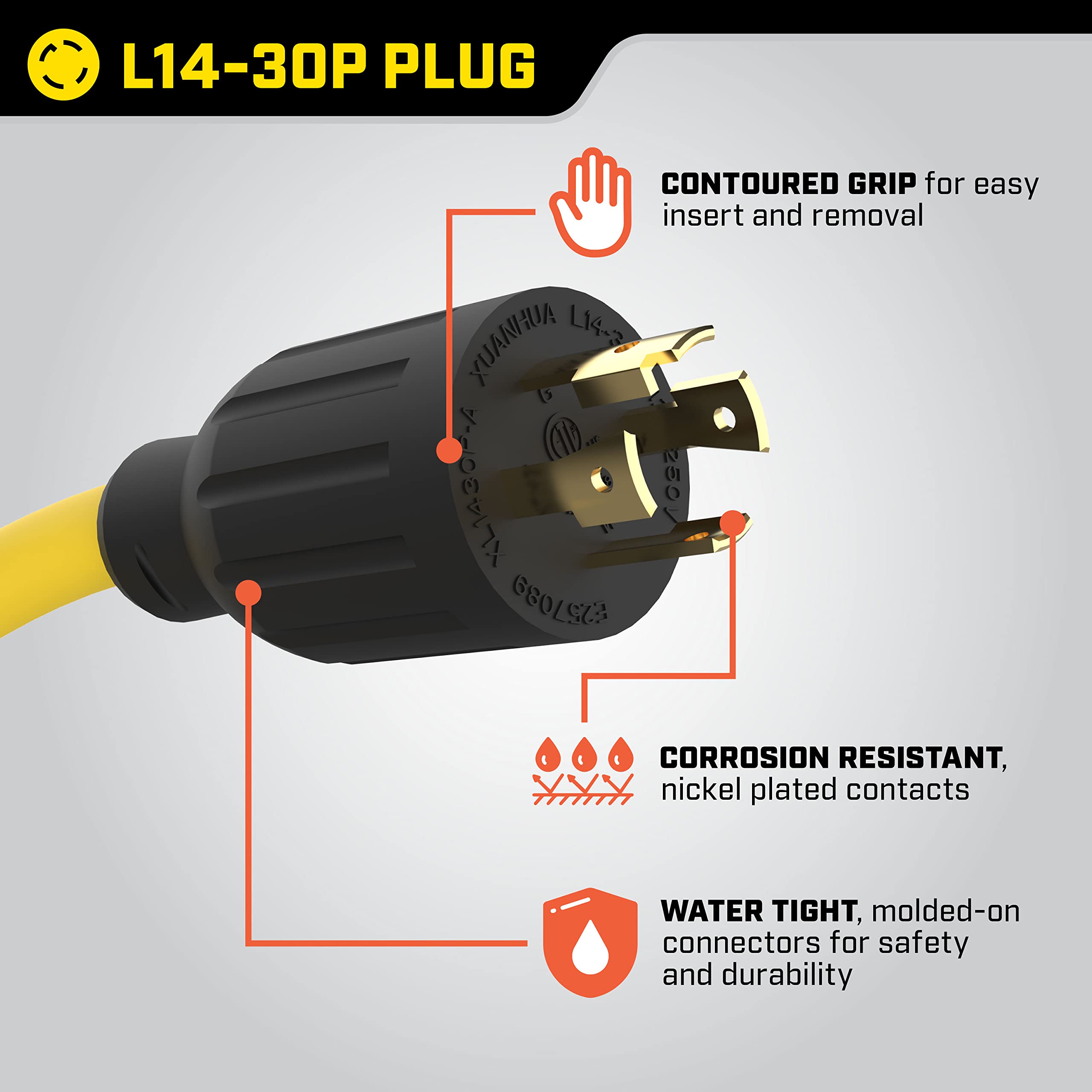

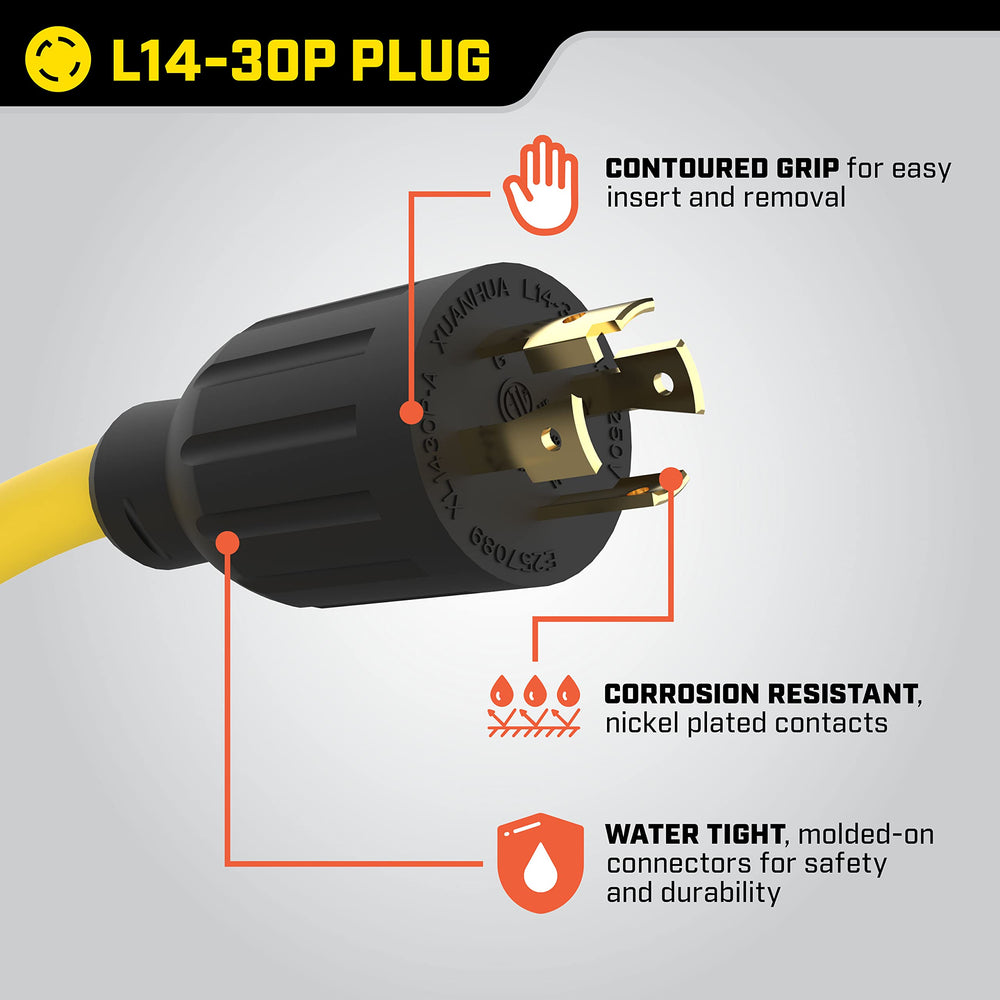

• Rated 125/250V, accepts L14-30P (30A) input

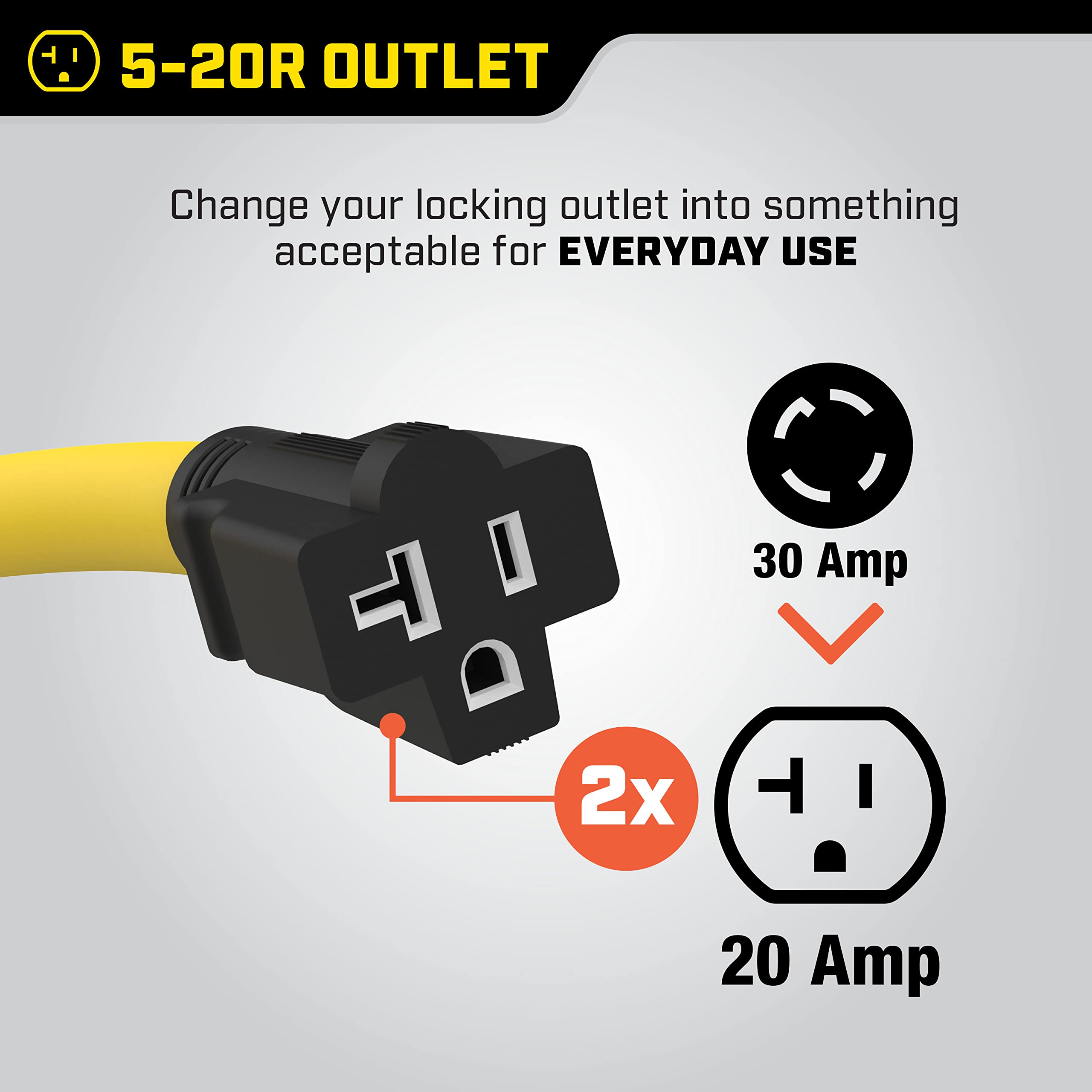

• Two 5-20R household outputs, each up to standard 20A receptacle ratings
• 1-year limited warranty from Champion for manufacturing defects

How do I use the adapter safely in an emergency or on the job?

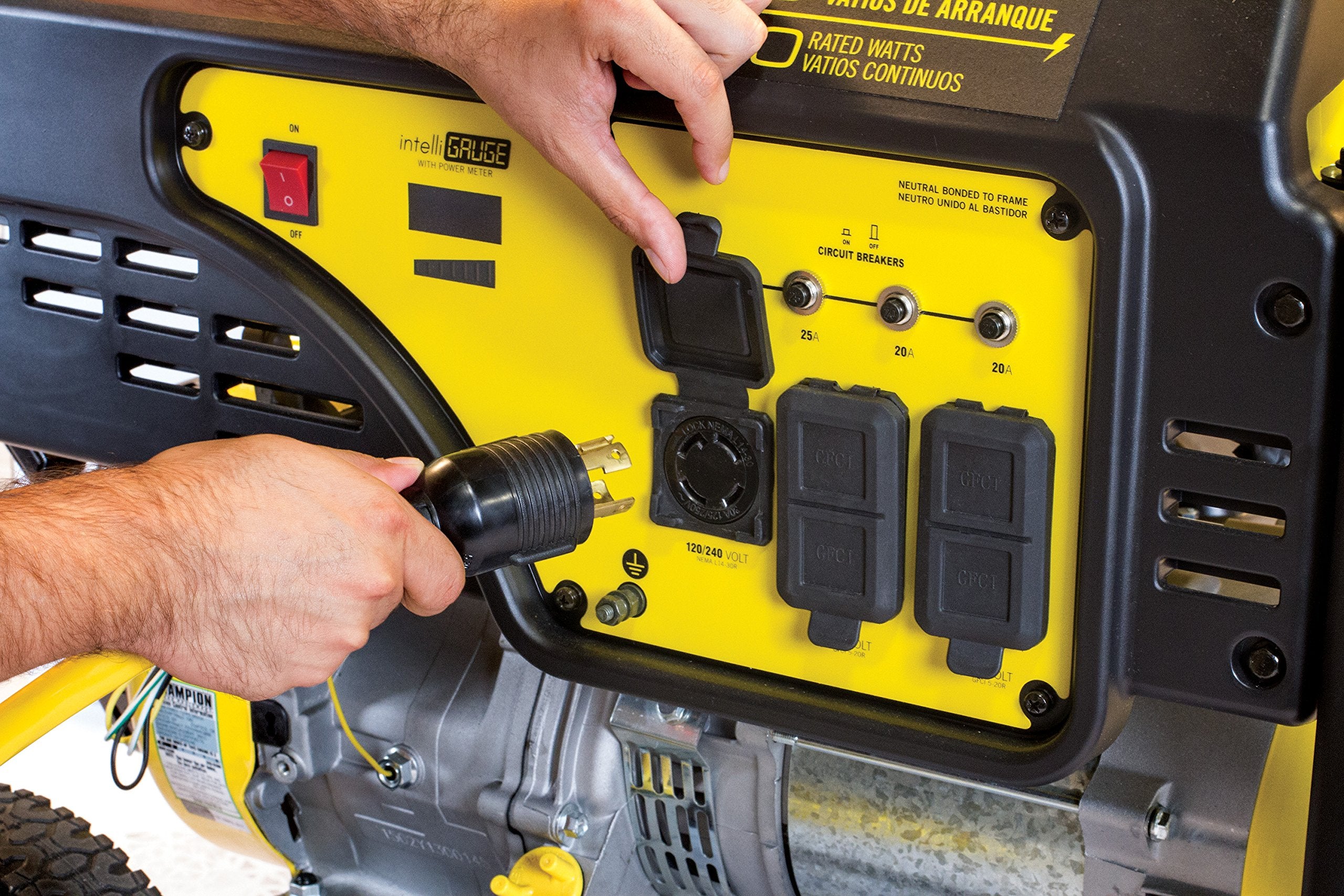

Place the adapter between the generator’s locking outlet and your extension cords or appliances, ensuring firm, secure connections. Prioritize essential loads and calculate combined current draw so the total does not exceed the 30A supply. Avoid permanent wiring changes; this device is intended as a portable adapter, not a substitute for proper transfer switches or hardwired generator installations.

• Connect L14-30P fully before powering the generator
• Sum the amperage of plugged devices—keep under 30A total
• Use with appropriate GFCI or transfer switch when required

Who is this for? The Champion 3-foot 30A Y-adapter is aimed at homeowners, contractors, RV owners, and event operators who need to convert a single generator locking outlet into two accessible household sockets quickly and reliably. It suits anyone who requires portable, weather-resistant splitting of generator power for tools, small appliances, lights, and temporary equipment while keeping wiring clear and flexible. For permanent home backup systems or hardwired loads, consult a licensed electrician and consider transfer switches and dedicated circuits.
