Caltric Starter Motor for Dixon 7000 Series & Kohler KT715–KT745 – 12V CCW, 9-Tooth Drive

Caltric starter motor designed as a direct-fit replacement for Dixon 7000 Series and Kohler KT715–KT745 engines, delivering 12V CCW starting power with a 9-tooth drive.

If your mower’s original starter has failed or is showing wear, this Caltric unit matches many Kohler Courage and Confidant engines and numerous zero-turn and garden tractor models from Cub Cadet, Toro and New Holland. It’s built to the specifications listed by OEM part numbers and fits engines that require a 12-volt, counterclockwise rotation starter with a 9-tooth pinion (10- and 9-tooth gears are interchangeable). Before ordering, compare the included photo to your old starter to confirm mounting, electrical terminals and drive orientation.

Which mower and engine models will this starter work with?

This starter is compatible with a long list of Kohler Courage and Confidant engines plus many factory applications across brands. It covers specific Kohler SV and KT series ratings and is used in a range of lawn tractors, zero-turns and garden tractors.

• Compatible Kohler Courage engines: SV710–SV740 and SV810–SV840 series as listed in product specs.
• Dixon/Kohler 7000 Series: KT715, KT725, KT730, KT735, KT740, KT745.
• Also used on Cub Cadet models (SLT, i10 series, LT and GT variants) from mid-2000s, select Toro TimeCutter and Titan models, and New Holland G40-series zero-turns.

How do I confirm fit before buying?

Verifying fit prevents returns and ensures trouble-free installation. Match the starter’s physical features, electrical posts and drive teeth count to your existing unit.

• Compare the product picture to your existing starter for bolt pattern and housing shape.
• Confirm rotation is counterclockwise (CCW) and voltage is 12V.

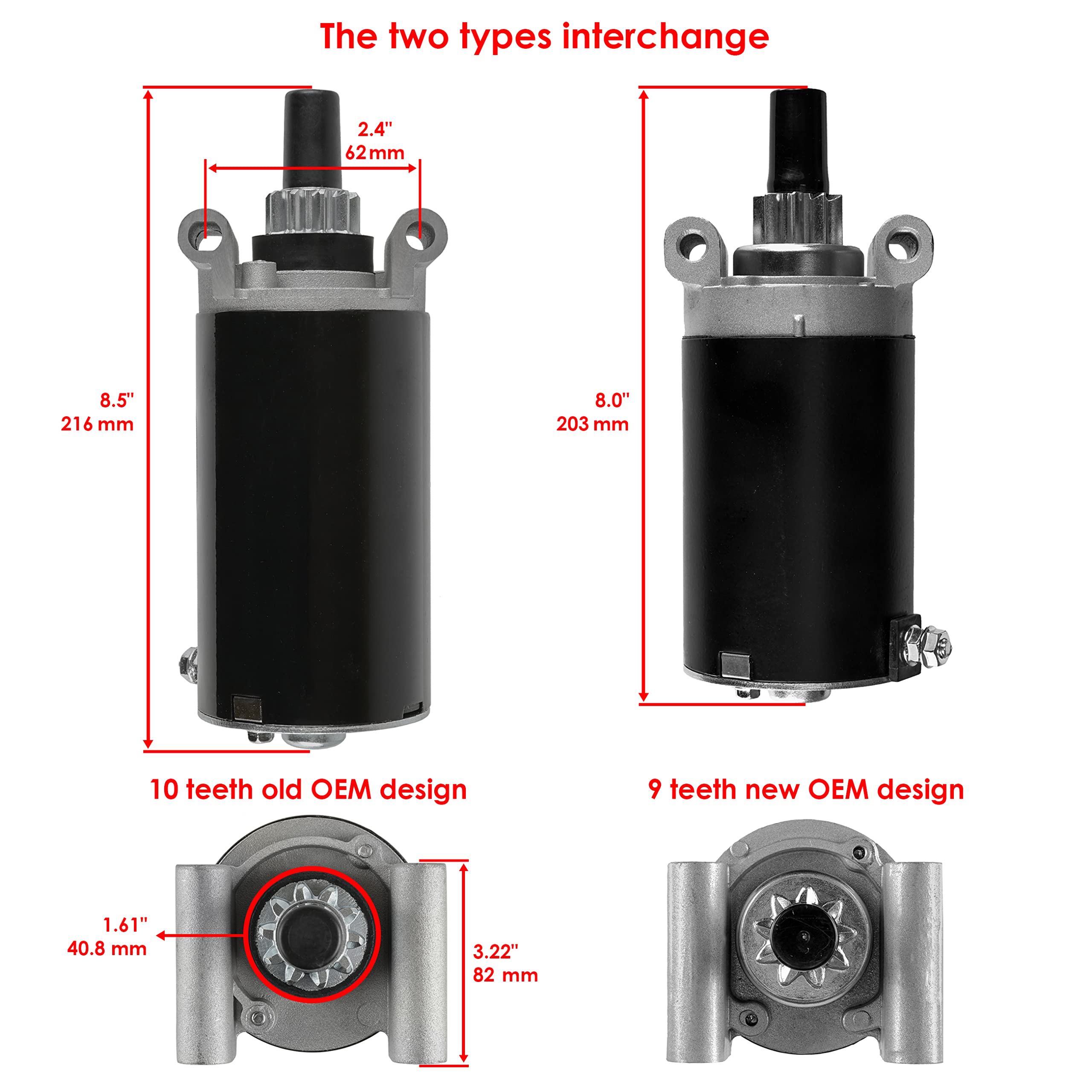

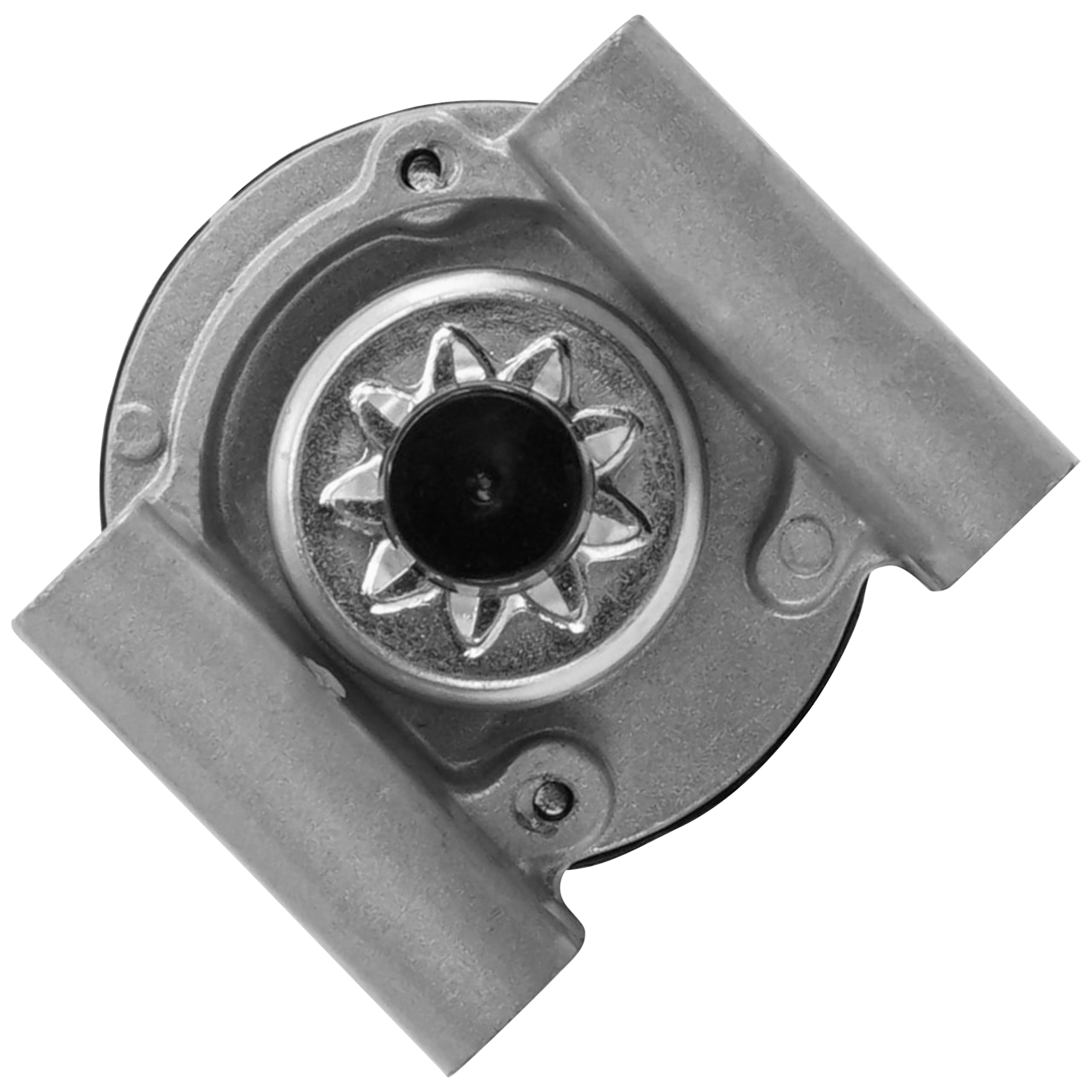

• Check pinion teeth: this unit uses a 9-teeth drive (10- and 9-teeth gears are interchangeable where noted).
• Cross-check OEM part numbers listed in the specs with your original part number.

What are the technical specifications and what’s included?

The starter is engineered to meet common OEM dimensions and electrical requirements for the listed engines. The order comes as a single replacement starter packaged for direct installation by a competent mechanic or DIYer with mechanical experience.

• Electrical: 12 volts, counterclockwise rotation (CCW).
• Drive: 9-tooth pinion (interchangeable with 10-tooth in compatible setups).
• Starter OEM references included for cross-checking: multiple 32-098 and 320980x variants and KH-specific numbers.

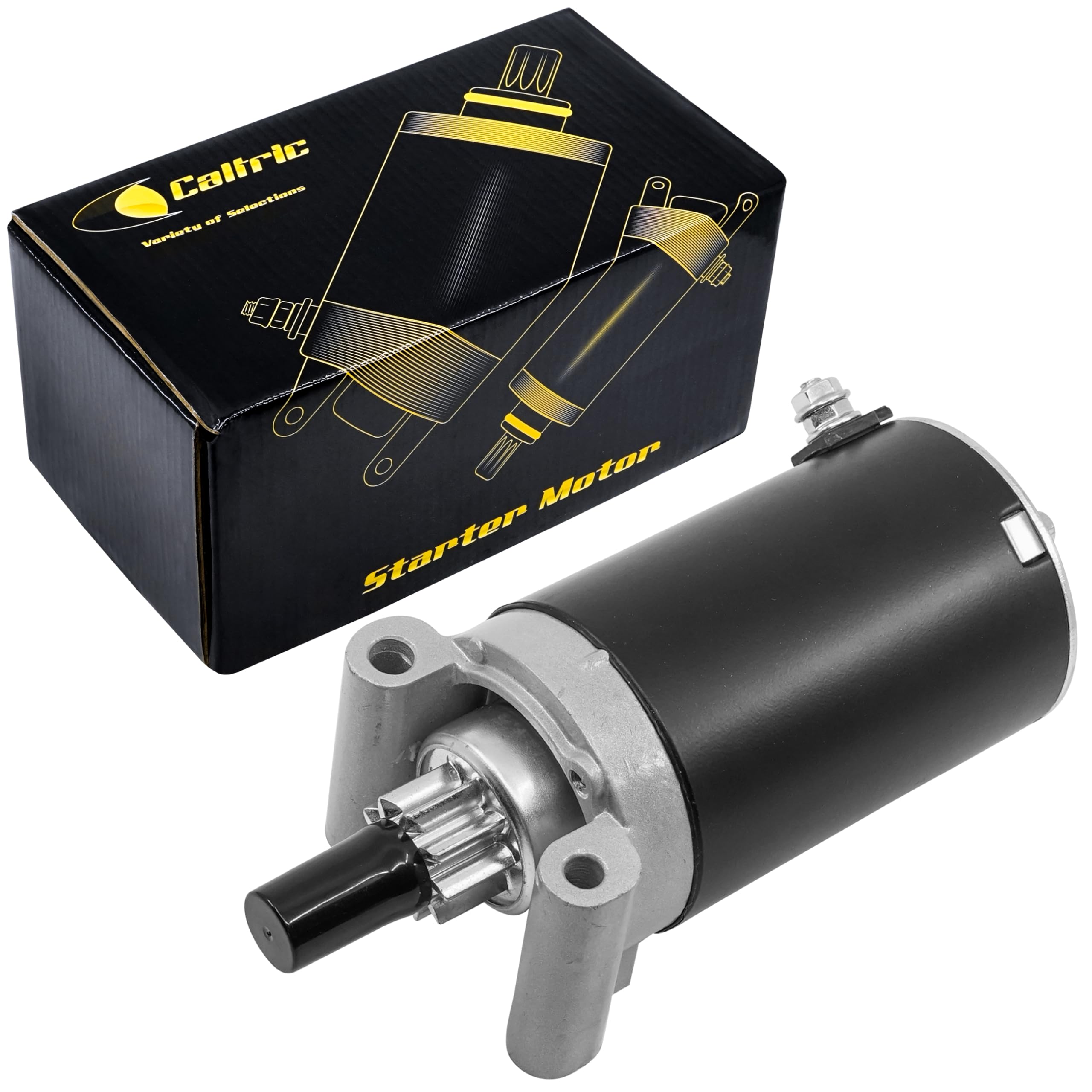

• Package contents: 1 x Caltric starter motor (no additional hardware unless specified).

How difficult is installation and what should I watch for?

Installation difficulty ranges from moderate to straightforward depending on mower model and access. Basic mechanical tools and safety precautions are required; if you’re not comfortable working around batteries and starter circuits, consult a technician.

• Disconnect the battery negative terminal before removing the old starter.
• Note terminal locations and wire routing to reconnect correctly.
• Verify starter housing aligns with mounting points and that pinch bolts are torqued to spec.
• Test engine crank engagement before fully securing all panels or components.

Who this is for: This Caltric starter suits owners of mid-2000s to late-2000s Kohler-powered lawn tractors, zero-turn mowers and garden tractors who need an OEM-style replacement with proven compatibility. It’s aimed at DIY mechanics, small-fleet managers and repair shops that require a reliable 12V CCW starter matching common Kohler and OEM part numbers. If you’re unsure about fit, have your old starter’s part number or a clear photo ready to compare before ordering.
