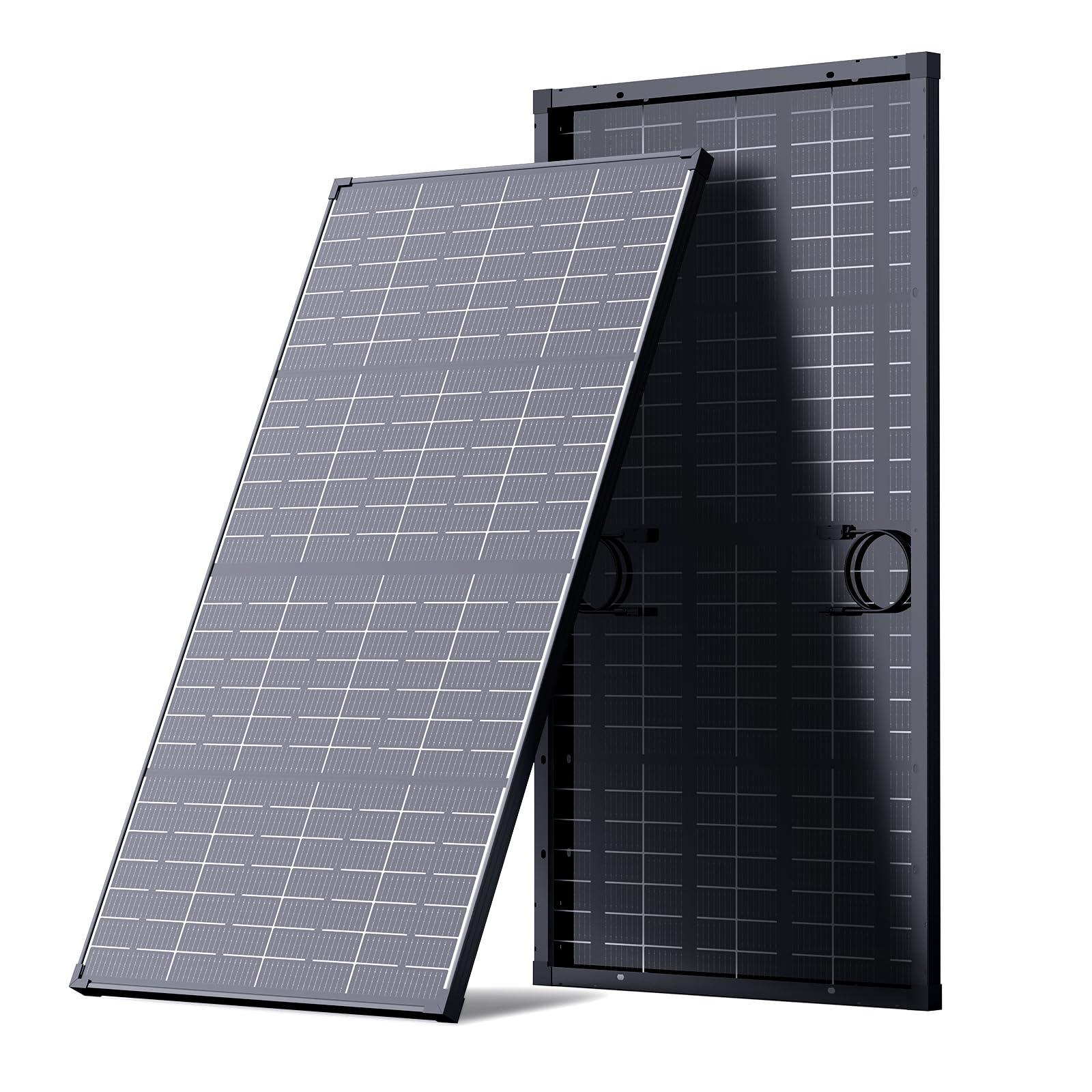

Callsun 215W Bifacial Solar Panel 4-Module Anti-Shading, 12V-Ready N-Type 16BB

The Callsun 215W 4-modules anti-shading bifacial solar panel is a high-efficiency 12V-compatible panel engineered to keep power flowing under partial shade while harvesting extra energy from reflected light.

Designed for RV, rooftop, marine, and portable power-station use, this panel combines an independent four-zone layout with bifacial cell technology and premium N-Type 16BB cells. The four independent modules prevent full-system shutdowns when part of the panel is shaded, while the bifacial rear face can capture reflected sunlight from snow, sand, or light-colored surfaces to boost daily yield. With voltage characteristics optimized for 12V battery systems and broad compatibility with popular portable power stations, it’s built to be a reliable source of DC power for off-grid and mobile lifestyles.

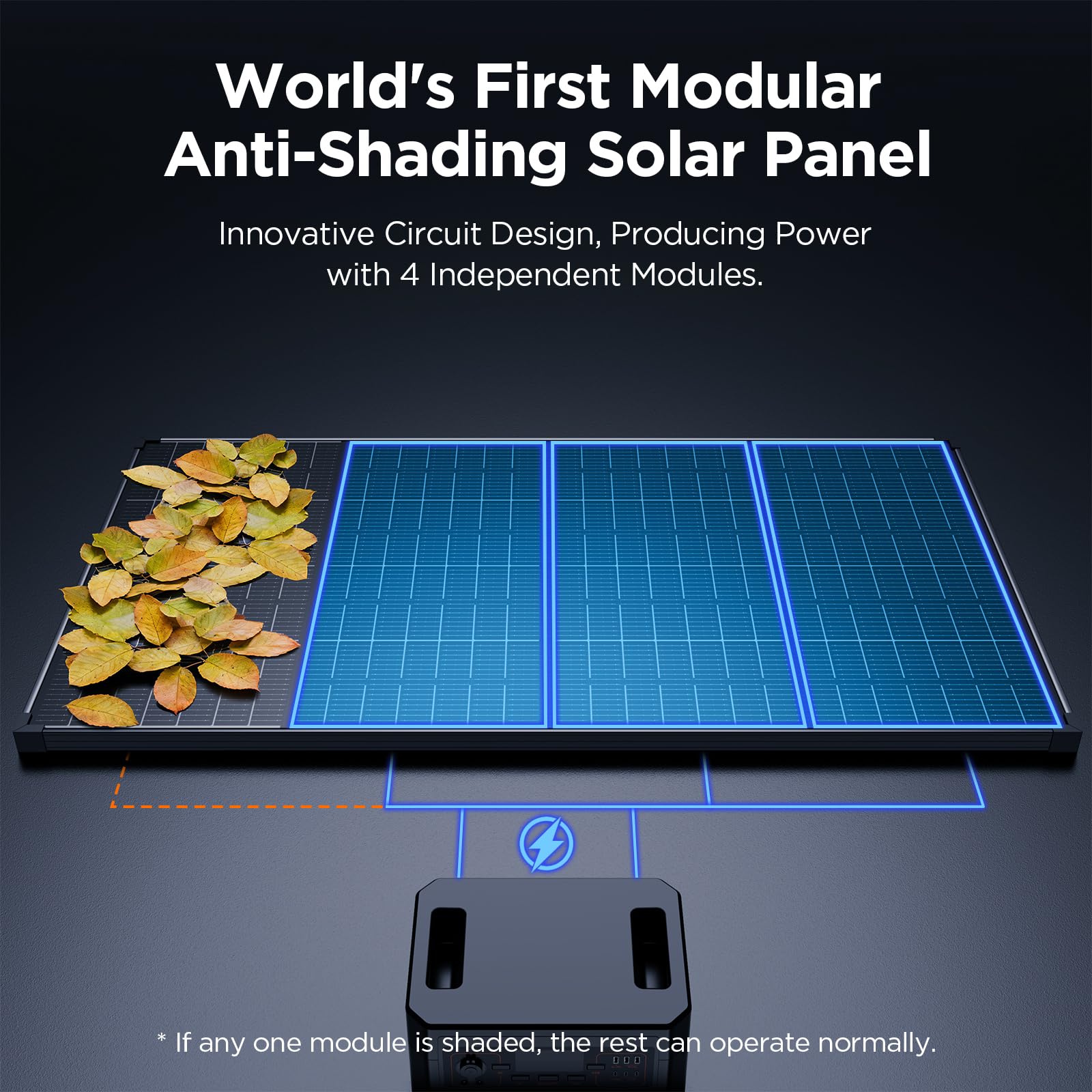

How does the four-module anti-shading design reduce power loss?

The panel is divided into four independent power zones, each with its own bypass diodes so a shaded zone won’t collapse the whole string. That means the remaining zones keep delivering near-full voltage and the panel avoids frequent MPPT restarts and hot-spot stress.

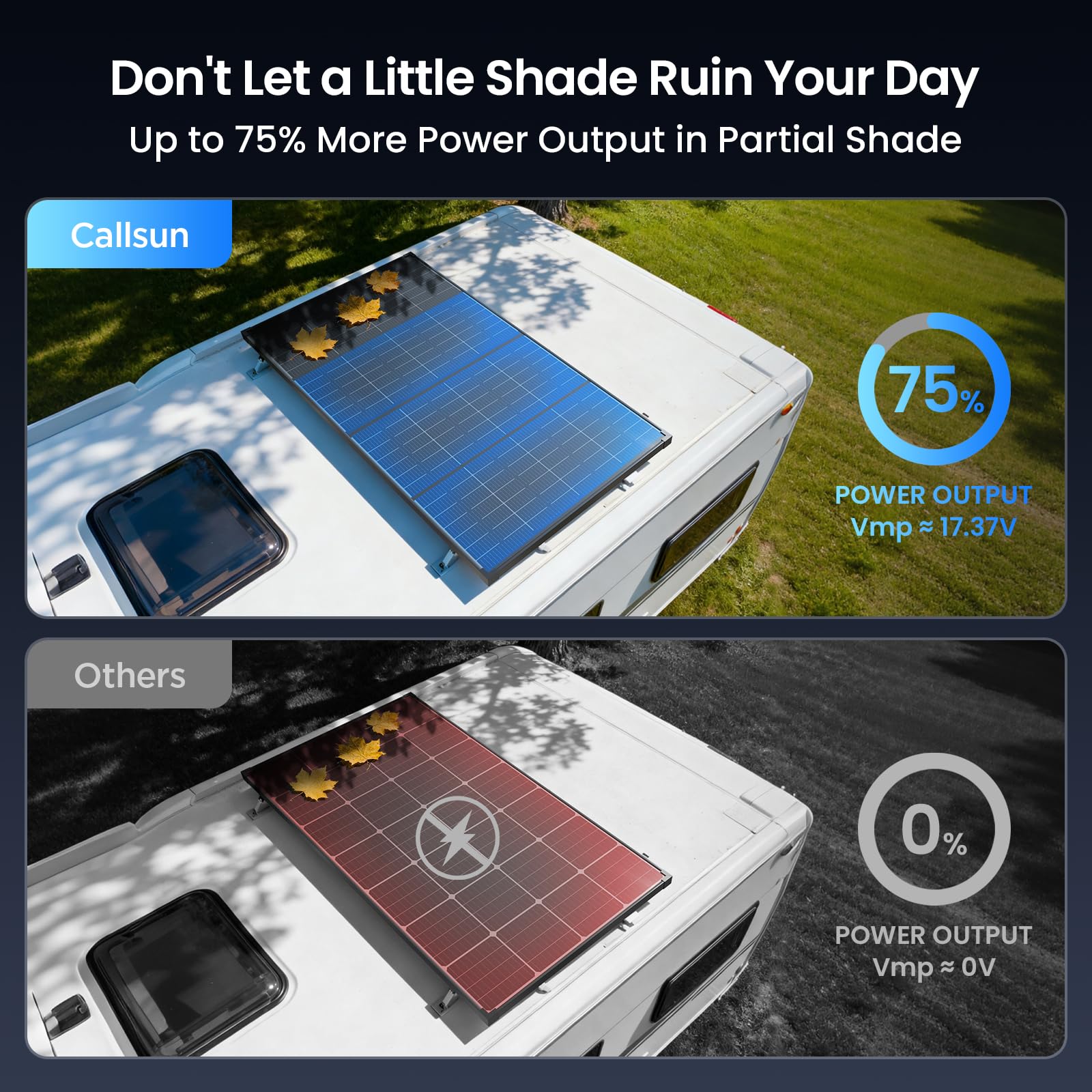

• Retains up to ~75% more output under partial shade compared to standard panels
• Multiple bypass diodes keep Vmp stable when one zone is shaded
• Reduces MPPT cycling and thermal hot-spot formation

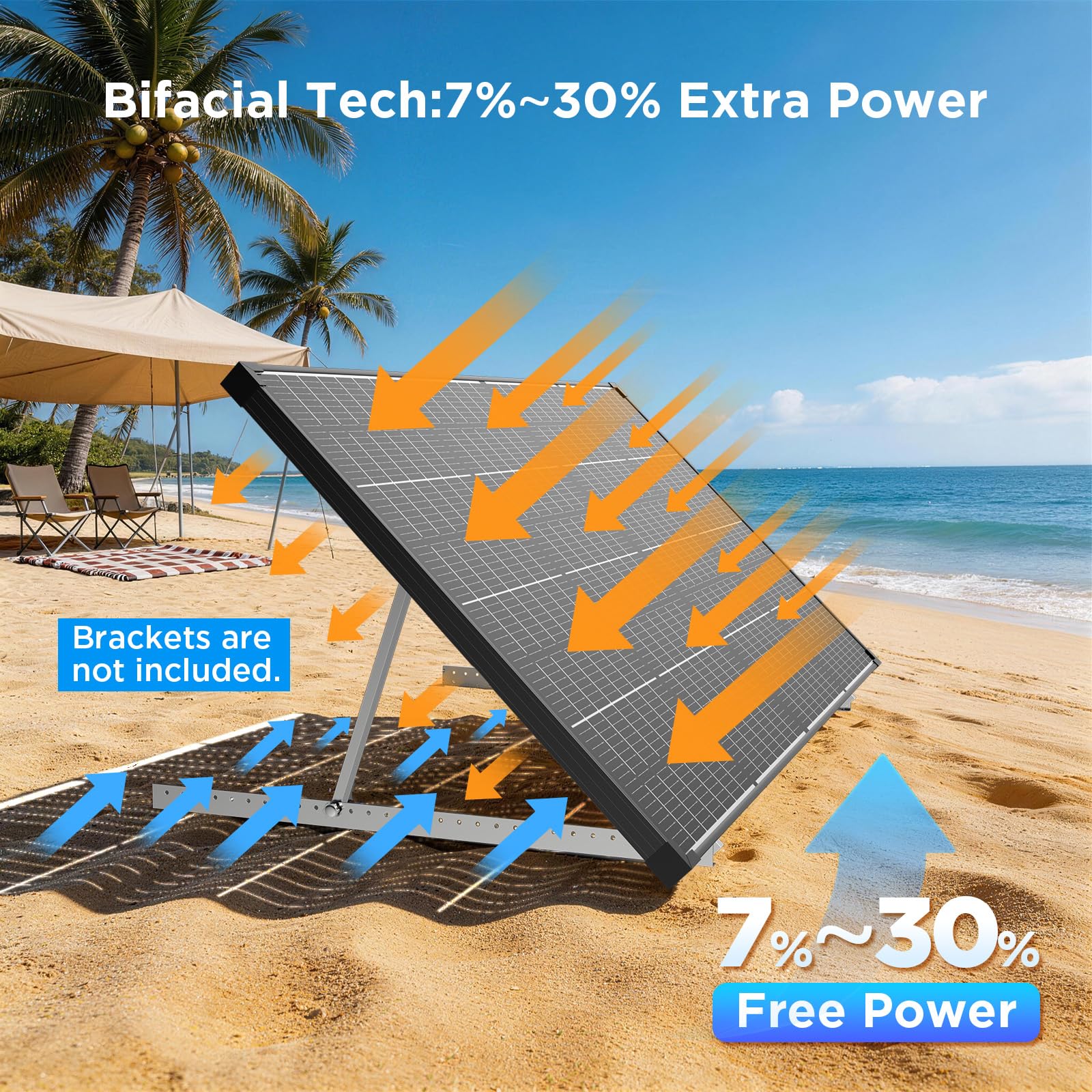

What extra energy does bifacial technology provide?

Bifacial cells collect light on both the front and rear surfaces, turning reflected and diffuse light into usable power. Depending on your installation (reflective ground, snow, or white roofs), the rear side can add roughly 7–30% more daily energy.

• Back-side capture increases energy yield in high-reflectance settings
• Especially effective on bright, reflective surfaces or snowy conditions
• Improves overall kWh per day without increasing roof footprint

Is this panel compatible with my 12V battery or portable power station?

The Callsun 215W has a Vmp of 17.37V and Voc of 20.41V, making it well matched to 12V battery banks and many portable station inputs. It’s explicitly compatible with a wide range of power stations, so wiring is straightforward for typical RV and off-grid setups.

• Optimized Vmp/Voc for charging 12V systems and common MPPT charge controllers
• Listed compatible with Jackery Explorer, Bluetti ELITE/AC/AC-series, EcoFlow Delta/RIVER models
• Works well in parallel or series arrays when designing larger systems

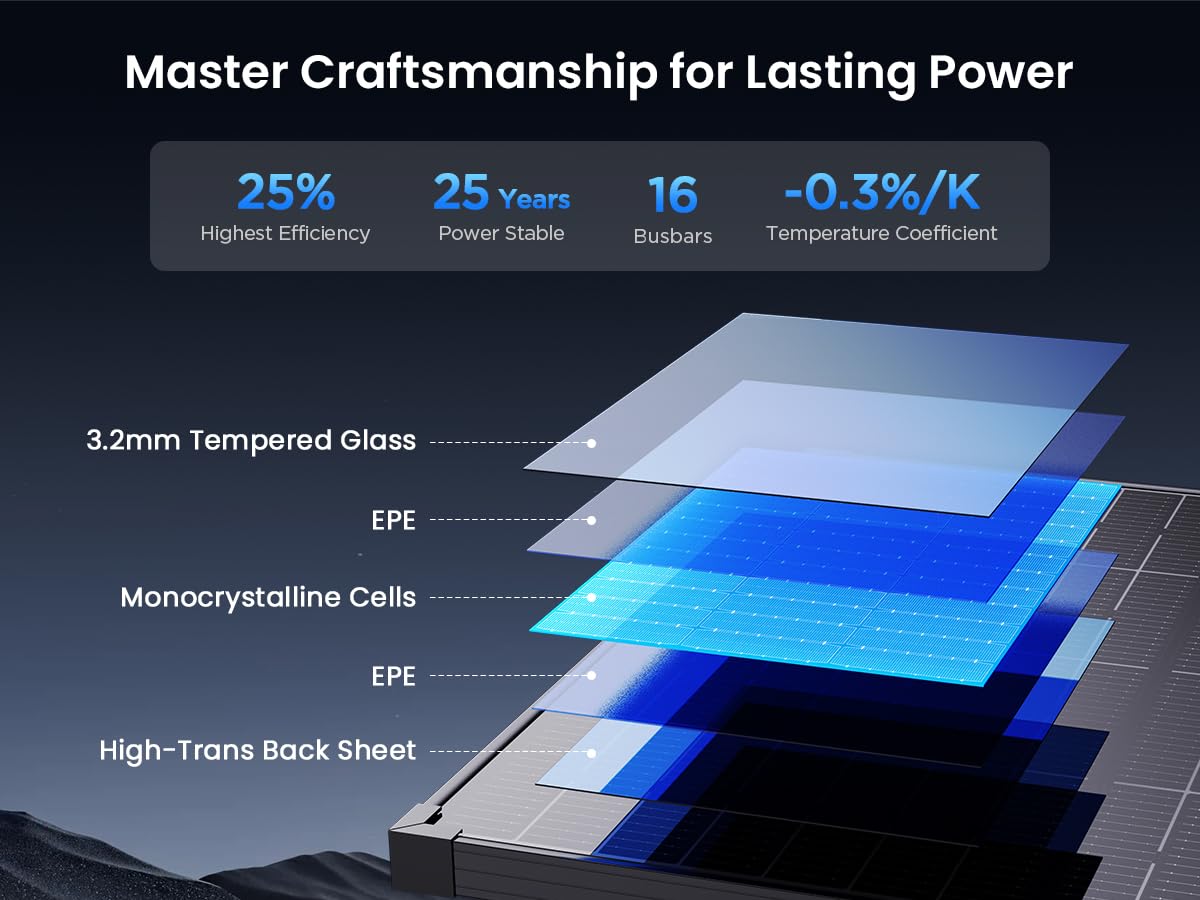

How durable and long-lasting is the Callsun panel?

Built with A+ N-Type 16BB cells and robust construction, the panel offers elevated conversion efficiency and dependable low-light performance. Callsun backs the product with both a 12-year workmanship warranty and a 25-year power warranty that guarantees at least 84.5% of nameplate output after 25 years.

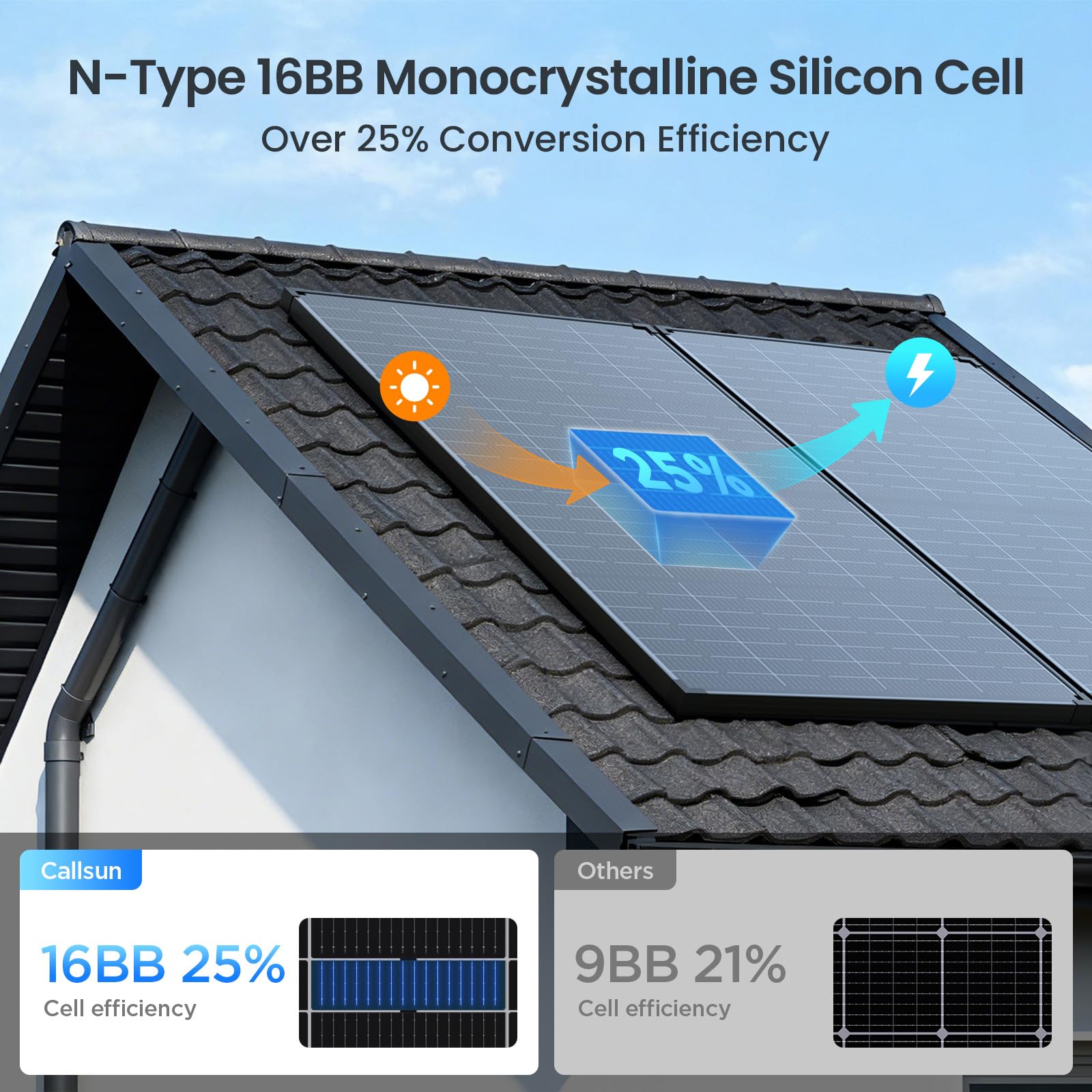

• High conversion efficiency from premium N-Type 16BB cells
• 12-year product warranty for defects and materials
• 25-year performance warranty ensuring long-term energy retention

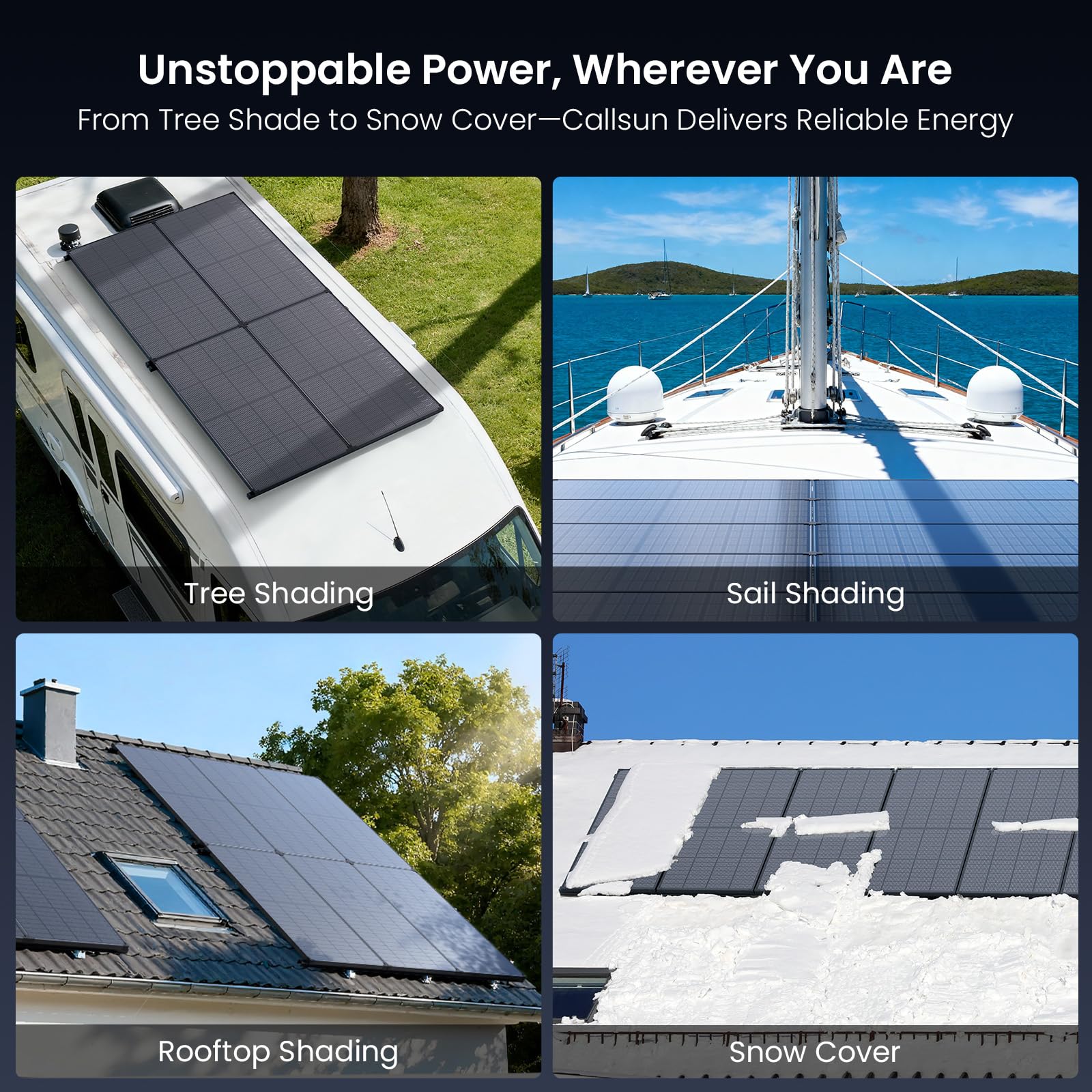

Who is this for: The Callsun 215W 4-module bifacial panel is aimed at RV owners, van-lifers, boaters, rooftop users, and anyone pairing solar with portable power stations who needs dependable output in mixed light conditions. It’s particularly useful for installations where partial shade is unavoidable or where reflective ground surfaces can be exploited for extra energy without adding roof area.
