BBQration Replacement Parts for Nexgrill Deluxe 6-Burner — 3 Cast-Iron Grates, 6 Burners & Heat Plates

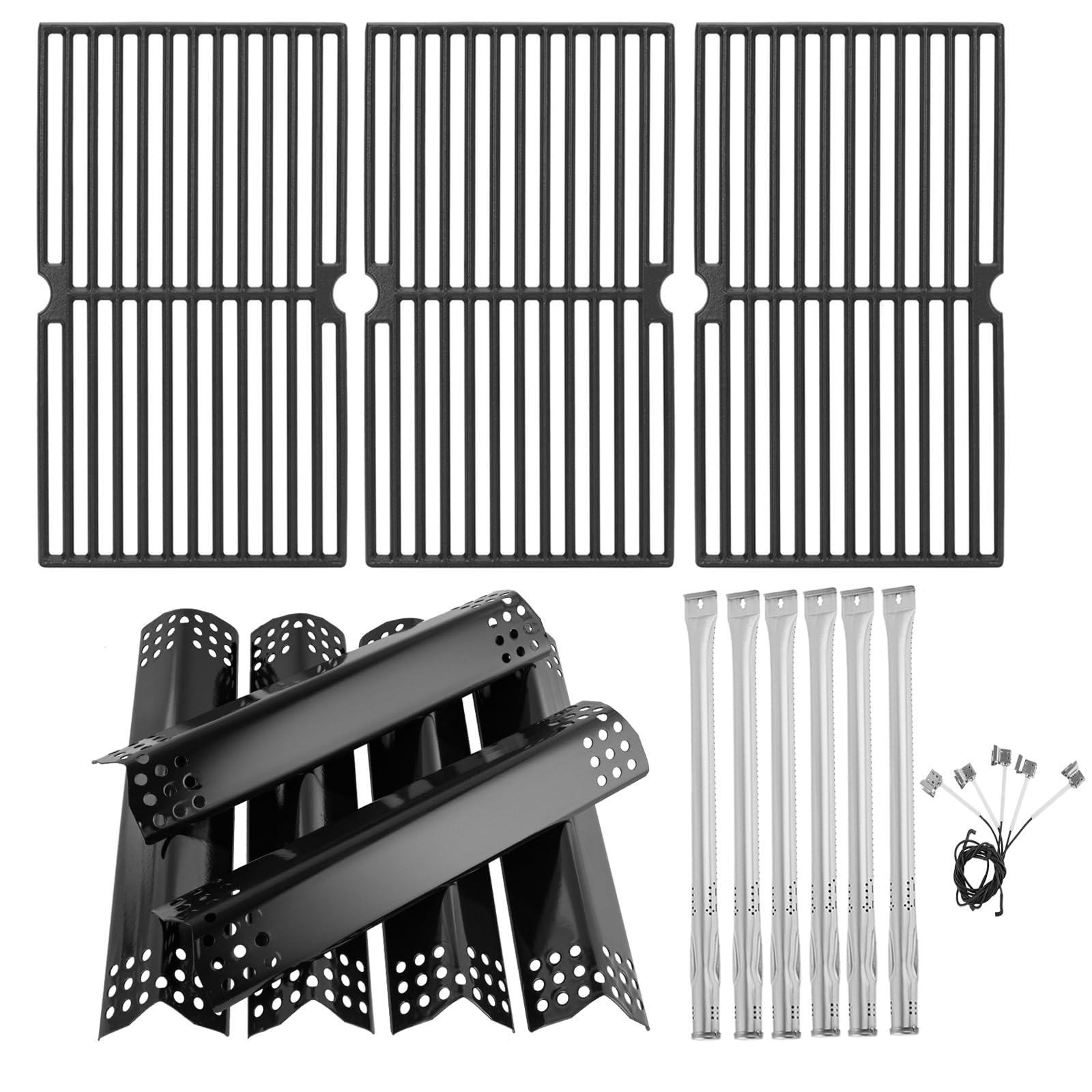

Complete 3-pack cast-iron cooking grates plus six heat plates and six 15" burners designed to replace worn parts on Nexgrill 6-burner Deluxe models.

If your Nexgrill 720-0896 or 730-0896 series grill is showing uneven flames, rusted grates, or missing heat tents, this BBQration replacement kit gives you the core cooking surfaces and flame-spreading components to restore performance. The set is sized to match the factory dimensions for many Nexgrill 6-burner Deluxe grills and includes three matt cast-iron grates, six stamped burners and six heat plates (sometimes called heat tents or flavorizers). These parts are sold as replacements—not originals—but are built to fit the listed Nexgrill part numbers and restore even heat distribution and easier cleanup.

Will these parts fit my Nexgrill 720-0896 or 730-0896 Deluxe 6-burner?

These BBQration replacements are manufactured to match the common dimensions and mounting style used by Nexgrill Deluxe 6-burner models. Measure your existing parts against the listed dimensions to confirm fit before purchasing.

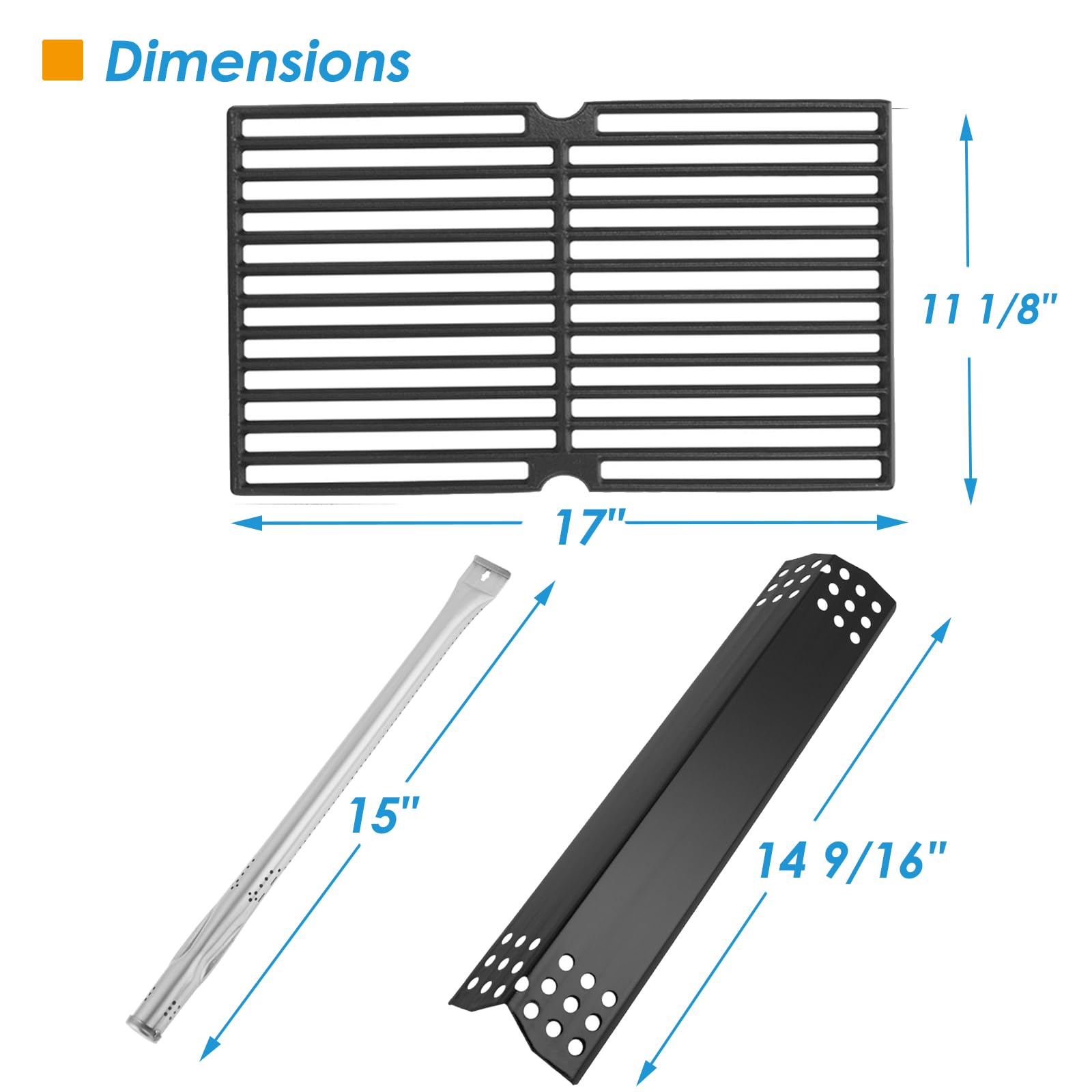

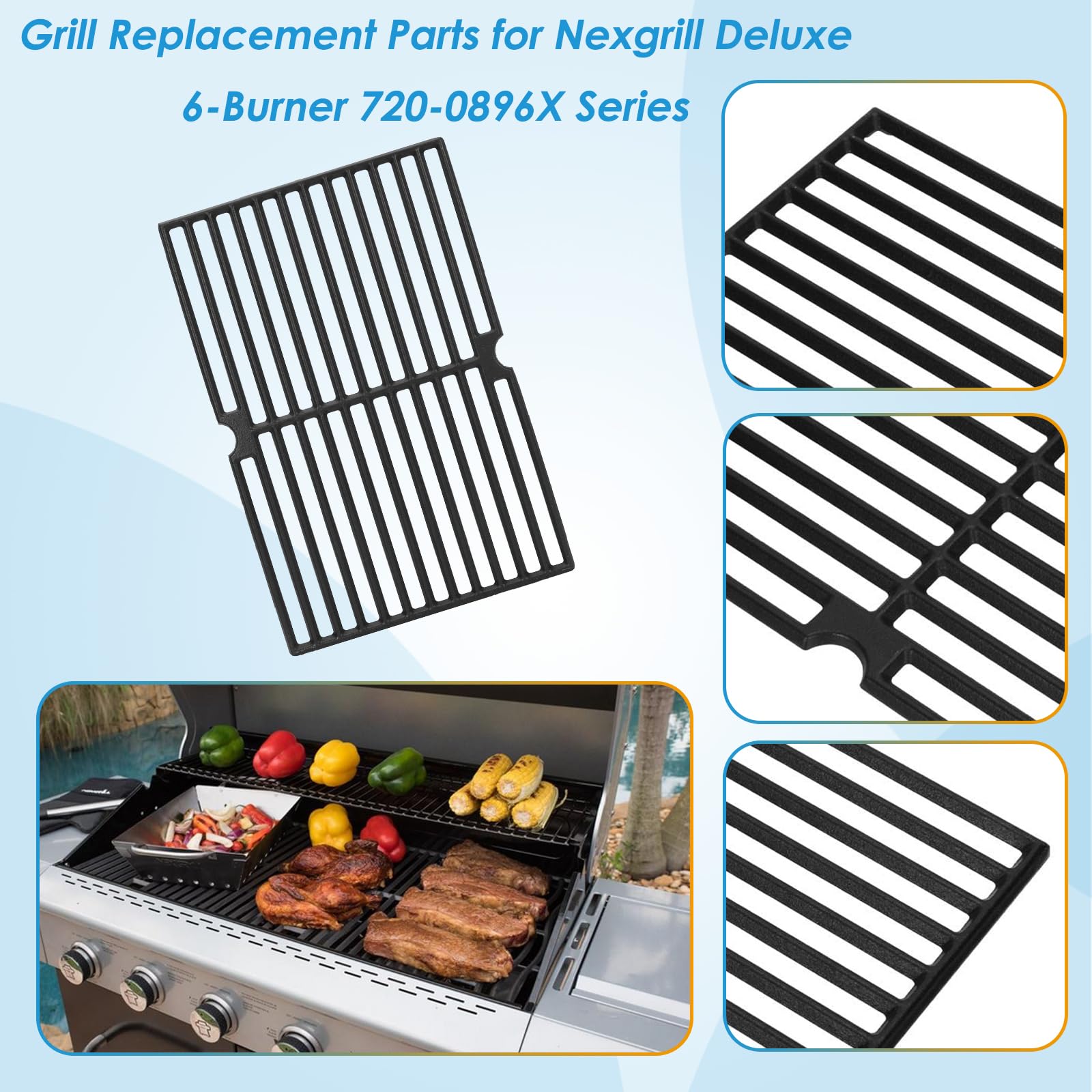

• Cooking grate size: each 17" x 11 1/8"; total assembled 17" x 33 3/8"

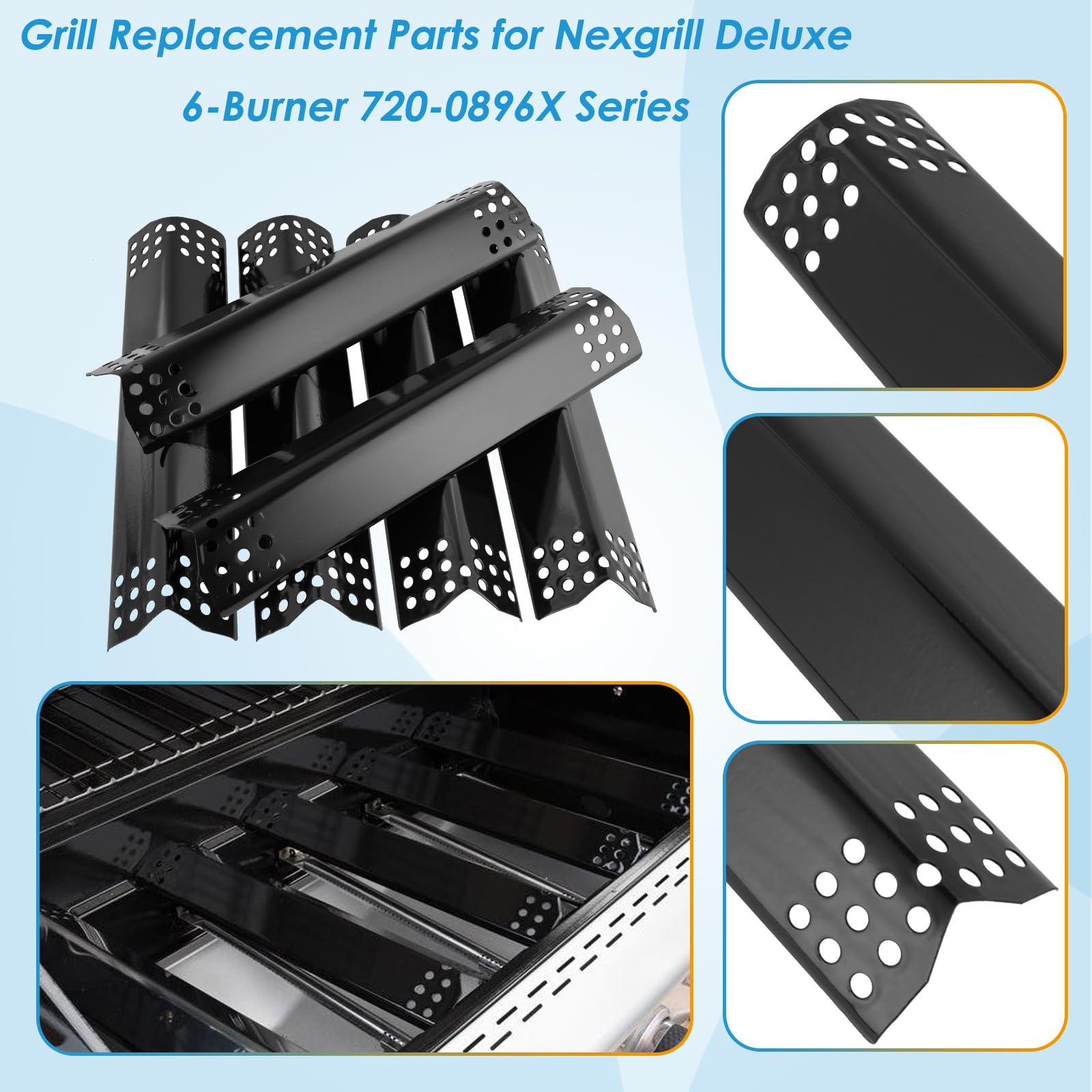

• Heat plate size: 14 9/16" x 3 1/4" per piece

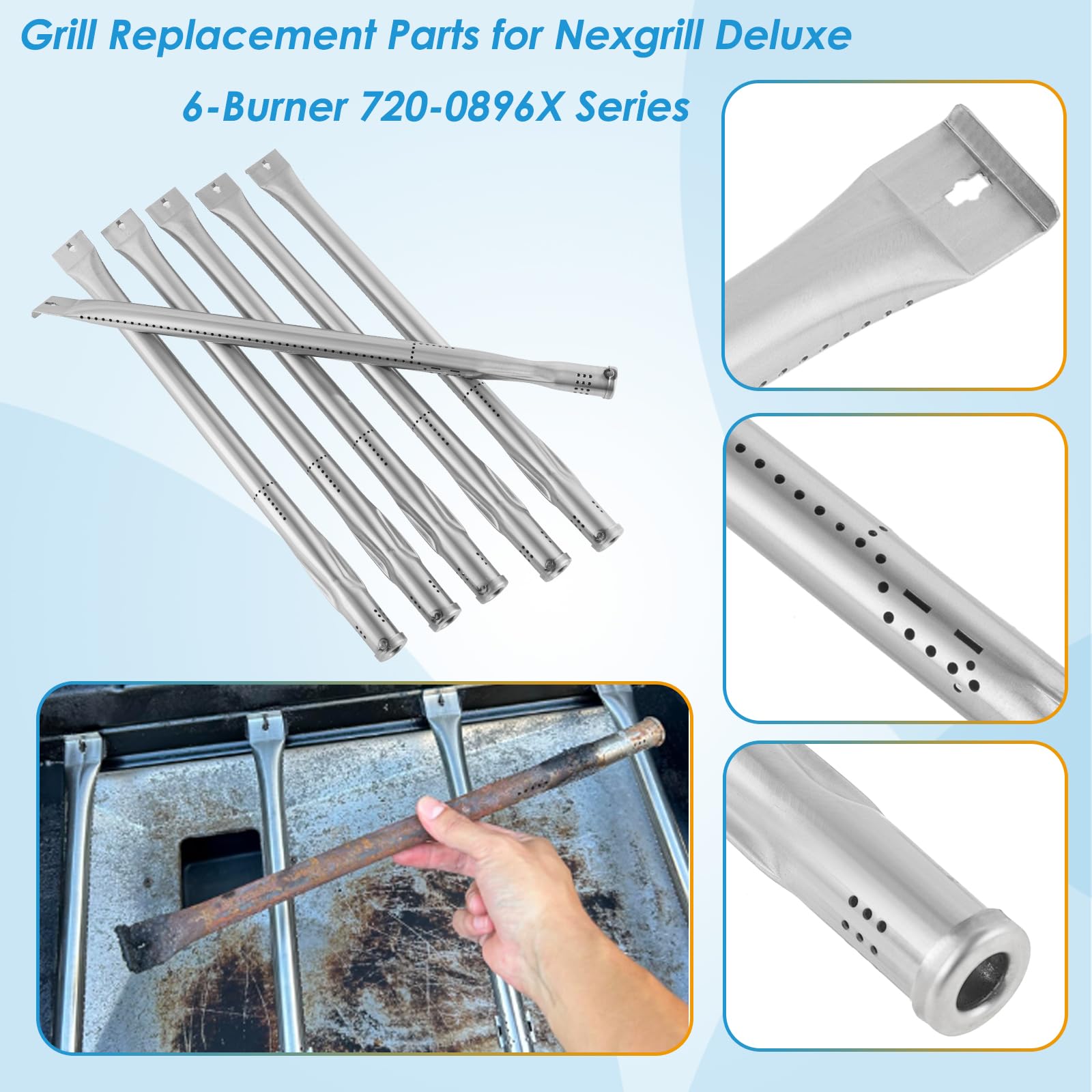

• Burner length: 15" each; matches Nexgrill burner #0127199000AP
• Compatible with Nexgrill models: 720-0896B/E/C/X and 730-0896B/E/C/X

How do these replacement grates and parts improve cooking and cleanup?

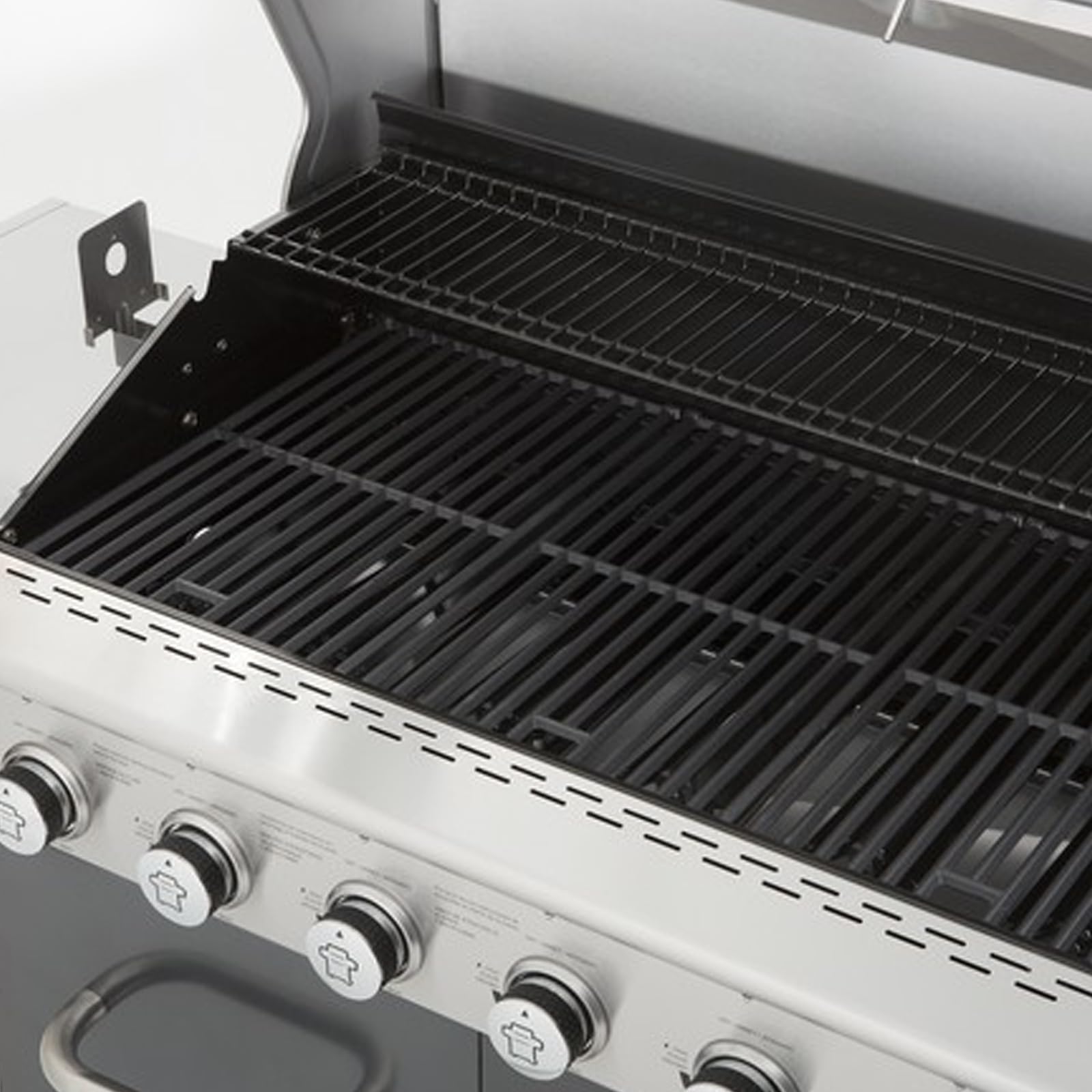

Fresh cast-iron grates reintroduce better searing and more consistent heat transfer compared with damaged or thin factory grates. New heat plates deflect drippings and protect burners, while replaced burners restore even flame output across all six zones.

• Cast-iron retains heat for improved searing and grill marks

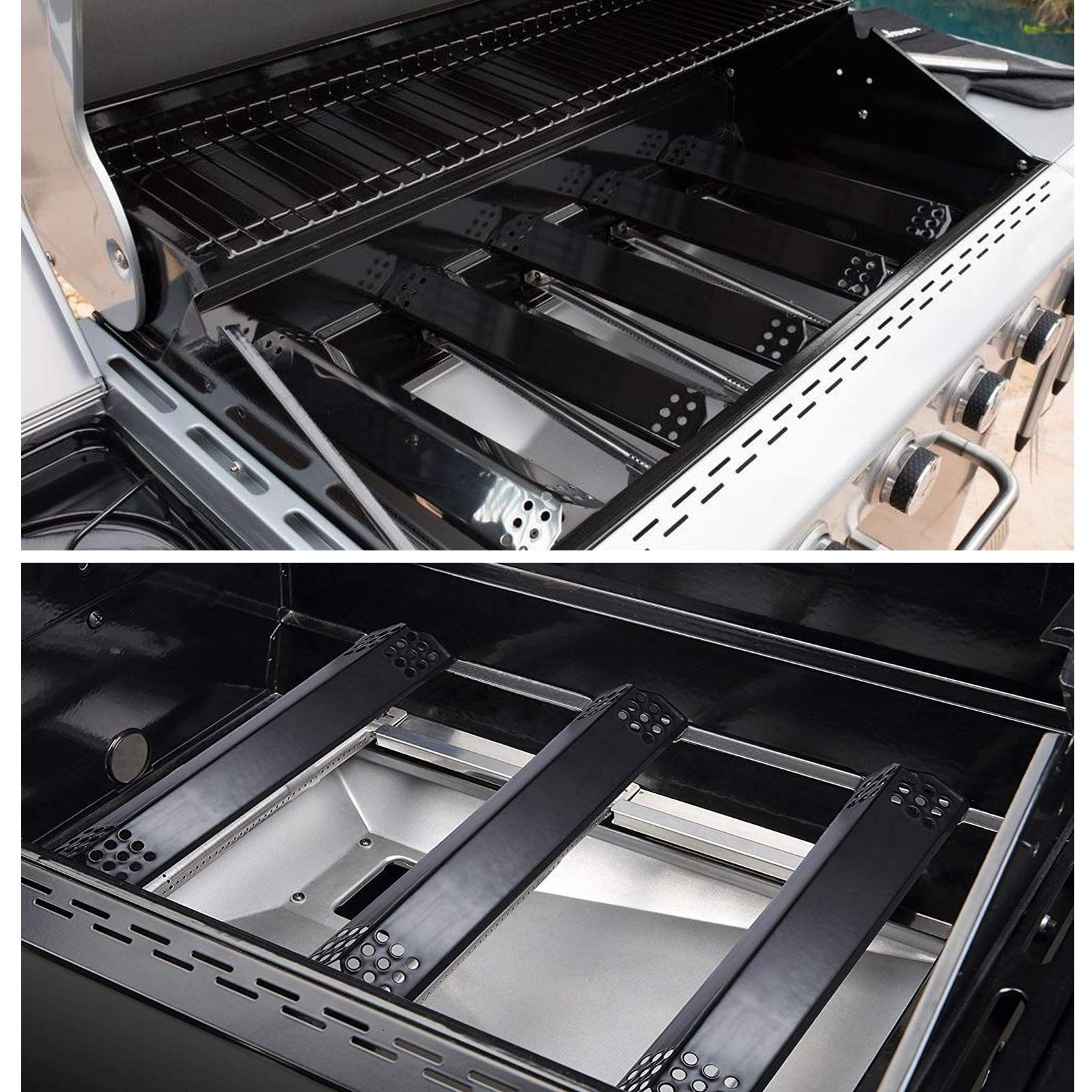

• Heat plates reduce flare-ups and vaporize drippings for flavor
• Replaced burners restore consistent flame and temperature control
• New surfaces make scraping and seasonal cleaning easier

What are the materials and expected durability of these parts?

The cooking grates are matt cast iron for heat retention and robust searing. Burners and heat plates are stamped metal designed to resist common grilling stresses; longevity depends on maintenance and exposure to weather.

• Grates: matt cast-iron — re-season after cleaning to prevent rust
• Burners: stamped metal matching Nexgrill burner dimensions
• Heat plates: stamped heat tents sized for Nexgrill part replacements
• Recommended: dry storage and routine seasoning or protective covers

How easy is installation and what should I check before buying?

Installation is typically straightforward: remove old grates, heat plates and burners, then slide or secure the replacements into the same mounting points. You’ll need basic tools and a few minutes per component if the original parts are accessible.

• Turn off gas and disconnect before working on burners
• Compare your current part measurements with those provided
• Have a screwdriver or wrench set handy for burner brackets
• Check ignition alignment if your grill uses electronic starters

Who is this for: This BBQration kit is intended for owners of Nexgrill Deluxe 6-burner grills who need a practical, dimension-matched replacement for rusted or damaged grates, heat plates and burners. It’s a good choice for backyard grillers who want to restore even heat, reduce flare-ups, and extend the working life of a compatible Nexgrill without buying a new grill. Always confirm measurements and model numbers before ordering, and contact BBQration customer support if you need part verification or installation guidance.
