BBQration Grill Parts Replacement Kit for Charbroil Classic 360 — 3 Porcelain Burners, Heat Tents & Ignition

These BBQration replacement parts provide a complete six-piece repair kit—burners, porcelain heat tents, crossover tubes and an ignition—designed to restore performance on Charbroil Classic 360 and compatible 2–3 burner models.

When a grill’s flame pattern falters or heat distribution becomes uneven, replacing worn internal components can bring it back to life without buying a new unit. This kit contains three porcelain-coated steel heat tents, three 12.6" burners, two adjustable carryover (crossover) tubes that extend from 5" to 9.5", and one ignition assembly. Parts are matched to common Charbroil part numbers for Classic and American Gourmet models so you can confirm fit before ordering.

How will these parts affect my grill’s cooking performance?

Fresh burners and heat tents re-establish even flame distribution and protect flavor by shielding food from direct grease exposure. The crossover tubes ensure all burners ignite consistently, preventing cold spots and improving temperature control.

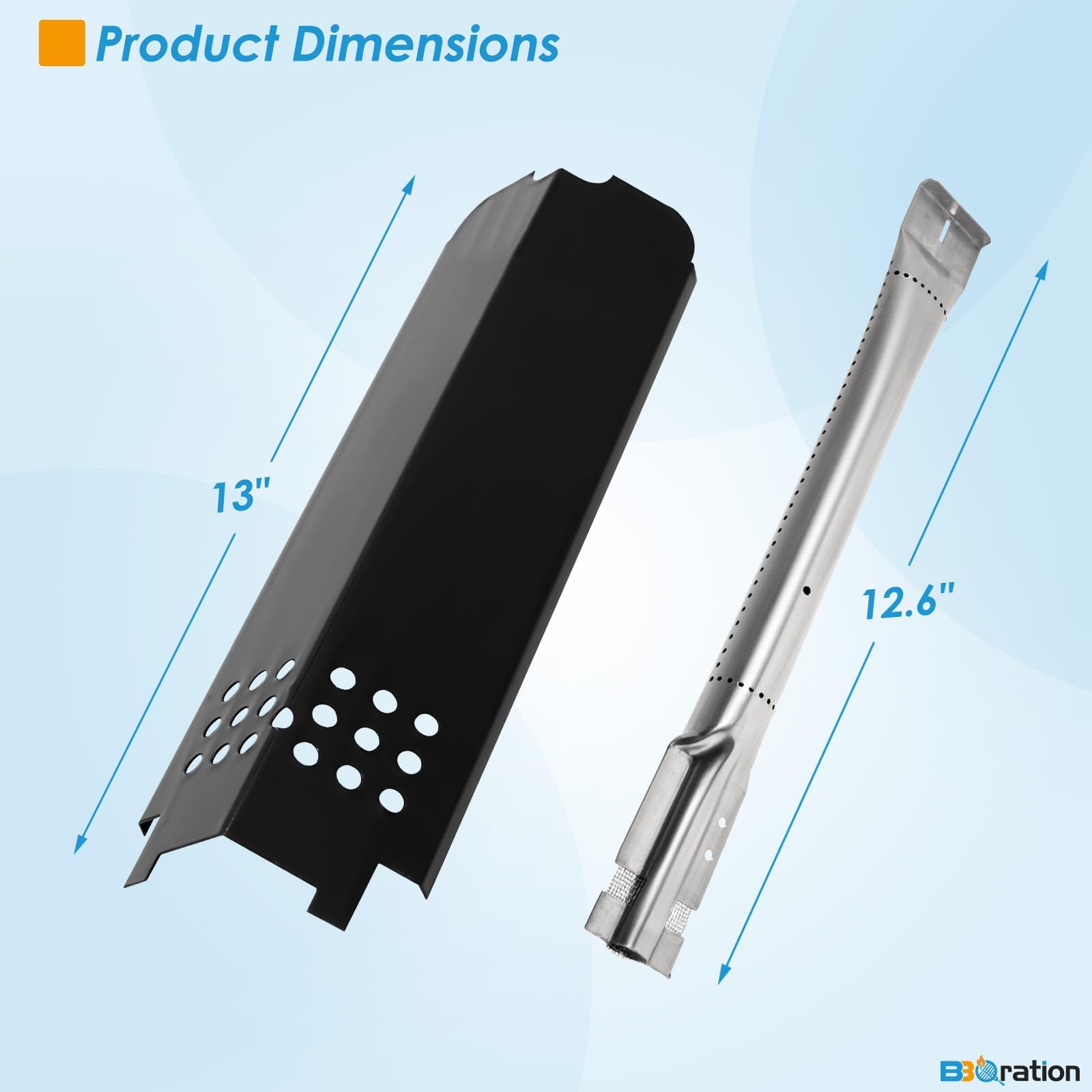

• Three 12.6" porcelain-coated burners for consistent flames
• Three porcelain steel heat tents (13" x 4") that deflect drippings and radiate heat
• Two adjustable crossover tubes (5"–9.5") for reliable ignition between burners
• Replacement ignition module to restore spark function

Will these parts fit my Charbroil Classic 360 or other models?

The kit is made to be compatible with multiple Charbroil Classic and American Gourmet grills; cross-reference your model or the original Charbroil part numbers to be sure. Measure your existing components before purchase because small size differences can prevent installation.

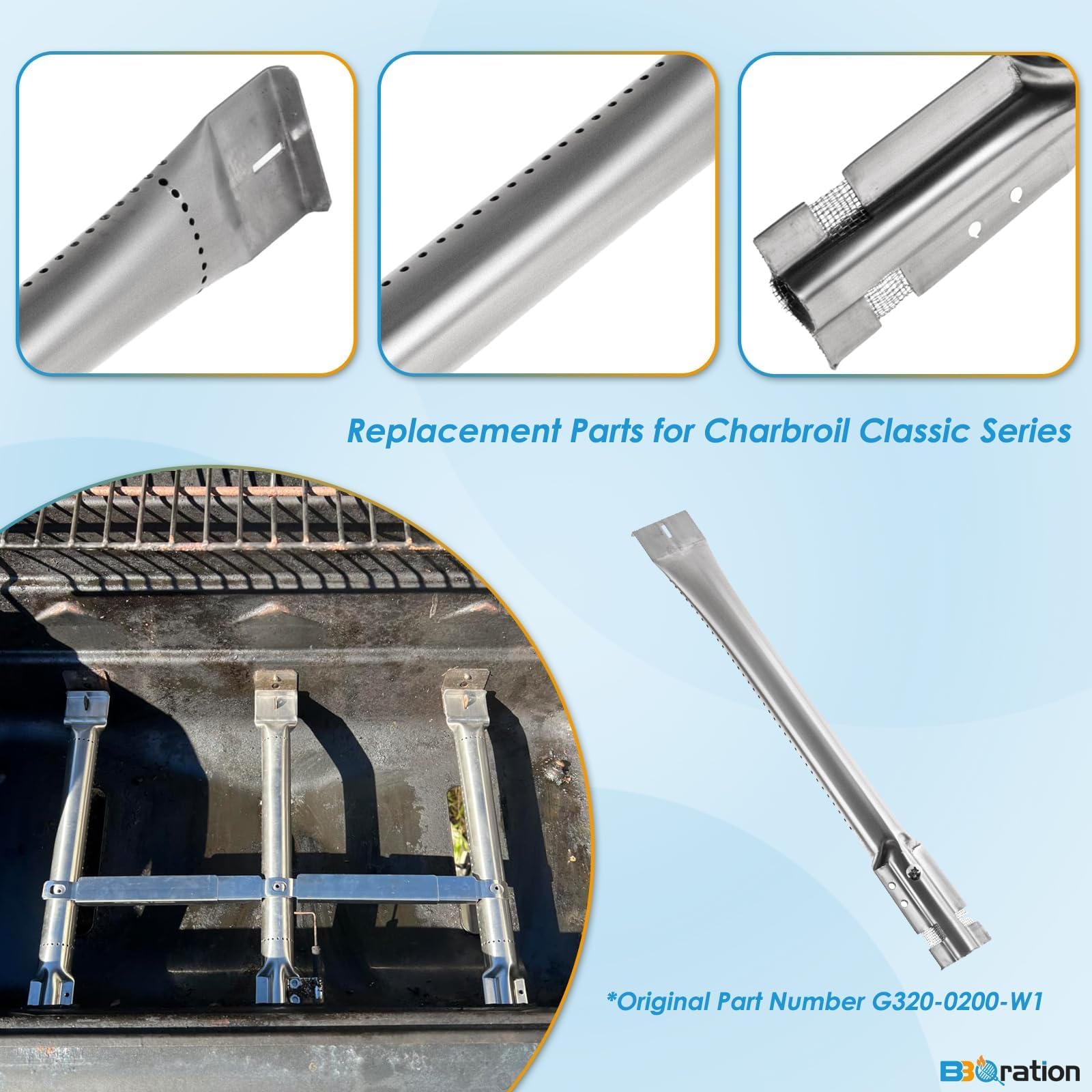

• Burner matches Charbroil part G320-0200-W1A (12.6" length)

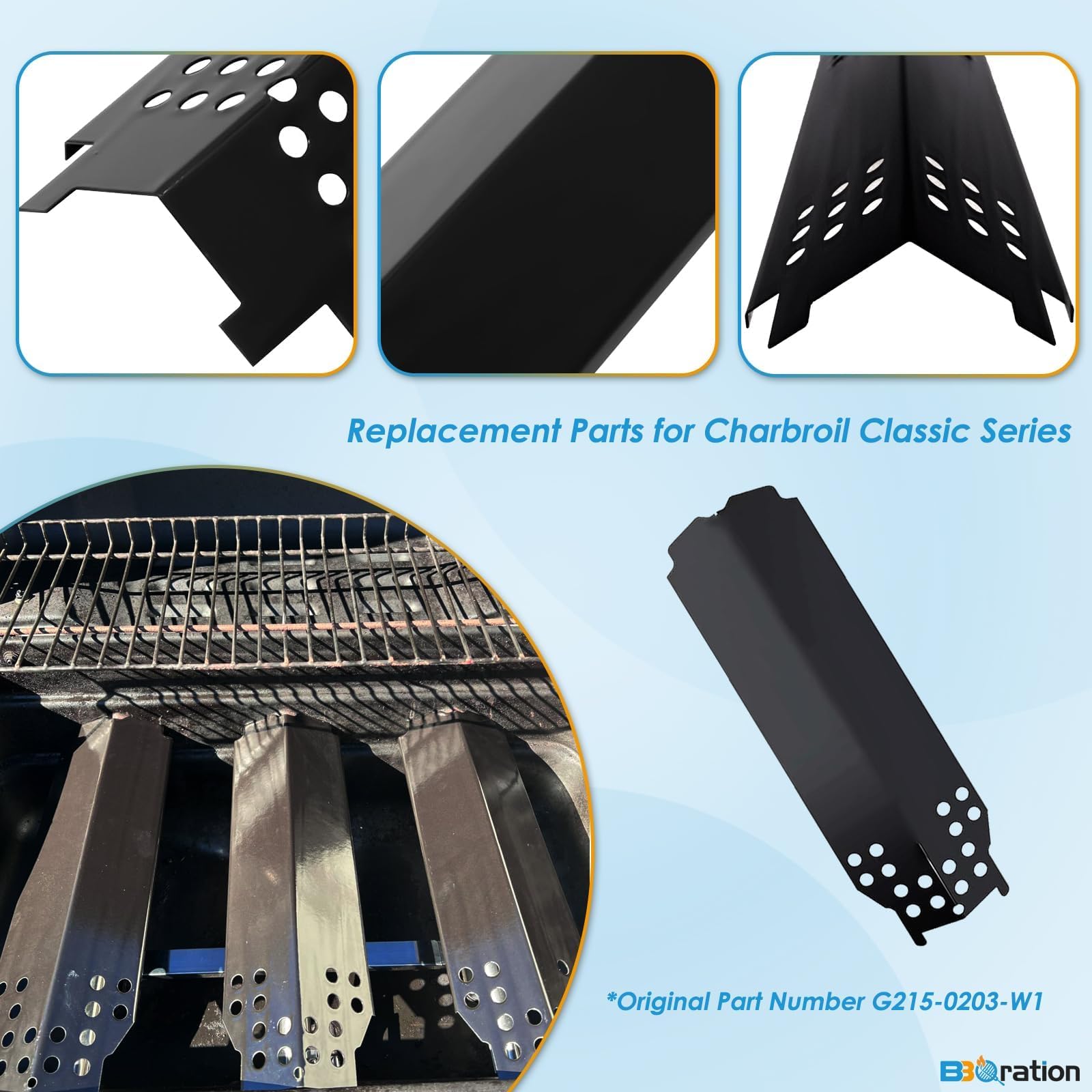

• Heat tent matches Charbroil part G215-0203-W1 (13" x 4")
• Works with Classic 360 three-burner model numbers and several Classic/American Gourmet two- and three-burner variants
• Adjustable crossover tube adapts between 5" and 9.5" for varied layouts

How difficult is installation and what tools or tips help?

Installation is straightforward for anyone comfortable with small grill repairs, but firmness of the burner tube steel can make screw alignment stubborn. If threaded holes resist a screw, gently tapping the burner tube or using a punch can seat parts—measure twice and proceed carefully.

• Basic hand tools required: screwdrivers, pliers, and possibly a hammer for gentle taps
• Check measurements (burner length, tent size, crossover length) before fitting
• If screw threads are stiff, lightly tap to align then secure; avoid over-tightening
• Disconnect gas and remove attachments before working on internal parts

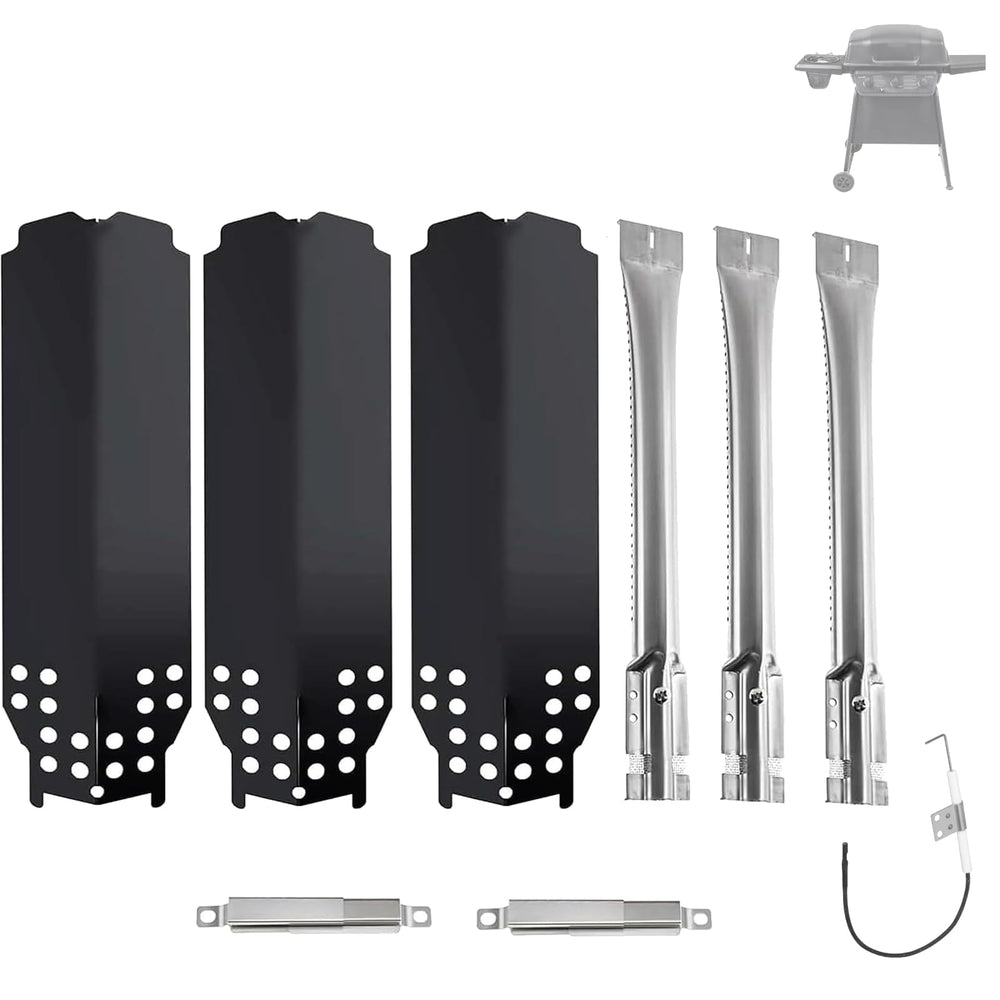

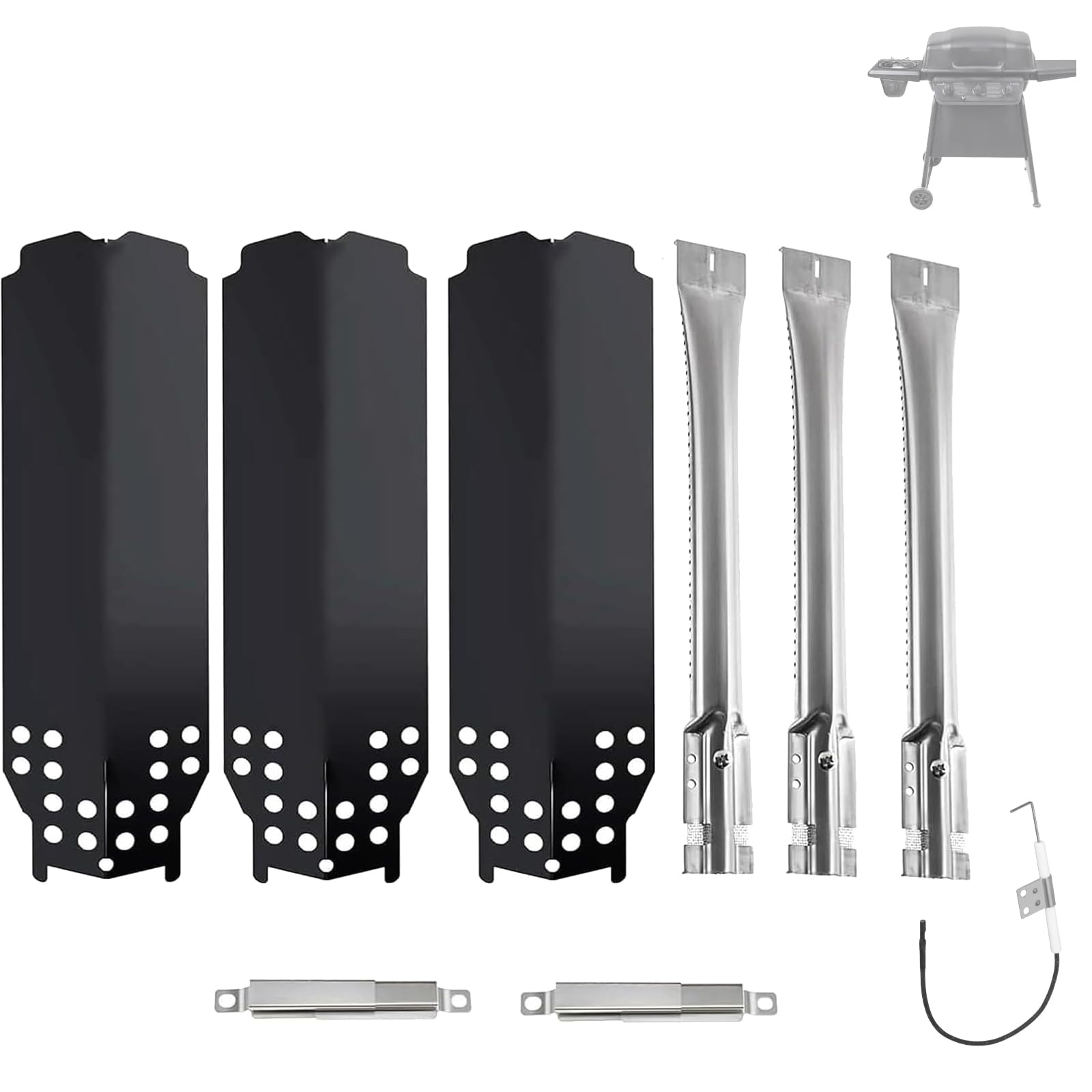

What exactly is included in the BBQration kit?

The package supplies the core parts needed to replace worn internal components and restore ignition and heat management. It brings together burner tubes, heat tents, crossover tubes, and an ignition so you replace multiple failure points at once.

• 3 porcelain steel heat tents, each approx. 13" x 4"
• 3 burners, each approx. 12.6" long
• 2 adjustable crossover (carryover) tubes, 5"–9.5" extension
• 1 replacement ignition assembly

Who is this for: This BBQration kit is aimed at grill owners who want to repair and extend the life of Charbroil Classic 360 three-burner grills and compatible Classic or American Gourmet two- and three-burner models. Choose this set if you need multiple internal replacements in one purchase, are comfortable performing basic grill maintenance, and have checked original part sizes or model numbers to confirm compatibility.
