BBQration Grill Parts Kit for Char-Broil Classic 360 3-Burner — Porcelain Heat Tents & Ignition Included

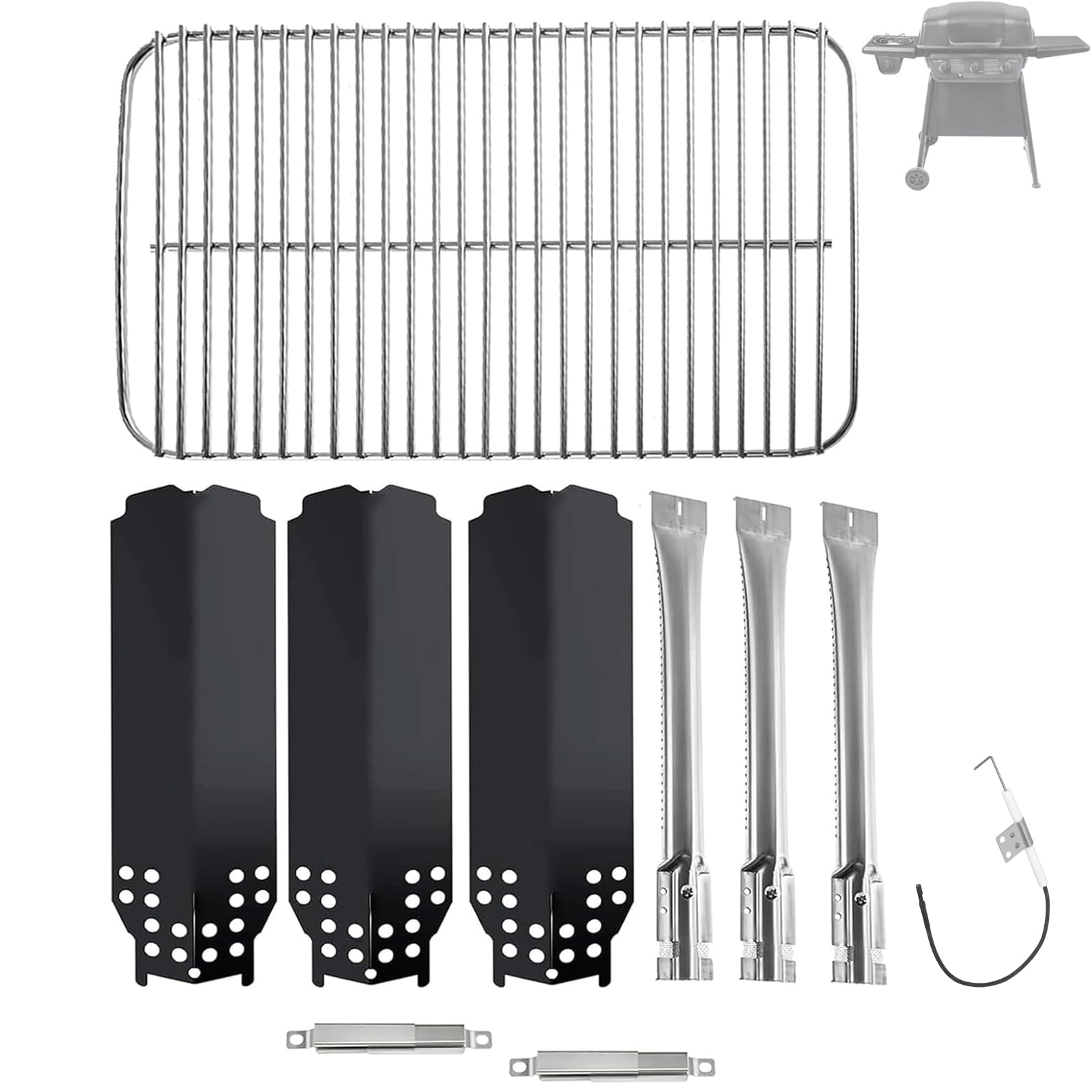

This BBQration kit replaces the cooking grate, three porcelain heat tents, three burners, adjustable crossover tubes and the ignition module for Char-Broil Classic 360 3-burner grills.

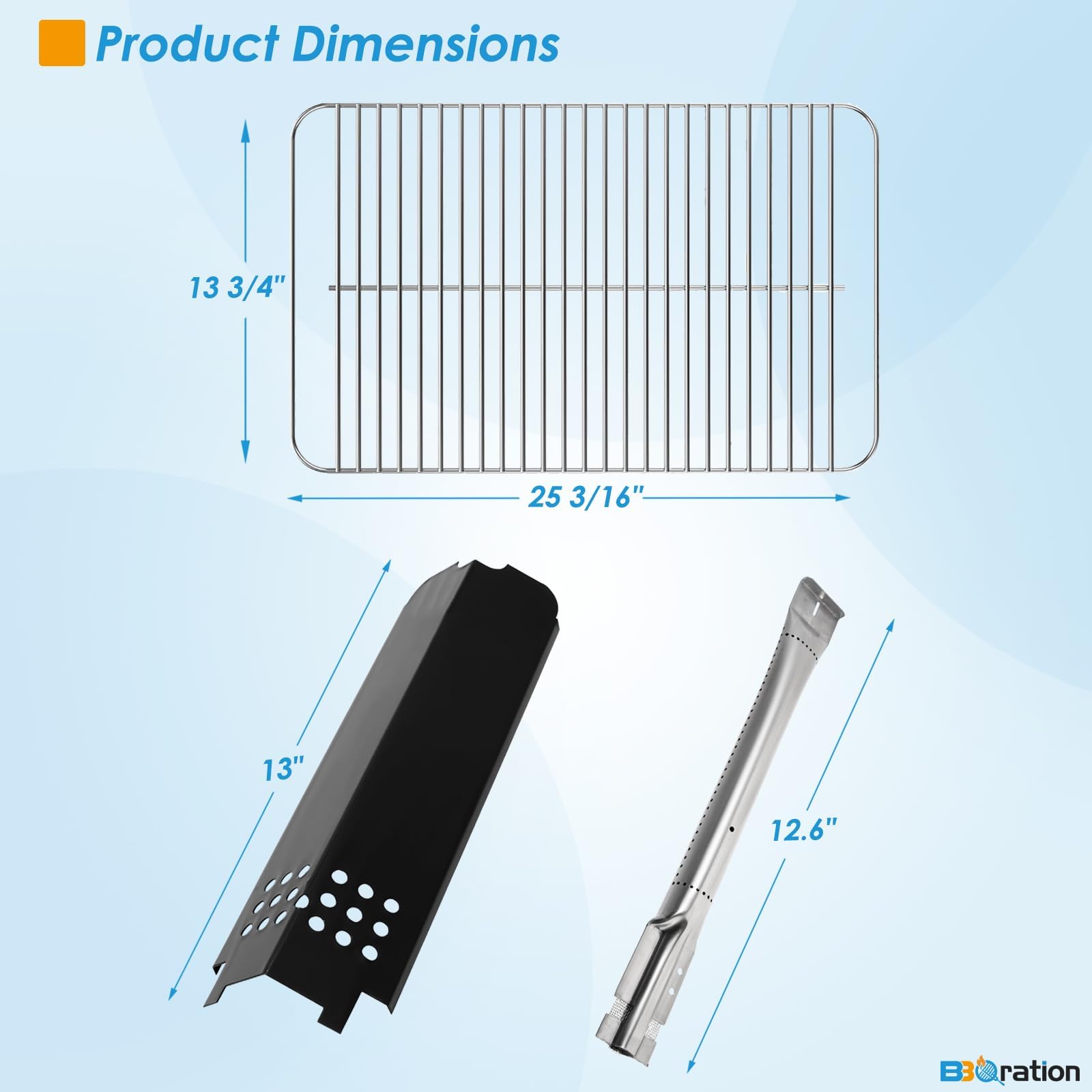

If your Char-Broil Classic 360 or compatible 3-burner model needs a refresh, this complete replacement kit restores core components that wear from heat and use. The set is sized to match common Char-Broil part numbers and includes one cooking grate, three porcelain-coated heat tents, three replacement burner tubes, two adjustable carryover (crossover) tubes and one ignition. Before ordering, measure your grill parts to verify fit: the cooking grate measures 25 3/16" x 13 3/4", heat tents are 13" x 4" and burners are 12.6" long. The crossover tube adjusts from 5" to 9.5" to bridge burner gaps.

How do I know these parts fit my Char-Broil Classic 360?

Compatibility is based on common Char-Broil original part numbers and the physical measurements included with the kit. Compare the listed dimensions and your grill’s existing parts before purchasing. If the existing screw holes or tube thickness differ, some light tapping or adjustment may be needed.

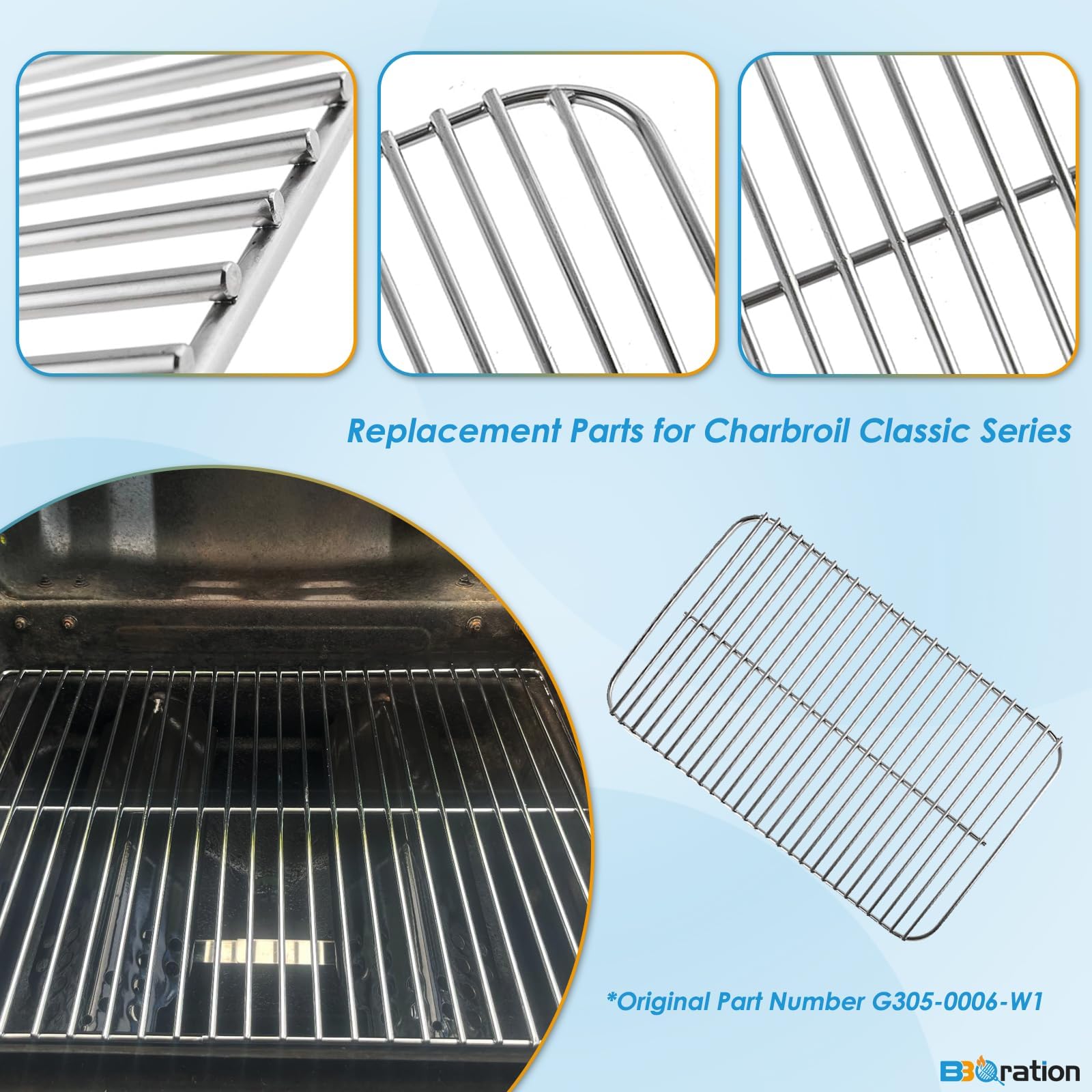

• Cooking grate: 25 3/16" x 13 3/4" — replaces G305-0006-W1
• Heat tents: 13" x 4" — replaces G215-0203-W1

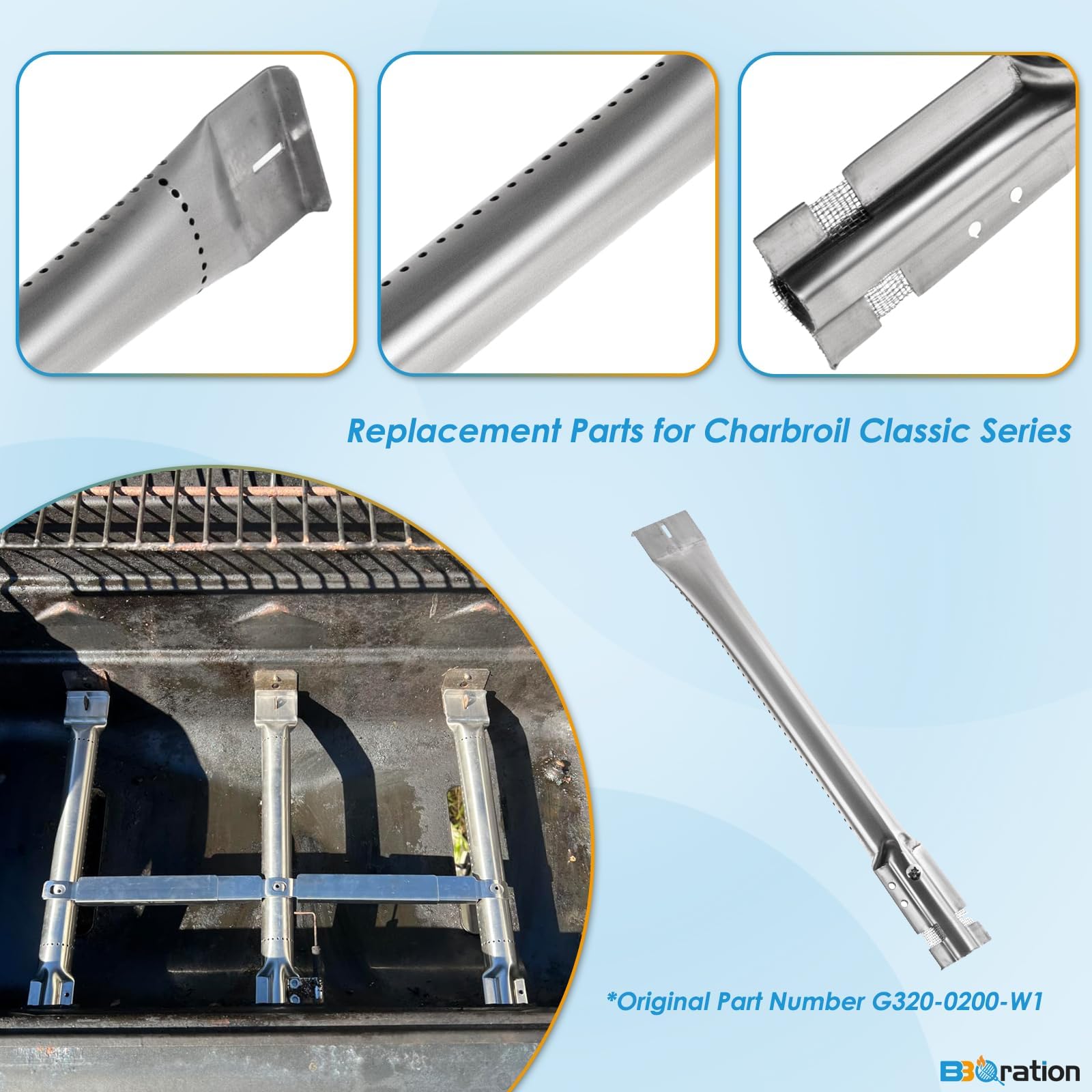

• Burners: 12.6" length — replaces G320-0200-W1A
• Crossover tube: adjustable from 5" to 9.5" for varied layouts

What tools and tips help during installation?

Installation is straightforward for most backyard grill owners but sometimes metal parts or screw threads are tight. If screws won’t engage due to harder steel on the burner tube, a light tap with a hammer or a gentle rethreading tool can help. Work on a cool grill, keep track of fasteners, and test ignition after assembly.

• Use basic hand tools: screwdriver, pliers, and an adjustable wrench
• If screw won’t thread, try light tapping or a rethreading tap carefully
• Assemble on a level surface and test for gas leaks before first use

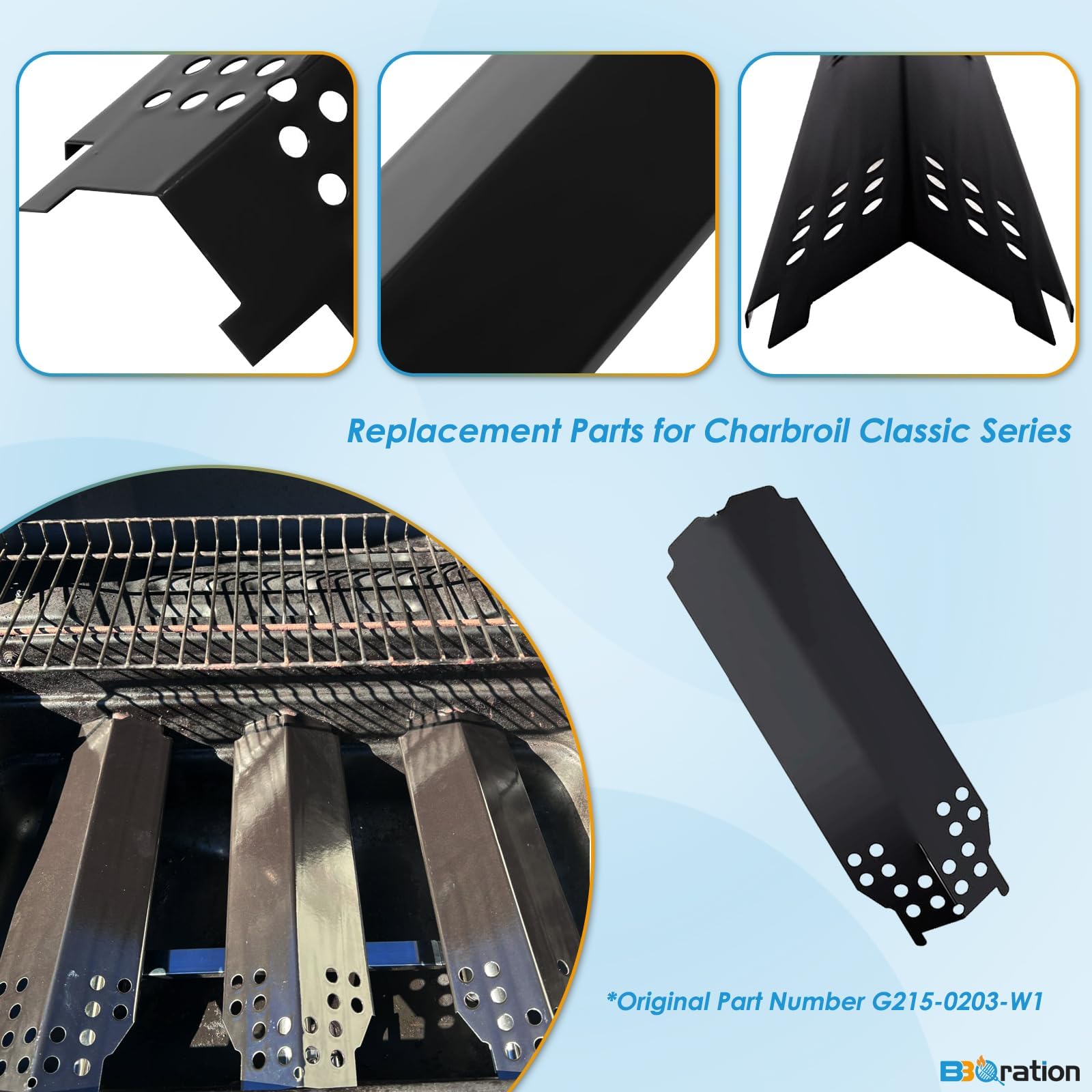

Which parts in this kit are porcelain-coated and why does that matter?

The three heat tents included are porcelain-coated steel designed to sit over burners and deflect heat while protecting them from grease and drippings. Porcelain coating helps resist rust and simplifies cleaning compared with bare steel, though it can chip if handled roughly. Replacing worn or warped heat tents improves heat distribution and protects the burners below.

• Porcelain steel heat tents: 3 pieces, 13" x 4" each
• Provides even heat deflection and drip protection
• Replace when warped, heavily corroded or chipped

This kit restores the visible cooking surface and core functional components so your grill cooks more evenly and operates reliably. It’s a practical way to extend the life of older Char-Broil 3-burner grills without buying a new unit.

Who is this for: Grill owners with Char-Broil Classic 360 and compatible 3-burner models who need a complete set of replacement parts—measured-fit components for routine maintenance, repair after corrosion or damage, or a DIY restoration. Confirm measurements and part orientation before purchase, and reach out if you need fit guidance or help identifying your model.
