ATVMaster UST1072 Pool Pump Motor 3/4 HP 56J C-Face Replacement — 115/230V Dual-Voltage, 3450 RPM

ATVMaster UST1072 is a 3/4 HP, 56J C-face pool pump motor engineered as a direct, drop-in replacement for Hayward Super Pump, Super II, Max-Flo, and comparable OEM models.

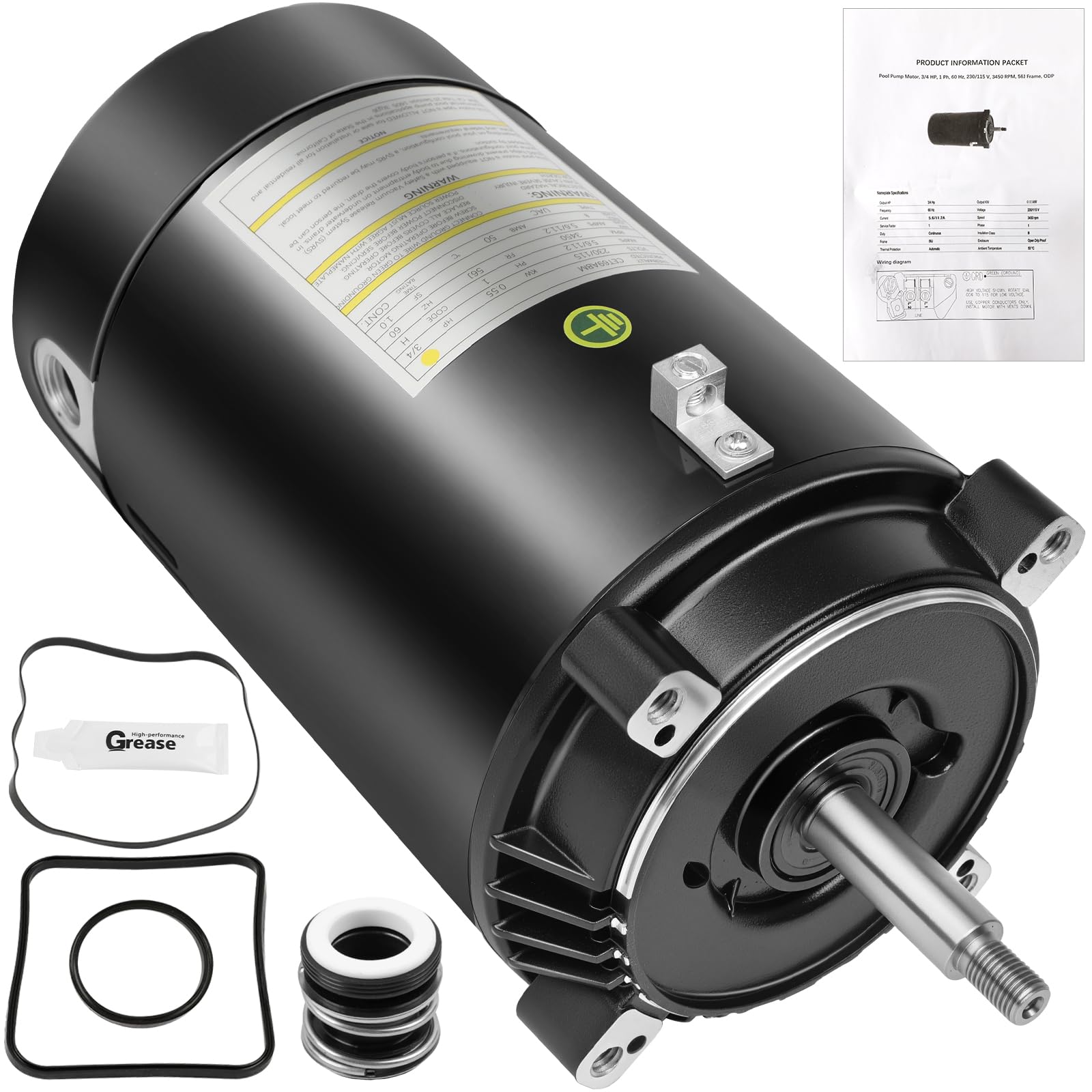

This replacement motor delivers the torque and speed needed to keep residential pools circulating efficiently. It’s a dual-voltage (115/230V) single-speed motor rated at 3450 RPM with a 1.0 service factor and a capacitor-start design for reliable startup performance. Built with a 56J round C-face frame and corrosion-resistant materials, the UST1072 is intended to match the form, fit, and mounting points of common pool pump models so you can swap it in without extensive modification.

Will this motor physically fit my Hayward Super Pump or Max-Flo?

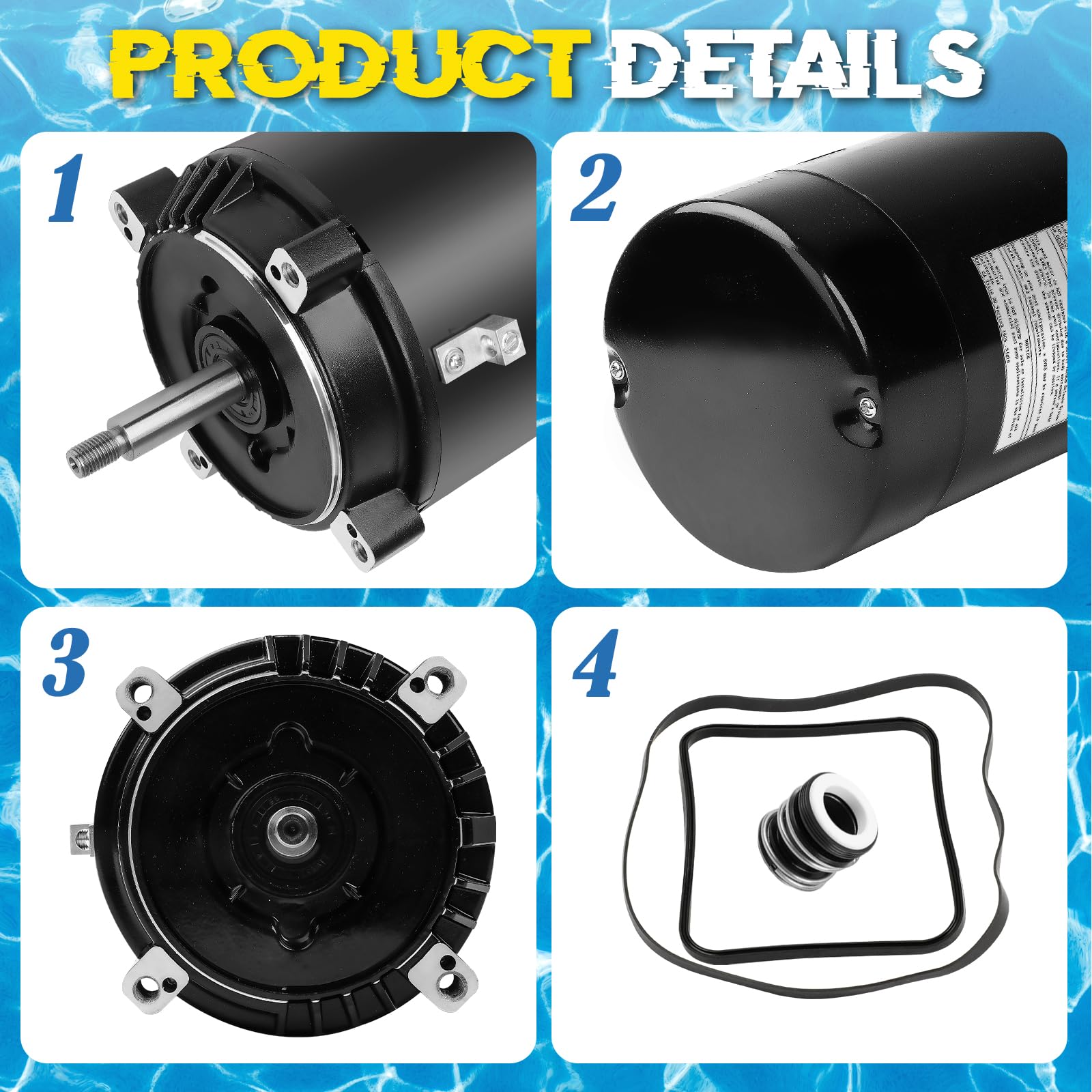

Yes — the UST1072 is designed to be a wide direct replacement for several popular models, matching key dimensions and mounting configurations. Its 56J C-face frame and shaft size follow OEM standards so the pump housing aligns correctly.

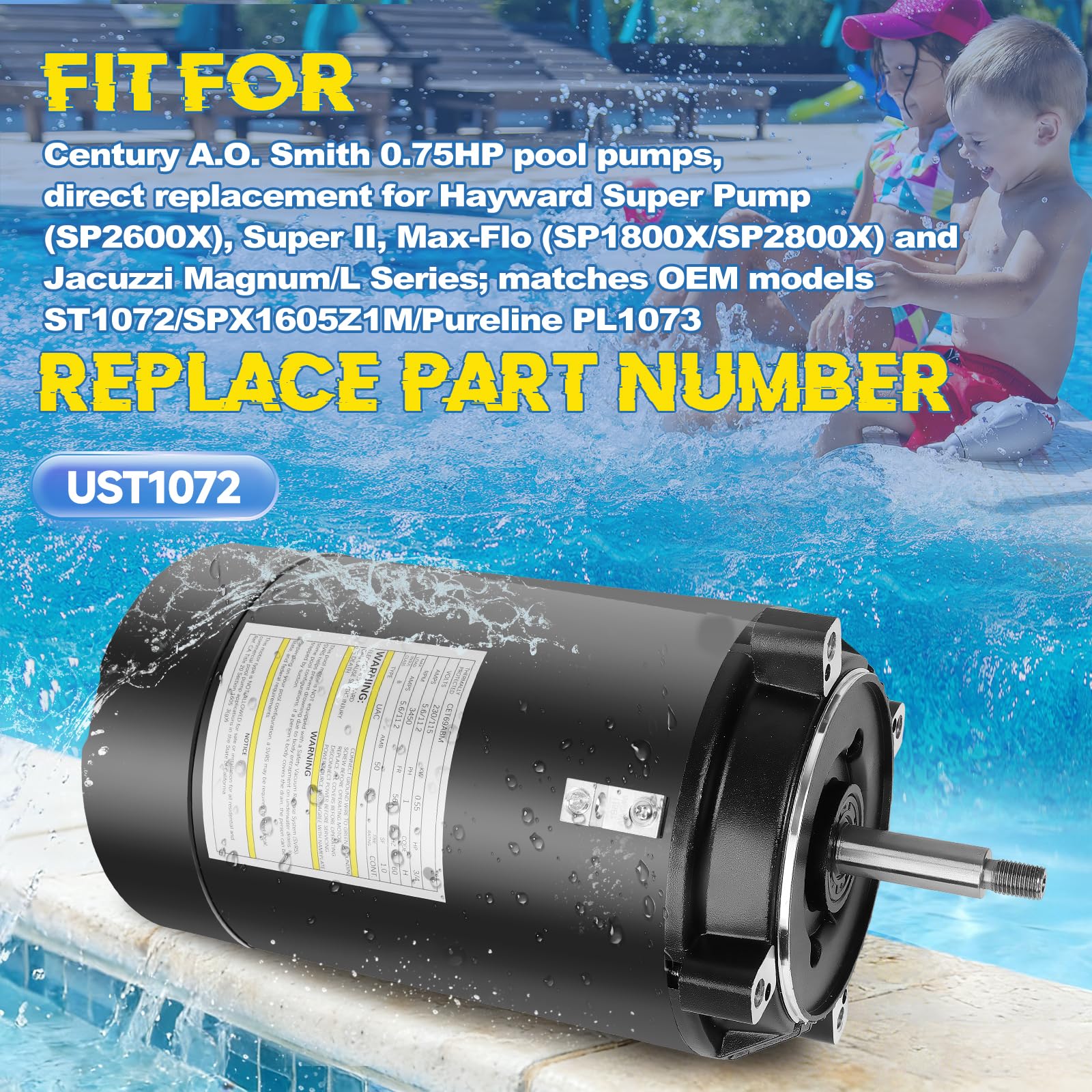

• Direct replacement for Hayward SP2600X, SP1800X, SP2800X
• Compatible with Super Pump, Super II, Max-Flo, Jacuzzi Magnum/L Series
• Matches OEM ST1072, SPX1605Z1M, Pureline PL1073 mounting points
• 5/8" diameter 1045 steel shaft with 7/16" thread for impeller fit

How do the electrical specifications affect installation and performance?

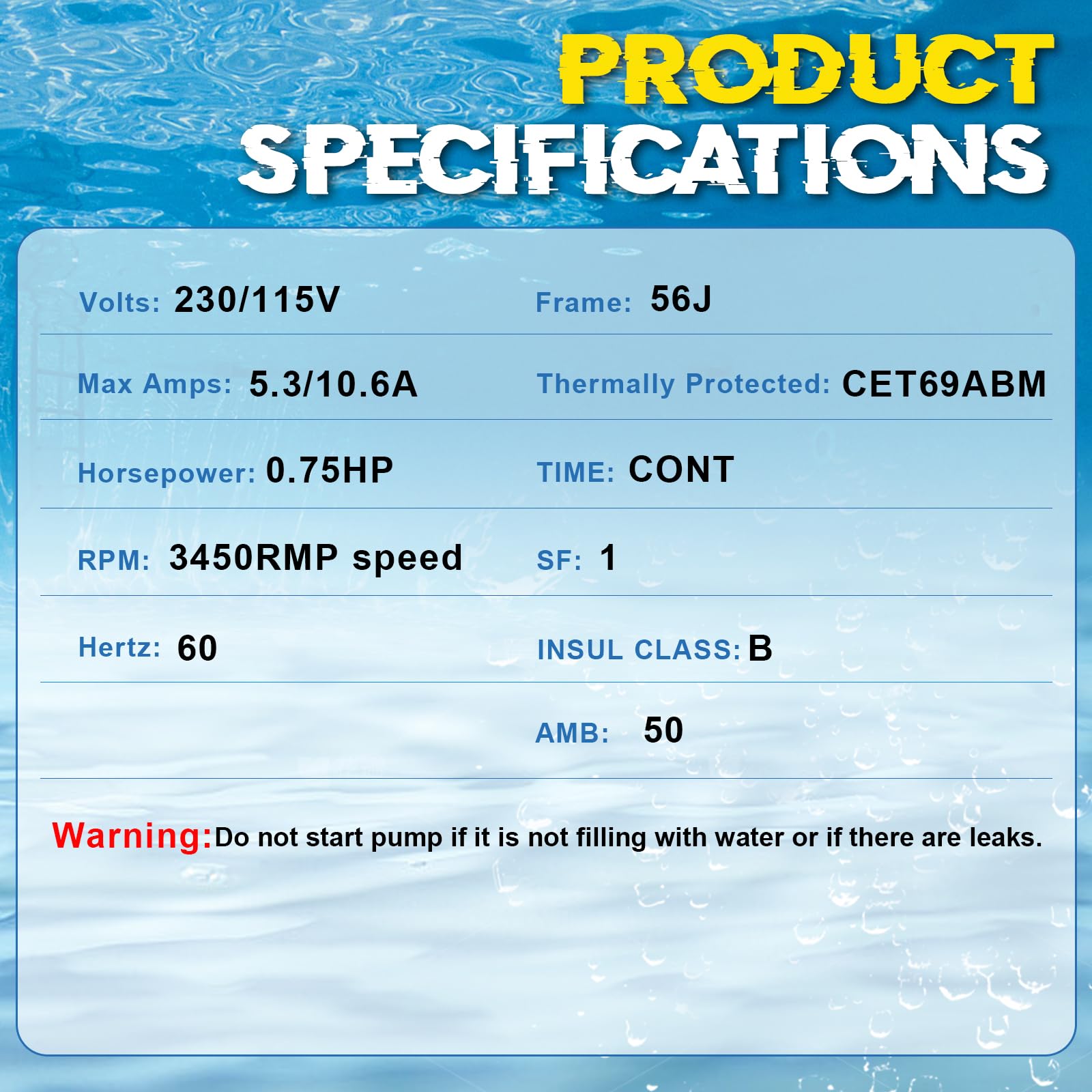

The motor supports 115/230V dual-voltage wiring and runs at 60Hz, 3450 RPM, producing consistent flow when matched to the correct pump housing. It draws approximately 5.3A at 115V and 10.6A at 230V (actual), close to OEM listed values, and includes thermal protection to guard against overheating.

• Dual-voltage: 115/230V for flexible wiring options
• Single-speed, 3450 RPM for steady pump output
• Service factor 1.0 for rated continuous operation
• Automatic thermal protection built into the enclosure

What makes the UST1072 durable in pool environments?

The motor housing and finishes are selected to resist humidity and corrosion common near pool equipment. An open drip-proof (ODP) enclosure with weather-resistant casing and a built-in pedestal base keeps the motor stable and protected from routine outdoor exposure.

• Corrosion-resistant materials suitable for damp pool areas
• ODP enclosure with thermal overload protection
• Capacitor-start design for stronger initial torque
• Built-in pedestal base for secure mounting and vibration control

How straightforward is installation and what support is available?

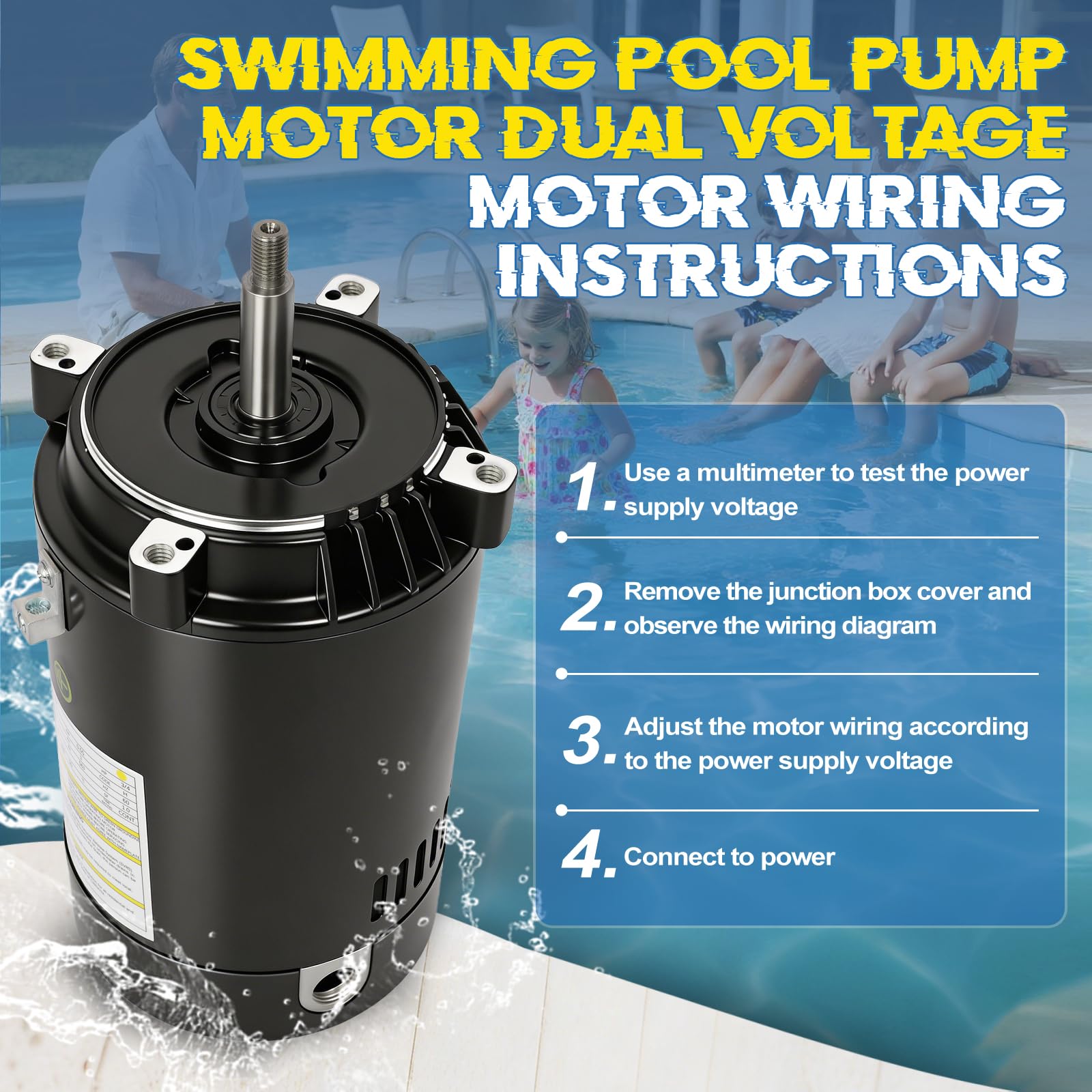

Installation is intended to be a simple drop-in swap with CCWPE (counterclockwise from pump end) rotation matching common pump assemblies. ATVMaster supplies clear wiring instructions; standard electrical checks and basic hand tools are all that’s typically required.

• Drop-in design — no housing modification expected
• CCWPE rotation to match most pool pumps
• Wiring diagram included; test voltage with a multimeter first
• 24-hour customer service for installation or troubleshooting

Who is this for: The ATVMaster UST1072 is aimed at pool owners, service technicians, and maintenance pros who need a robust, OEM-compatible replacement motor for Hayward Super Pump, Max-Flo, and similar systems. Choose this motor if you want an easy-fit, corrosion-resistant unit with standard 3/4 HP power, dual-voltage flexibility, and built-in protection for routine residential or light commercial pool use.
