ATRACYPART 1.5 HP Pool Pump Motor 56Y Frame 115/230V 3450 RPM, Dual-Voltage PSC ODP Replacement

ATRACYPART B2854 is a 1.5 HP, 56Y-frame pool pump motor designed as a direct, energy-efficient replacement for many residential and commercial single-speed pool and spa pumps.

This motor is built to restore strong water circulation and reliable performance to above-ground and in-ground pools, hot tubs, and water features. With a dual-voltage design (115/230V), a compact 56Y frame for common flange mounts, and a 3450 RPM top speed, the B2854 suits homeowners, pool technicians, and property managers who need a straightforward swap-in replacement that balances power and efficiency. Its PSC (permanent split capacitor) design and 1.1 service factor help it handle routine operation and brief overloads without excessive energy draw.

How does this motor fit my existing pump?

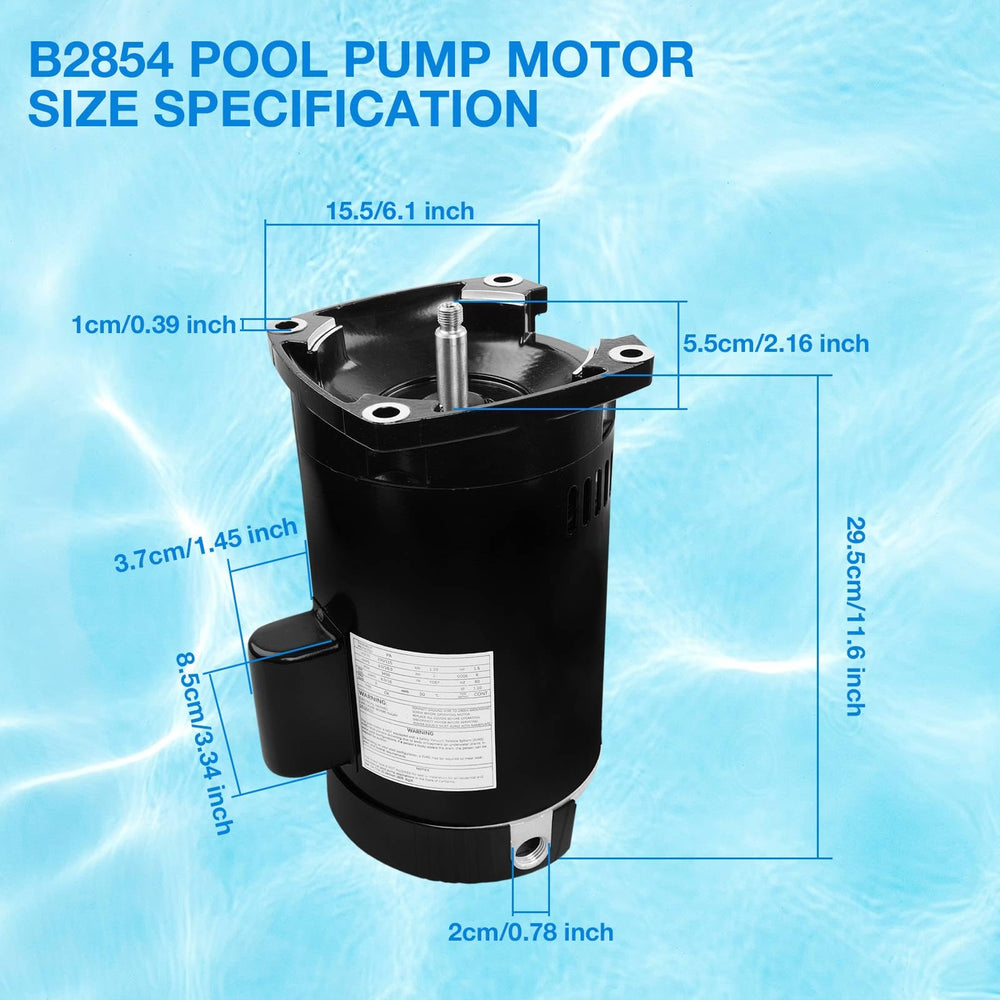

The B2854 uses a 56Y square flange configuration and a standard threaded shaft, which matches many popular pump models. Confirm frame size, shaft diameter, and voltage before ordering to ensure a simple replacement.

• 56Y square flange for common flange mounts (Hayward, Pentair, etc.).
• Standard threaded shaft fits most impellers—measure before purchase.
• Dual-voltage (115/230V) wiring options for flexible installations.
• Compatible with many single-speed pumps when specs align.

What performance can I expect from a 1.5 HP, 3450 RPM motor?

The B2854 provides steady flow and head pressure appropriate for medium to large residential pools and many commercial circulation systems. Its PSC design is reliable for continuous-duty applications where single-speed operation is acceptable.

• 1.5 HP output for strong water movement and effective filtration.
• 3450 RPM top speed to maintain adequate flow rates for filtration and heating.
• 1.1 service factor to tolerate temporary overloads during startup or heavy use.
• Amperage ratings of 8.0/16.0 help estimate power draw on 230V and 115V systems.

Is this motor built to survive poolside conditions?

Yes — the B2854 is engineered with materials and enclosure choices that stand up to humid, chlorinated environments commonly found near pools and spas. Proper mounting and grounding remain important for long service life.

• Open Drip Proof (ODP) enclosure designed for outdoor pump areas.
• Cold-rolled steel housing and corrosion-resistant finishes for durability.
• 100% copper windings for quieter, efficient operation.
• Threaded shaft and sealed components to resist water exposure.

How easy is installation and maintenance?

The motor is intended as an easy retrofit for technicians and competent DIYers. Basic hand tools and standard electrical wiring knowledge are typically sufficient—always follow local electrical codes and shut power at the source before work.

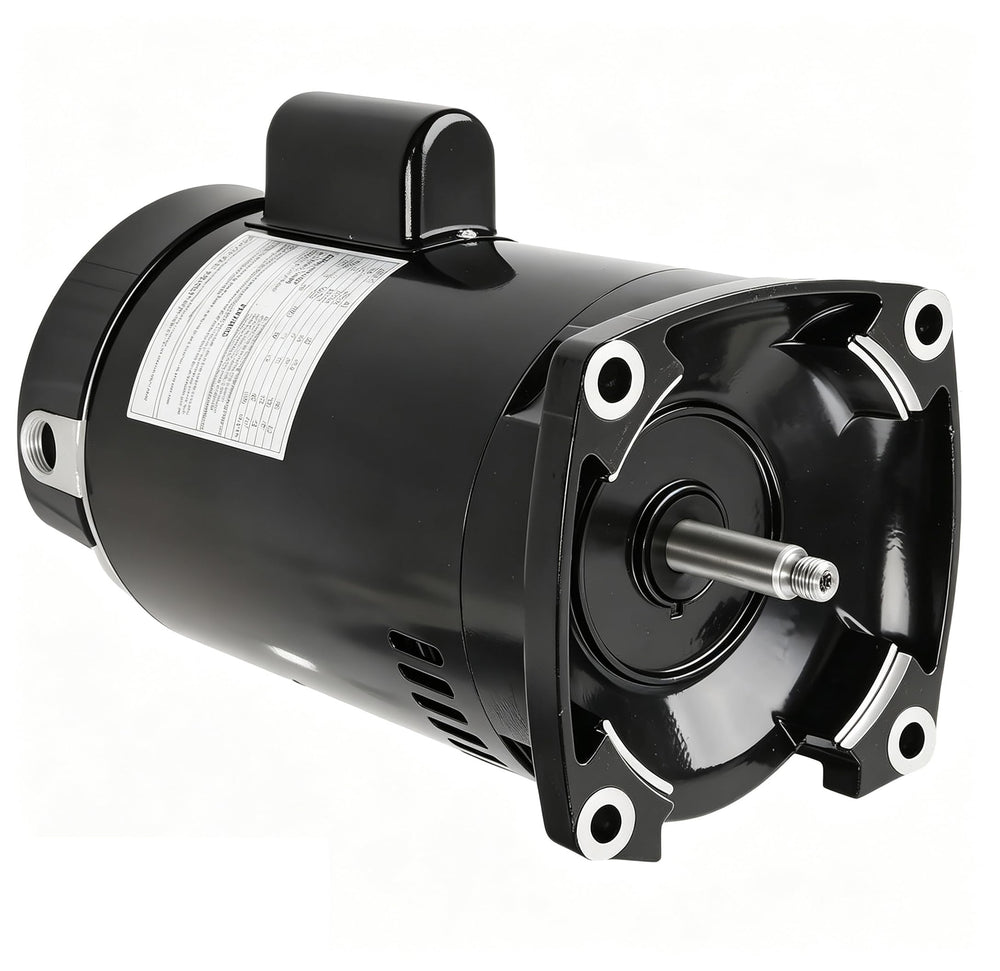

• Square flange (C-face) mounting for straightforward bolt-on replacement.
• Dual-voltage terminals labeled for simple 115/230V hookup.
• Standard shaft and dimensions minimize need for pump modifications.
• Routine lubrication and inspection recommended to maximize lifespan.

Who is this for: The ATRACYPART B2854 targets homeowners replacing worn or noisy single-speed motors, pool technicians servicing residential and small commercial systems, and facility managers seeking a dependable, widely compatible replacement motor. Choose this model if you need a robust 1.5 HP motor with a 56Y flange, dual-voltage flexibility, and construction suited to poolside environments. If you run variable-speed systems or need multistage energy savings, consult a pool professional to determine if a single-speed PSC motor meets your efficiency goals.
