ATIE Pool Cleaner Rebuild Kit for Zodiac Baracuda G3/G4 — 6-Piece Replacement Finned Seal, Diaphragms & Foot Pad

If your suction-side cleaner is skipping, stalling or losing power, worn consumables are often the cause. This aftermarket kit bundles the most commonly replaced parts for Zodiac Baracuda series cleaners — a finned seal, foot pad, two diaphragms and two diaphragm rings — so you can refresh the drive components in a single service. Parts are sized to match the original fit for G3, G4, Alpha2, Alpha3, Pacer, Ranger 1500 and Manta cleaners, and are presented as a convenient repair pack for homeowners and pool pros.

Will these parts fit my Zodiac cleaner?

These components are made to align with the dimensions and mounting points used on many Zodiac Baracuda models. They are intended for G3 and G4 generations and compatible with Alpha2, Alpha3, Pacer, Ranger 1500 and Manta cleaners; the kit can also work with G2 models though the diaphragm appearance may differ.

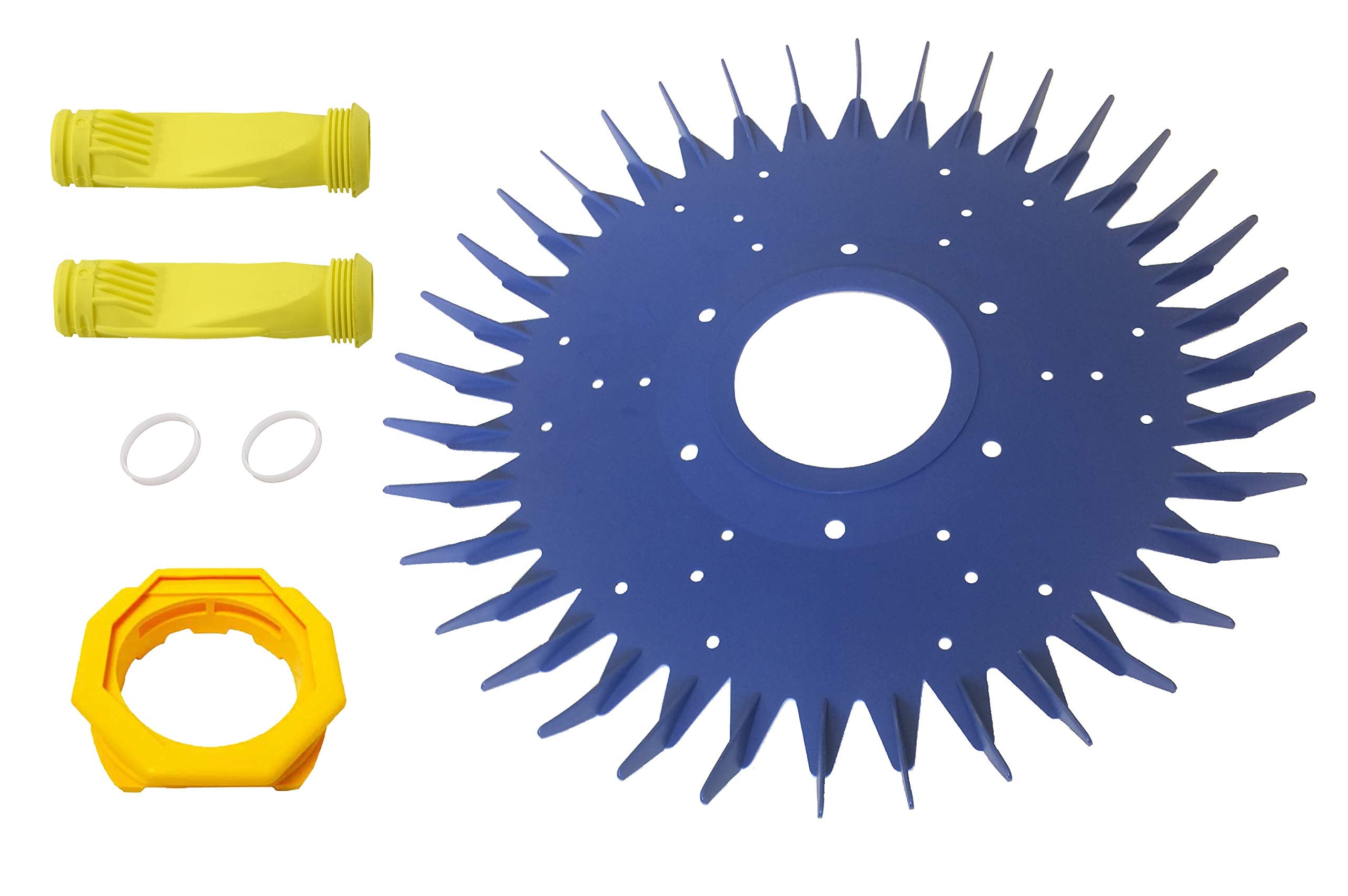

• Includes finned seal W70329, foot pad W70327, two diaphragms W69698, two diaphragm rings W81600.
• Checks: model label on your cleaner (G3/G4/Alpha/Pacer/Ranger/Manta).
• G2 users should inspect diaphragm mounting before installation.

How do these parts improve cleaner performance?

Replacing worn seals and diaphragms restores the vacuum pulses and drive motion necessary for consistent cleaning cycles. New components reduce slippage, prevent air leaks and re-establish proper valve action so the unit moves and collects debris as intended.

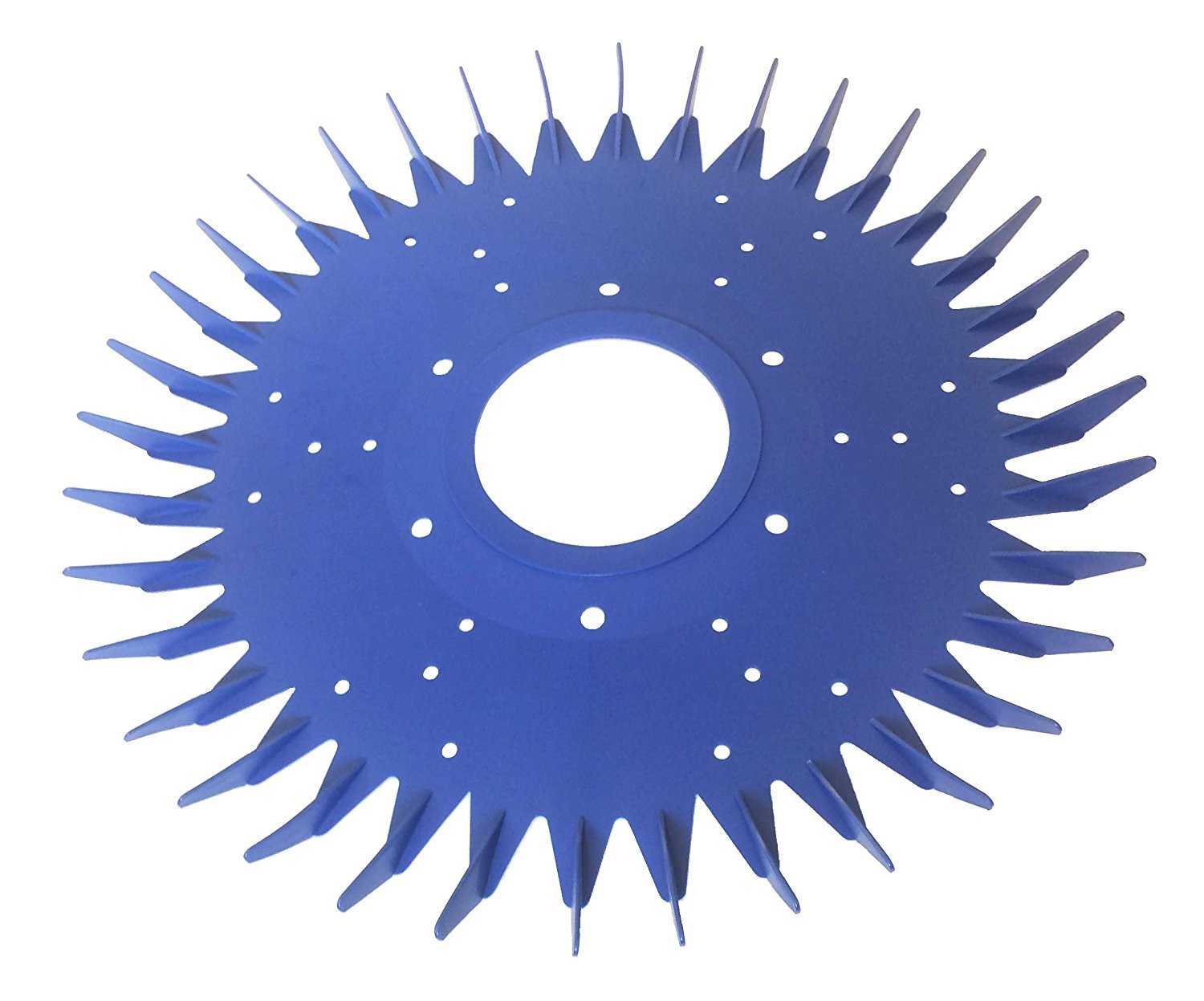

• Finned seal improves contact and water flow control at the intake.

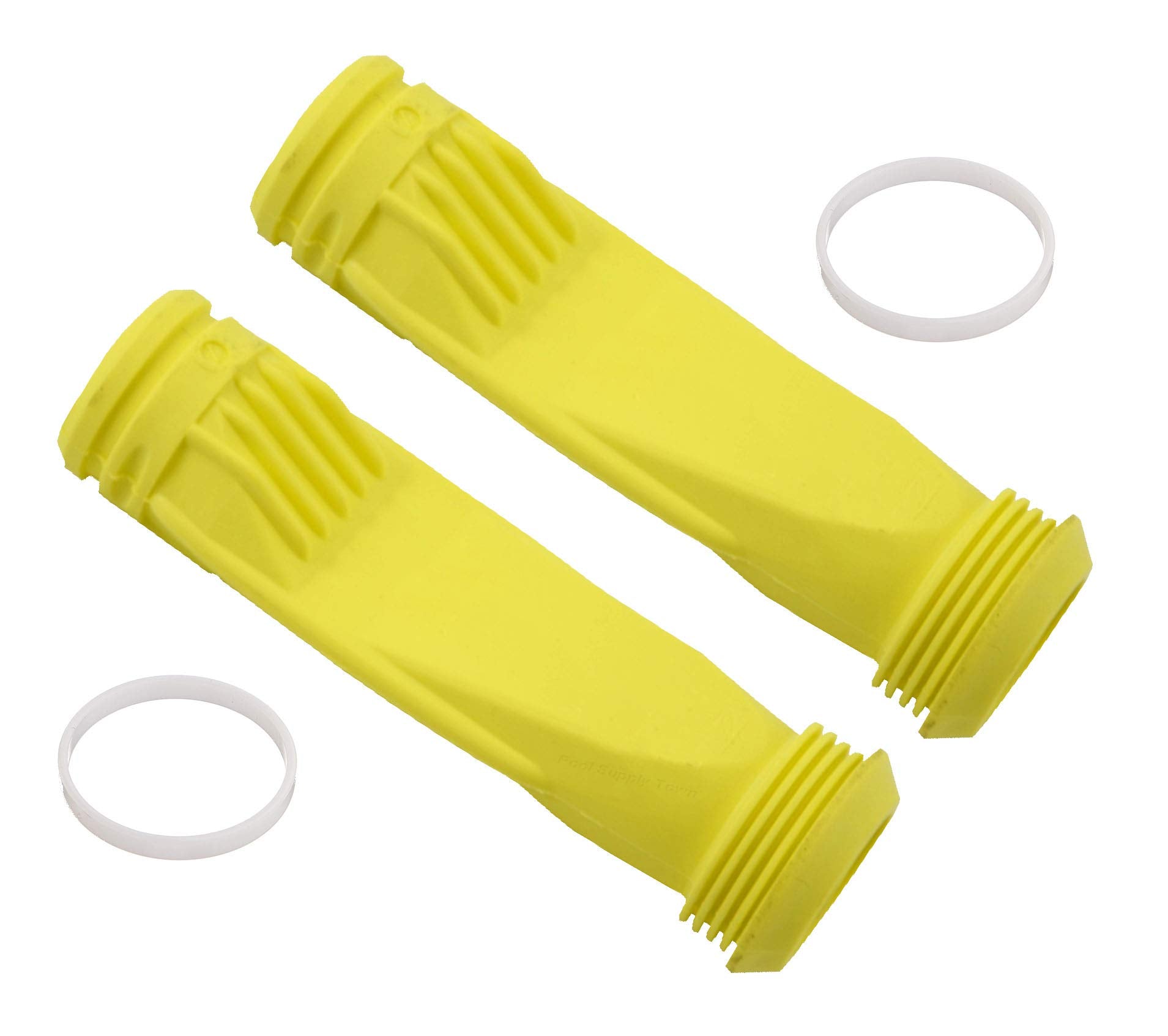

• New diaphragms restore pulse frequency for steady propulsion.

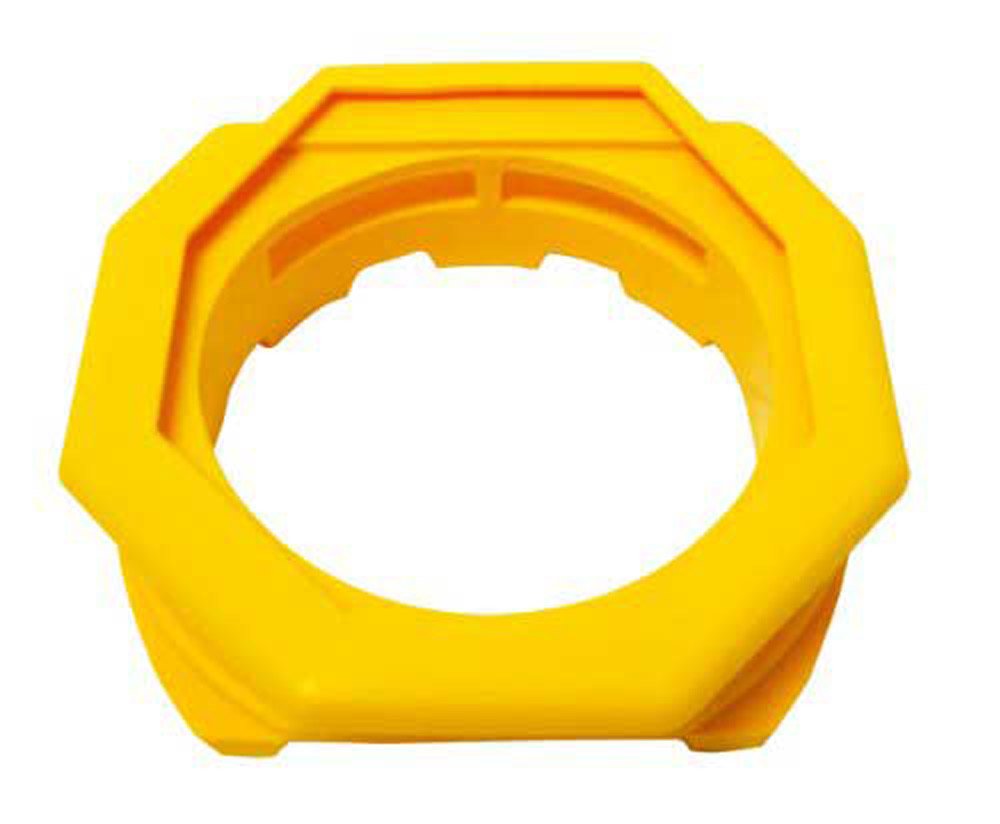

• Foot pad renews grip and wear surface against the pool floor.

How difficult is installation, and what tools are needed?

Installation is straightforward for anyone comfortable with basic pool cleaner maintenance. Most parts press or snap into place; a few simple tools and some patience will have the cleaner back in service within 20–45 minutes.

• Suggested tools: flat screwdriver, pliers, clean rag and silicone lubricant (optional).

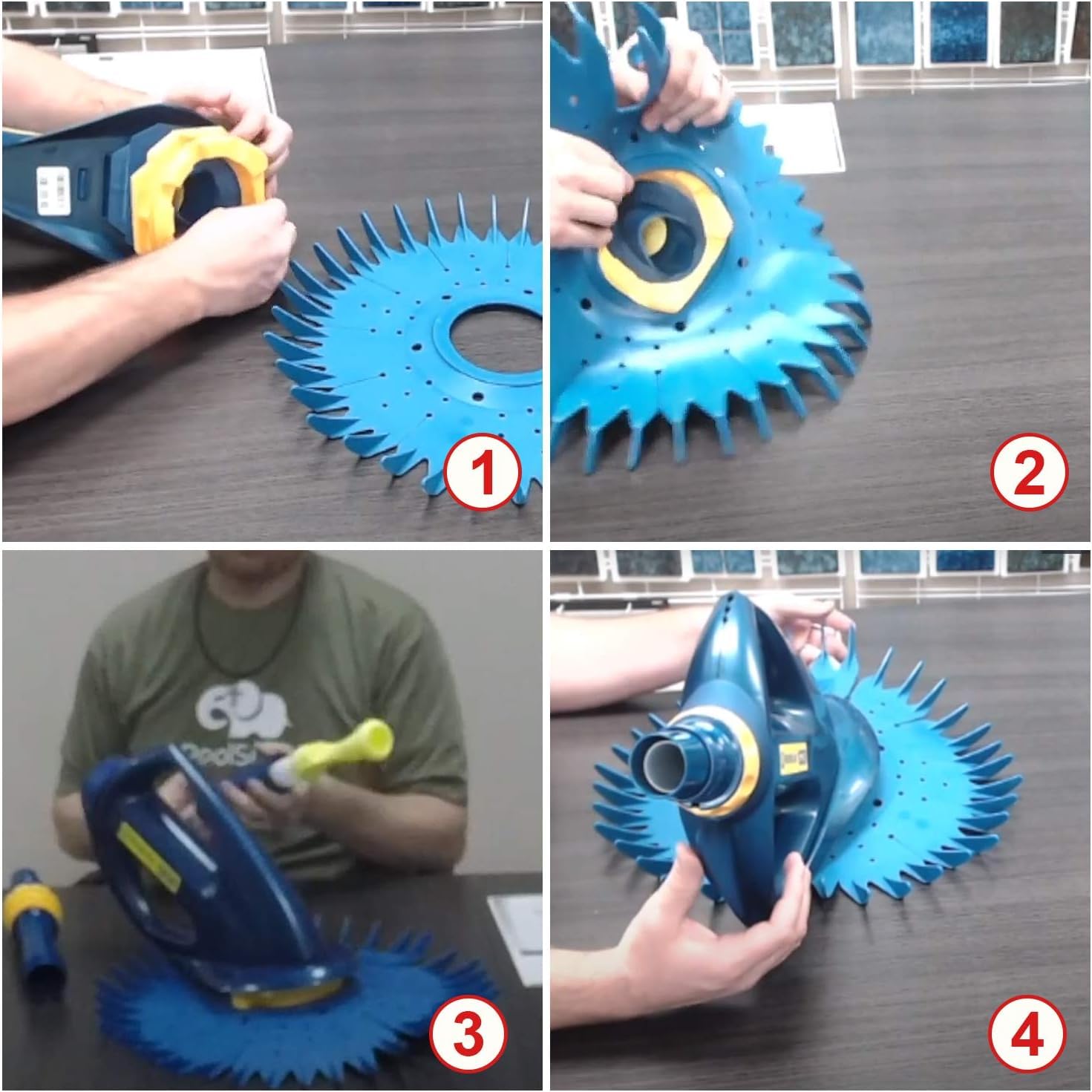

• Follow step-by-step replacement: remove housing, swap diaphragms and rings, install finned seal and foot pad, reassemble.
• No special adhesives required; replace parts snugly to avoid leaks.

What should I expect after installing the kit?

After fitting the new components, expect more consistent movement and stronger suction at the intake. The cleaner should cycle through its typical patterns without stalling and track across the pool surface more reliably, helping restore cleaning efficiency between full service intervals.

• Cleaner regains stable propulsion and fewer stalls.
• Improved debris pickup and consistent cleaning passes.
• Extends the working life of the cleaner until the next maintenance window.

Who this kit is for: homeowners and pool service technicians who want a fast, cost-effective way to refresh worn drive parts on Zodiac Baracuda-style suction cleaners. Choose this ATIE rebuild pack if your unit shows reduced suction, irregular movement, or if you perform preventive maintenance to keep a reliable cleaning schedule.
