AppliaFit Motor Mounting Plate for Hayward Super Pump SP1600X/SP2600X — Heavy-Duty, Direct-Fit SPX1600F5 Replacement

If your pool pump shows vibration, leaks at the seal area, or loose motor alignment, a worn or damaged motor mounting plate can be the culprit. This single motor mounting plate from AppliaFit is manufactured from heavy-duty materials to match the fit and function of the original Hayward SPX1600F5 plate. It provides the structural support needed to keep the motor and wet end aligned for efficient operation.

How will this mounting plate affect pump stability?

Replacing a bent or corroded plate restores the rigid connection between the motor and pump housing, reducing wobble and vibration that can accelerate wear on bearings and seals. Proper alignment also helps maintain consistent impeller clearance, which supports steady water flow.

• Heavy-duty construction reduces flex under load

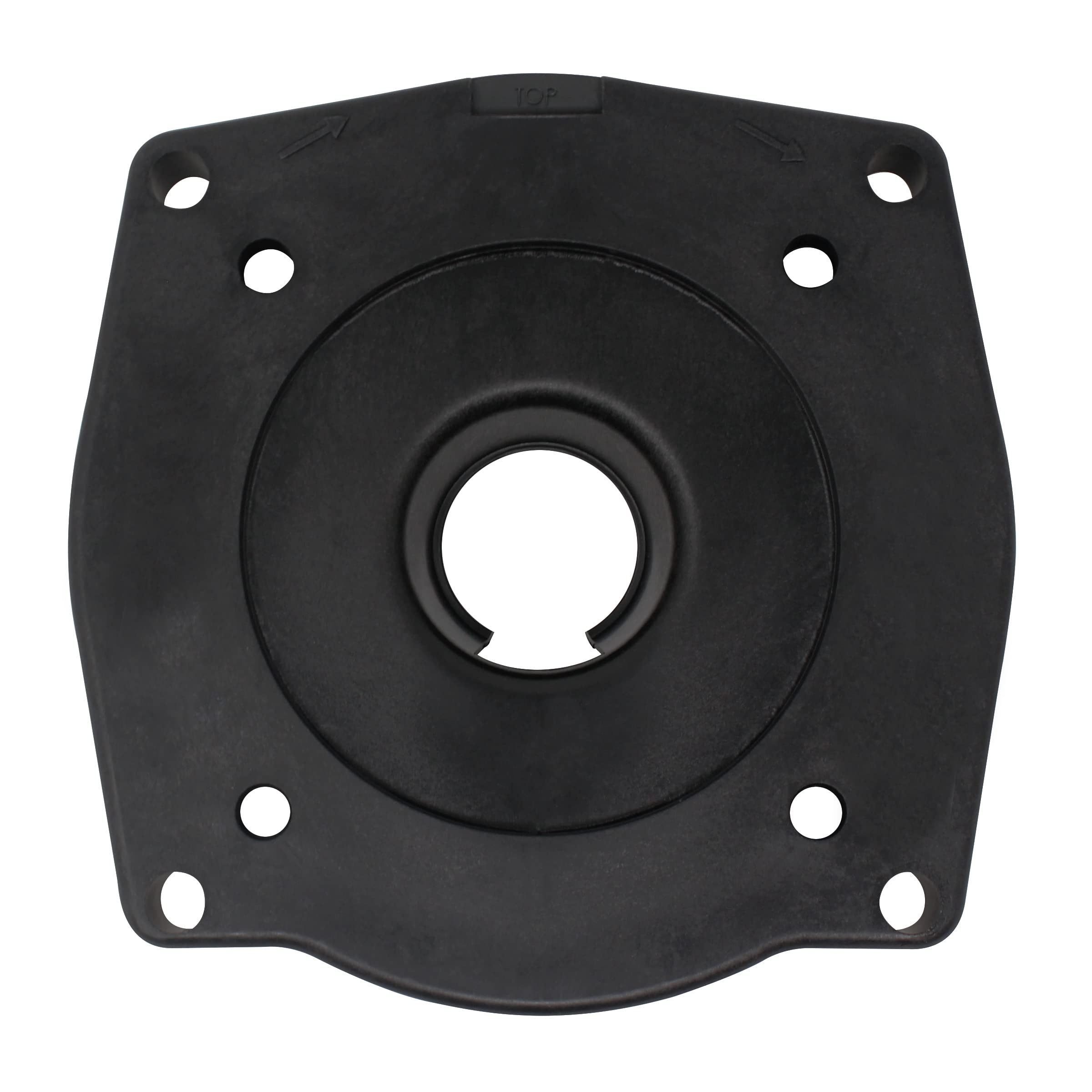

• Exact hole pattern for secure motor fastening
• Improves impeller-to-diffuser alignment for smoother operation

Which pump models will this plate fit?

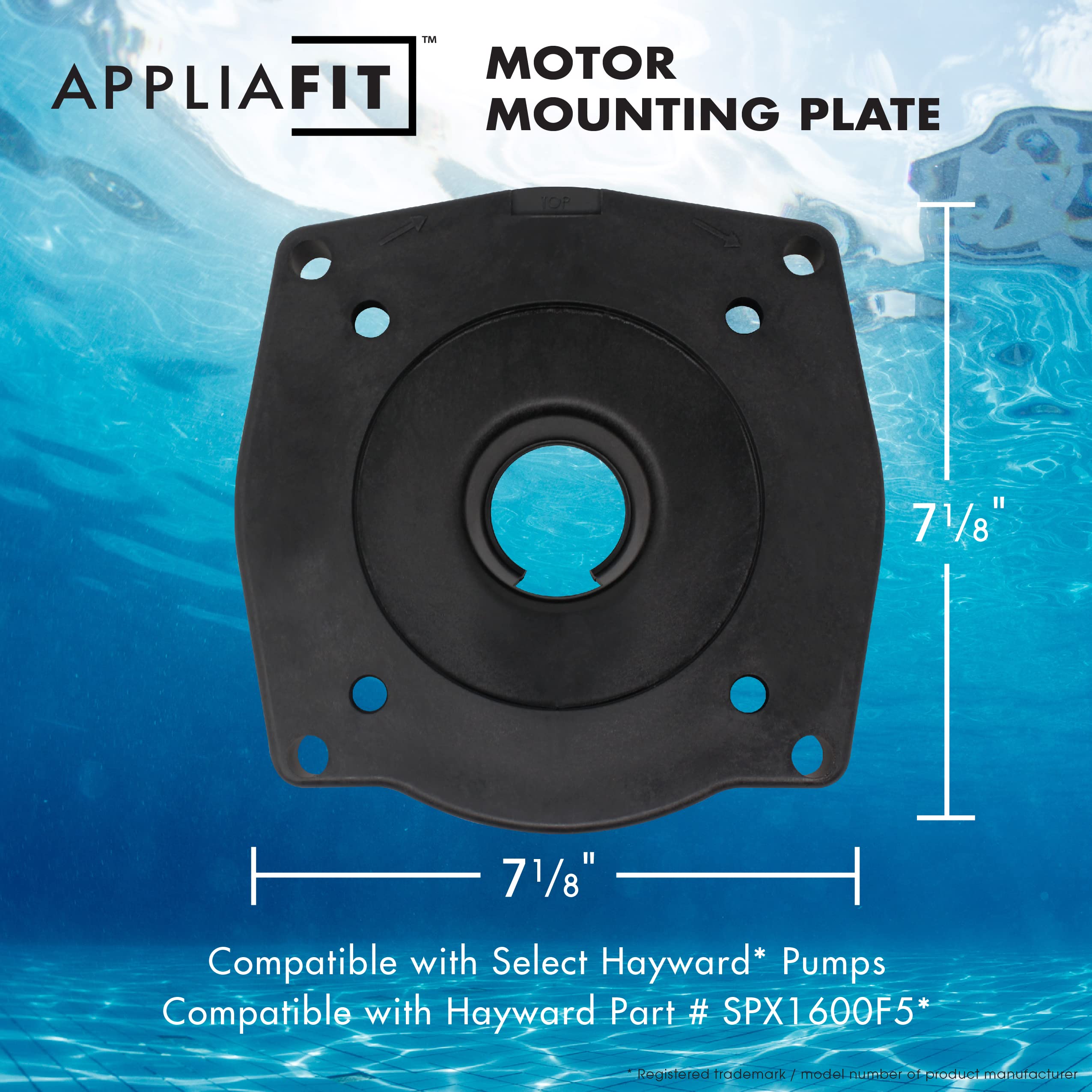

This AppliaFit plate is compatible with Hayward part number SPX1600F5 and fits a broad range of Super Pump models from the SP1600X and SP2600X series, as well as multiple VSP versions. Check your pump’s model number against the compatibility list before ordering to ensure a correct match.

• SP1600X series: SP1600X5 through SP1621X25 models
• SP2600X series: SP2600X5 through SP2621X25 models, including 2S variants
• VSP models: select SP2600VSP and SP26700xxVSP units

What materials and build quality can I expect?

AppliaFit uses robust materials engineered to withstand the pool environment and the mechanical stresses of pump operation. The plate is made to resist deformation and maintain bolt-torque retention, helping preserve mechanical seals and bearings by keeping components properly seated.

• Durable metal construction for long service life
• Precision-drilled mounting points for accurate fitment
• Corrosion-resistant finish suitable for pool equipment

How hard is installation and what should I prepare?

Installation is straightforward for anyone comfortable with basic pump maintenance: drain the pump, remove motor fasteners, swap the plate, and re-torque to manufacturer specs. Keep your original bolts and follow safety steps—disconnect power and relieve system pressure—before starting the job.

• Requires basic hand tools and a torque wrench
• Recommended to replace seals and gaskets during service
• Follow electrical safety: power off at the breaker

Who is this for: Pool owners and maintenance professionals who need a reliable replacement for a damaged or worn motor mounting plate on Hayward Super Pump models. This AppliaFit part is aimed at anyone restoring pump alignment and durability—especially those servicing SP1600X, SP2600X, and compatible VSP pumps looking for a heavy-duty, direct-fit solution. Note: brand names are referenced solely to indicate compatibility; packaging may vary and full model verification is recommended before purchase.
