ALL-CARB Carburetor replacement for Kohler 32 853 12-S / 32 853 08-S - direct fit kit with gaskets & fuel filter

ALL-CARB Carburetor 32 853 12-S / 32 853 08-S is a direct-fit replacement carburetor kit designed to restore fuel delivery and engine performance on compatible Kohler and Toro small engines.

If your lawn mower, utility vehicle, or outdoor power equipment is running poorly, hard to start, or stalling, a worn or clogged carburetor is often the culprit. This ALL-CARB replacement kit is built to match the mounting and fuel connections of Kohler models 32 853 12-S and 32 853 08-S and is also compatible with a range of Kohler SV-series and several Toro part numbers. The kit arrives with essential installation pieces so you can swap the old carburetor and get back to work quickly.

Will this carburetor fit my Kohler or Toro engine?

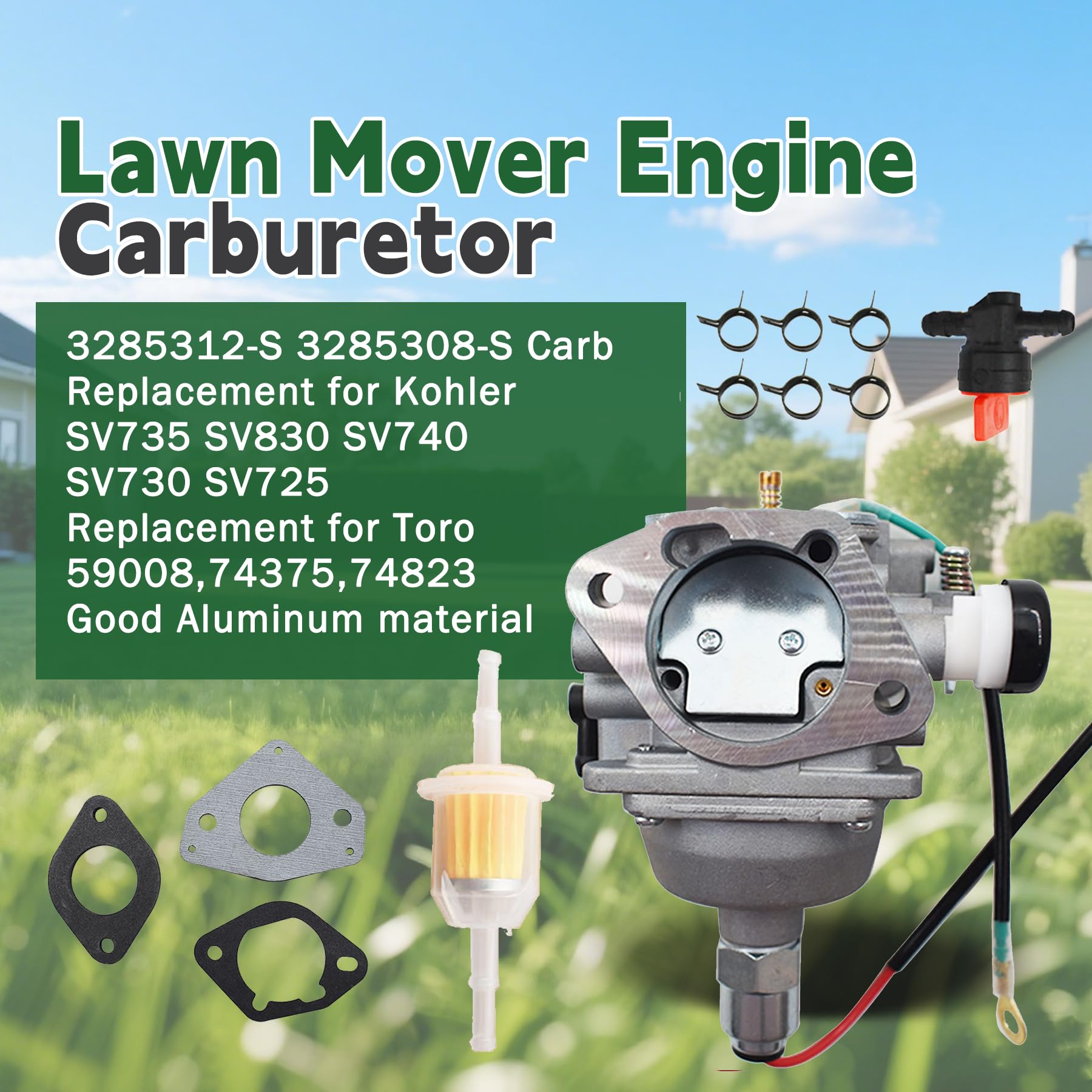

This ALL-CARB unit is made to replace Kohler part numbers 32 853 12-S and 32 853 08-S and fits many Kohler SV725, SV730, SV735, SV740, SV830 engines. It is also listed as compatible with Toro parts 59008, 74375, and 74823. To avoid returns, compare your existing carburetor to the product photos and mounting pattern before ordering.

• Direct replacements for Kohler 32 853 12-S and 32 853 08-S
• Compatible with Kohler SV725, SV730, SV735, SV740, SV830
• Also replaces Toro part numbers 59008, 74375, 74823
• Check bolt pattern, throttle linkage, and fuel inlet locations against pictures

What comes in the ALL-CARB replacement carburetor kit?

The kit includes everything typically needed for a straightforward carburetor swap so you don’t have to source small consumables separately. Parts are packaged together to reduce installation time and ensure a proper seal at fuel and air connections.

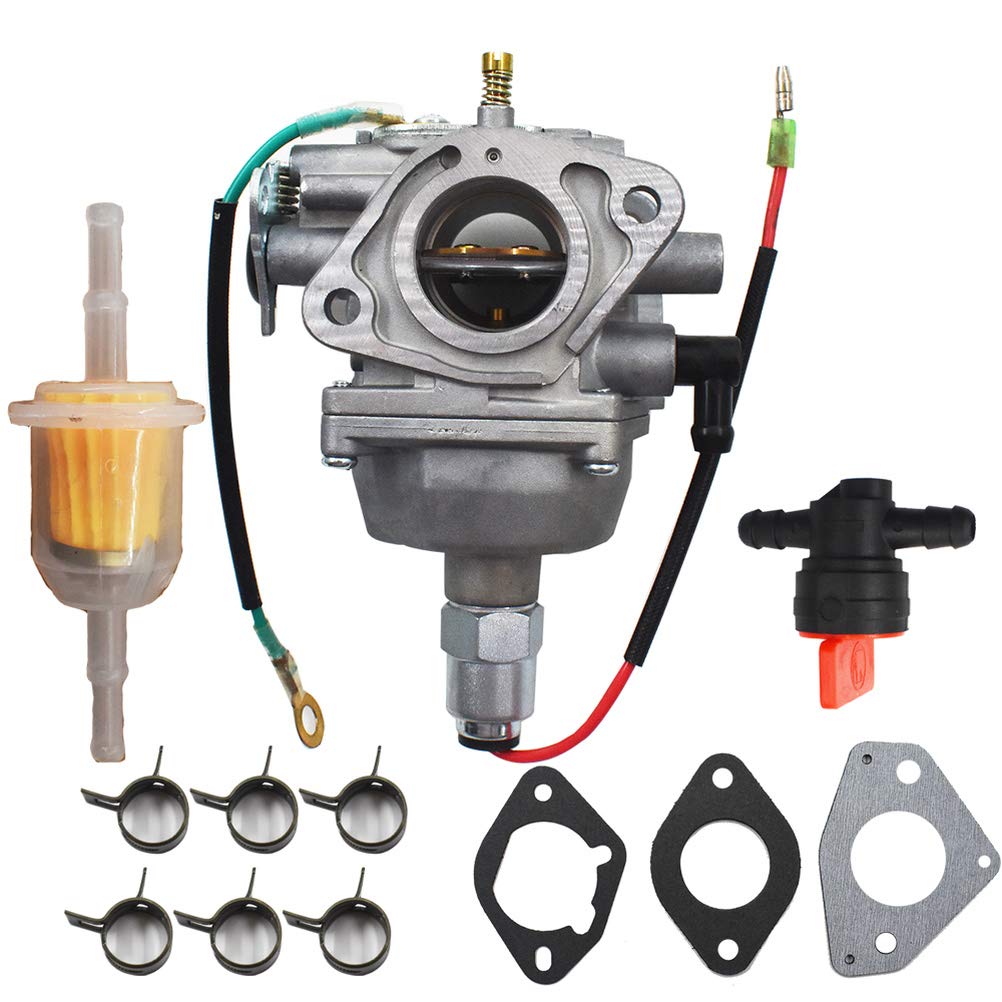

• 1x complete carburetor assembly ready to install
• 1x fuel shutoff switch for safe fuel isolation
• 6x hose clamps for secure fuel and breather lines

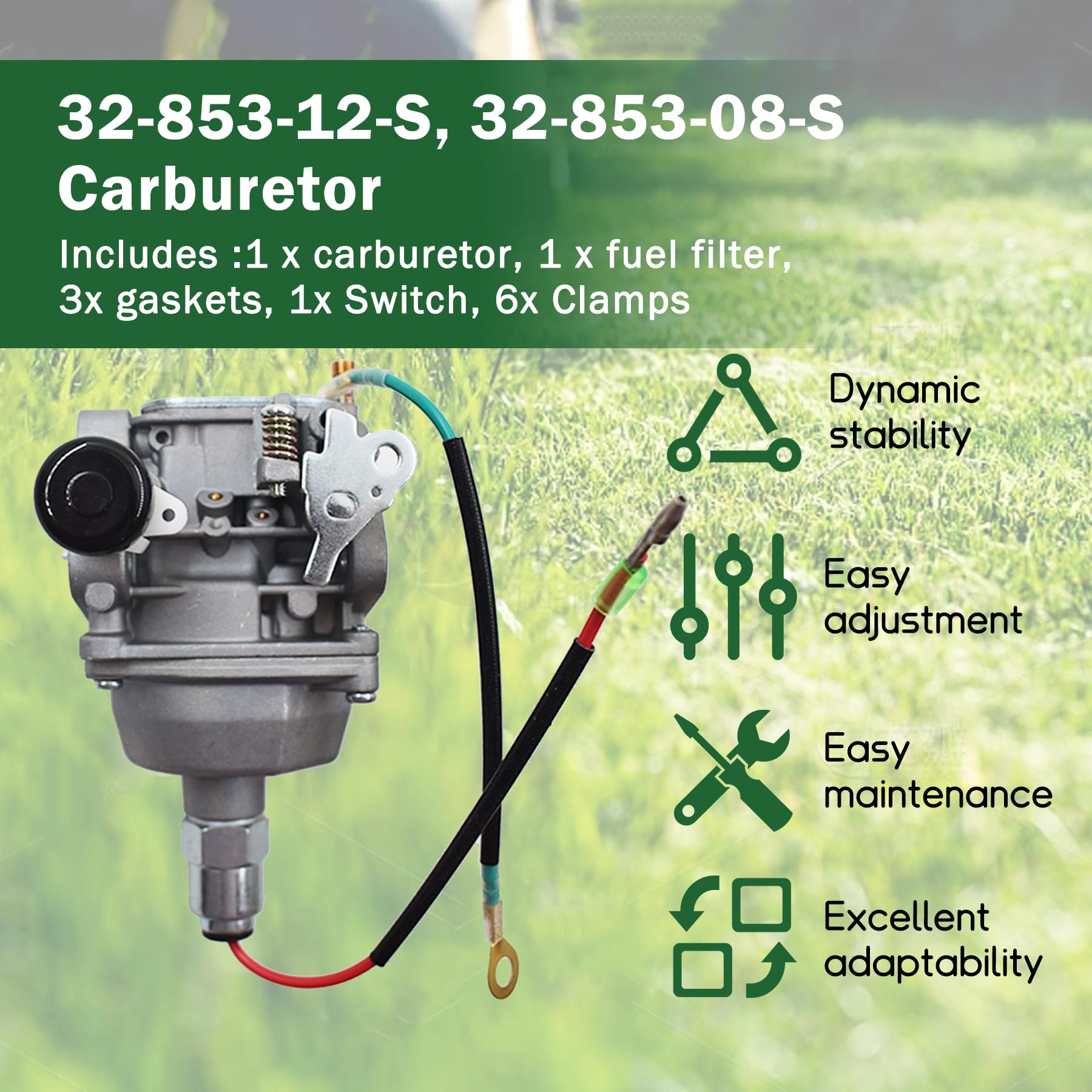

• 3x gaskets and 1x inline fuel filter included for clean operation

How does installation affect performance and reliability?

Replacing a cracked or clogged carburetor restores correct air-fuel mixture and smooth idle, which improves starting and reduces stalling. Installing fresh gaskets and a new fuel filter helps prevent leaks and limits debris from reaching the engine, extending the life of the replacement.

• Fresh gaskets improve sealing and prevent vacuum leaks
• New fuel filter keeps contaminants out of the carburetor jets
• Correct mounting and linkages maintain throttle response and governor action
• Comprehensive kit reduces the need for additional parts during installation

Are there simple checks before installing this carburetor?

Yes — a quick inspection of your engine and the old carburetor helps ensure compatibility and smoother installation. Verify that bolt spacing, throttle linkage orientation, and fuel line locations match the replacement part images.

• Compare mounting hole spacing and overall shape to photos
• Confirm throttle and choke linkages line up without major modification
• Inspect fuel line diameter and routing for clamp compatibility
• Clean the intake manifold surface before fitting new gaskets

Who is this for: This ALL-CARB replacement kit is for owners, landscapers, and mechanics who maintain small engines driven by Kohler SV-series motors or Toro equipment that use the listed part numbers. It’s aimed at those comfortable performing basic engine repairs or working with a shop technician; the included gaskets, clamps, and filter make it a practical single-purchase solution for restoring reliable starting and smoother running.
