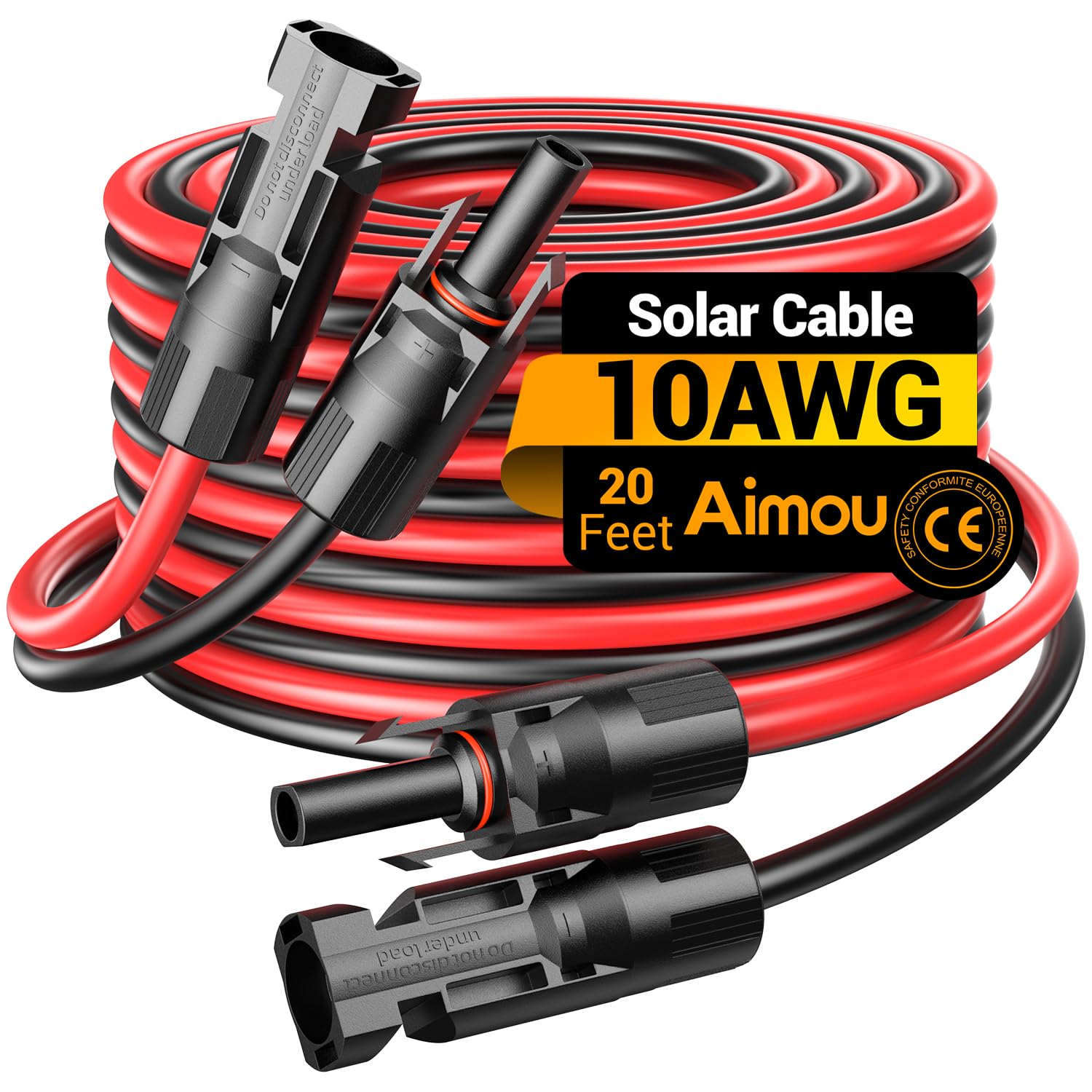

Aimou Solar Extension Cable 20FT 10AWG (Black/Red) — IP68 Waterproof, Low Voltage Drop

Aimou 20FT 10AWG solar extension cable is a heavy-duty 10-gauge photovoltaic wire with IP68 waterproof male and female connectors designed to extend solar arrays, deliver low-resistance power transfer, and withstand extreme outdoor conditions.

This Aimou solar extension cord pairs thick 10 AWG tinned-copper conductors with dual XLPE/XLPO insulation and factory-fitted waterproof MC4-style connectors to create a plug‑and‑play extension for panels, inverters, and charge controllers. Built for off-grid installations, RVs, boats, and rooftop arrays, the cable balances high current capacity and long-term durability while minimizing voltage drop across typical run lengths.

How does this cable reduce energy loss across long runs?

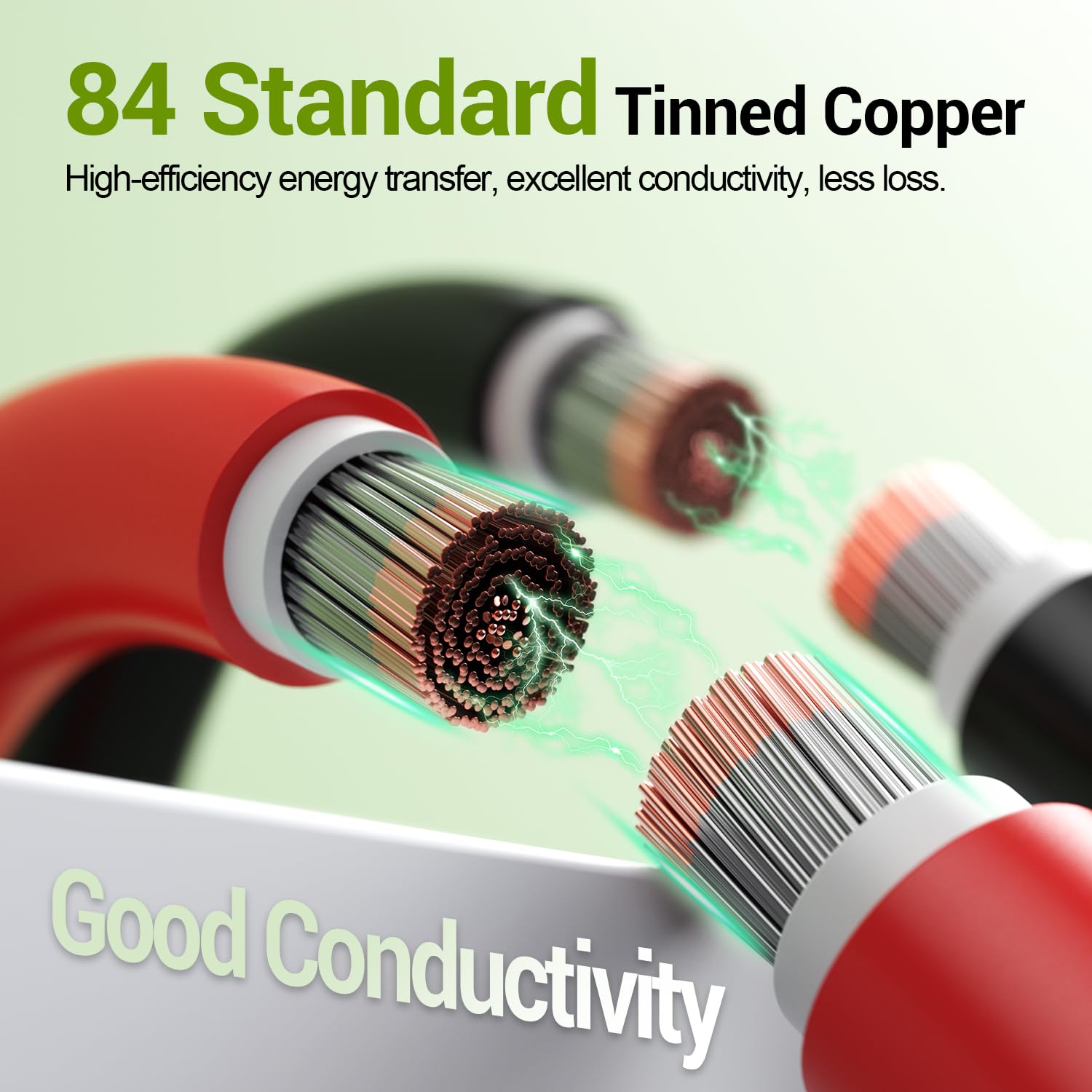

The 10 AWG gauge provides a larger conductive area than smaller PV wires, which lowers resistance and reduces voltage drop. Aimou’s cable uses 84 tinned copper strands for improved conductivity and corrosion resistance, preserving more of your panel output between the module and the controller or inverter.

• High strand count (84) tinned copper to improve conduction and flexibility
• Low conductor resistance (≤5.09 Ω/km at 20°C) limits power loss
• Rated current up to 50A supports higher-load panels and strings
• Available in multiple lengths to match system layout and minimize unnecessary runs

What weather and temperature conditions will this extension cable tolerate?

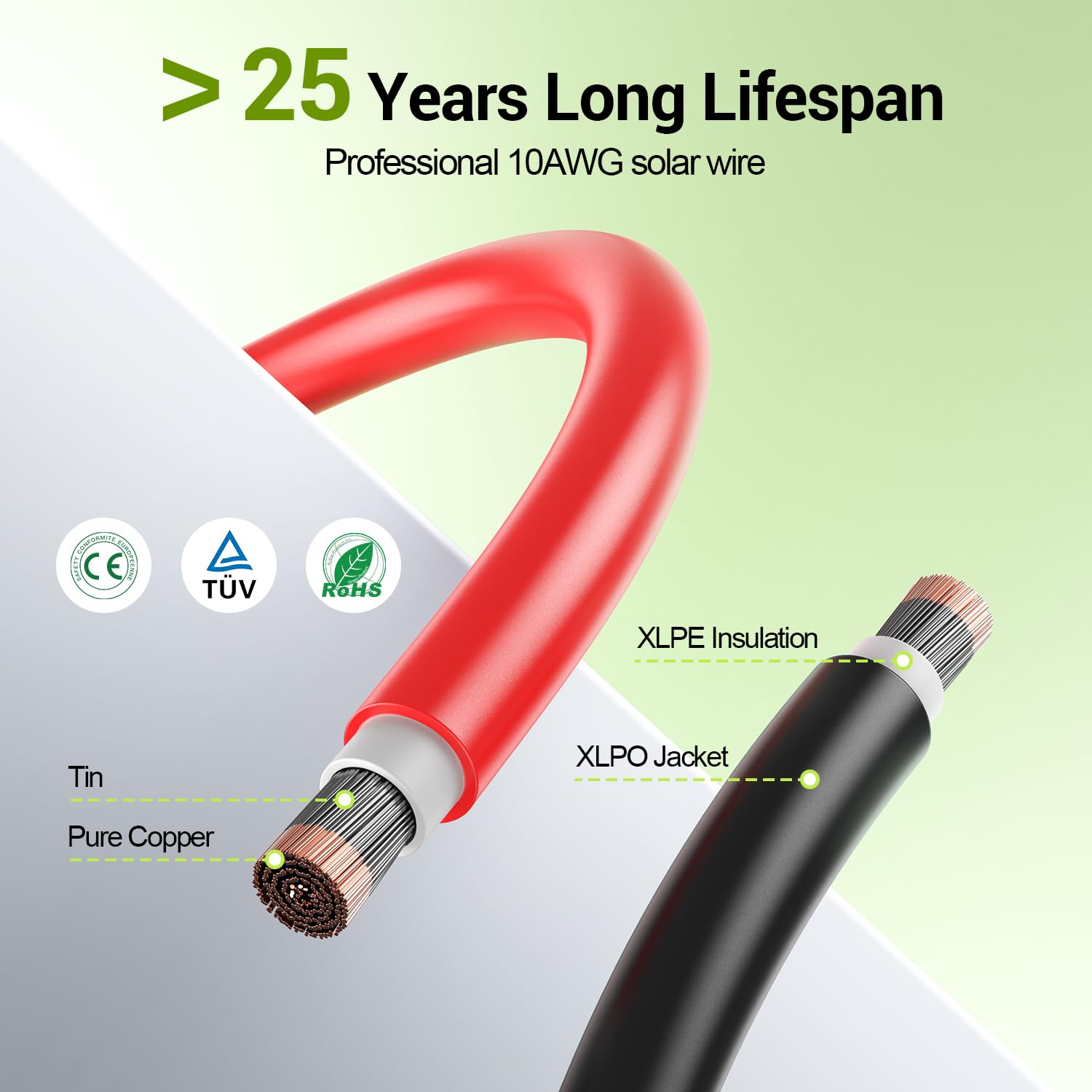

Aimou’s dual-sheath construction—XLPO outer jacket plus XLPE insulation—was selected for longevity in outdoor use. The materials are UV-resistant, halogen-free, and formulated to resist aging, moisture, and chemicals, supporting a broad operating temperature range for year-round installations.

• Operational range from -40°F to 194°F (-40°C to 90°C typical)
• UV and moisture resistance for rooftop and marine exposure
• High heat resistance (up to 125°C/257°F) for hot climates
• Halogen-free compound reduces toxic gas risk in enclosed spaces

Are the connectors safe and easy to use for DIY or professional installs?

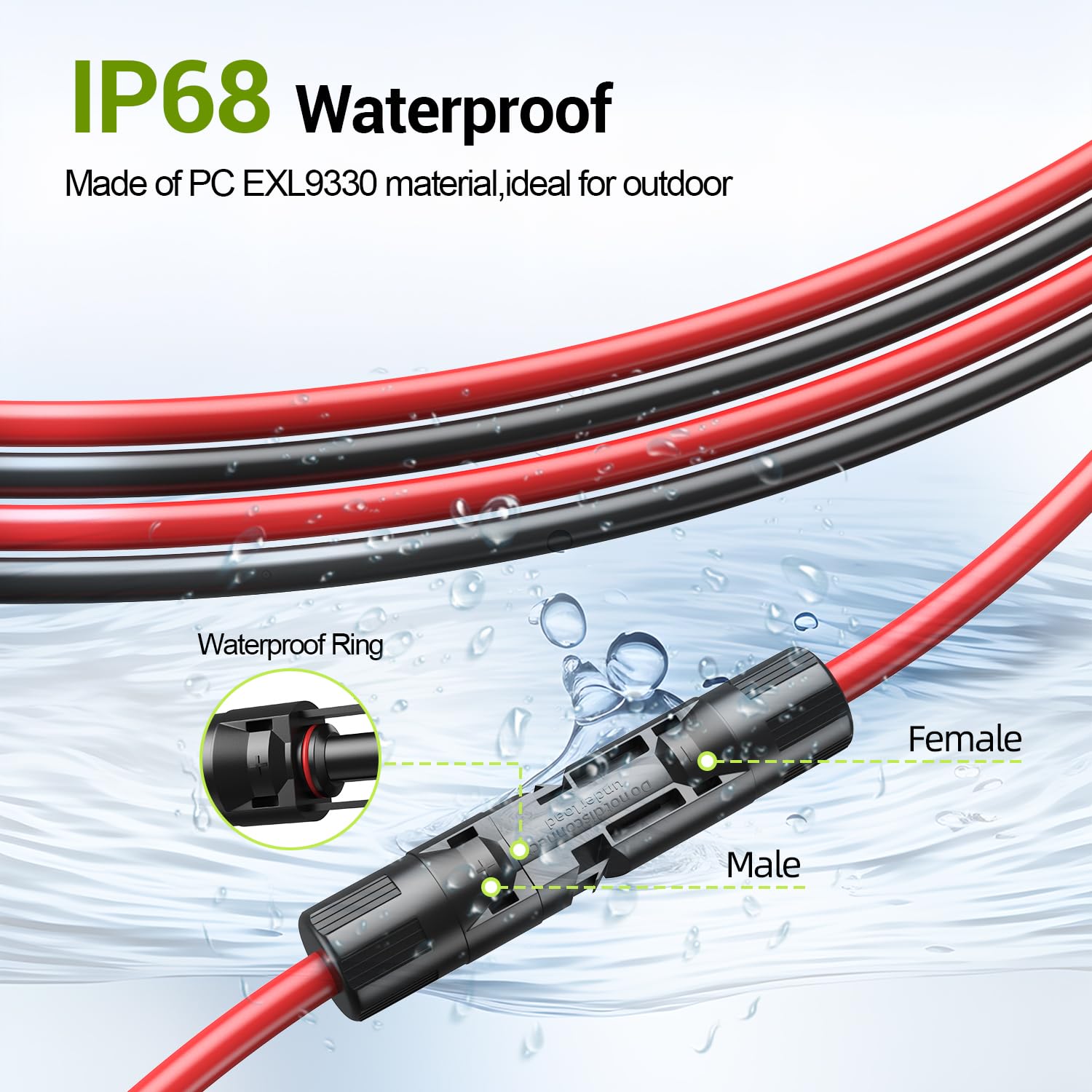

The cable arrives with male and female IP68-rated waterproof connectors pre-installed for tool-free plug-and-play connections. The robust connector design and TÜV/CE/RoHS compliance help ensure reliable electrical contact and environmental protection, reducing the chance of intermittent connections or moisture ingress.

• IP68 waterproof and dustproof connectors for harsh environments
• Simple lock-and-release design for quick panel swaps or maintenance
• Test voltage 6500V and rated DC voltage 1500V for PV safety margins
• Connector mating saves time versus field-terminated ends

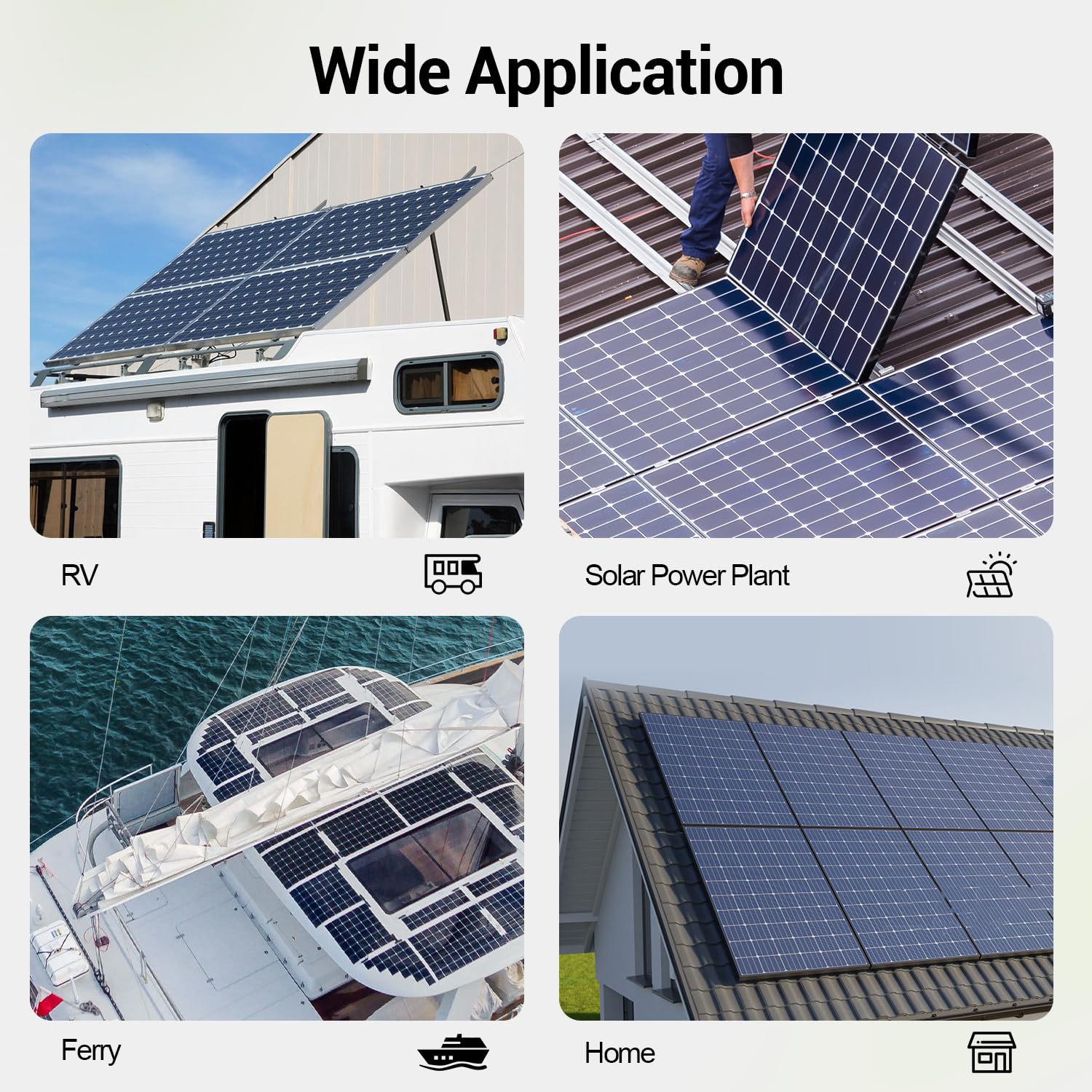

Which systems and setups work best with this 10AWG extension cable?

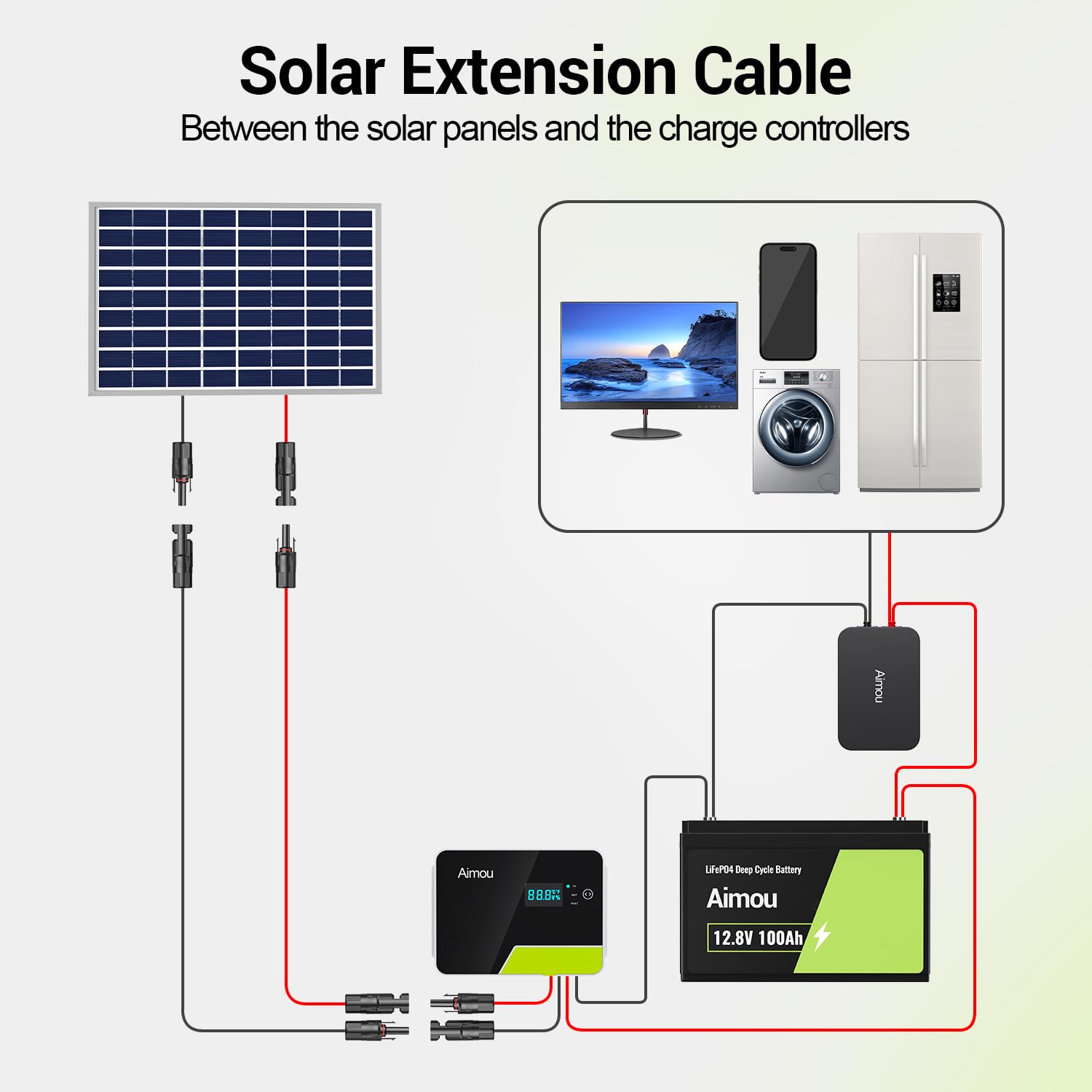

This 20FT red-and-black extension is compatible with many solar panels, inverters, charge controllers, and solar generators. It’s sized for medium-current strings, RV arrays, small off-grid cabins, and portable setups where a durable, weatherproof extension is needed between components.

• RV and marine solar installations requiring flexible, durable runs
• Decks, balconies, and small rooftop PV systems for homeowners
• Remote cabins and off-grid generators where longer runs are common
• DIY solar kits and photovoltaic farms that need standardized connectors

Who is this for: Installers, RV owners, boaters, tiny-home builders, and DIY off-grid enthusiasts who need a robust, mid-length photovoltaic extension cable with high current capacity and weatherproof connectivity. Choose Aimou 20FT 10AWG when you want reduced voltage drop, a long-lasting jacket and insulation system, and ready-to-connect IP68 connectors that simplify installation and maintenance.
