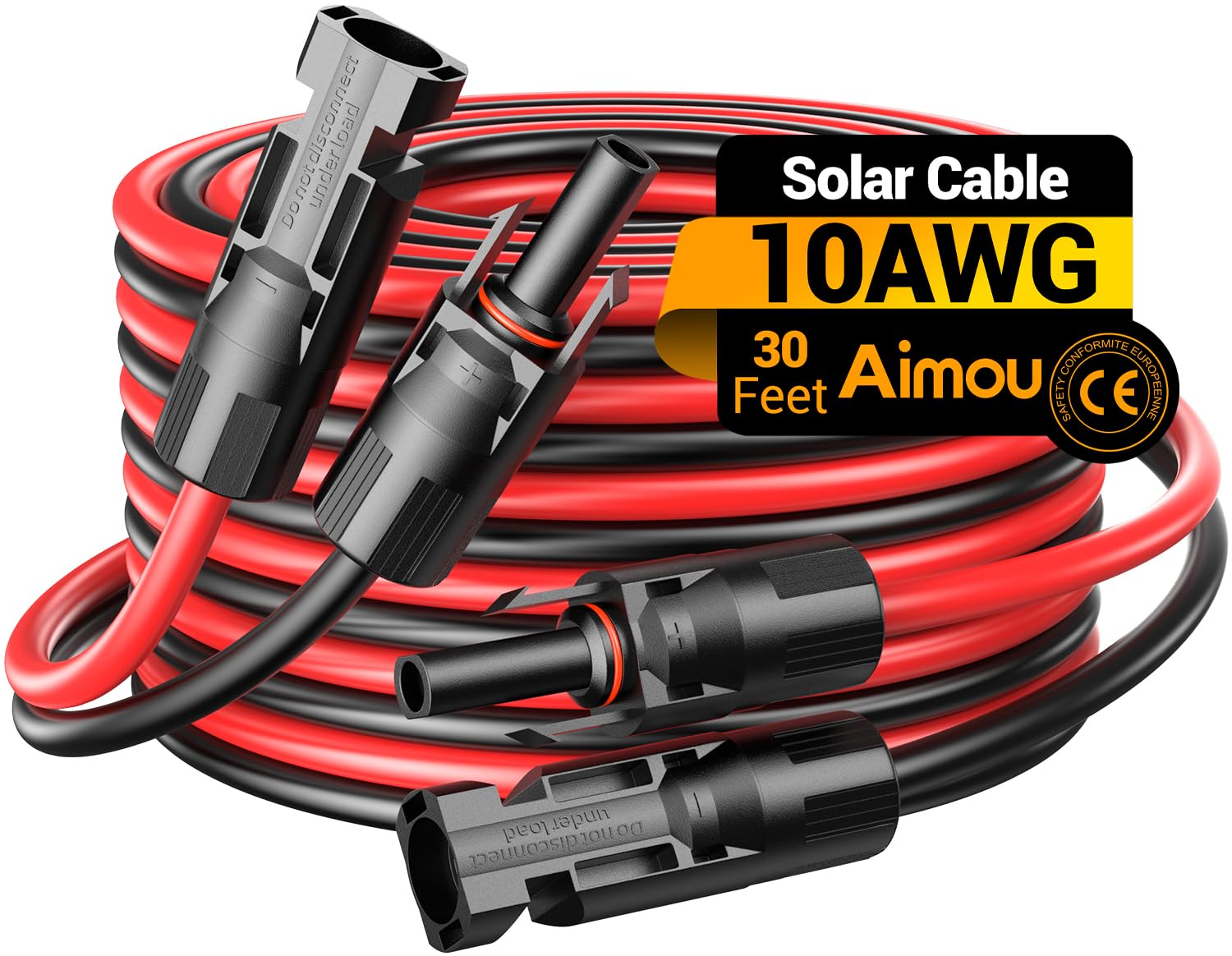

Aimou 10AWG 30FT Solar Extension Cable — 10 Gauge PV Wire with IP68 Male/Female Connectors, UV‑Resistant (Black/Red)

Aimou's 30FT 10AWG solar extension cable is a heavy-duty, weatherproof 10-gauge PV lead with male and female connectors designed to reliably extend off-grid and RV solar arrays.

Built for long service life and stable power transfer, this Aimou 10AWG extension pairs plentiful tinned copper conductors with dual-layer insulation to reduce resistance, resist UV and moisture, and tolerate a wide temperature range. The assembly includes IP68-style waterproof connectors for tool-free plug-and-play hookups between panels, inverters, charge controllers, and portable solar generators.

How does this cable maintain efficient energy transfer?

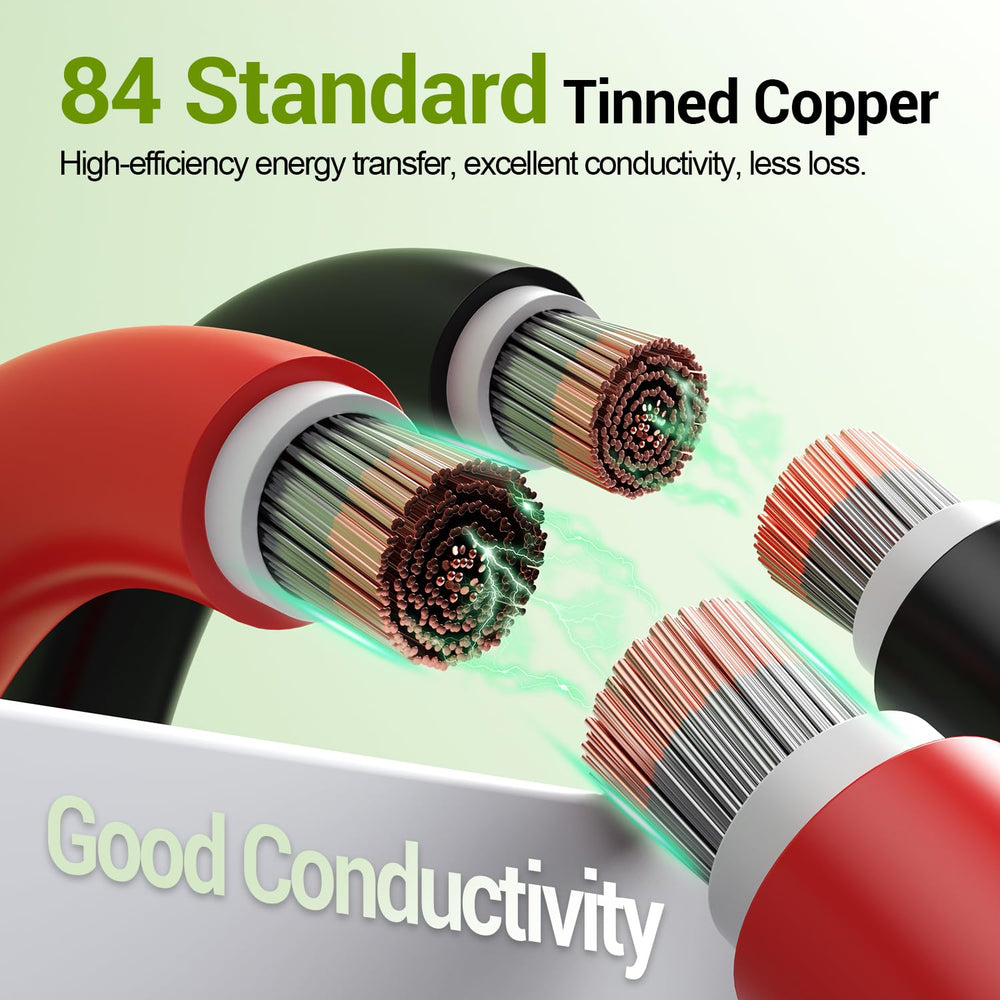

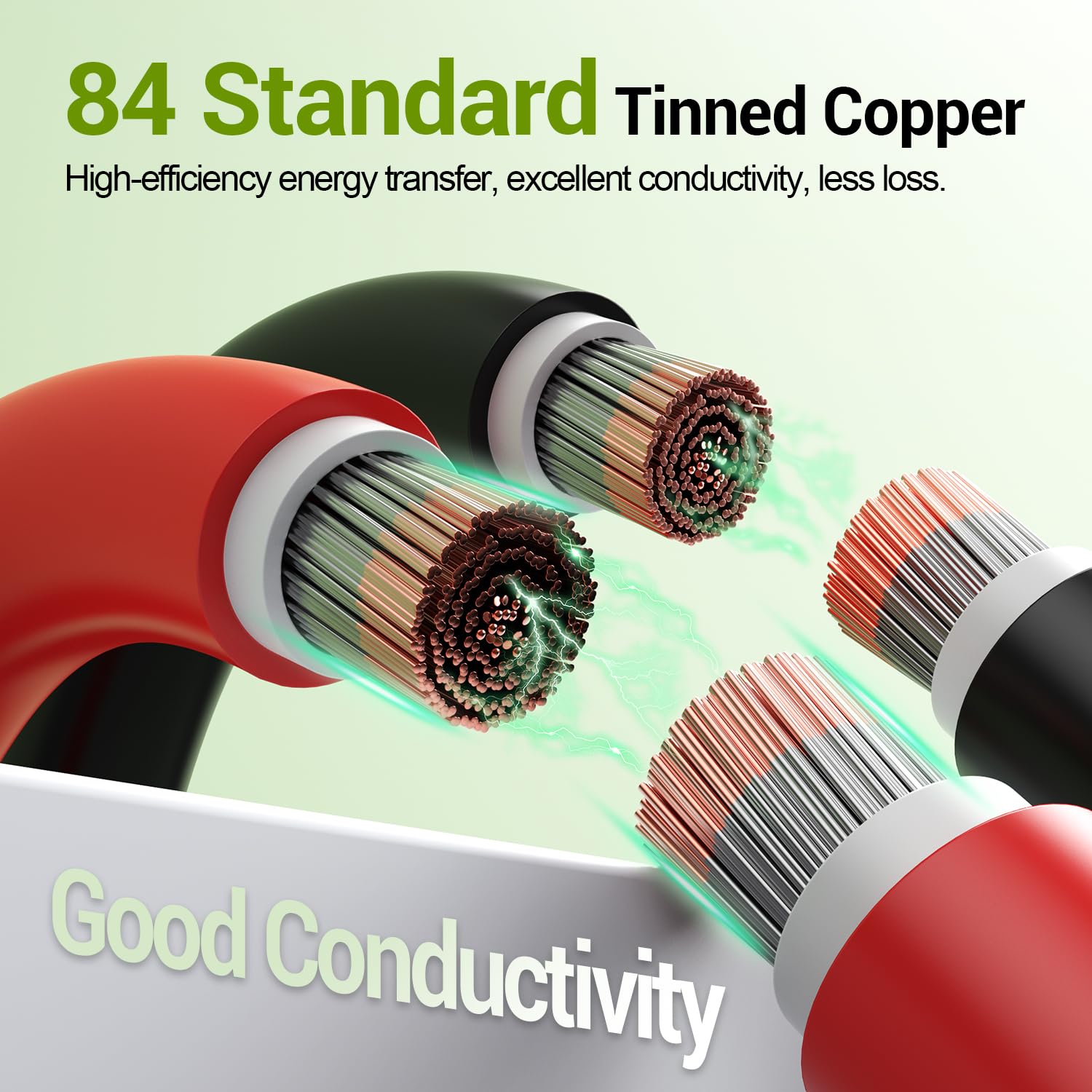

The Aimou 10 gauge cable uses 84 tinned copper strands and high-quality insulation to minimize conductor resistance and maximize conductivity. Lower resistance means less voltage drop across the run, preserving power from panel to inverter or battery bank.

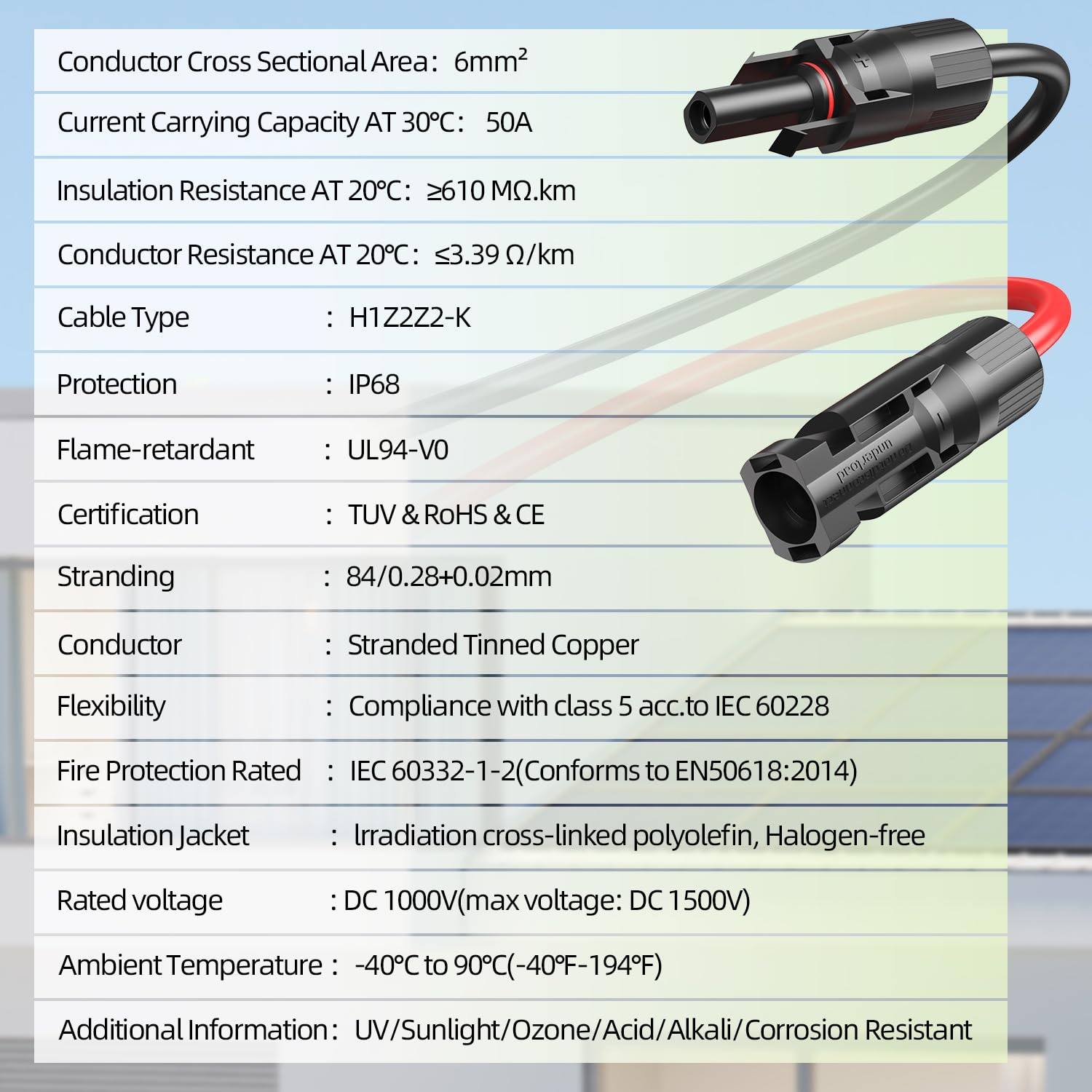

• 10AWG cross-section (6mm²) for higher current capacity up to 50A
• 84 tinned copper strands for improved conductivity and corrosion resistance
• Tested conductor resistance ≤5.09 Ω/km at 20°C for consistent performance

Will the cable hold up outdoors and in extreme temperatures?

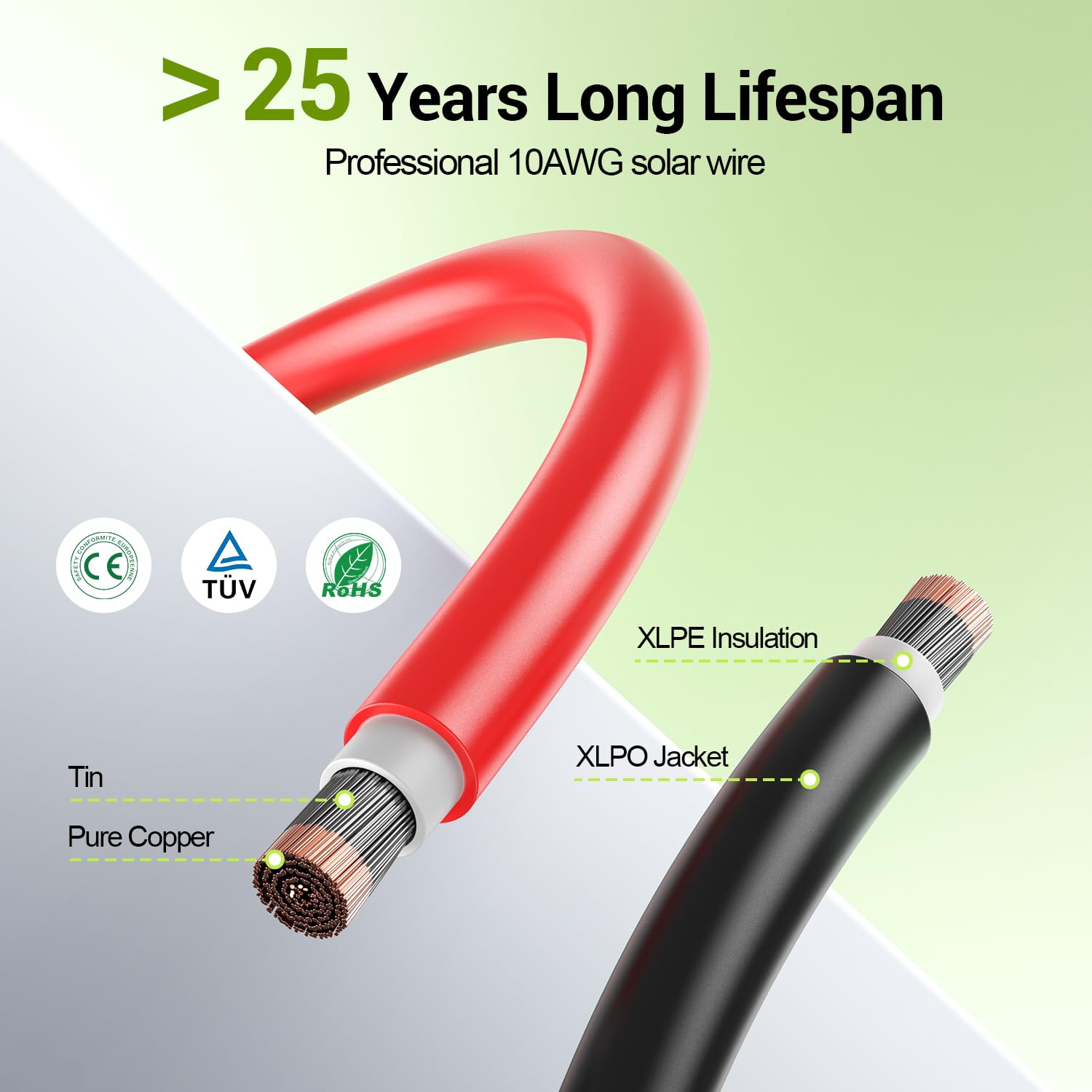

Yes — the cable features an XLPO outer jacket and XLPE insulation formulated to resist UV, aging, moisture and corrosion. It is rated for an extended temperature range so it performs in both cold and very hot climates.

• Operational range from -40°F to 194°F (rated to 125°C/257°F)
• Halogen-free materials for safer, more eco-friendly operation
• UV and moisture resistant for rooftop, marine, and exposed installations

Are the connectors easy and safe to use?

The cable end fittings are standard photovoltaic-style male and female connectors that lock securely without tools, enabling fast, repeatable connections while keeping moisture and dust out. The connectors meet common safety certifications for photovoltaic use.

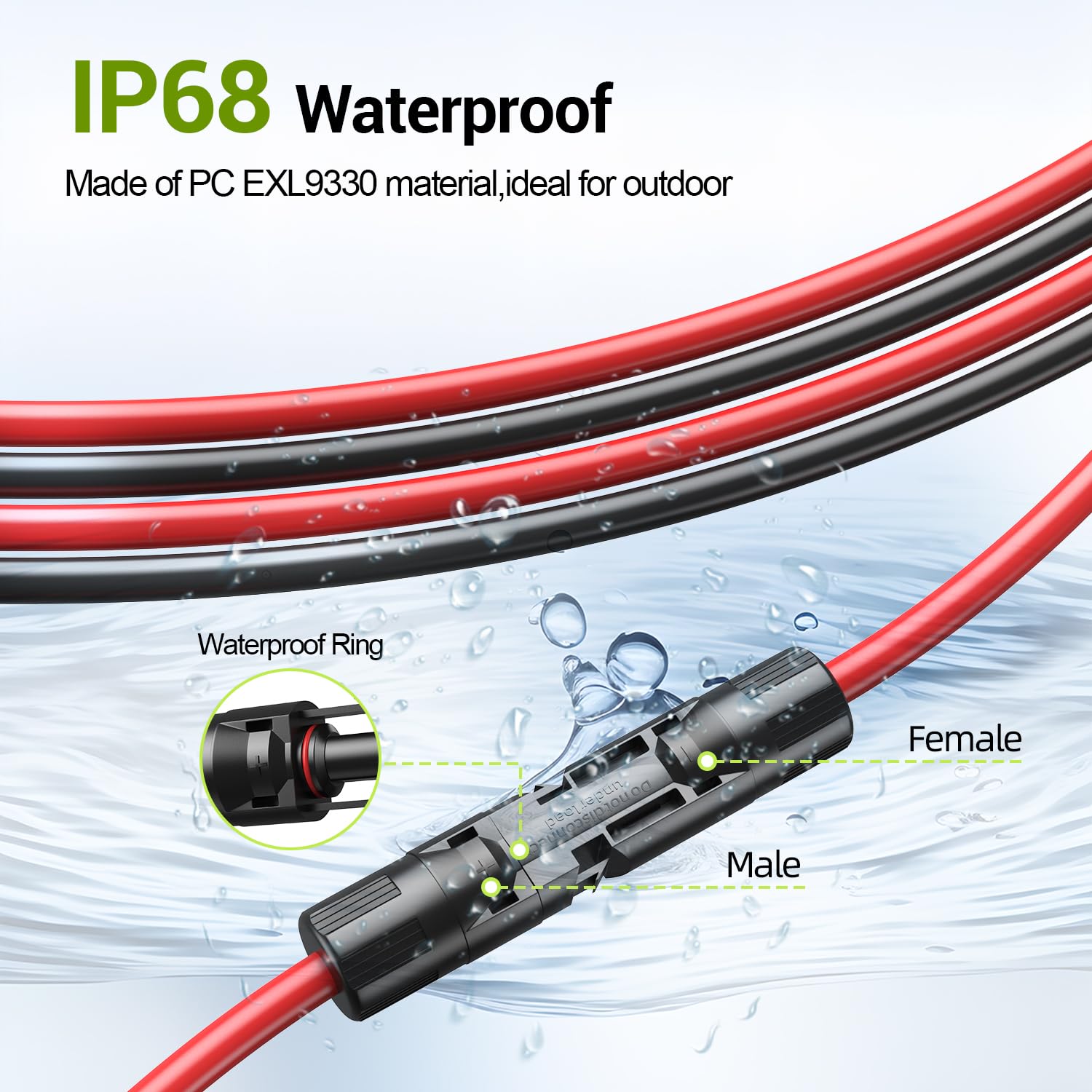

• IP68 waterproof/dustproof-rated connectors for reliable outdoor sealing

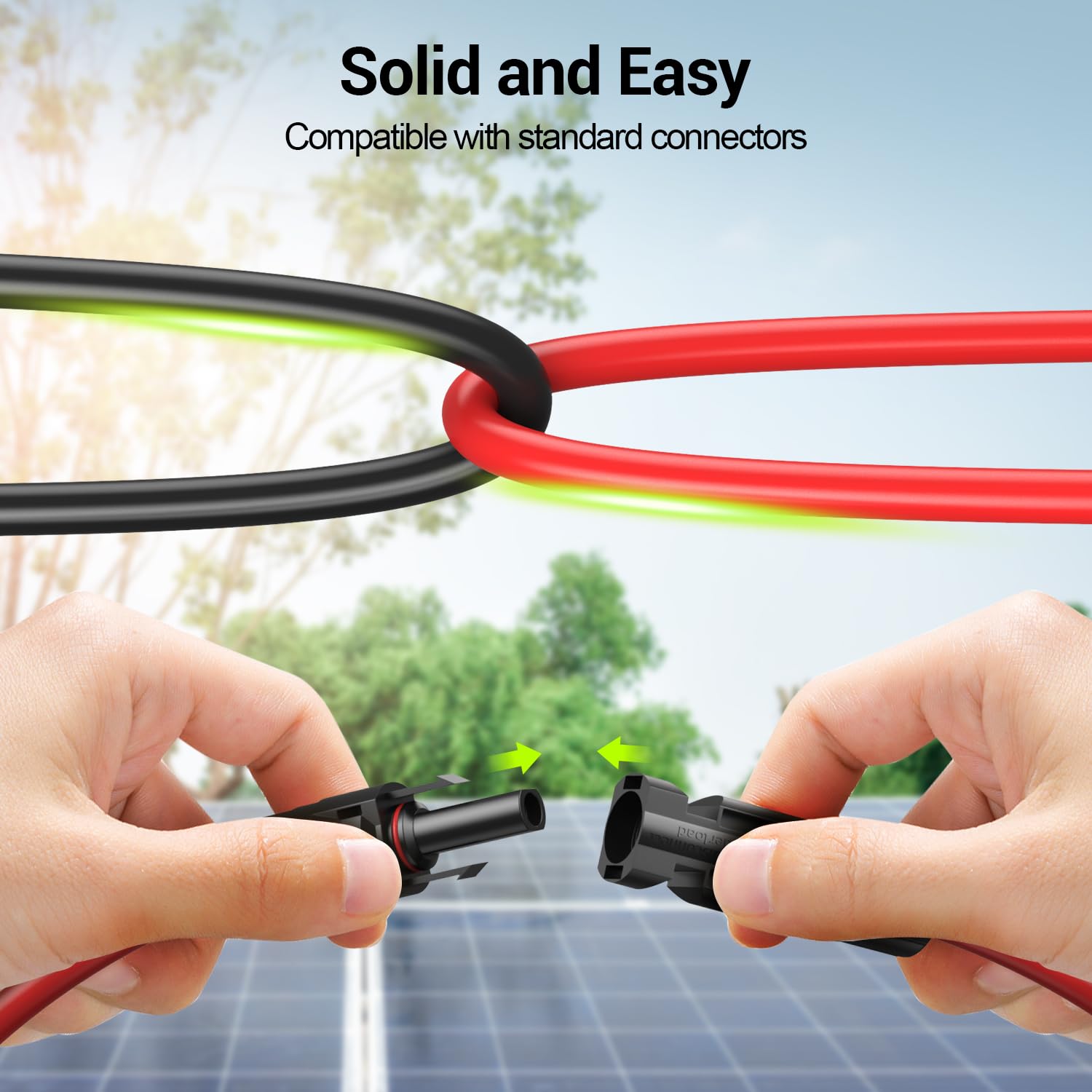

• Plug-and-play male and female ends with simple latch locking
• Meets TÜV, CE and RoHS standards; rated DC1500V and tested to 6500V

How can I use this cable in my solar setup?

The Aimou 30FT 10AWG extension is compatible with most solar panels, inverters and charge controllers that accept standard PV connectors. It’s available in multiple lengths and color-coded red/black to make runs and polarity checks straightforward.

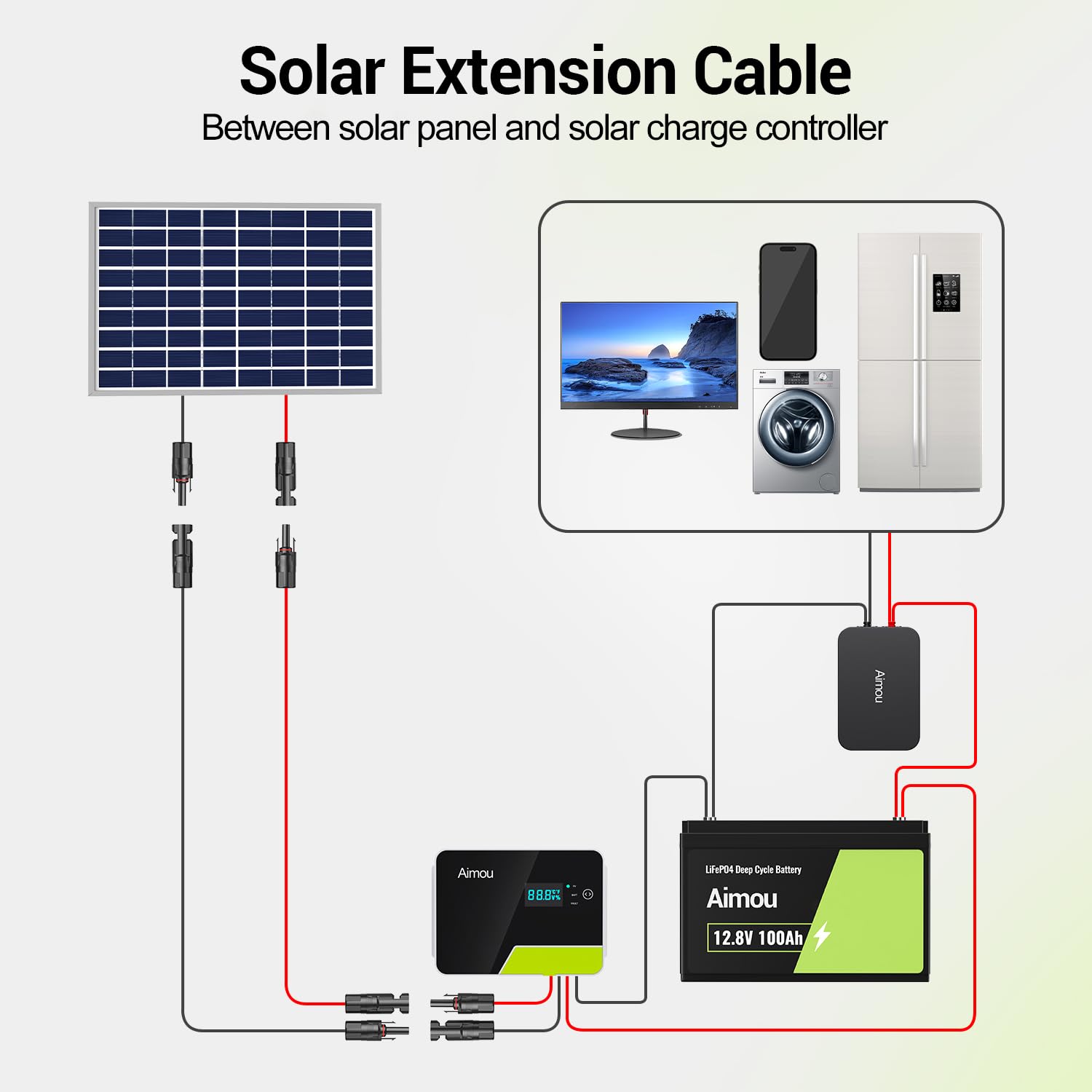

• Use to extend panel-to-panel, panel-to-inverter, or panel-to-generator runs

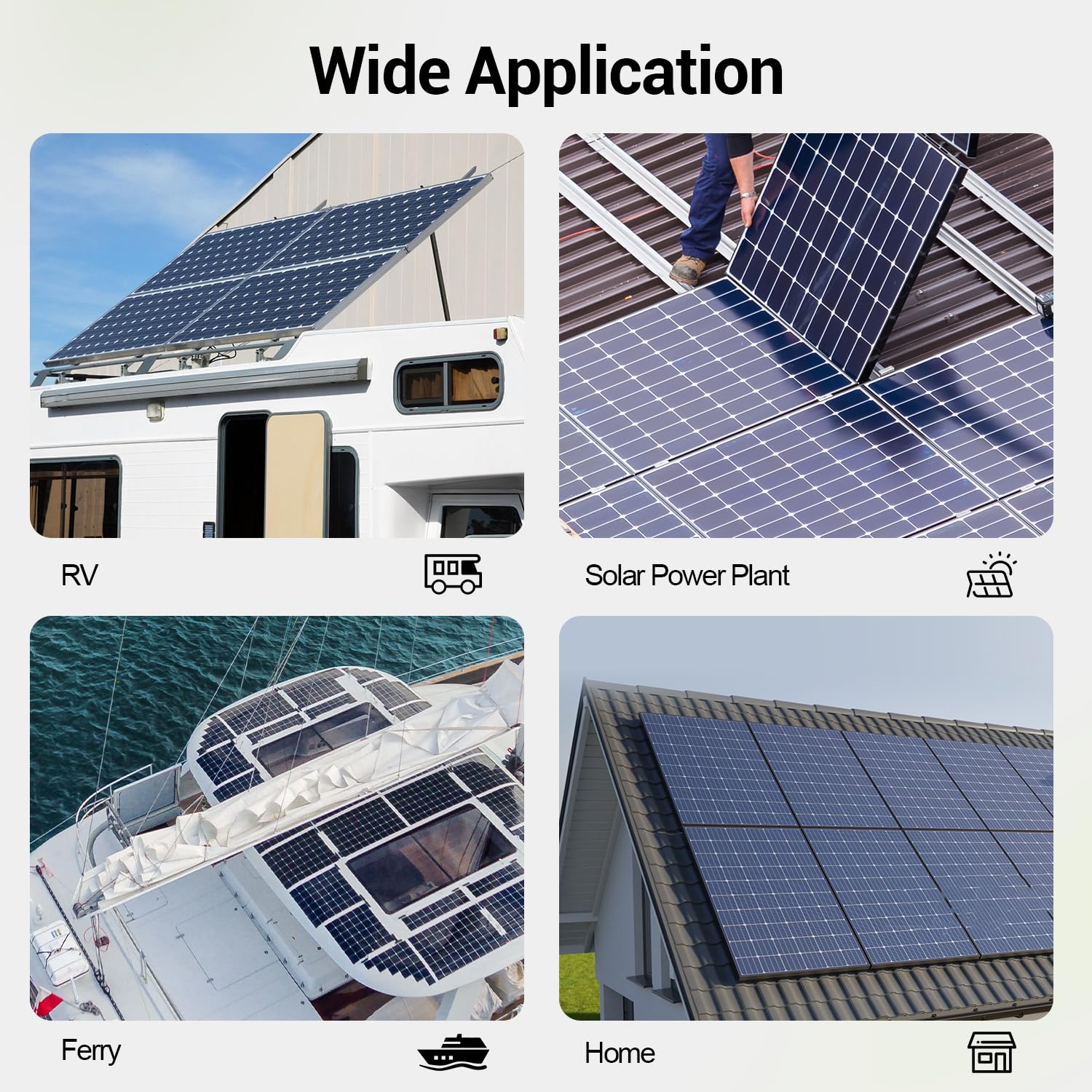

• Suitable for RVs, boats, remote cabins, rooftop PV, balconies, and off-grid systems
• Available lengths include 10ft, 20ft, 30ft and 50ft to fit layout needs

Who is this for? Installers and DIYers who need a durable, low-resistance extension for small to medium photovoltaic systems will find this Aimou 10AWG cable suitable. It’s aimed at users installing solar on RVs, boats, portable generators, tiny homes, and residential rooftop or balcony setups who require weatherproof connectors, high current capacity, and long-term outdoor reliability without specialized tools.
