Adviace Grill Replacement Kit for Charbroil Gas Grills — 4 Burners, 4 Heat Plates, 3 Carryover Tubes, 4 Igniters

Adviace replacement kit restores Charbroil gas grills by replacing worn burners, porcelain-coated heat plates, stainless carryover tubes and igniters to get even heat and reliable ignition again.

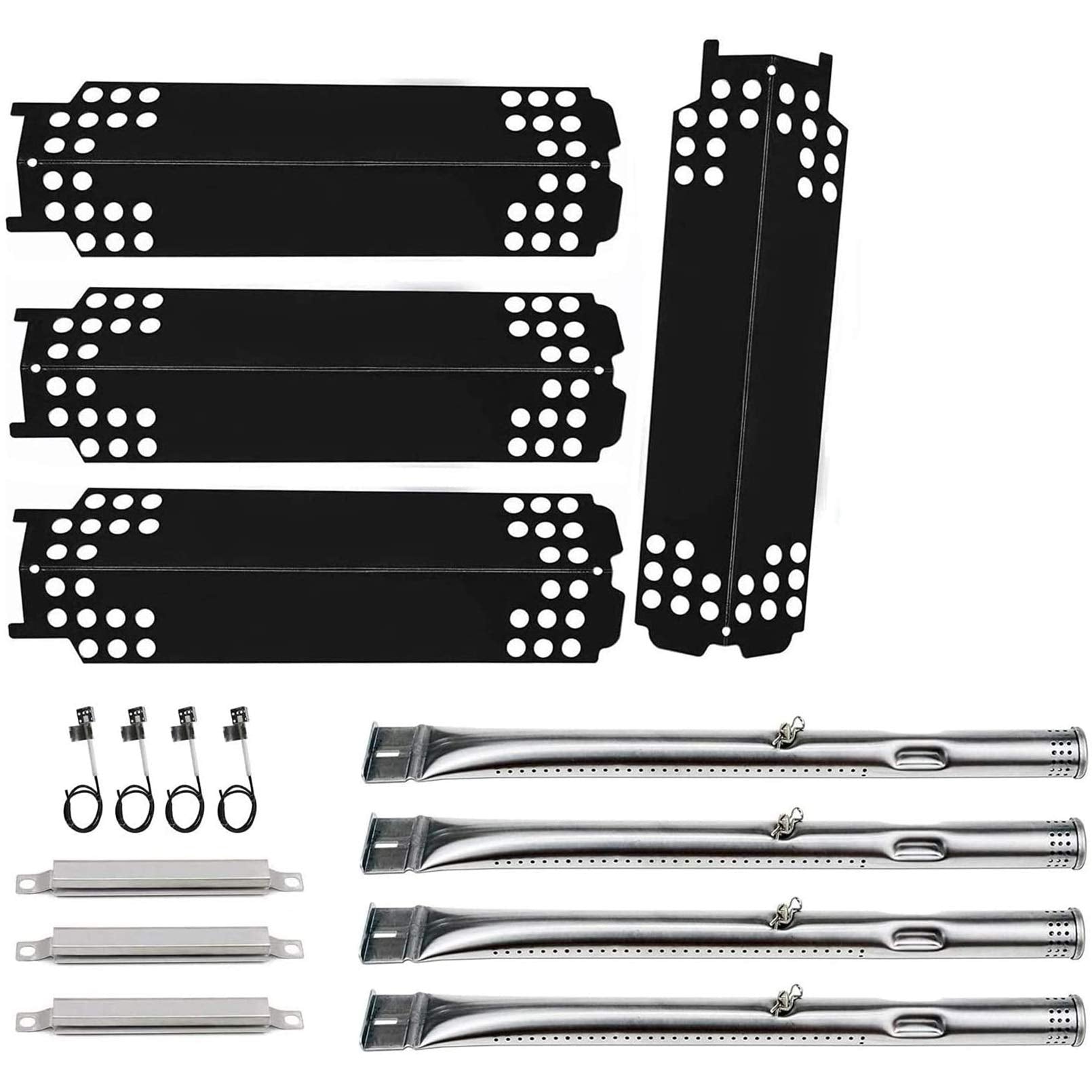

If your Charbroil or compatible Thermos gas grill has uneven heating, rusted burners, or a stubborn igniter, replacing the worn internal parts is a cost-effective way to extend the grill’s life. This kit from Adviace supplies the common service pieces that degrade first: four stainless-steel burners, four porcelain-steel flavorizer/heat plates, three stainless crossover/carryover tubes and four piezo ignitors. The components are sized to match a range of Charbroil model numbers commonly listed for replacement parts and are designed for straightforward installation with basic tools.

Which specific parts are included and what are their sizes?

The kit bundles the most frequently replaced components so you can refresh the core cooking system all at once. Each item is described below along with its dimensions for easy confirmation against your existing parts.

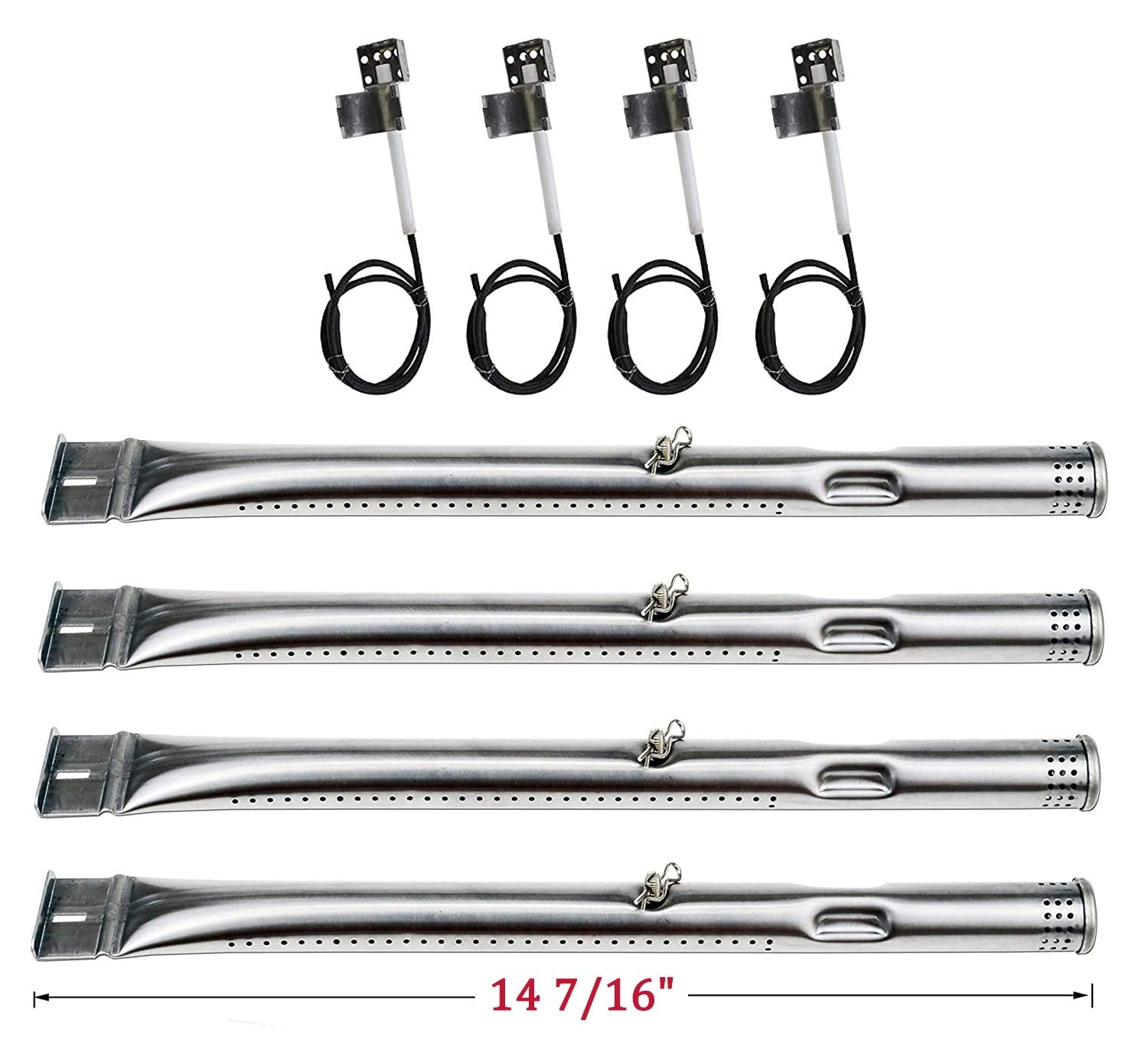

• 4 stainless-steel burners — 14 7/16" long x 1" diameter

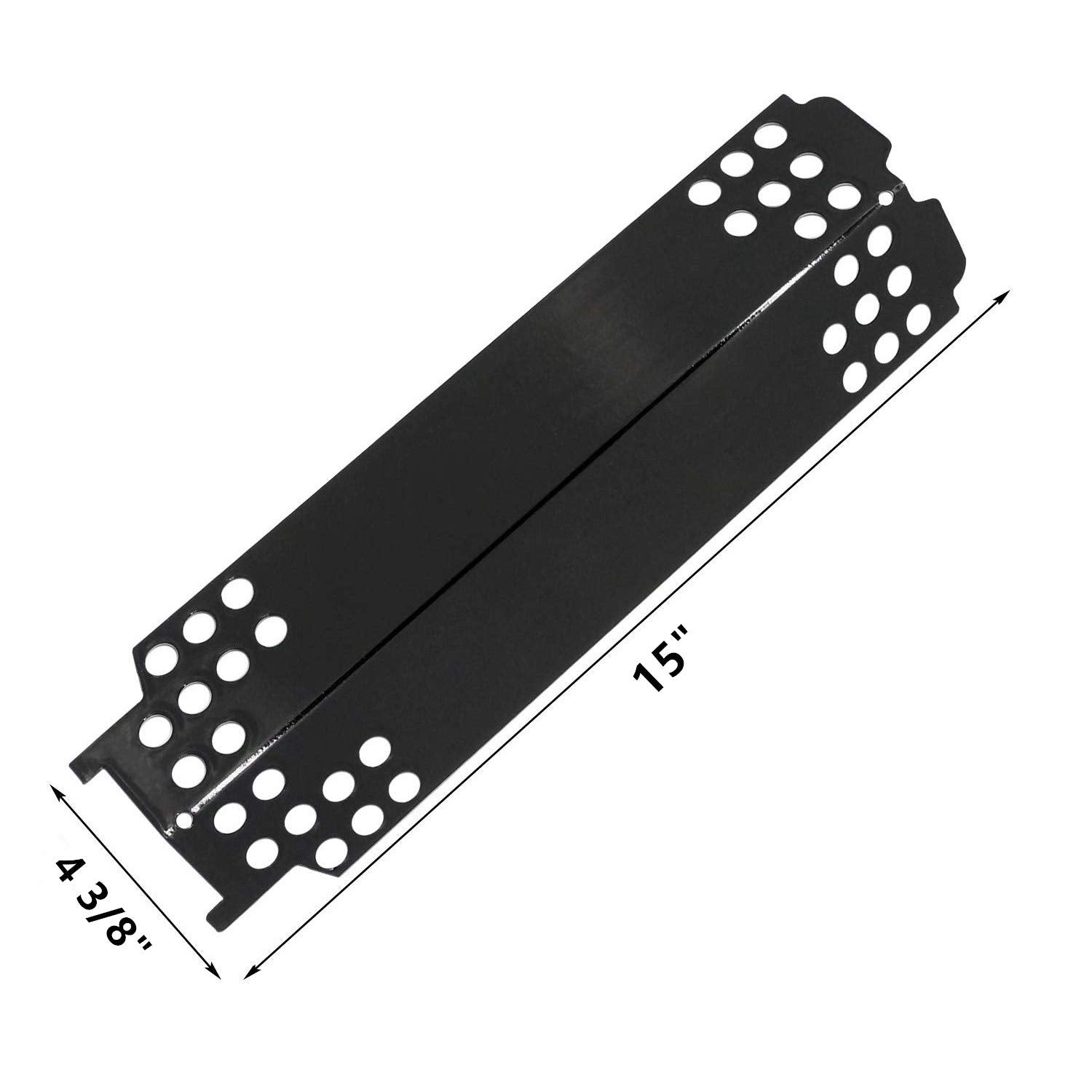

• 4 porcelain-coated heat plates (flavorizer bars) — 15" x 4 3/8"
• 3 stainless steel crossover/carryover tubes — 7 1/4" x 3/4"
• 4 replacement grill ignitors (piezo style)

How do these replacements affect heat distribution and cooking performance?

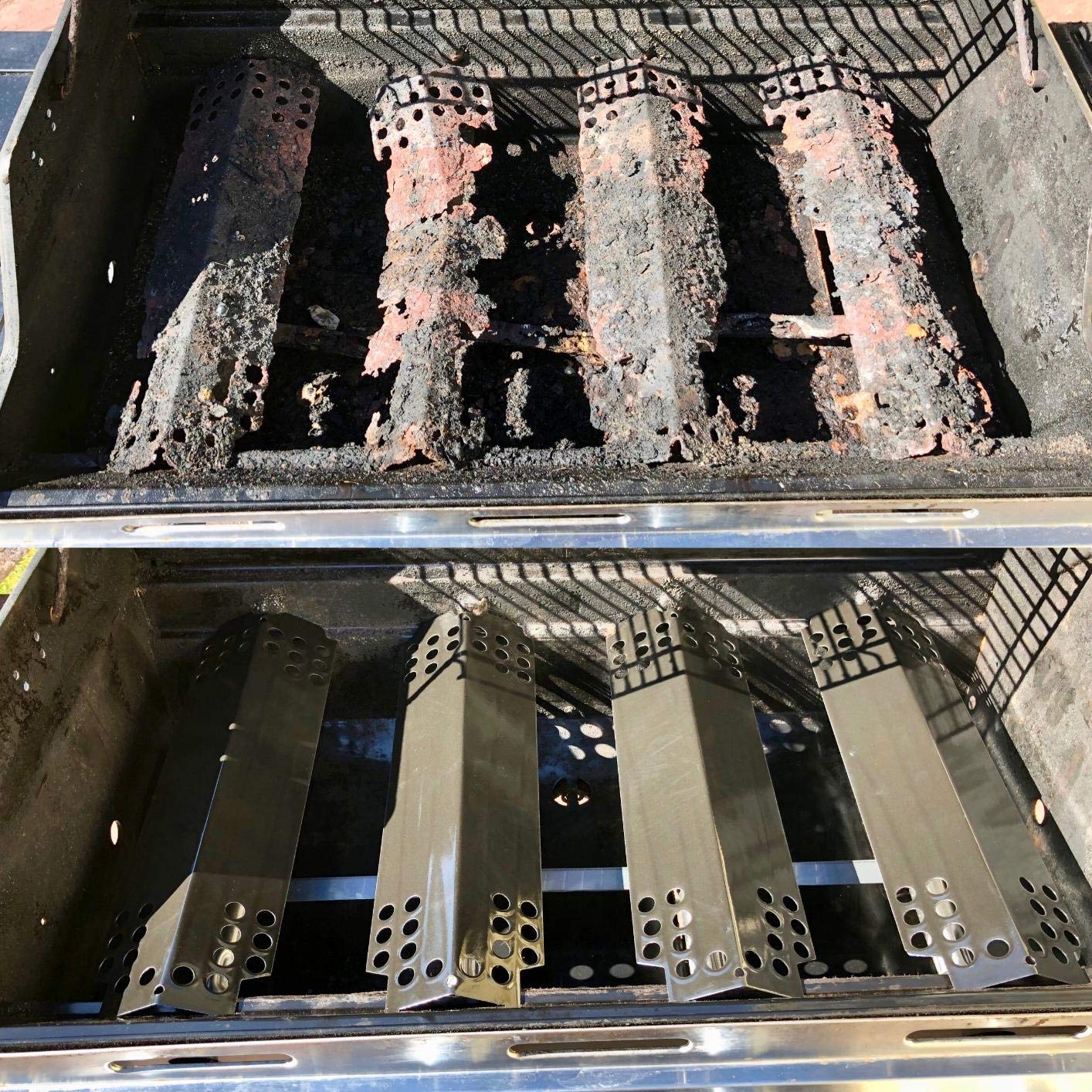

Worn or rusted burners and broken flavorizer bars create cold spots and flare-ups. Installing fresh stainless burners and intact porcelain heat plates helps restore a predictable heat pattern and reduces direct flame contact with drippings.

• Stainless burners resist corrosion and maintain flame stability.

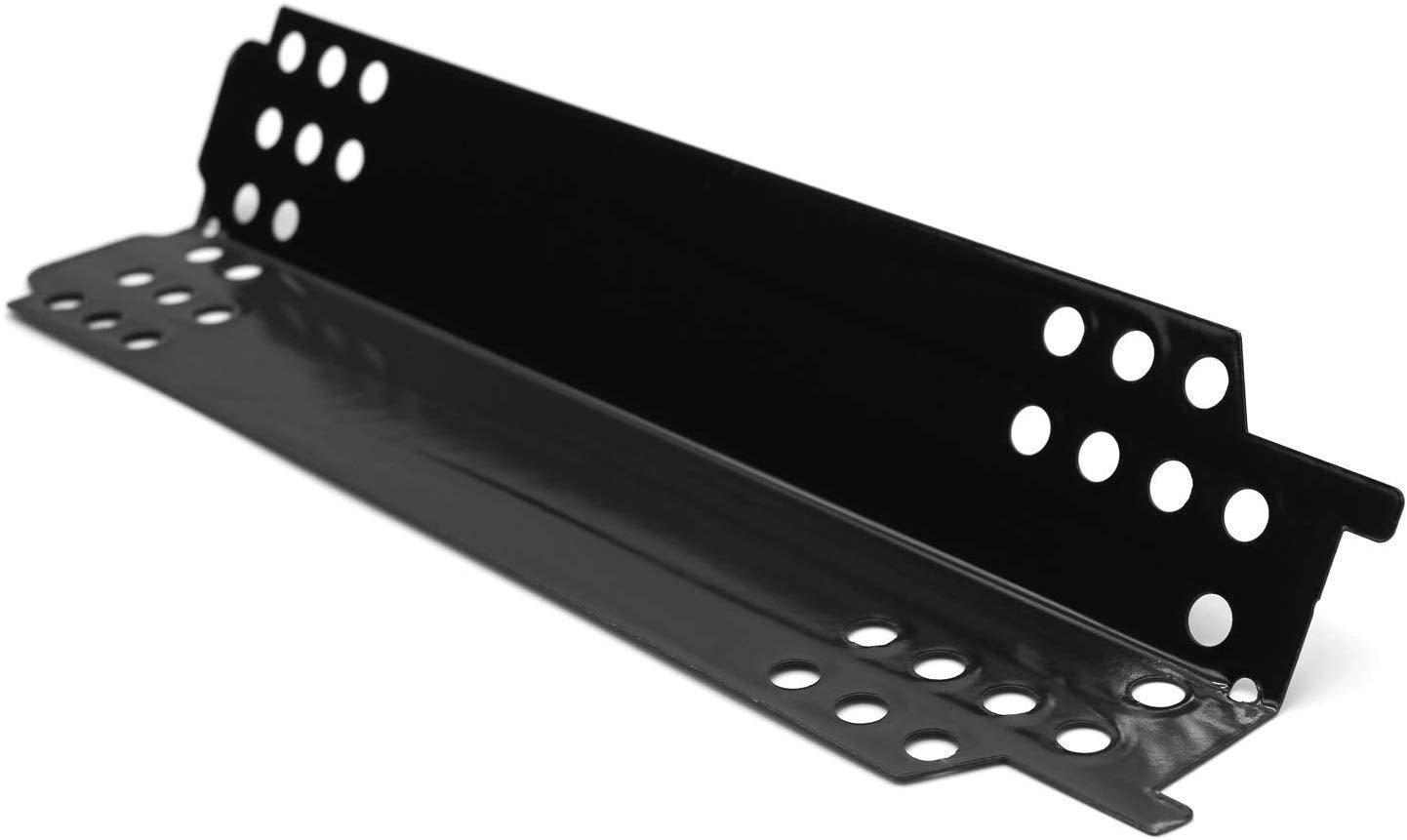

• Porcelain-coated heat plates vaporize drippings to add smoke flavor and protect burners.

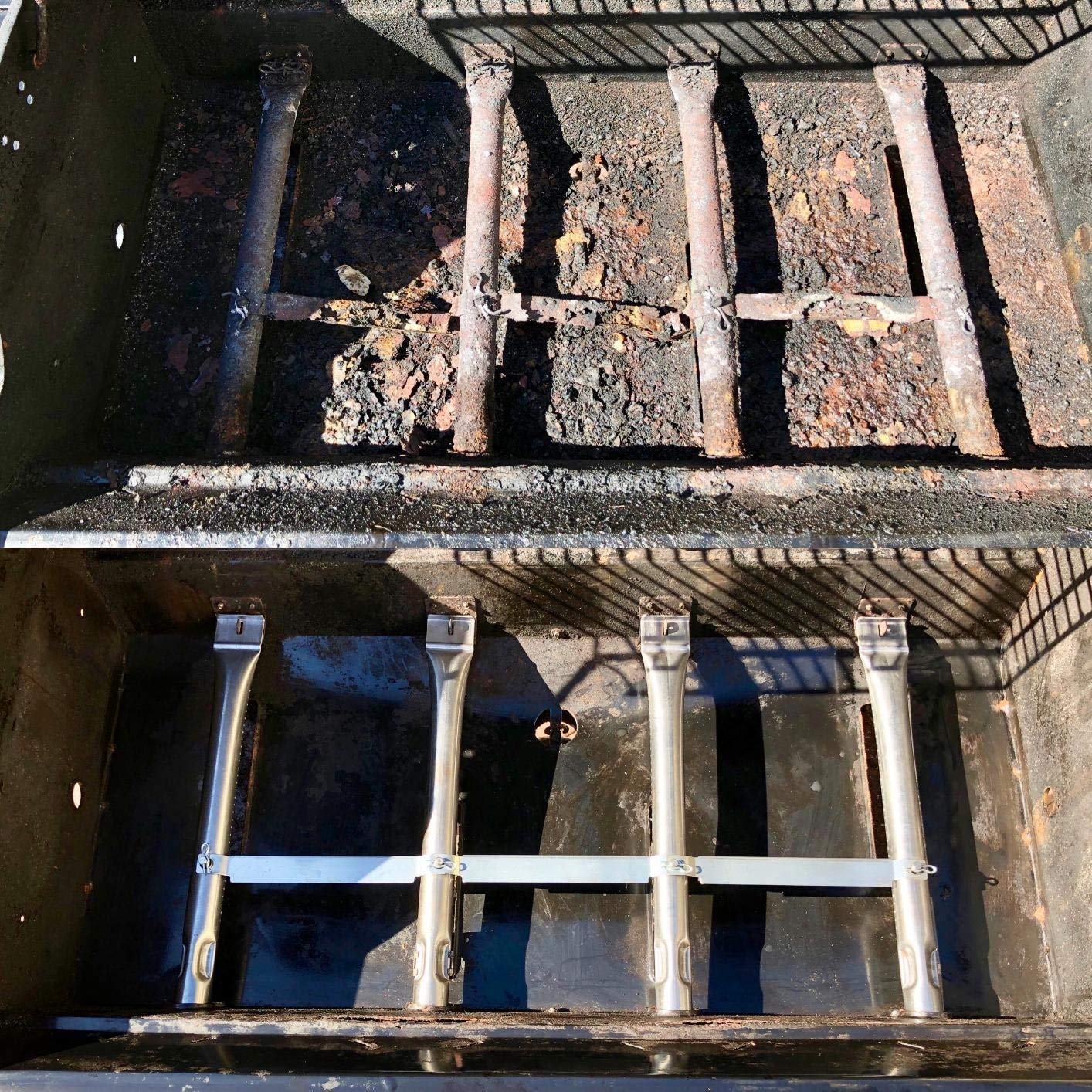

• Crossover tubes ensure gas flows between burner sections for even heating.
• New ignitors provide reliable spark for consistent startup.

Will these parts fit my Charbroil or Thermos grill model?

The Adviace kit is manufactured to replace the listed Charbroil and Thermos model parts, but physical measurement is recommended before purchase. Compatible model references include several Charbroil numbers and a Thermos part listed below.

• Compatible Charbroil reference models: 461334813, 463234413, 463436213, 463436214, 463436215, 466334613, 466342014, 466436213, 466436513, 467300115
• Compatible Thermos reference model: 466360113
• Measure your current burner lengths and plate dimensions to confirm fit: 14 7/16" burners, 15" plates.

How difficult is installation and what tools will I need?

Installation is straightforward for most DIYers. Tasks include removing the old heat plates and burners, swapping carryover tubes, and connecting ignitor leads. Expect to work with basic hand tools and follow safety steps like turning off the gas supply.

• Typical tools: screwdriver, adjustable wrench, needle-nose pliers.
• Turn off gas and disconnect the propane cylinder or gas line before starting.
• Check burner alignment and gas ports for blockages during installation.
• Replace ignition wiring carefully to ensure safe sparking.

Who is this kit for? If your grill shows signs of corrosion, uneven heating, or a failing igniter but the body and cart are still in good condition, this Adviace replacement parts kit is a practical, lower-cost alternative to buying a new barbecue. It's aimed at homeowners and DIY grill owners who want to restore cooking performance on Charbroil and compatible Thermos models, extending the usable life of an existing grill with purpose-sized stainless burners, porcelain-coated flavorizer bars, crossover tubes and ignitors. Measure your old parts against the supplied dimensions before ordering to ensure a proper match.
