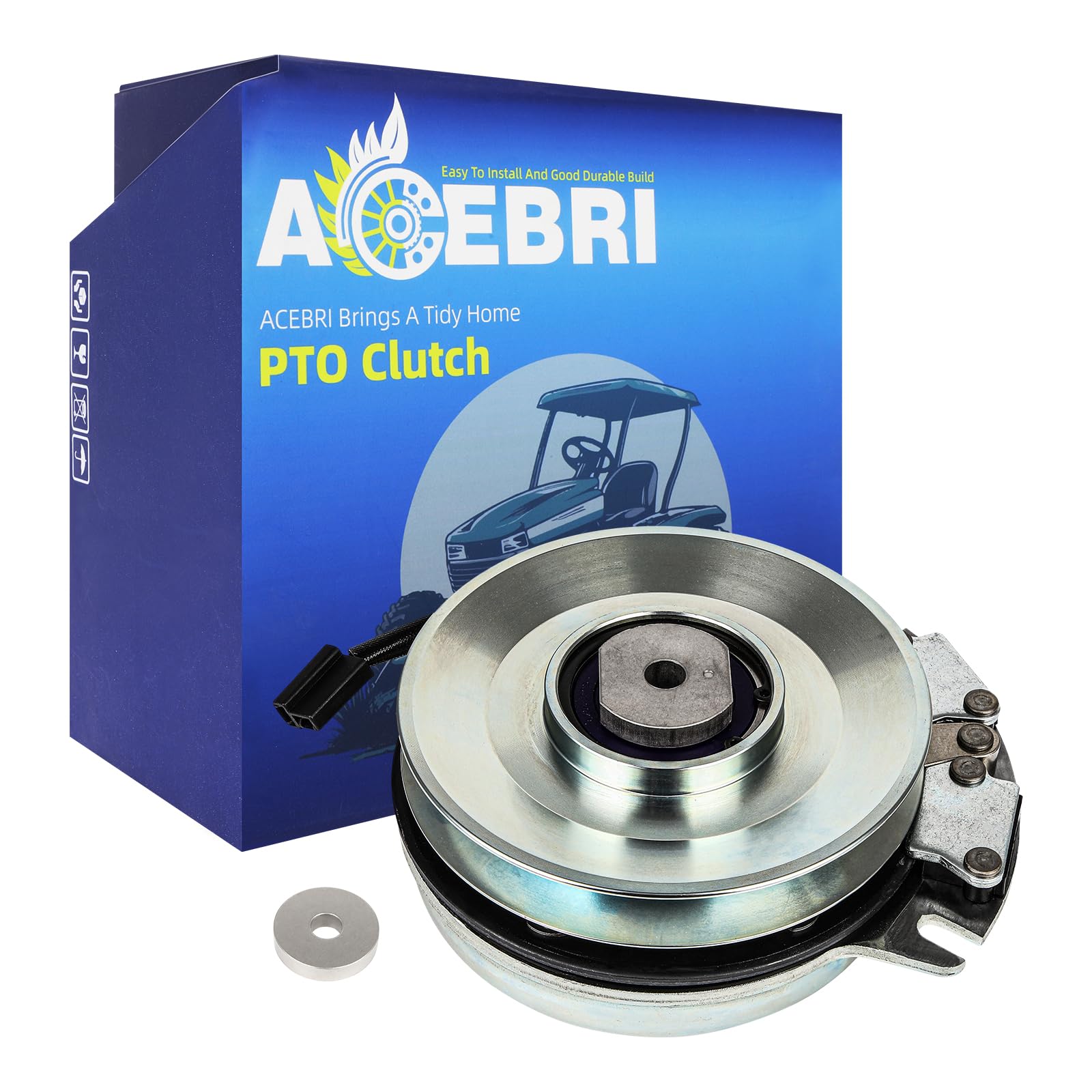

ACEBRI PTO Clutch for Bad Boy Mowers - Replacement 070-1000-00, CCW 200 in‑lb Torque

ACEBRI PTO Clutch for Bad Boy 070-1000-00 is a high-torque, CCW-rotation mower clutch engineered to replace Warner and Bad Boy OEM units for ZT Elite, CZT Elite and several Bad Boy models.

This replacement PTO clutch is built from heat-treated steel and tuned for stronger initial torque and reliable braking across a wide temperature range. It is designed to fit multiple Bad Boy mower platforms and to interchange with common Warner and third-party part numbers, offering an affordable rebuild option that restores deck engagement and keeps commercial and residential mowers running.

Which mower models and part numbers does this clutch fit?

The ACEBRI clutch is made to match the fit and function of several Bad Boy and Warner clutches used across model years. Fitment covers ZT Elite and CZT Elite series, a range of Pup and Lightning machines, and older ZT/CZT frames.

• Direct Bad Boy replacement: 070-1000-00
• Compatible Warner numbers: 5218-114, 5218-220, 5218-83, 5218-221, 5218-305, 5218-75
• Fits ZT Elite (2013–2016), CZT Elite (2014–2015), ZT (2007–2012), CZT (2010–2013)
• Also replaces parts for Stens, Xtreme and other OEM cross-references

What are the core mechanical specifications I should check?

Before ordering, confirm the crankshaft diameter, pulley size and rotation direction on your mower so the clutch engages correctly. This ACEBRI unit is specified for common commercial/consumer mowers and tuned to 200 in-lb torque with CCW rotation.

• Crankshaft diameter: 1.125 inches (1 1/8)
• Pulley diameter: 6.375 inches
• Rotation: counterclockwise (CCW)
• Rated torque: 200 in-lb

How is installation and maintenance handled for this PTO clutch?

The clutch installs like the OEM units: remove the belt, disconnect battery/key, unbolt the old clutch and transfer any required shims or pulleys. ACEBRI recommends checking air gap and, if needed, removing the brake shim when excessive wear produces too large an air gap.

• Always remove key and disconnect spark before service
• Check and restore the air gap per mower manual; remove brake shim if clutch won’t engage hot
• Use supplied torque spec and match pulley alignment to avoid belt wear
• Routine visual checks: mounting bolts, electrical connector, and pulley runout

Will this clutch deliver durable performance in different temperatures?

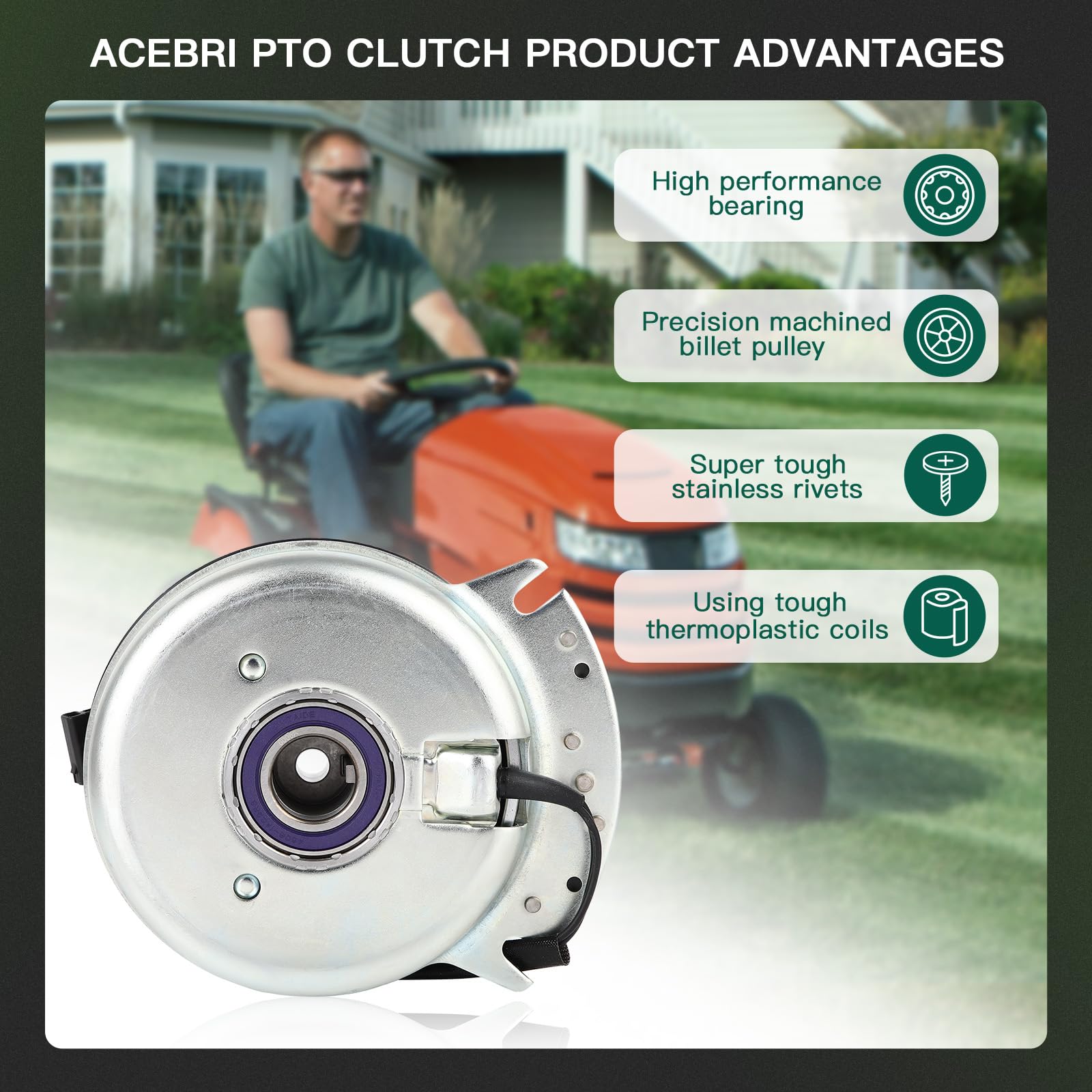

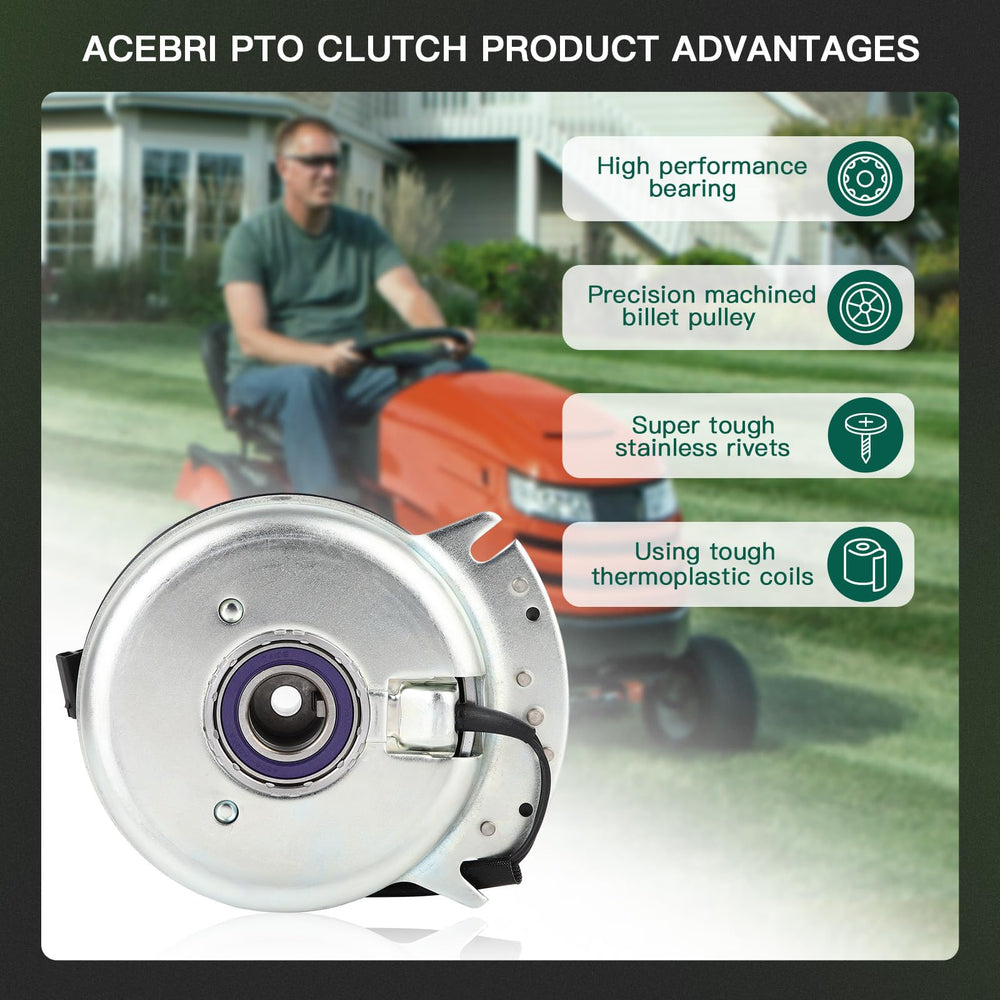

ACEBRI manufactures the clutch from high-quality, heat-treated steel to resist deformation under heat and cold. The design emphasizes higher initial torque for positive engagement and a robust braking surface to reduce slip under load.

• Heat-treated steel construction for temperature stability
• Special manufacturing process for elevated initial torque
• Engineered braking surface to limit slippage during heavy cutting
• Quality testing intended to match OEM durability expectations

Who this is for: This ACEBRI PTO clutch suits owners and technicians who need a reliable aftermarket replacement for Bad Boy and compatible Warner clutches — especially ZT Elite and CZT Elite users, small commercial lawn care operators, and DIY mechanics restoring older machines. If you require model compatibility advice or experience fitment issues after purchase, ACEBRI Shop offers email support to confirm correct selection and help with installation questions.
